025 - Transmission Box

Maserati 228 Transmission Box Parts Diagram

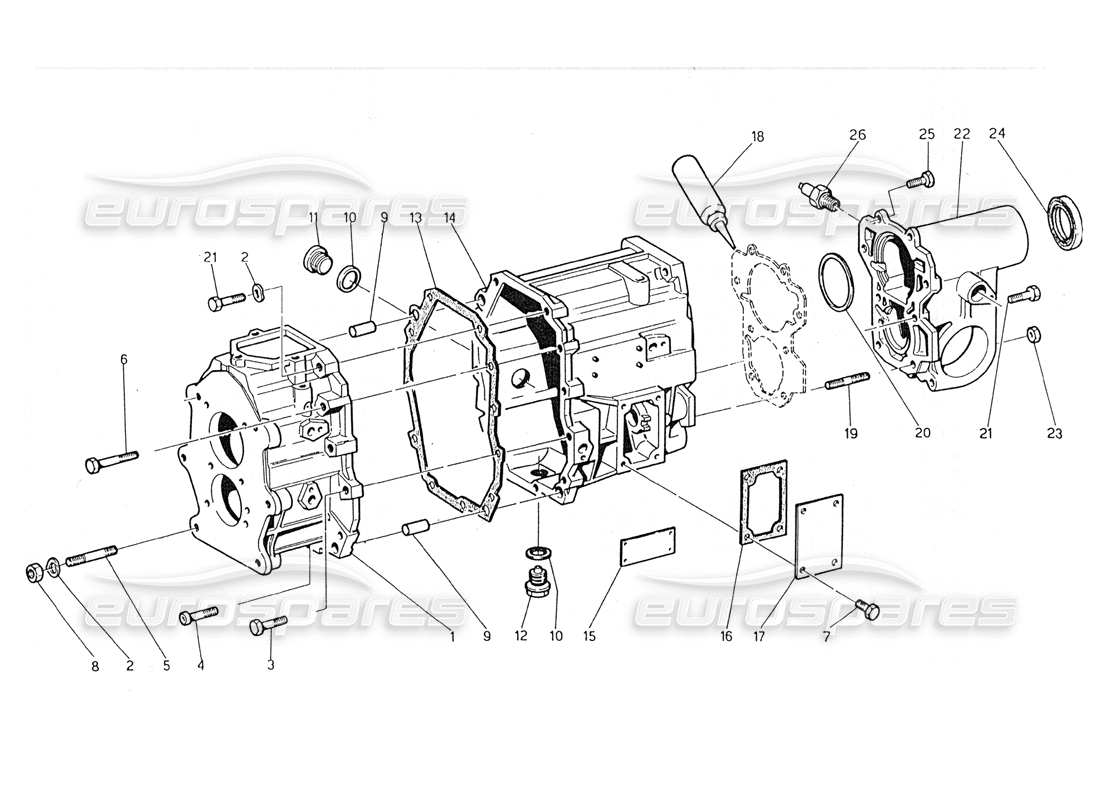

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 314820006
TRANSMISSION BOX ASSY (5TH R=0.79)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1,507.22
from £1,507.22
# 000
MPN: 314825009
TRANSMISSION BOX ASSY (5TH R=0.87)
Valid for Switzerland (manual), GB (manual), Australia (manual)
from £1,087.25
from £1,087.25
# 001
MPN: 314820310
TRANS. HOUSING FRONT SIDE
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £177.35
from £177.35
# 002
MPN: 138410100
SPRING WASHER
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 003
MPN: 314820361
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 004
MPN: 314820365
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 005
MPN: 314820318
STUD
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 006
MPN: 314820360
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £13.08
from £13.08
# 007
MPN: 314820364
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.85
from £1.85
# 008
MPN: 314820300
NUT
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £0.76
from £0.76
# 009
MPN: 314820317
CENTERING PIN
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 010
MPN: 314820320
SEAL RING
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.02
from £1.02
# 011
MPN: 314820363
OIL FILTER PLUG
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £2.84
from £2.84
# 012
MPN: 314820362
OIL DRAIN PLUG
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £9.57
from £9.57
# 013
MPN: 314820323
GASKET
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £9.15
from £9.15
# 014
MPN: 314820324
TRANS. HOUSING REAR SIDE
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £395.08
from £395.08
# 015
MPN: 314820329
Marking plate (R-0.79)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 015
MPN: 314825328
Marking plate (R-0.87)
Valid for Switzerland (manual), GB (manual), Australia (manual)
# 016
MPN: 314820325
GASKET
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.23
from £3.23
# 017
MPN: 314820326
COVER
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £2.28
from £2.28
# 018
MPN: 315020385
SILICONS
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £18.92
from £18.92
# 019
MPN: 314820369
STUD
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.54
from £1.54
# 020
MPN: 314820341
THRUST RING (1)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820342
THRUST RING (0,9)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820343
THRUST RING (0,8)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820344
THRUST RING (0,7)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820345
THRUST RING (0,6)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820346
THRUST RING (0,5)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820347
THRUST RING (0,4)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820348
THRUST RING (1,1)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820349
THRUST RING (1,2)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.62
from £1.62
# 020
MPN: 314820350
THRUST RING (1,3)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.62
from £1.62
# 020
MPN: 314820351
THRUST RING (1,4)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.62
from £1.62
# 020
MPN: 314820352
THRUST RING (1,5)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820353
THRUST RING (1,6)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.62
from £1.62
# 020
MPN: 314820354
THRUST RING (1 ,7)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820355
THRUST RING (1,8)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £3.55
from £3.55
# 020
MPN: 314820356
THRUST RING (1,9)
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £1.62
from £1.62
# 021
MPN: 314820368
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 022
MPN: 314820334
REAR COVER
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £136.66
from £136.66
# 023
MPN: 314820370
NUT
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
# 024
MPN: 314820336
SEAL RING
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £22.85
from £22.85
# 025
MPN: 314820367
SCREW
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £6.01
from £6.01
# 026
MPN: 313620106
GENERATOR
Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
from £57.48
from £57.48
