maserati 228 condenser parts diagram

018.2 - CONDENSER

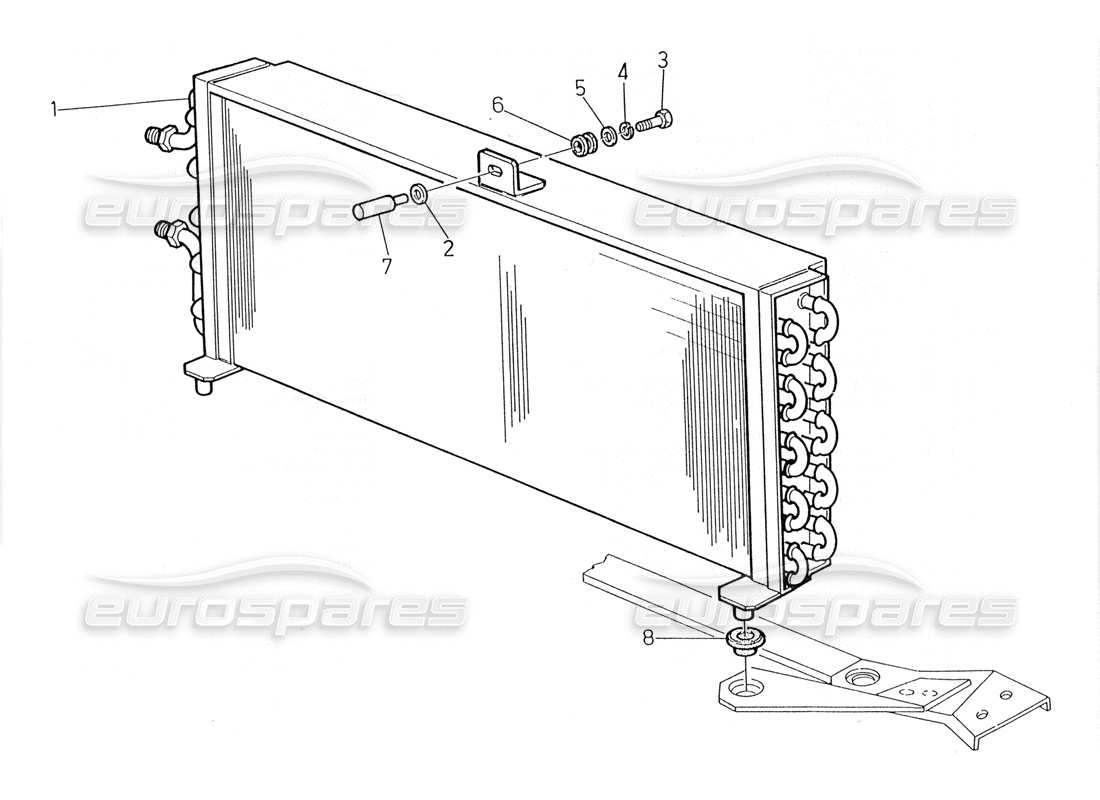

Maserati 228 Condenser Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 315553177
            UPPER CONDENSER
            Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
            Supersession
            Supersession
            This part replaces part number 315537177
            # 001
            MPN: 325556177
            UPPER CONDENSER
            Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (autoamtic
            # 002
            MPN: 14496601
            WASHER
            Supersession
            Supersession
            # 003
            MPN: 100706040
            SCREW
            after modif
            # 005
            MPN: 135900064
            WASHER
            from £0.47
            from £0.47
            # 006
            MPN: 315520375
            RING
            Supersession
            Supersession
            # 007
            MPN: 315520376
            SPACER
            Pre modif - Valid for Switzerland (automatic), USA (automatic), GB (automatic), Australia (autoamtic
            from £3.61
            from £3.61
            # 007
            MPN: 315553376
            SPACER
            After modif - Valid for Italy (manual), Switzerland (manual), USA (manual), GB (manual), Australia (manual)
            from £4.15
            from £4.15
            # 008
            MPN: 189453
            BUSH
            from £1.07
            from £1.07
            This part replaces part number 374030312
