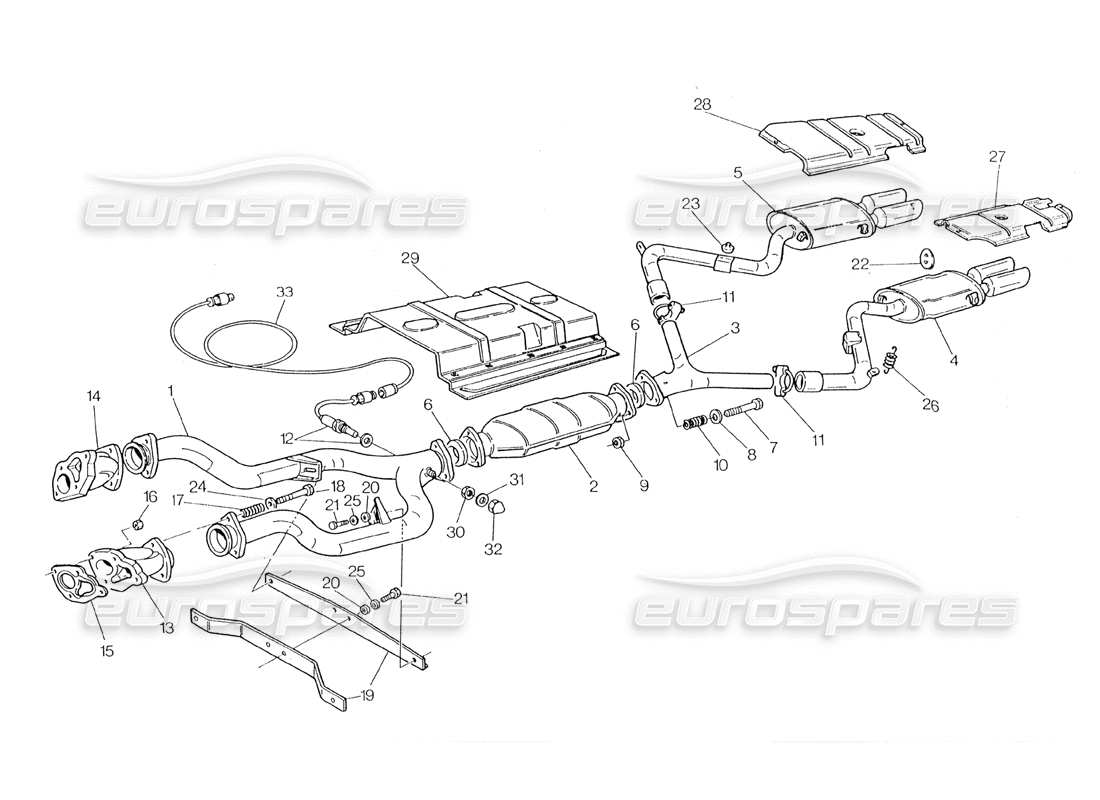

012.1 - Exhaust System With Catalyst

Maserati 228 Exhaust System With Catalyst Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 329060104
FRONT EXHAUST PIPE
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £681.89
from £681.89
# 002
MPN: 329060105
PAINT CATALYS
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £260.75
from £260.75
# 003
MPN: 349060106
CENTRAL PIPE, ASSY
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
# 004
MPN: 349001109
REAR SILENCER PIPE LH
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £380.90
from £380.90
# 005
MPN: 349001110
REAR SILENCER PIPE RH
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £380.90
from £380.90
# 006
MPN: 339050305
SEALING RING
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £10.16
from £10.16
# 007
MPN: 14421074
SCREW
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £4.86
from £4.86
This part replaces part number 14421071
# 008
MPN: 14496601
WASHER
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
Supersession
Supersession
# 009
MPN: 125100100
NUT
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
# 010
MPN: 319030313
SPRING
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.40
from £1.40
# 011
MPN: 329050008
CLAMP
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
# 012
MPN: 473082340
SENSOR
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £487.34
from £487.34
# 013
MPN: 467361901
LH MANIFOLD
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £98.55
from £98.55
# 014
MPN: 467361801
RH MANIFOLD
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £98.55
from £98.55
# 015
MPN: 580362400
GASKET
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £9.45
from £9.45
This part replaces part number 342000303
# 016
MPN: 312020309
NUT
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
# 017
MPN: 319020303
SPRING
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £2.95
from £2.95
# 018
MPN: 349000301
SCREW
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £3.16
from £3.16
# 019
MPN: 319020107
SUPPORT
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.40
from £1.40
# 019
MPN: 319055108
PIPE SUPPORT FOR AUT. TRANSMISSION
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £4.54
from £4.54
# 020
MPN: 138200080
WASHER
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
# 021
MPN: 101208016
SCREW
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
# 022
MPN: 319020300
SUPPORT
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.60
from £1.60
# 023
MPN: 312120300
BUFFER
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £2.13
from £2.13
# 024
MPN: 14496601
WASHER
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
Supersession
Supersession
# 025
MPN: 163020080
WASHER
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.07
from £1.07
# 026
MPN: 319030312
SPRING
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.40
from £1.40
# 027
MPN: 329060119
LH SHIELD
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £37.83
from £37.83
# 028
MPN: 329060120
RH SHIELD
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £37.83
from £37.83
# 029
MPN: 329060118
SHIELD
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £14.20
from £14.20
# 030
MPN: 319030329
NUT
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £0.76
from £0.76
# 031
MPN: 134700105
WASHER
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.07
from £1.07
# 032
MPN: 319030328
CUP NUT
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £1.62
from £1.62
# 033
MPN: 323760108
LAMBDA FOOLER WIRING HARNESS
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic), Australia (manual), Australia (automatic)
from £8.94
from £8.94
