maserati 228 evaporation system (lh steering with lambda feeler) parts diagram

010.2 - Evaporation System (LH Steering With Lambda Feeler)

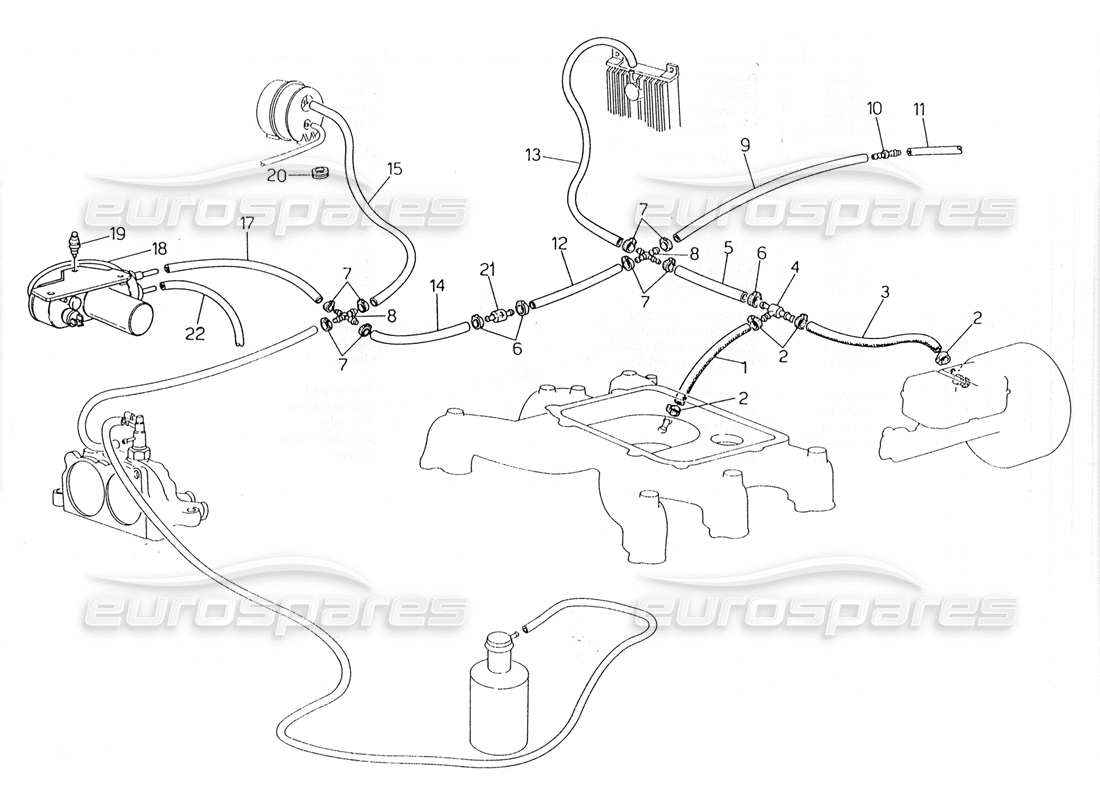

Maserati 228 Evaporation System (L.H. Steering With Lambda Feeler) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 312020332
Sleeve L=150MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Maserati PART 312020332 Genuine Maserati Part - New (to order)
# 002
MPN: 312020404
CLAMP
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £4.38
from £4.38
CLAMP VISA-CV220 Genuine Maserati Part - New (to order)
# 003
MPN: 319220426
Sleeve L=350MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Sleeve L=350MM Genuine Maserati Part - New (to order)
# 004
MPN: 312020337
THREE WAY-CONNECTOR
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £19.11
from £19.11
3-WAY UNION Genuine Maserati Part - New (to order)
# 005
MPN: 312030521
CLAMP L=260MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £1.03
from £1.03
PIPE Genuine Maserati Part - New (to order)
# 006
MPN: 312050310
CLAMP
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £1.14
from £1.14
CLICK CLAMP 55080 Genuine Maserati Part - New (to order)
# 007
MPN: 312020371
CLAMP
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Clamp to fix. Y-conn. to not backflow valve Genuine Maserati Part - New (to order)
# 008
MPN: 312030422
FOUR WAY-CONNECTOR
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £1.03
from £1.03
4-WAY UNION-KS 4 Genuine Maserati Part - New (to order)
# 009
MPN: 312030482
TWO WAY-CONNECTOR
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 010
MPN: 313620303
CONNECTOR
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £0.82
from £0.82
UNION FOR TURBO Genuine Maserati Part - New (to order)
# 011
MPN: 313620304
SLEEVE
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 012
MPN: 312053506
Sleeve L=70MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Sleeve L-70 mm Genuine Maserati Part - New (to order)
# 013
MPN: 312020506
Sleeve L=625MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £2.29
from £2.29
SLEEVE Genuine Maserati Part - New (to order)
# 014
MPN: 312038315
Sleeve L=50MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Sleeve L-50 mm Sleeve L-200 mm Sleeve L-1300 mm Genuine Maserati Part - New (to order)
# 015
MPN: 313620311
Sleeve L=270MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 017
MPN: 325520447
Sleeve L=1300MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 018
MPN: 325520172
VACUUM PUMP
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £99.75
from £99.75
VACUUM PUMP Genuine Maserati Part - New (to order)
VACUUM PUMP Genuine Maserati Part - Used In stock
- Valid for 22, 21 version
# 019
MPN: 325520345
RUBBER PAD
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £1.14
from £1.14
VACUUM PUMP GROMMET Genuine Maserati Part - New In stock
# 020
MPN: 165010100
WIRE INLET
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £1.55
from £1.55
CABLE GUIDE Genuine Maserati Part - New (to order)
# 021
MPN: 315520169
NOT RETURN VALVES
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £10.41
from £10.41
CHECK VALVE Genuine Maserati Part - New (to order)
# 022
MPN: 325520348
Sleeve L=200MM
Valid for Switzerland (manual), Switzerland (automatic), USA (manual), USA (automatic)
from £0.59
from £0.59
EXHAUST SLEEVE Genuine Maserati Part - New (to order)
