maserati 228 timing control parts diagram

008 - timing control

Maserati 228 Timing Control Parts Diagram

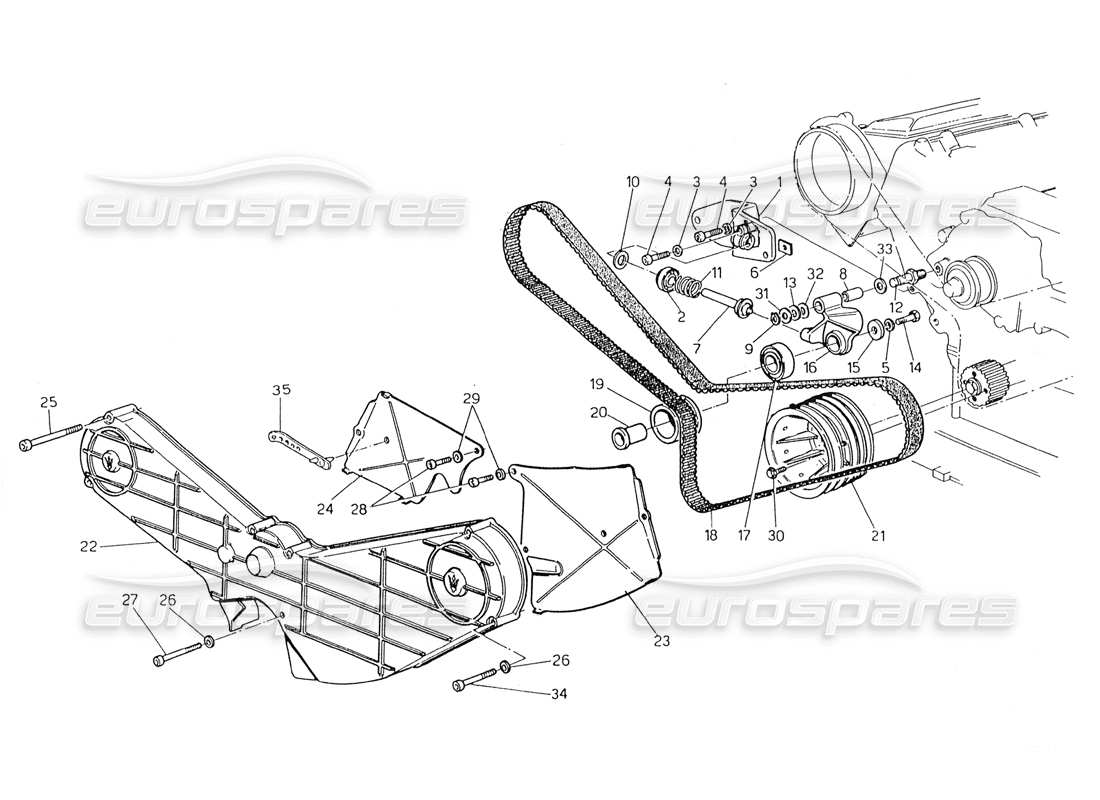

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Price
                                                                        # 000
                                                                        MPN: 311020005
                                                                        KIT GUIDE PULLEY (COMPOSED FROM POS. 2-3-4-6-7-8 -11-13-16-31-32-33)
                                                                        from £9.15
                                                                        from £9.15
                                                                        This part replaces part number 311020110
                                                                        # 002
                                                                        MPN: 311020367
                                                                        SPRING ADJUSTMENT (NOT SUPPLIED IN SINGLE PART)
                                                                        # 004
                                                                        MPN: 14306424
                                                                        SCREW
                                                                        from £0.47
                                                                        from £0.47
                                                                        This part replaces part number 14306421
                                                                        # 006
                                                                        MPN: 311037365
                                                                        SPACER (NOT SUPLLIED IN SINGLE PART)
                                                                        # 007
                                                                        MPN: 311020363
                                                                        SPRING CAP (NOT SUPLLIED IN SINGLE PART)
                                                                        # 008
                                                                        MPN: 470037700
                                                                        BUSH (NOT SUPPLIED IN SINGLE PART)
                                                                        from £9.20
                                                                        from £9.20
                                                                        This part replaces part number 311020336
                                                                        # 009
                                                                        MPN: 151100120
                                                                        RETAINING RING (NOT SUPPLIED IN SINGLE PART)
                                                                        # 010
                                                                        MPN: 311020342
                                                                        WASHER
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 012
                                                                        MPN: 470037600
                                                                        GUIDE PULLEY PIN
                                                                        from £41.48
                                                                        from £41.48
                                                                        This part replaces part number 311020343
                                                                        # 013
                                                                        MPN: 311020334
                                                                        WASHER
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 016
                                                                        MPN: 311020110
                                                                        SUPPORT WITH BUSH (NOT SUPLLIED IN SINGLE PART)
                                                                        Supersession
                                                                        Supersession
                                                                        # 017
                                                                        MPN: 311020107
                                                                        TIMING BEARING
                                                                        from £99.75
                                                                        from £99.75
                                                                        # 018
                                                                        MPN: 311020349

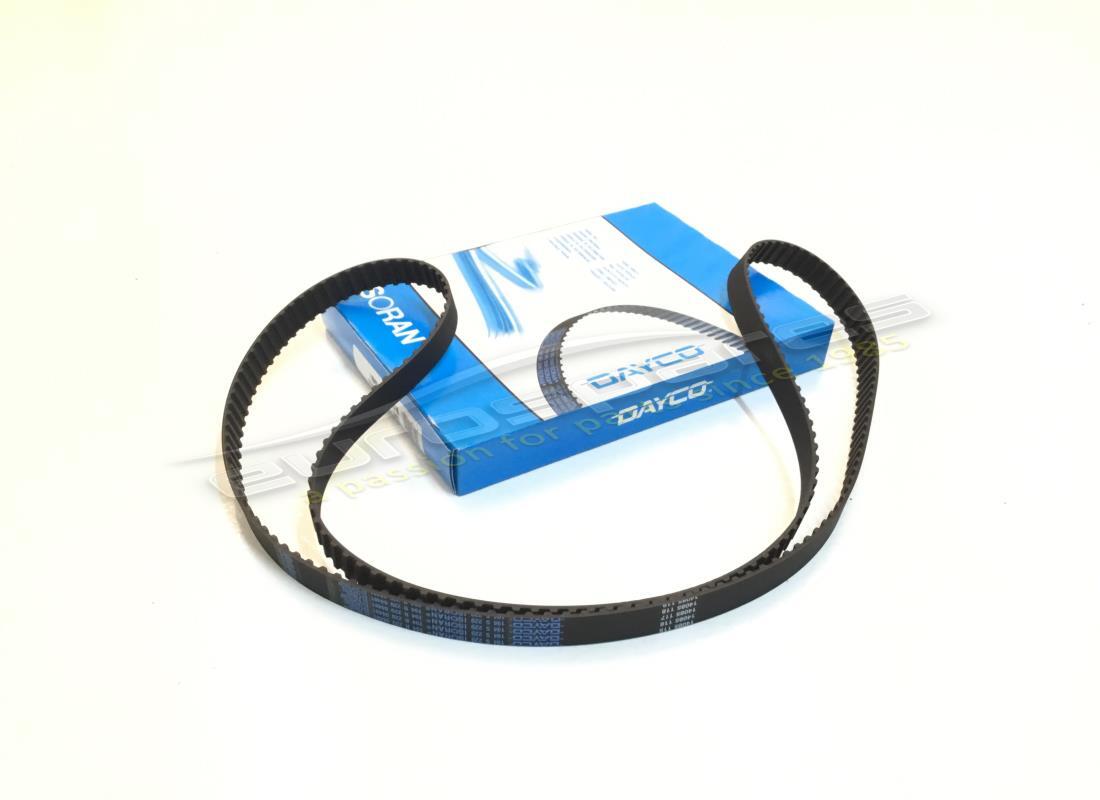

                                                                        TIMING BELT
                                                                        (2,0 3v. & 2,0 4v.)
                                                                        from £23.03
                                                                        from £23.03
                                                                        # 019
                                                                        MPN: 311020350
                                                                        BEARING COVER
                                                                        from £56.75
                                                                        from £56.75
                                                                        # 020
                                                                        MPN: 311020353
                                                                        PIN
                                                                        from £131.72
                                                                        from £131.72
                                                                        # 021
                                                                        MPN: 311050113
                                                                        PULLEY
                                                                        from £26.39
                                                                        from £26.39
                                                                        # 022
                                                                        MPN: 311620300
                                                                        FRONT CASE
                                                                        from £256.50
                                                                        from £256.50
                                                                        # 025
                                                                        MPN: 14305924
                                                                        SCREW
                                                                        from £0.51
                                                                        from £0.51
                                                                        This part replaces part number 14305921 - and 1 more. Click to view details
                                                                        # 027
                                                                        MPN: 14304821
                                                                        SCREW
                                                                        from £0.53
                                                                        from £0.53
                                                                        # 029
                                                                        MPN: 311620303
                                                                        WASHER
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 030
                                                                        MPN: 311030360
                                                                        BOH
                                                                        from £0.68
                                                                        from £0.68
                                                                        # 031
                                                                        MPN: 311020352
                                                                        WASHER
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 032
                                                                        MPN: 311020354
                                                                        WASHER
                                                                        from £1.07
                                                                        from £1.07
                                                                        # 033
                                                                        MPN: 311020362
                                                                        WASHER
                                                                        from £1.31
                                                                        from £1.31
                                                                        # 034
                                                                        MPN: 108006050
                                                                        SCREW
                                                                        # 035
                                                                        MPN: 313020350
                                                                        CLAMP
                                                                        from £1.07
                                                                        from £1.07
