066 - Seat Belts-Mirrors and Sun Visor

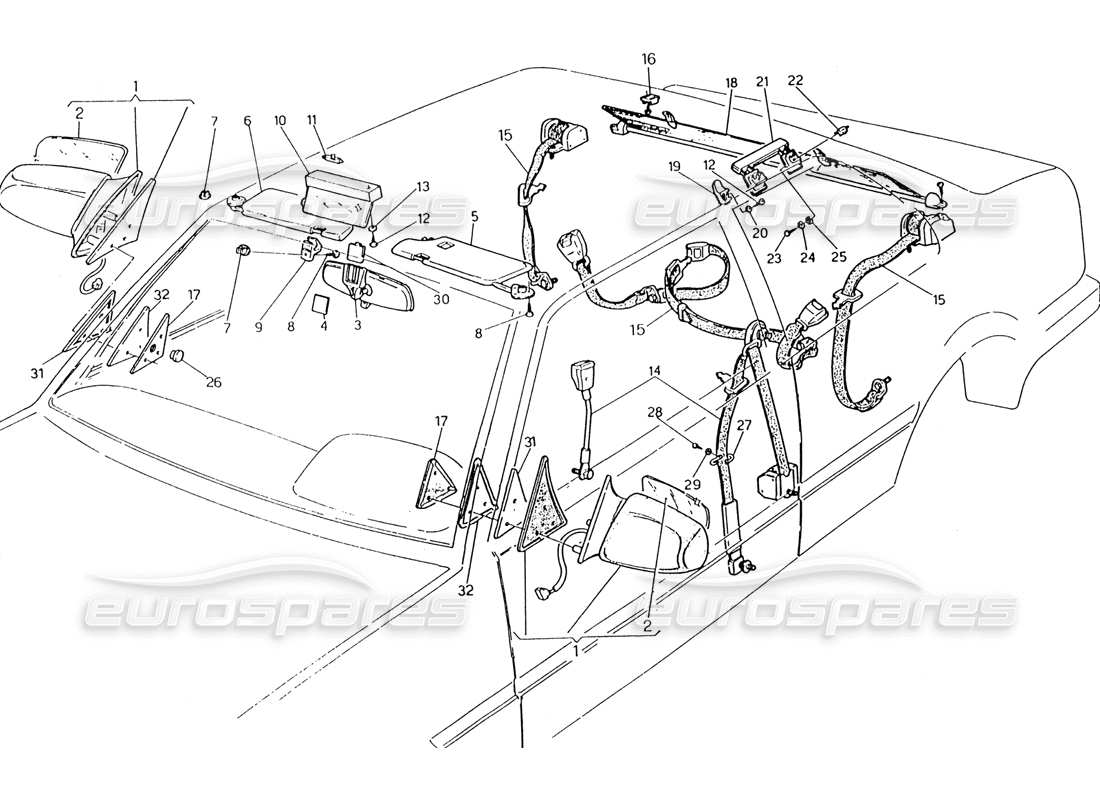

Maserati 222 / 222E Biturbo Seat Belts-Mirrors and Sun Visor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 318150107
LH EXTERIOR MIRROR, ASSY (PLANE)
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 001
MPN: 318152032
RH EXTERNAL REARVIEW MIRROR
(curved type)
from £227.65
from £227.65
This part replaces part number 318150108
# 001
MPN: 318170107
LH EXTERNAL REARVIEW MIRROR)
(curved type)
from £414.75
from £414.75
This part replaces part number 318169033 - and 1 more. Click to view details
# 001
MPN: 318170108
RH EXTERIOR MIRROR, ASSY (PLANE)
Valid for 70, 71, 74, 75
from £226.96
from £226.96
# 002
MPN: 318120317
LH MIRROR ELEMENT (BENT)
Valid for 70, 71, 74, 75
from £1.60
from £1.60
# 002
MPN: 318120318
RH MIRROR ELEMENT (PLANE)
Valid for 70, 71, 74, 75
# 002
MPN: 348100317
LH MIRROR ELEMENT (PLANE)
Valid for 51, 54, 55, 60, 61
from £26.68
from £26.68
# 002
MPN: 348100318
RH MIRROR ELEMENT (BENT)
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 003
MPN: 318120004
INTERIOR MIRROR
from £36.69
from £36.69
# 004
MPN: 318120345
MARKING PLATE
from £0.70
from £0.70
# 005
MPN: 318150157
LH SUN VISOR (GREY IMIT. LEATHER)
Valid for 51
# 005
MPN: 318150161
LH SUN VISOR (LIGHT BLUE IMIT. LEATHER)
Valid for 51
# 005
MPN: 318150163
LH SUN VISOR (IVORY PELT)
# 005
MPN: 318150167
LH SUN VISOR (BLACK PELT)
# 005
MPN: 318153157
LH SUN VISOR (LIGHT GREY PELT)
# 005
MPN: 318153161
LH SUN VISOR (AVIO PELT)
# 006
MPN: 318150158
RH SUN VISOR (GREY IMIT. LEATHER)
Valid for 51
from £69.72
from £69.72
# 006
MPN: 318150162
RH SUN VISOR (LIGHT BLUE IMIT. LEATHER)
Valid for 51
# 006
MPN: 318150164
RH SUN VISOR (IVORY PELT)
# 006
MPN: 318150168
RH SUN VISOR (BLACK PELT)
# 006
MPN: 318153158
RH SUN VISOR (LIGHT GREY PELT)
# 006
MPN: 318153162
RH SUN VISOR (AVIO PELT)
# 007
MPN: 318320341
NUT
from £0.70
from £0.70
This part replaces part number 14229280
# 008
MPN: 119942190
SCREW
# 009
MPN: 318120301
RETAINER
from £1.95
from £1.95
# 010
MPN: 318120003
COURTESY MIRROR WITH LIGHT
Valid for 51, 54, 55, 60, 61
Supersession
Supersession
# 011
MPN: 87560500
12V 5W BULB
Valid for 51, 54, 55, 60, 61
from £0.89
from £0.89
# 012
MPN: 119142130
SCREW
Valid for 51, 54, 55, 60, 61
# 013
MPN: 135900043
WASHER
Valid for 51, 54, 55, 60, 61
from £1.09
from £1.09
This part replaces part number 14496207
# 014
MPN: 9442
FRONT SAFETY BELT KIT
Valid for 60, 61
from £375.29
from £375.29
This part replaces part number 318130012
# 014
MPN: 9446
FRONT SAFETY BELT KIT
Valid for 51, 54, 55, 70, 71
Supersession
Supersession
# 014
MPN: 9448
FRONT SAFETY BELT KIT
Valid for 74, 75
from £136.74
from £136.74
# 015
MPN: 9443
REAR SAFETY BELT KIT
Valid for 60, 61
from £173.21
from £173.21
This part replaces part number 318130015 - and 2 more. Click to view details
# 015
MPN: 9447
REAR SAFETY BELT KIT
Valid for 51, 54, 55, 70, 71
from £354.59
from £354.59
# 015
MPN: 9449
REAR SAFETY BELT KIT
Valid for 74, 75
from £136.74
from £136.74
# 016
MPN: 318120303
SUN VISOR ATTACHEMENT
Valid for 51, 54, 55
from £0.70
from £0.70
# 017
MPN: 318320373
LH INNER OVERLOP
from £2.53
from £2.53
# 017
MPN: 318320374
RH INNER OVERLOP
from £1.85
from £1.85
This part replaces part number 318330374
# 018
MPN: 318120122
SUNSHADE ROLLING CURTAIN
Valid for 51, 54, 55
from £60.56
from £60.56
# 019
MPN: 318120314
COAT HOOK
from £0.70
from £0.70
# 020
MPN: 163030050
WASHER
# 021
MPN: 318120006
HOLDING HANDLE
Valid for 51
# 021
MPN: 328156136
HOLDING HANDLE (GREY PELT)
# 021
MPN: 328156138
HOLDING HANDLE (BLACK PELT)
from £6.16
from £6.16
# 021
MPN: 328156140
HOLDING HANDLE (AVIO PELT)
from £19.77
from £19.77
# 021
MPN: 328912121
HOLDING HANDLE (IVORY PELT)
from £19.31
from £19.31
# 022
MPN: 318120111
BLOCK
from £0.70
from £0.70
# 023
MPN: 112806014
SCREW
# 024
MPN: 135600060
SPRING WASHER
from £0.78
from £0.78
# 025
MPN: 135900064
WASHER
from £0.47
from £0.47
# 026
MPN: 568300349
PLUG
from £1.09
from £1.09
# 027
MPN: 318120349
LH BELT GUIDE
from £2.07
from £2.07
This part replaces part number 368100365
# 027
MPN: 318120350
RH BE!T GUIDE
from £2.07
from £2.07
This part replaces part number 368100366
# 028
MPN: 112805012
SCREW
# 029
MPN: 135600050
SPRING WASHER
from £1.17
from £1.17
# 030
MPN: 318120346
BASE
from £1.01
from £1.01
# 031
MPN: 318150425
EXTERNAL GASKET
from £1.09
from £1.09
This part replaces part number 318120425 - and 1 more. Click to view details
# 032
MPN: 318120424
INNER GASKET
from £0.70
from £0.70
