maserati 222 / 222e biturbo instrumentation parts diagram

059 - Instrumentation

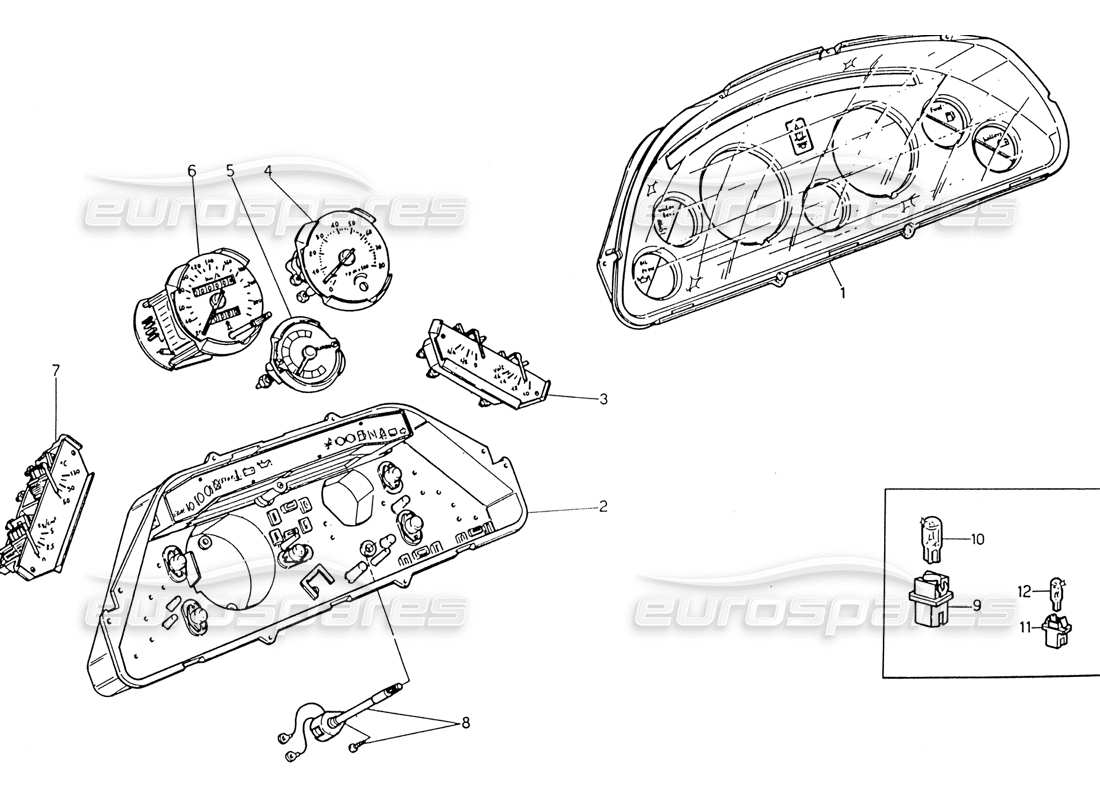

Maserati 222 / 222E Biturbo Instrumentation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 000
              MPN: 313620114
              INSTRUMENTATION, ASSY
              Valid for 51
              from £374.51
              from £374.51
              # 000
              MPN: 313627114
              INSTRUMENTATION, ASSY
              Valid for 60, 70
              from £350.72
              from £350.72
              # 000
              MPN: 313671114
              INSTRUMENTATION, ASSY
              Valid for 61, 71
              from £359.80
              from £359.80
              # 000
              MPN: 313675114
              INSTRUMENTATION, ASSY
              Valid for 55, 75
              from £381.92
              from £381.92
              # 000
              MPN: 323656114
              INSTRUMENTATION, ASSY
              Valid for 54, 74
              from £480.49
              from £480.49
              This part replaces part number 343600114
              # 001
              MPN: 313632208
              VISOR
              Valid for 60, 61, 70, 74
              from £38.94
              from £38.94
              # 001
              MPN: 323620208
              VISOR, ASSY
              Valid for 51
              from £88.86
              from £88.86
              # 001
              MPN: 323656208
              VISOR
              Valid for 54, 55, 74, 75
              from £75.80
              from £75.80
              # 002
              MPN: 323620213
              BOX, ASSY (NOT SUPPLIED)
              from £118.66
              from £118.66
              # 003
              MPN: 313632206
              FUEL GAUGE AND VOLTMETER
              Valid for 60, 61, 70, 71
              from £184.91
              from £184.91
              # 003
              MPN: 323620206
              FUEL GAUGE AND VOLTMETER
              Valid for 51
              from £45.67
              from £45.67
              # 003
              MPN: 343600206
              FUEL GAUGE AND VOLTMETER
              Valid for 54, 55, 74, 75
              from £80.55
              from £80.55
              # 004
              MPN: 313620214
              REV. COUNTER
              Valid for 51
              from £32.35
              from £32.35
              # 004
              MPN: 313632214
              REV. COUNTER
              Valid for 60, 61, 70, 71
              from £103.00
              from £103.00
              # 004
              MPN: 343600214
              REV. COUNTER
              Valid for 54, 55, 74, 75
              from £125.65
              from £125.65
              # 005
              MPN: 313632204
              TURBO BLOWER PRESSURE GAUGE
              Valid for 54, 55, 74, 75
              from £66.45
              from £66.45
              # 005
              MPN: 323620204
              TURBO BLOWER PRESSURE GAUGE
              Valid for 51, 60, 61, 70, 71
              from £66.99
              from £66.99
              # 006
              MPN: 313627201
              SPEEDOMETER
              Valid for 60, 70
              from £229.95
              from £229.95
              # 006
              MPN: 313671201
              SPEEDOMETER
              Valid for 61, 71
              from £68.82
              from £68.82
              # 006
              MPN: 313675201
              SPEEDOMETER
              Valid for 55, 75
              from £185.61
              from £185.61
              # 006
              MPN: 323610201
              SPEEDOMETER
              Valid for 51
              from £338.43
              from £338.43
              # 006
              MPN: 343600201
              SPEEDOMETER
              Valid for 54, 74
              from £376.96
              from £376.96
              # 007
              MPN: 313632203
              WATER THERM. AND OIL
              Valid for 60, 61, 70, 71
              from £55.55
              from £55.55
              # 007
              MPN: 323620203
              WATER THERM. AND OIL PRESSURE
              Valid for 51
              from £75.07
              from £75.07
              # 007
              MPN: 343600203
              WATER THERM. AND OIL
              Valid for 54, 55, 74, 75
              from £36.72
              from £36.72
              # 008
              MPN: 323620211
              RHEOSTAT
              from £10.20
              from £10.20
              # 009
              MPN: 313620403
              BULB HOLDER (3 W)
              # 010
              MPN: 87760003
              BULB 12 V- 3 W
              from £0.47
              from £0.47
              # 011
              MPN: 313620402
              BULB HOLDER (1,2 W)
              # 012
              MPN: 87760012
              BULB 12 V- 1,2 W
              from £0.47
              from £0.47
