042.1 - Pedal Assy - Brake Booster Clutch Pump for RHD

Maserati 222 / 222E Biturbo Pedal Assy - Brake Booster Clutch Pump for RHD Parts Diagram

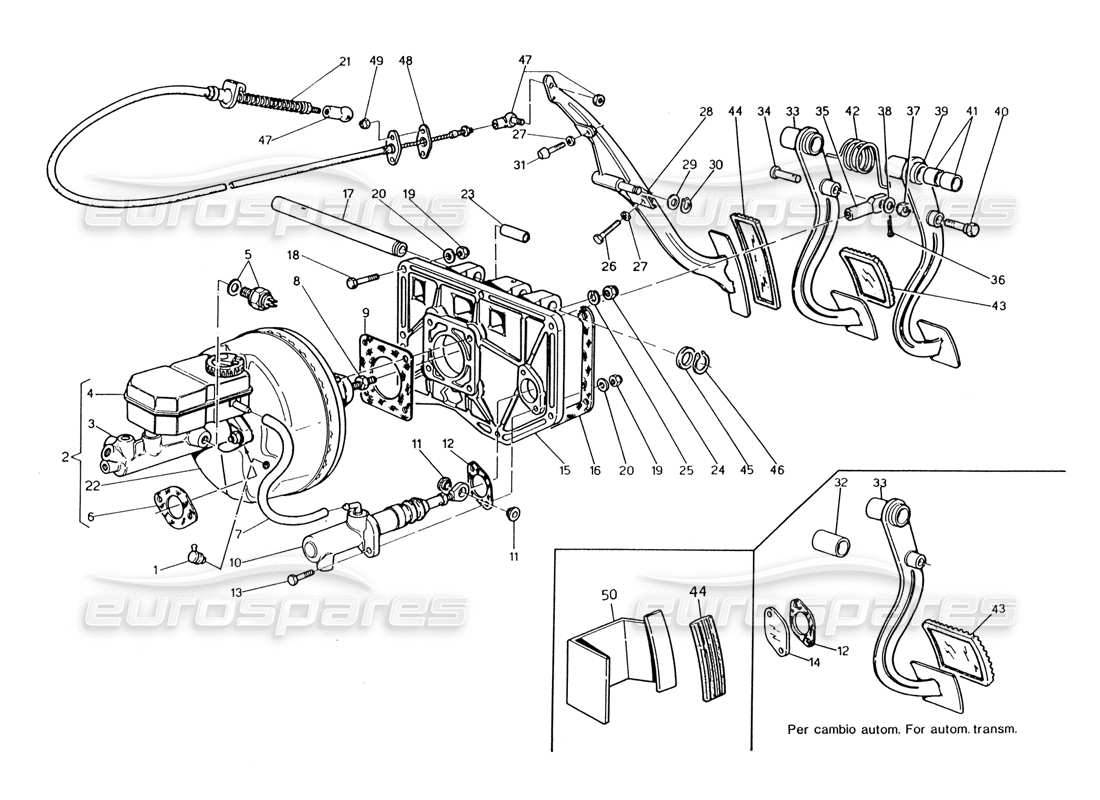

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 317420108
    NOT BACKFLOW VALVE, ASSY
    Valid for 70, 71, 74, 75
    from £16.42
    from £16.42
    # 002
    MPN: 317427112
    BRAKE BOOSTER WITH PUMP
    Valid for 70, 71, 74, 75
    # 003
    MPN: 317420101
    BRAKE PUMP
    from £369.23
    from £369.23
    # 004
    MPN: 317420104
    TANK FOR BRAKES OIL
    Valid for 70, 71, 74, 75
    from £18.54
    from £18.54
    # 005
    MPN: 313320187
    STOP SWITCH WITH WASHER
    Valid for 70, 71, 74, 75
    from £44.85
    from £44.85
    # 006
    MPN: 317420304
    GASKET
    Valid for 70, 71, 74, 75
    from £1.55
    from £1.55
    # 007
    MPN: 318220329
    CONNECTING PIPE
    Valid for 70, 71, 74, 75
    from £1.05
    from £1.05
    # 008
    MPN: 125300100
    ADJUSTING NUT
    Valid for 70, 71, 74, 75
    # 009
    MPN: 317420303
    GASKET
    Valid for 70, 71, 74, 75
    from £1.55
    from £1.55
    # 010
    MPN: 318220101
    PUMP
    Valid for 70, 74
    from £225.00
    from £225.00
    # 011
    MPN: 318420325
    BUSH
    Valid for 70, 74
    from £1.08
    from £1.08
    # 012
    MPN: 318220307
    GASKET
    Valid for 70, 71, 74, 75
    from £1.08
    from £1.08
    # 013
    MPN: 100708040
    SCREW
    Valid for 70, 71, 74, 75
    # 014
    MPN: 318432322
    COVER
    Valid for 71, 75
    # 015
    MPN: 318427304
    SUPORT FOR PEDAL ASSY
    Valid for 70, 71, 74, 75
    from £6.87
    from £6.87
    # 016
    MPN: 318427348
    GASKET
    Valid for 70, 71, 74, 75
    # 017
    MPN: 318427328
    PEDAL PIN
    Valid for 70, 71, 74, 75
    from £47.21
    from £47.21
    # 018
    MPN: 100708030
    SCREW
    Valid for 70, 71, 74, 75
    # 019
    MPN: 128350080
    SELF LOCKING NUT
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 020
    MPN: 135900084
    WASHER
    Valid for 70, 71, 74, 75
    # 021
    MPN: 328270010
    SPEED CONTROL CABLE
    Valid for 70, 71, 74, 75
    from £23.07
    from £23.07
    # 022
    MPN: 317420113
    BRAKE BOOSTER
    Valid for 70, 71, 74, 75
    from £96.09
    from £96.09
    # 023
    MPN: 470037700
    BUSH
    Valid for 70, 71, 74, 75
    from £9.25
    from £9.25
    This part replaces part number 311020336
    # 024
    MPN: 125100080
    NUT
    Valid for 70, 71, 74, 75
    from £0.86
    from £0.86
    # 025
    MPN: 138410080
    SPRING WASHER
    Valid for 70, 71, 74, 75
    # 026
    MPN: 101206040
    ADJUSTING SCREW
    Valid for 70, 71, 74, 75
    from £0.47
    from £0.47
    # 027
    MPN: 125100060
    NUT
    Valid for 70, 71, 74, 75
    # 028
    MPN: 328470113
    SPEED PEDAL
    Valid for 70, 71, 74, 75
    from £40.44
    from £40.44
    # 029
    MPN: 311020352
    WASHER (SP. 0,25 MM)
    Valid for 70, 71, 74, 75
    from £1.08
    from £1.08
    # 029
    MPN: 311020353
    WASHER
    Valid for 70, 71, 74, 75
    from £132.27
    from £132.27
    # 030
    MPN: 151100120
    CIRCLIP
    Valid for 70, 71, 74, 75
    # 031
    MPN: 318420114
    BUFFER
    Valid for 70, 71, 74, 75
    from £1.92
    from £1.92
    # 032
    MPN: 318432318
    SPACER
    Valid for 71, 75
    from £1.08
    from £1.08
    # 033
    MPN: 318471104
    BRAKE PEDAL (CAR WITH AUTOM. TRANS.)
    Valid for 71, 75
    # 033
    MPN: 328470104
    BRAKE PEDAL (CAR WITH MANUAL
    Valid for 70, 74
    from £46.61
    from £46.61
    # 034
    MPN: 318427312
    BRAKE PEDAL PIN
    Valid for 70, 71, 74, 75
    from £42.35
    from £42.35
    # 035
    MPN: 317420300
    THRUST PAD
    Valid for 70, 71, 74, 75
    from £0.70
    from £0.70
    # 036
    MPN: 146503220
    SPLIT PIN
    Valid for 70, 71, 74, 75
    # 037
    MPN: 128300100
    SELF LOCKING NUT
    Valid for 70, 74
    # 038
    MPN: 135910105
    WASHER
    Valid for 70, 71, 74, 75
    # 039
    MPN: 328470108
    CLUTCH PEDAL
    Valid for 70, 74
    from £22.81
    from £22.81
    # 040
    MPN: 318420326
    THRUST PAD PIN
    Valid for 70, 74
    from £8.28
    from £8.28
    # 041
    MPN: 318427320
    BUSH
    Valid for 70, 71, 74, 75
    from £4.64
    from £4.64
    # 042
    MPN: 318420308
    CLUTCH PEDAL SPRING
    Valid for 70, 74
    from £2.12
    from £2.12
    # 042
    MPN: 318427308
    BRAKE PEDAL SPRING
    Valid for 70, 71, 74, 75
    from £0.64
    from £0.64
    # 043
    MPN: 318420300
    BRAKE AND CLUTCH PEDAL COVER
    Valid for 70, 74
    from £3.25
    from £3.25
    # 043
    MPN: 318432300
    BRAKE PEDAL COVER (FOR AUTOM. TRANS.)
    Valid for 71, 75
    from £2.41
    from £2.41
    # 044
    MPN: 318420301
    SPEED PEDAL COVER
    Valid for 70, 71, 74, 75
    from £1.50
    from £1.50
    # 045
    MPN: 318420321
    SPACER WASHER
    Valid for 70, 71, 74, 75
    # 046
    MPN: 151100180
    CIRCLIP
    Valid for 70, 71, 74, 75
    from £0.70
    from £0.70
    # 047
    MPN: 318420116
    BALL-END PIN
    Valid for 70, 71, 74, 75
    from £3.64
    from £3.64
    # 048
    MPN: 318220300
    GASKET
    Valid for 70, 71, 74, 75
    from £0.70
    from £0.70
    # 049
    MPN: 128350060
    SELF LOCKING NUT
    Valid for 70, 71, 74, 75
    # 050
    MPN: 318471109
    PEDAL
    Valid for 70, 75
    from £6.87
    from £6.87
