maserati 222 / 222e biturbo power steering system (rh steering) parts diagram

034.1 - Power Steering System (RH Steering)

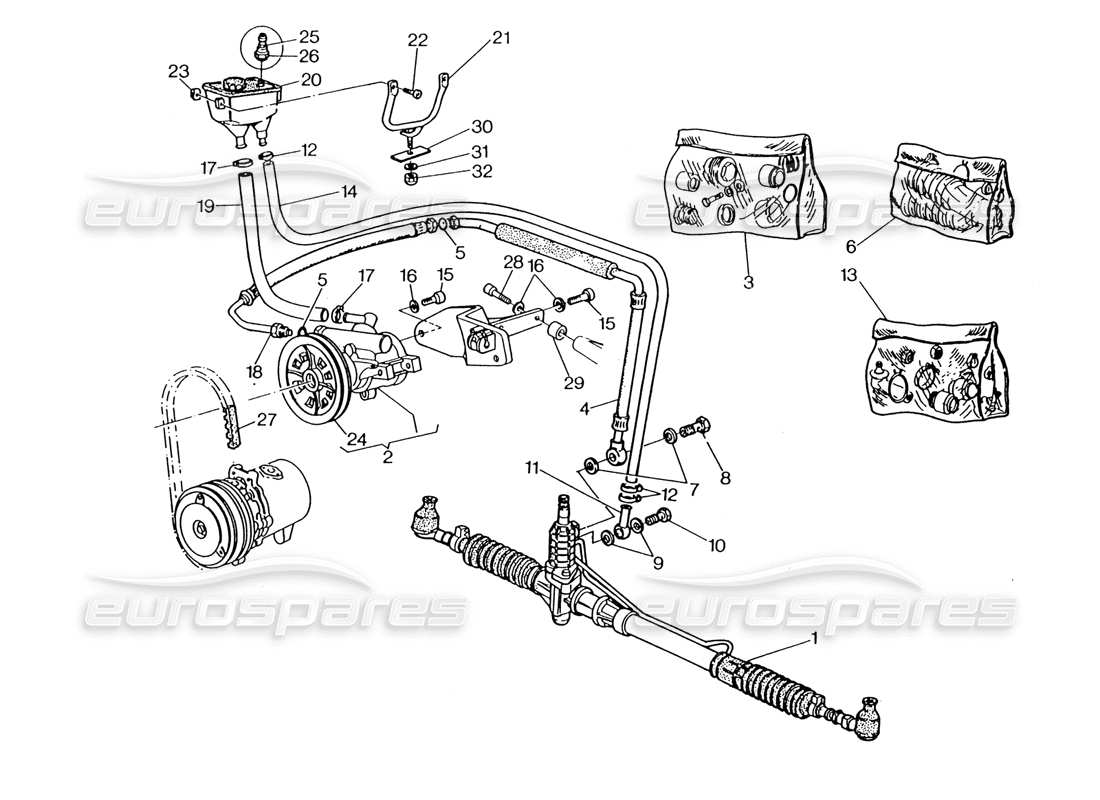

Maserati 222 / 222E Biturbo Power Steering System (R.H. Steering) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 397870225
    RHD POWER STEERING BOX
    from £494.52
    from £494.52
    This part replaces part number 317870125
    # 002
    MPN: 317832104
    PUMP WITH PULLEY
    Valid for 70, 71, 74, 75
    from £177.38
    from £177.38
    # 003
    MPN: 310232040
    PIPES AND RACCORDS OVERHAUL KIT
    Valid for 70, 71, 74, 75
    from £31.84
    from £31.84
    # 004
    MPN: 317827139
    PIPE
    Valid for 70, 71, 74, 75
    from £95.11
    from £95.11
    # 005
    MPN: 192415108
    RUBBER
    Valid for 70, 71, 74, 75
    from £1.28
    from £1.28
    # 006
    MPN: 390250080
    CUPS AND CLAMPS OVERHAUL KIT
    Valid for 70, 71, 74, 75
    from £126.88
    from £126.88
    This part replaces part number 320250033
    # 007
    MPN: 317832381
    GASKET
    Valid for 70, 71, 74, 75
    # 008
    MPN: 317832380
    SCREW
    Valid for 70, 71, 74, 75
    from £9.04
    from £9.04
    # 009
    MPN: 317832378
    GASKET
    Valid for 70, 71, 74, 75
    from £0.70
    from £0.70
    # 010
    MPN: 317832377
    SCREW
    Valid for 70, 71, 74, 75
    from £3.64
    from £3.64
    # 011
    MPN: 317832135
    UNION
    Valid for 70, 71, 74, 75
    from £18.88
    from £18.88
    # 012
    MPN: 317832389
    CLAMP
    Valid for 70, 71, 74, 75
    from £1.93
    from £1.93
    # 013
    MPN: 320250034
    Track Rod Ends
    Track rod ends only
    from £309.26
    from £309.26
    # 014
    MPN: 317827385
    COUPLING
    Valid for 70, 71, 74, 75
    from £17.26
    from £17.26
    # 015
    MPN: 138411080
    SCREW
    Valid for 70, 71, 74, 75
    # 016
    MPN: 138410080
    WASHER
    Valid for 70, 71, 74, 75
    # 017
    MPN: 168403022
    CLAMP
    Valid for 70, 71, 74, 75
    # 018
    MPN: 317827138
    PIPE
    Valid for 70, 71, 74, 75
    from £23.31
    from £23.31
    # 019
    MPN: 317832370
    COUPLING
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 020
    MPN: 317832130
    OIL TANK PRE MOD.
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 020
    MPN: 397850130
    OIL TANK
    from £20.92
    from £20.92
    This part replaces part number 317853130
    # 021
    MPN: 317832131
    BRACKET PRE MOD.
    Valid for 70, 71, 74, 75
    Supersession
    Supersession
    # 021
    MPN: 317853131
    BRACKET AFTER MOD.
    Valid for 70, 71, 74, 75
    from £7.73
    from £7.73
    This part replaces part number 317832131
    # 022
    MPN: 119148130
    SCREW
    Valid for 70, 71, 74, 75
    from £0.84
    from £0.84
    # 023
    MPN: 163610050
    CLIP
    Valid for 70, 71, 74, 75
    from £0.47
    from £0.47
    # 024
    MPN: 317832368
    BELT PULLEY NON SUPPLIED
    Valid for 70, 71, 74, 75
    # 025
    MPN: 316220107
    VALVE
    Valid for 70, 71, 74, 75
    from £17.68
    from £17.68
    # 026
    MPN: 317853391
    NUT
    Valid for 70, 71, 74, 75
    from £2.17
    from £2.17
    # 027
    MPN: 317837372
    POWER STEERING BELT
    Valid for 70, 71, 74, 75
    from £12.50
    from £12.50
    # 028
    MPN: 108008040
    SCREW
    Valid for 70, 71, 74, 75
    # 029
    MPN: 311032370
    SPACER
    Valid for 70, 71, 74, 75
    # 030
    MPN: 317832366
    PLATE PRE MOD.
    Valid for 70, 71, 74, 75
    # 030
    MPN: 317853366
    PLATE AFTER MOD.
    Valid for 70, 71, 74, 75
    # 031
    MPN: 138410080
    WASHER
    Valid for 70, 71, 74, 75
    # 032
    MPN: 122600080
    NUT
    Valid for 70, 71, 74, 75
