maserati 222 / 222e biturbo steering shaft and wheel parts diagram

032 - Steering Shaft and Wheel

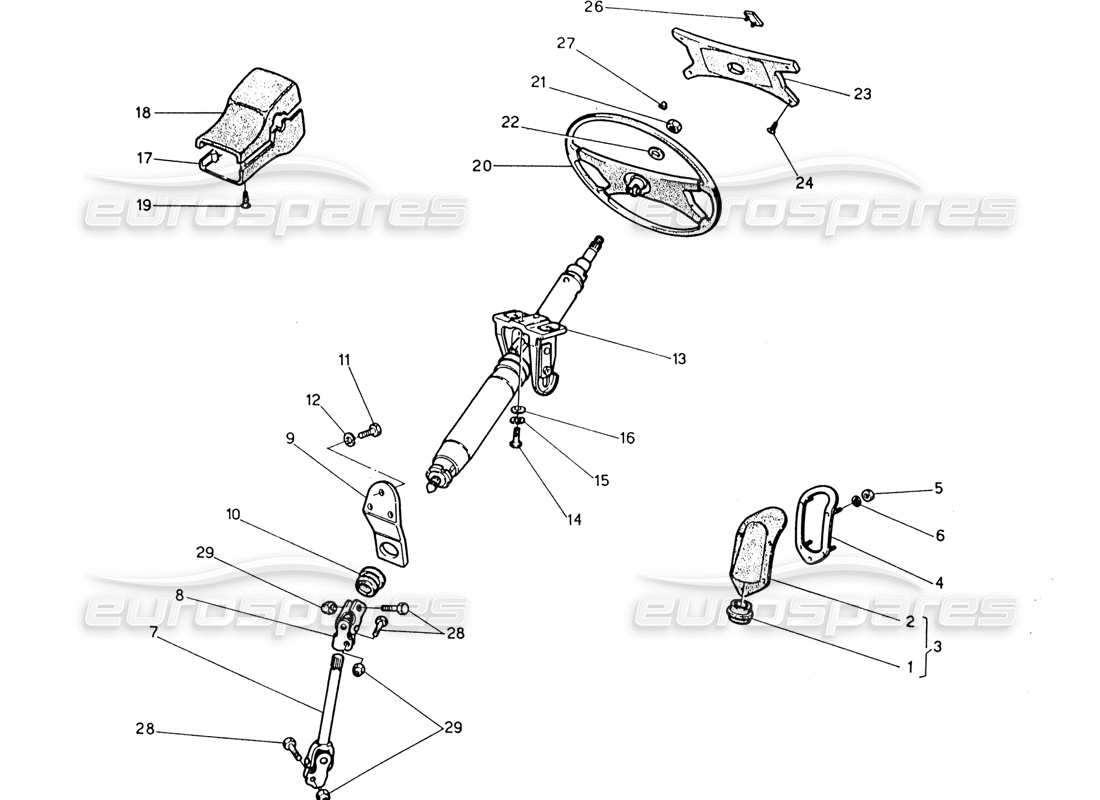

Maserati 222 / 222E Biturbo Steering Shaft and Wheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 317820337
                                            DUST SHIELD BUSH
                                            from £0.69
                                            from £0.69
                                            DUST PROTECTION BUSHING Genuine Maserati Part - New (to order)
                                            # 002
                                            MPN: 317820336
                                            DUST SHIELD
                                            Valid for 51, 54, 55, 60, 61
                                            from £4.63
                                            from £4.63
                                            GAITER Genuine Maserati Part - New (to order)
                                            # 002
                                            MPN: 317827336
                                            DUST SHIELD
                                            Valid for 70, 71, 74, 75
                                            from £5.96
                                            from £5.96
                                            STEERING COLUMN HOUSING,RHD Genuine Maserati Part - New (to order)
                                            # 003
                                            MPN: 317820116
                                            DUST SHIELD WITH BUSH ASSY
                                            Valid for 51, 54, 55, 60, 61
                                            from £11.60
                                            from £11.60
                                            SOFFIETTO COMPLETO 317820336 Genuine Maserati Part - New (to order)
                                            # 003
                                            MPN: 317827116
                                            DUST SHIELD WITH BUSH ASSY
                                            Valid for 70, 71, 74, 75
                                            from £19.02
                                            from £19.02
                                            CPL.SOFFIETTO 317827336+3178 Genuine Maserati Part - New (to order)
                                            # 004
                                            MPN: 317820107
                                            DUST SHIELD SUPPORT
                                            Valid for 51, 54, 55, 60, 61
                                            from £4.57
                                            from £4.57
                                            PLATE Genuine Maserati Part - New (to order)
                                            # 004
                                            MPN: 317827107
                                            DUST SHIELD SUPPORT
                                            Valid for 70, 71, 74, 75
                                            from £3.93
                                            from £3.93
                                            PIASTRA FISSAGGIO SOFFIETTO Genuine Maserati Part - New (to order)
                                            # 005
                                            MPN: 125100050
                                            NUT
                                            from £0.69
                                            from £0.69
                                            DADO Genuine Maserati Part - New (to order)
                                            # 007
                                            MPN: 327870117
                                            INTERMEDIATE SHAFT
                                            Valid for 70, 71, 74, 75
                                            from £207.85
                                            from £207.85
                                            UNIVERSAL JOINT WITH STEERIN Genuine Maserati Part - New In stock
                                            # 007
                                            MPN: 367801117
                                            INTERMEDIATE SHAFT
                                            Valid for 51, 54, 55, 60, 61
                                            from £255.96
                                            from £255.96
                                            UNIVERSAL JOINT FOR STEERING BOX Genuine Maserati Part - New (to order)
                                            # 008
                                            MPN: 317820117
                                            UNIVERSAL JOINT
                                            from £317.79
                                            from £317.79
                                            UNIVERSAL JOINT 1130.01NACAM Genuine Maserati Part - New In stock
                                            # 009
                                            MPN: 317820320
                                            LOWER SUPPORT
                                            Valid for 51, 54, 55, 60, 61
                                            from £1.76
                                            from £1.76
                                            This part replaces part number 9577
                                            LHD MOUNT 00009577 Genuine Maserati Part - New In stock
                                            # 009
                                            MPN: 327870320
                                            LOWER SUPPORT
                                            Valid for 70, 71, 74, 75
                                            from £2.19
                                            from £2.19
                                            This part replaces part number 9564
                                            Maserati PART 327870320 Genuine Maserati Part - New (to order)
                                            # 010
                                            MPN: 367800321
                                            BUSH FOR LOWER SUPPORT
                                            from £27.78
                                            from £27.78
                                            This part replaces part number 317820321
                                            BUSHING FOR MODIF.STEER.COLUMN MO Genuine Maserati Part - New (to order)
                                            # 013
                                            MPN: 317820114
                                            STEERING SHAFT ASSY
                                            Valid for 51, 54, 55, 60, 61
                                            from £404.74
                                            from £404.74
                                            Steering Column Genuine Maserati Part - New (to order)
                                            # 013
                                            MPN: 317827114
                                            STEERING SHAFT ASSY
                                            Valid for 70, 71, 74, 75
                                            from £121.18
                                            from £121.18
                                            Maserati PART 317827114 Genuine Maserati Part - New (to order)
                                            # 014
                                            MPN: 167131030
                                            BOLT
                                            from £1.85
                                            from £1.85
                                            SCREW Genuine Maserati Part - New (to order)
                                            # 016
                                            MPN: 14496601
                                            WASHER
                                            Supersession
                                            Supersession
                                            Genuine Maserati Part (no longer available to order)
                                            Genuine Ferrari Part (no longer available to order)
                                            # 017
                                            MPN: 317820110
                                            LOWER STEERING COLUMN COVER
                                            Lower steering column cover colour brown Genuine Maserati Part - New (to order)
                                            # 018
                                            MPN: 317820109
                                            UPPER STEERING COLUMN COVER
                                            from £15.85
                                            from £15.85
                                            UPPER STEERING COLOUMN Genuine Maserati Part - New (to order)
                                            # 020
                                            MPN: 327820104
                                            STEERING WHEEL
                                            from £121.18
                                            from £121.18
                                            STEER.WHEEL ,LEATHER Genuine Maserati Part - New (to order)
                                            # 021
                                            MPN: 125400140
                                            STEERING WHEEL NUT
                                            Maserati PART 125400140 Genuine Maserati Part - New (to order)
                                            # 022
                                            MPN: 135600140
                                            SPRING WASHER
                                            from £1.08
                                            from £1.08
                                            WASHER Genuine Maserati Part - New (to order)
                                            # 023
                                            MPN: 327832105
                                            STEERING WHEEL COVER
                                            Valid for 51, 54, 55, 70, 71
                                            from £39.69
                                            from £39.69
                                            Maserati PART 327832105 Genuine Maserati Part - New (to order)
                                            # 023
                                            MPN: 327860105
                                            STEERING WHEEL COVER
                                            Valid for 60, 61, 74, 75
                                            STEERING WHEEL COVER Genuine Maserati Part - New (to order)
                                            # 026
                                            MPN: 317820300
                                            MARQUE FOR STEERING WHEEL
                                            from £5.57
                                            from £5.57
                                            MARQUE FOR STEERING Genuine Maserati Part - New (to order)
                                            # 027
                                            MPN: 163510030
                                            MARQUE SPRING
                                            MARQUE SPRING Genuine Maserati Part - New (to order)
                                            # 028
                                            MPN: 317820382
                                            BOLT
                                            from £1.31
                                            from £1.31
                                            SCREW FAST. STEERING COLUMN JOINT Genuine Maserati Part - New (to order)
                                            # 029
                                            MPN: 128350080
                                            SELF LOCKING NUT
                                            Supersession
                                            Supersession
                                            Genuine Maserati Part (no longer available to order)
