maserati 222 / 222e biturbo air filter and pipes parts diagram

021 - Air Filter and Pipes

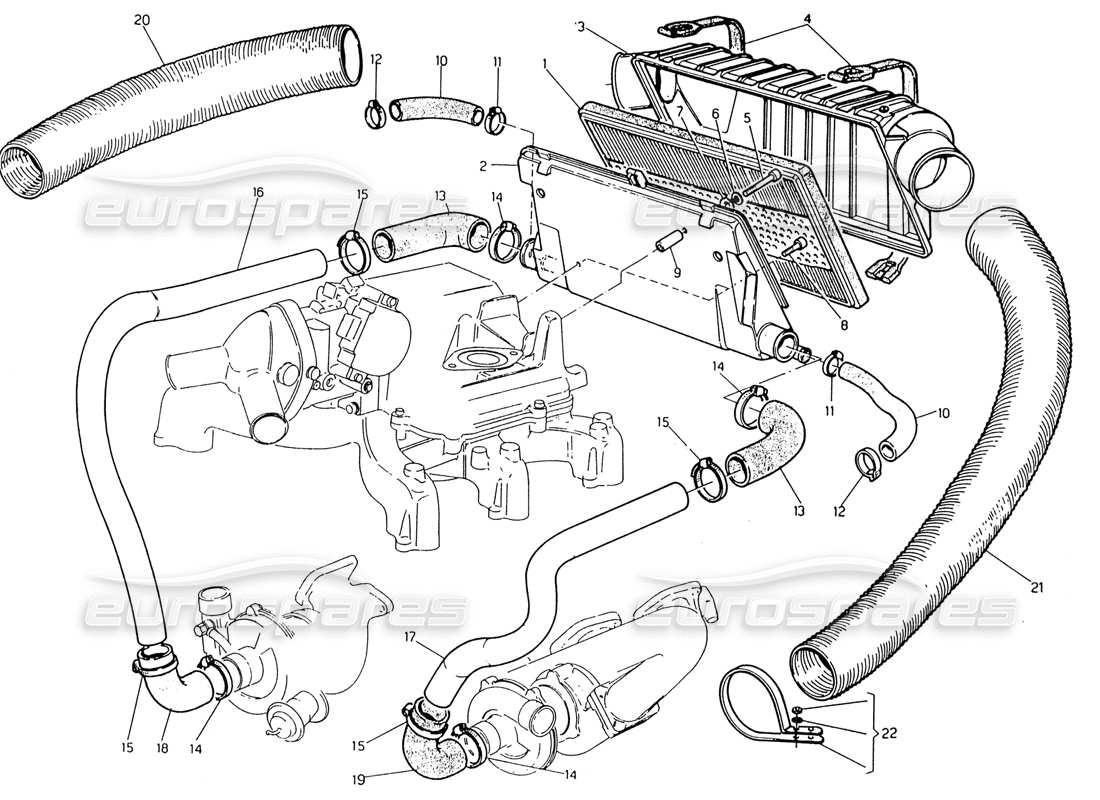

Maserati 222 / 222E Biturbo Air Filter and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 312430303
                                            AIR FILTER
                                            from £34.61
                                            from £34.61
                                            This part replaces part number 312422303
                                            # 002
                                            MPN: 312420108
                                            LOWER AIR FILTER COVER
                                            from £18.76
                                            from £18.76
                                            This part replaces part number 312420111
                                            # 003
                                            MPN: 312425003
                                            UPPER AIR FILTER COVER
                                            from £9.51
                                            from £9.51
                                            This part replaces part number 312420003

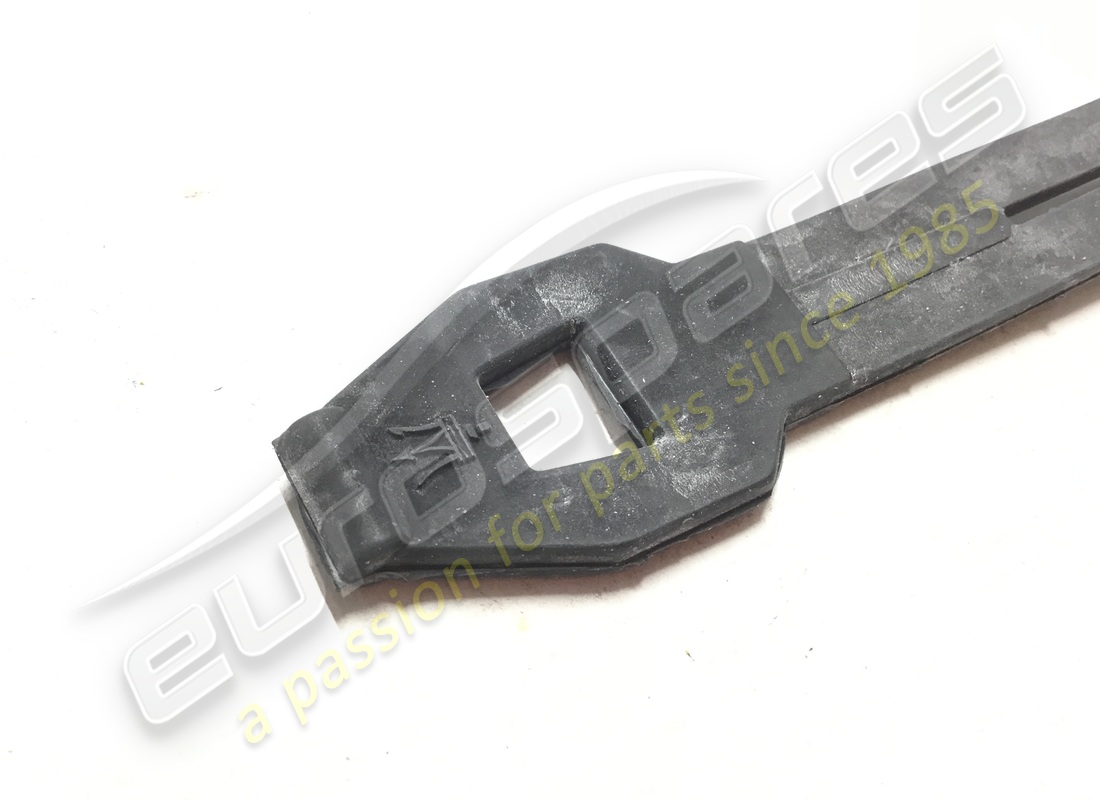

                                            # 004
                                            MPN: 312420100
                                            STRIP
                                            from £18.35
                                            from £18.35
                                            # 005
                                            MPN: 14304821
                                            SCREW
                                            from £0.53
                                            from £0.53
                                            # 010
                                            MPN: 312425306
                                            SLEEVE
                                            from £1.27
                                            from £1.27
                                            # 011
                                            MPN: 312420316
                                            CLAMP
                                            from £1.55
                                            from £1.55
                                            # 012
                                            MPN: 312420103
                                            CLAMP
                                            from £1.93
                                            from £1.93
                                            # 013
                                            MPN: 312420318
                                            UPPER SLEEVE
                                            from £2.76
                                            from £2.76
                                            # 014
                                            MPN: 312420106
                                            CLAMP
                                            Supersession
                                            Supersession
                                            # 015
                                            MPN: 312420105
                                            CLAMP
                                            from £1.11
                                            from £1.11
                                            # 016
                                            MPN: 312420334
                                            RH AIR PIPE
                                            from £0.84
                                            from £0.84
                                            # 017
                                            MPN: 312420333
                                            LH AIR PIPE
                                            from £34.94
                                            from £34.94
                                            # 018
                                            MPN: 312420319
                                            RH LOWER SLEEVE
                                            Supersession
                                            Supersession
                                            # 019
                                            MPN: 312420330
                                            LH LOWER SLEEVE
                                            # 020
                                            MPN: 312425304
                                            RH INTAKE AIR SLEEVE L=830
                                            Supersession
                                            Supersession
                                            # 021
                                            MPN: 312420300
                                            LH INTAKE AIR SLEEVE L=1100
                                            # 022
                                            MPN: 312420107
                                            CLAMP
                                            Valid for 51, 54, 55, 60, 61
                                            from £3.64
                                            from £3.64
                                            # 022
                                            MPN: 312420107
                                            CLAMP
                                            Valid for 70, 71, 74, 75
                                            from £3.64
                                            from £3.64
                                            # 022
                                            MPN: 312427107
                                            RH SIDE CLAMP
                                            Valid for 70, 71, 74, 75
