010.5 - Evaporation System

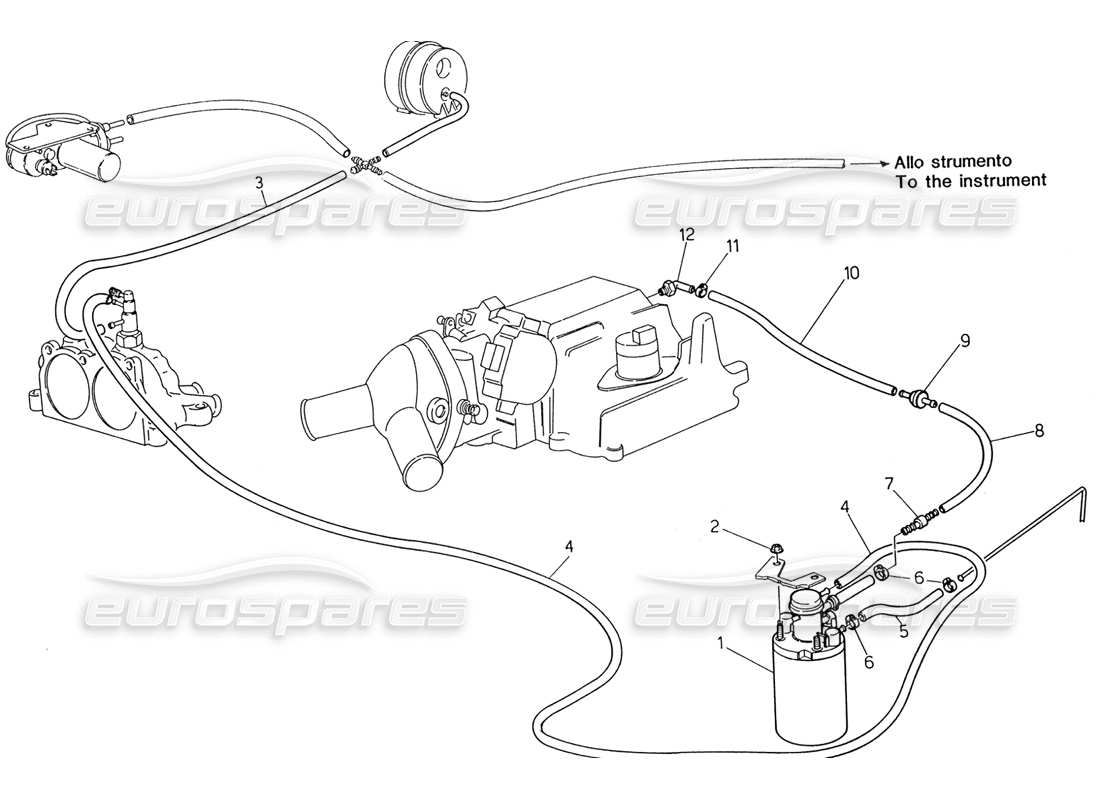

Maserati 222 / 222E Biturbo Evaporation System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 319237204
    CARBON FILTER
    Valid for 54, 55, 60, 61, 74, 75
    Supersession
    Supersession
    This part replaces part number 319237028 - and 1 more. Click to view details
    # 002
    MPN: 319237503
    NUT
    Valid for 54, 55, 60, 61, 74, 75
    from £1.63
    from £1.63
    # 003
    MPN: 312027336
    SLEEVE L=850 MM
    Valid for 54, 55, 60, 61, 74, 75
    # 004
    MPN: 312030528
    SLEEVE L=1300 MM
    Valid for 54, 55, 60, 61, 74, 75
    from £8.49
    from £8.49
    # 005
    MPN: 319237510
    SLEEVE
    Valid for 54, 55, 60, 61, 74, 75
    # 006
    MPN: 30921108
    CLAMP
    Valid for 54, 55, 60, 61, 74, 75
    # 007
    MPN: 312230461
    TWO WAY CONNECTOR
    Valid for 54, 55, 60, 61, 74, 75
    from £0.99
    from £0.99
    # 008
    MPN: 319237511
    SLEEVE L=40 MM
    Valid for 54, 55, 60, 61, 74, 75
    # 009
    MPN: 319237109
    NOT RETURN VALVE
    Valid for 54, 55, 60, 61, 74, 75
    # 010
    MPN: 319237512
    SLEEVE L=1470 MM
    Valid for 54, 55, 60, 61, 74, 75
    # 011
    MPN: 312220435
    CLAMP
    Valid for 54, 55, 60, 61, 74, 75
    from £0.70
    from £0.70
    # 012
    MPN: 585064500
    CONNECTOR
    from £63.60
    from £63.60
    This part replaces part number 578064500
