maserati 222 / 222e biturbo cylinder block and oil sump parts diagram

004 - cylinder block and oil sump

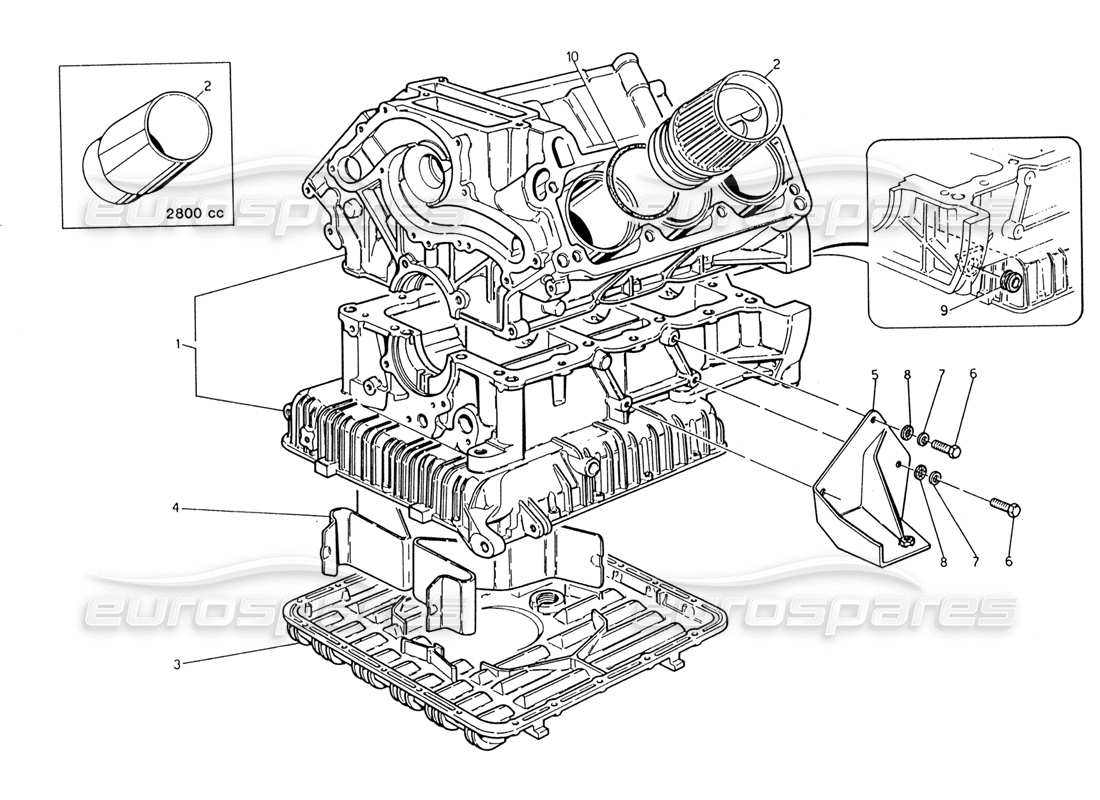

Maserati 222 / 222E Biturbo Cylinder Block and Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 310420017
                CYLINDER BLOCK 2000 C.C.
                Valid for 51
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 001
                MPN: 310420019
                CYLINDER BLOCK ASSY 2000 C.C.
                Valid for 51
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 001
                MPN: 340400017
                CYLINDER BLOCK 2800 C.C.
                Valid for 54, 55, 60, 61, 70, 71, 74, 75
                Maserati PART 340400017 Genuine Maserati Part - New (to order)
                # 002
                MPN: 311220019
                LINER WITH PISTONS
                Valid for 51
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 002
                MPN: 464010100
                LINER FOR CYLINDERS
                Valid for 54, 55, 60, 61, 70, 71, 74, 75
                from £279.72
                from £279.72
                This part replaces part number 340600316
                CANNE CILINDRO D=94 Genuine Maserati Part - New (to order)
                # 003
                MPN: 470010900
                engine oil sump
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 005
                MPN: 331244800
                RH ENGINE SUPPORT
                from £16.27
                from £16.27
                RH BRACKET OR ENGINE MOUNT Genuine Maserati Part - New (to order)
                # 005
                MPN: 331244900
                LH ENGINE SUPPORT
                from £15.57
                from £15.57
                LH BRACKET OR ENGINE MOUNT Genuine Maserati Part - New In stock
                # 006
                MPN: 101210025
                BOLT FIX. SUPPORT
                Maserati PART 101210025 Genuine Maserati Part - New (to order)
                # 008
                MPN: 134700105
                WASHER
                from £1.08
                from £1.08
                WASHER Genuine Maserati Part - New In stock
                # 009
                MPN: 312020368
                WIRE INLET
                from £0.56
                from £0.56
                WIRE INLET Genuine Maserati Part - New (to order)
                # 010
                MPN: 310620422
                RUBBER 2000 C.C.
                Valid for 51
                from £18.45
                from £18.45
                CYLINDER LINER SEAL RING D.98 Genuine Maserati Part - New (to order)
                CYLINDER LINER SEAL RING D.98 Eurospares Approved Part - New In stock
                # 010
                MPN: 340600422
                RUBBER 2800 C.C.
                Valid for 54, 55, 60, 61, 70, 71, 74, 75
                from £13.13
                from £13.13
                GROMMET 100X102,4X1,2 Genuine Maserati Part - New In stock
