062 - Ventilation

Maserati 2.24v Ventilation Parts Diagram

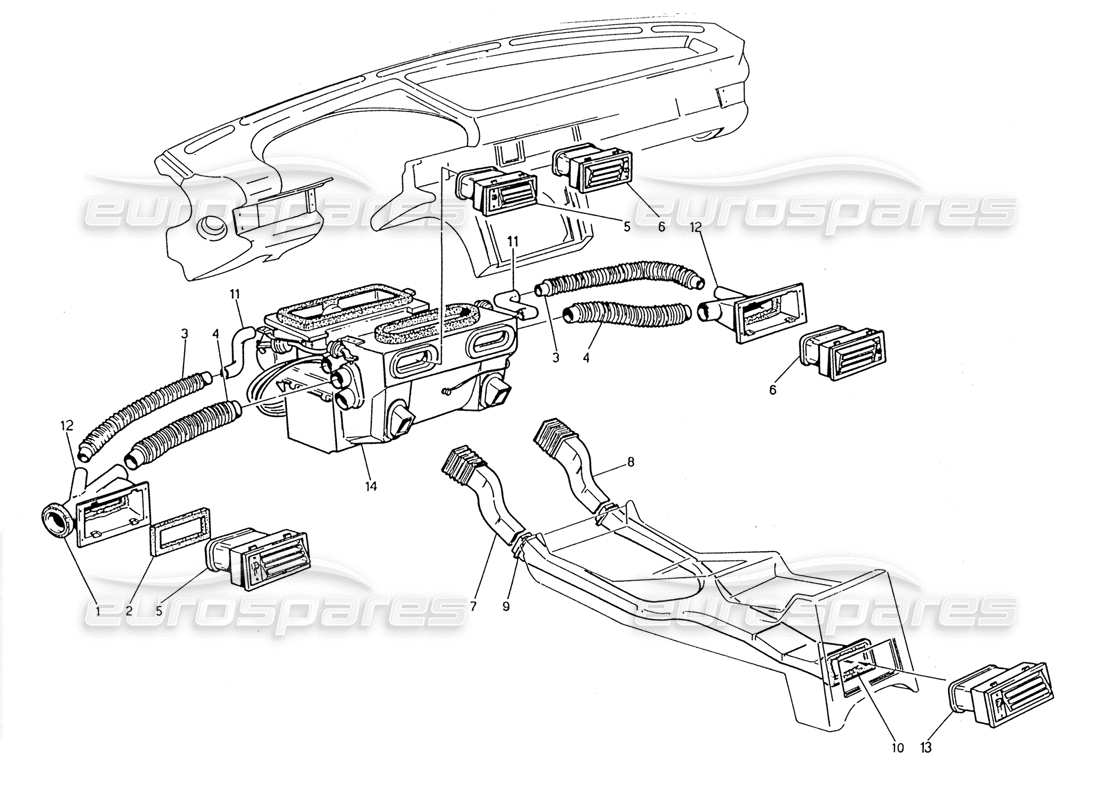

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 315520318
                              OUTSIDE GASKET
                              from £0.68
                              from £0.68
                              # 002
                              MPN: 315520317
                              INSIDE GASKET
                              from £0.68
                              from £0.68
                              # 003
                              MPN: 315520314
                              SIDE AIR COWLING FOR DOOR
                              from £34.58
                              from £34.58
                              # 004
                              MPN: 315520316
                              SIDE AIR COWLING FOR INSTRUMENT PANEL
                              from £40.82
                              from £40.82
                              # 005
                              MPN: 315553013
                              ADJUSTABLE AIR OUTLET, LH
                              from £33.73
                              from £33.73
                              # 006
                              MPN: 315553014
                              ADJUSTABLE AIR OUTLET, RH
                              from £17.94
                              from £17.94
                              # 007
                              MPN: 315520325
                              FRONT COMPONENT FOR LH AIR COWLING
                              from £2.79
                              from £2.79
                              # 008
                              MPN: 315520326
                              FRONT COMPONENT FOR RH AIR COWLING
                              from £2.79
                              from £2.79
                              # 009
                              MPN: 315520113
                              REAR AIR COWLING, ASSY
                              from £12.41
                              from £12.41
                              # 010
                              MPN: 315520329
                              GASKET FOR REAR AIR COWLING
                              from £0.68
                              from £0.68
                              # 011
                              MPN: 315520313
                              HOSE
                              from £2.95
                              from £2.95
                              # 012
                              MPN: 315520110
                              AIRDUCT
                              Supersession
                              Supersession
                              # 013
                              MPN: 315553020
                              ADJUSTABLE AIR CONSOLE
                              from £11.17
                              from £11.17
                              This part replaces part number 315550020
