061 - Instrument Panel and Console

Maserati 2.24v Instrument Panel and Console Parts Diagram

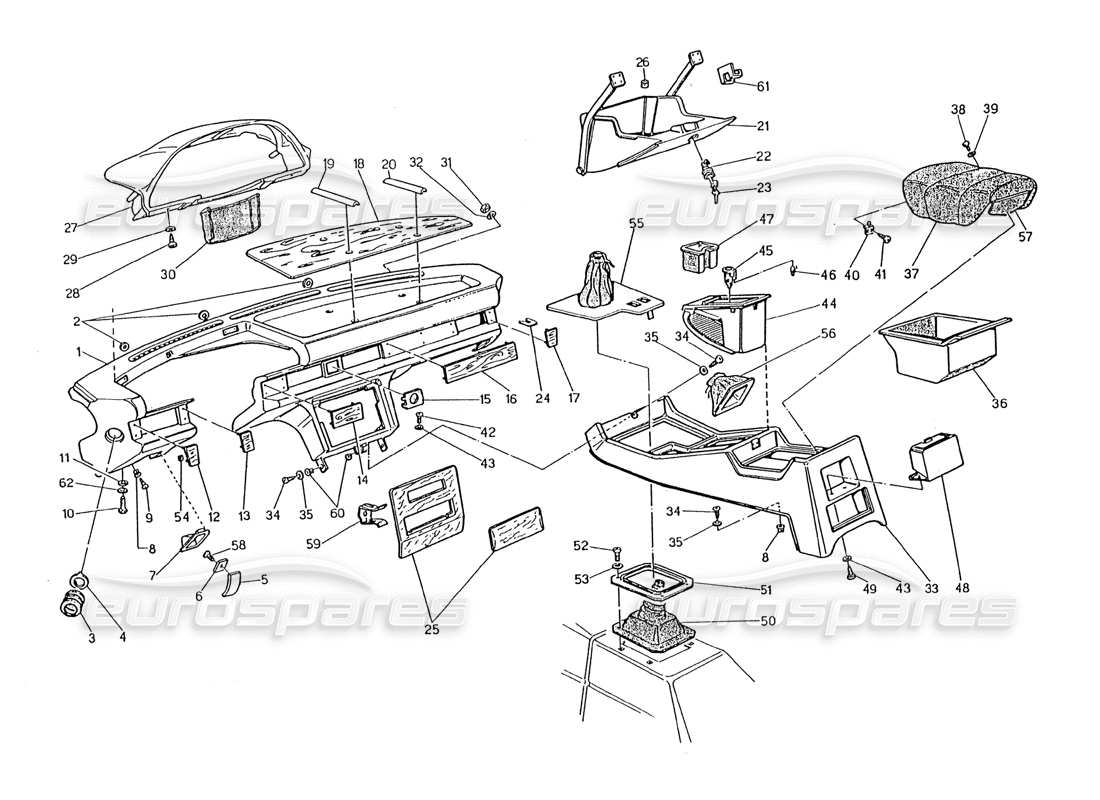

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Price
                                                                                                                            # 001
                                                                                                                            MPN: 312353046
                                                                                                                            INSTRUMENT PANEL, ASSY (LIGHT GREY PELT)
                                                                                                                            from £670.56
                                                                                                                            from £670.56
                                                                                                                            # 001
                                                                                                                            MPN: 312353047
                                                                                                                            INSTRUMENT PANEL, ASSY (BLACK PELT)
                                                                                                                            from £724.50
                                                                                                                            from £724.50
                                                                                                                            # 001
                                                                                                                            MPN: 312353048
                                                                                                                            INSTRUMENT PANEL, ASSY (AVIO PELT)
                                                                                                                            # 002
                                                                                                                            MPN: 312320384
                                                                                                                            GASKET
                                                                                                                            from £0.68
                                                                                                                            from £0.68
                                                                                                                            # 003
                                                                                                                            MPN: 315520320
                                                                                                                            BOOT
                                                                                                                            from £16.23
                                                                                                                            from £16.23
                                                                                                                            # 004
                                                                                                                            MPN: 315520319
                                                                                                                            GROOVED NUT
                                                                                                                            from £1.54
                                                                                                                            from £1.54
                                                                                                                            # 005
                                                                                                                            MPN: 312353333
                                                                                                                            PANEL
                                                                                                                            from £1.66
                                                                                                                            from £1.66
                                                                                                                            # 006
                                                                                                                            MPN: 552315334
                                                                                                                            WASHER
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            # 007
                                                                                                                            MPN: 312353336
                                                                                                                            LEVER SUPPORT
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            This part replaces part number 312320336
                                                                                                                            # 008
                                                                                                                            MPN: 318320341
                                                                                                                            NUT
                                                                                                                            from £0.68
                                                                                                                            from £0.68
                                                                                                                            This part replaces part number 14229280
                                                                                                                            # 009
                                                                                                                            MPN: 119942160
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 010
                                                                                                                            MPN: 101209030
                                                                                                                            SCREW
                                                                                                                            # 012
                                                                                                                            MPN: 322312153
                                                                                                                            LH SIDE FINISHER BRIAR
                                                                                                                            from £33.05
                                                                                                                            from £33.05
                                                                                                                            # 013
                                                                                                                            MPN: 322312135
                                                                                                                            LH CENTRAL FINISHER BRIAR
                                                                                                                            from £33.05
                                                                                                                            from £33.05
                                                                                                                            # 014
                                                                                                                            MPN: 322312139
                                                                                                                            CENTRAL FINISHER BRIAR
                                                                                                                            from £73.85
                                                                                                                            from £73.85
                                                                                                                            # 015
                                                                                                                            MPN: 322312141
                                                                                                                            FINISHER BRIAR WATCH ROOM
                                                                                                                            from £88.95
                                                                                                                            from £88.95
                                                                                                                            # 016
                                                                                                                            MPN: 322312136
                                                                                                                            RH CENTRAL FINISHER BRIAR
                                                                                                                            from £124.10
                                                                                                                            from £124.10
                                                                                                                            # 017
                                                                                                                            MPN: 322312154
                                                                                                                            RH SIDE FINISHER BRIAR
                                                                                                                            from £33.05
                                                                                                                            from £33.05
                                                                                                                            # 018
                                                                                                                            MPN: 322356175
                                                                                                                            («DARK GREY» ALCANTARA) FINISHER
                                                                                                                            from £32.06
                                                                                                                            from £32.06
                                                                                                                            # 018
                                                                                                                            MPN: 329320024
                                                                                                                            («LIGHT BLUE» ALCANTARA) FINISHER
                                                                                                                            from £26.66
                                                                                                                            from £26.66
                                                                                                                            # 019
                                                                                                                            MPN: 322356191
                                                                                                                            CENTRAL UPPER MOULDING (ALCANTARA DARK GREY)
                                                                                                                            from £10.39
                                                                                                                            from £10.39
                                                                                                                            # 019
                                                                                                                            MPN: 322356193
                                                                                                                            CENTRAL UPPER MOULDING (BLACK PELT)
                                                                                                                            from £10.92
                                                                                                                            from £10.92
                                                                                                                            # 019
                                                                                                                            MPN: 322356195
                                                                                                                            CENTRAL UPPER MOULDING (AVIO PELT)
                                                                                                                            from £10.39
                                                                                                                            from £10.39
                                                                                                                            # 020
                                                                                                                            MPN: 322356192
                                                                                                                            RH UPPER MOULDING (ALCANTARA DARK GREY)
                                                                                                                            from £10.39
                                                                                                                            from £10.39
                                                                                                                            # 020
                                                                                                                            MPN: 322356194
                                                                                                                            RH UPPER MOULDING (BLACK PELT)
                                                                                                                            from £10.92
                                                                                                                            from £10.92
                                                                                                                            # 020
                                                                                                                            MPN: 322356196
                                                                                                                            RH UPPER MOULDING (AVIO PELT)
                                                                                                                            from £10.39
                                                                                                                            from £10.39
                                                                                                                            # 021
                                                                                                                            MPN: 322356036
                                                                                                                            INSTR. PANEL BOX (LIGHT GREY PELT)
                                                                                                                            from £51.88
                                                                                                                            from £51.88
                                                                                                                            # 021
                                                                                                                            MPN: 322356037
                                                                                                                            INSTR. PANEL BOX (BLACK PELT)
                                                                                                                            from £50.45
                                                                                                                            from £50.45
                                                                                                                            # 021
                                                                                                                            MPN: 322356038
                                                                                                                            INSTR. PANEL BOX (AVIO PELT)
                                                                                                                            # 022
                                                                                                                            MPN: 372380012
                                                                                                                            lock
                                                                                                                            from £92.09
                                                                                                                            from £92.09
                                                                                                                            This part replaces part number 372330012
                                                                                                                            # 023
                                                                                                                            MPN: 312320376
                                                                                                                            Key
                                                                                                                            from £0.54
                                                                                                                            from £0.54
                                                                                                                            # 024
                                                                                                                            MPN: 312320381
                                                                                                                            SPACER
                                                                                                                            from £0.68
                                                                                                                            from £0.68
                                                                                                                            # 025
                                                                                                                            MPN: 328312243
                                                                                                                            PANEL
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            # 026
                                                                                                                            MPN: 312320324
                                                                                                                            RUBBER
                                                                                                                            from £0.68
                                                                                                                            from £0.68
                                                                                                                            # 027
                                                                                                                            MPN: 322356186
                                                                                                                            INSTRUMENT HOUSING (ALCANTARA DARK GREY)
                                                                                                                            from £155.43
                                                                                                                            from £155.43
                                                                                                                            # 027
                                                                                                                            MPN: 322356188
                                                                                                                            INSTRUMENT HOUSING (BLACK PELT)
                                                                                                                            from £212.12
                                                                                                                            from £212.12
                                                                                                                            # 027
                                                                                                                            MPN: 322356190
                                                                                                                            INSTRUMENT HOUSING (AVIO PELT)
                                                                                                                            from £208.81
                                                                                                                            from £208.81
                                                                                                                            # 028
                                                                                                                            MPN: 119935190
                                                                                                                            SCREW
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            # 029
                                                                                                                            MPN: 30831442
                                                                                                                            WASHER
                                                                                                                            # 030
                                                                                                                            MPN: 322356180
                                                                                                                            TRIM FOR STEERING COMPARTEMENT (ALCANTARA DARK GREY)
                                                                                                                            from £18.39
                                                                                                                            from £18.39
                                                                                                                            # 030
                                                                                                                            MPN: 322356182
                                                                                                                            TRIM FOR STEERING COMPARTEMENT (BLACK PELT)
                                                                                                                            from £18.92
                                                                                                                            from £18.92
                                                                                                                            # 030
                                                                                                                            MPN: 322356184
                                                                                                                            TRIM FOR STEERING COMPARTEMENT (AVIO PELT)
                                                                                                                            from £6.38
                                                                                                                            from £6.38
                                                                                                                            # 032
                                                                                                                            MPN: 163030060
                                                                                                                            WASHER
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            # 033
                                                                                                                            MPN: 319353148
                                                                                                                            CONSOLE (AVIO PELT)
                                                                                                                            # 033
                                                                                                                            MPN: 319953148
                                                                                                                            CONSOLE (LIGHT GREY PELT)
                                                                                                                            from £533.22
                                                                                                                            from £533.22
                                                                                                                            # 033
                                                                                                                            MPN: 319953348
                                                                                                                            CONSOLE (BLACK PELT)
                                                                                                                            from £546.29
                                                                                                                            from £546.29
                                                                                                                            # 034
                                                                                                                            MPN: 119142160
                                                                                                                            SCREW
                                                                                                                            from £0.84
                                                                                                                            from £0.84
                                                                                                                            # 035
                                                                                                                            MPN: 135900043
                                                                                                                            WASHER
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            This part replaces part number 14496207
                                                                                                                            # 036
                                                                                                                            MPN: 318353511
                                                                                                                            CONSOLE BOX
                                                                                                                            from £10.64
                                                                                                                            from £10.64
                                                                                                                            # 037
                                                                                                                            MPN: 319353181
                                                                                                                            CONSOLE CUSHION (AVIO PELT)
                                                                                                                            # 037
                                                                                                                            MPN: 319953181
                                                                                                                            CONSOLE CUSHION (LIGHT GREY PELT)
                                                                                                                            from £28.18
                                                                                                                            from £28.18
                                                                                                                            # 037
                                                                                                                            MPN: 319953361
                                                                                                                            CONSOLE CUSHION (BLACK PELT)
                                                                                                                            from £80.75
                                                                                                                            from £80.75
                                                                                                                            # 038
                                                                                                                            MPN: 119342160
                                                                                                                            SCREW
                                                                                                                            # 039
                                                                                                                            MPN: 135000043
                                                                                                                            WASHER
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            # 040
                                                                                                                            MPN: 318353549
                                                                                                                            button
                                                                                                                            from £1.70
                                                                                                                            from £1.70
                                                                                                                            # 041
                                                                                                                            MPN: 119529095
                                                                                                                            SCREW
                                                                                                                            # 043
                                                                                                                            MPN: 169020005
                                                                                                                            WASHER
                                                                                                                            from £1.07
                                                                                                                            from £1.07
                                                                                                                            # 044
                                                                                                                            MPN: 318153022
                                                                                                                            ASHTRAY HOUSING
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            This part replaces part number 318120022
                                                                                                                            # 045
                                                                                                                            MPN: 53336115
                                                                                                                            CIGAR LIGHTER
                                                                                                                            from £29.33
                                                                                                                            from £29.33
                                                                                                                            # 046
                                                                                                                            MPN: 87760012
                                                                                                                            BULB
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            # 047
                                                                                                                            MPN: 318153344
                                                                                                                            ASHTRAY (NOT SUPPLIED IN SINGLE PART)
                                                                                                                            # 048
                                                                                                                            MPN: 328156137
                                                                                                                            REAR ASHTRAY (LIGHT GREY PELT)
                                                                                                                            from £10.00
                                                                                                                            from £10.00
                                                                                                                            # 048
                                                                                                                            MPN: 328156139
                                                                                                                            REAR ASHTRAY (BLACK PELT)
                                                                                                                            from £21.47
                                                                                                                            from £21.47
                                                                                                                            # 048
                                                                                                                            MPN: 328156141
                                                                                                                            REAR ASHTRAY (AVIO PELT)
                                                                                                                            from £8.16
                                                                                                                            from £8.16
                                                                                                                            # 049
                                                                                                                            MPN: 112805010
                                                                                                                            SCREW
                                                                                                                            # 050
                                                                                                                            MPN: 315220300
                                                                                                                            GEAT SHIFT GAITER
                                                                                                                            from £3.23
                                                                                                                            from £3.23
                                                                                                                            # 051
                                                                                                                            MPN: 315220301
                                                                                                                            FIXING PLATE
                                                                                                                            from £2.90
                                                                                                                            from £2.90
                                                                                                                            # 053
                                                                                                                            MPN: 169020406
                                                                                                                            WASHER
                                                                                                                            from £0.76
                                                                                                                            from £0.76
                                                                                                                            # 054
                                                                                                                            MPN: 312320387
                                                                                                                            SPRING
                                                                                                                            from £0.68
                                                                                                                            from £0.68
                                                                                                                            # 055
                                                                                                                            MPN: 319353184
                                                                                                                            LEVER TRANSM. PANEL (AVIO PELT)
                                                                                                                            # 055
                                                                                                                            MPN: 319354182
                                                                                                                            LEVER TRANSM. PANEL (AVIO PELT)
                                                                                                                            from £58.87
                                                                                                                            from £58.87
                                                                                                                            # 055
                                                                                                                            MPN: 319951234
                                                                                                                            LEVER TRANSM. PANEL (LIGHT GREY PELT)
                                                                                                                            from £58.41
                                                                                                                            from £58.41
                                                                                                                            # 055
                                                                                                                            MPN: 319953184
                                                                                                                            LEVER TRANSM. PANEL (BLACK PELT)
                                                                                                                            from £57.05
                                                                                                                            from £57.05
                                                                                                                            # 055
                                                                                                                            MPN: 319953234
                                                                                                                            LEVER TRANSM. PANEL (LIGHT GREY PELT)
                                                                                                                            from £56.67
                                                                                                                            from £56.67
                                                                                                                            # 055
                                                                                                                            MPN: 319954182
                                                                                                                            LEVER TRANSM. PANEL (BLACK PELT)
                                                                                                                            from £116.15
                                                                                                                            from £116.15
                                                                                                                            # 056
                                                                                                                            MPN: 329356247
                                                                                                                            BOOT (AVIO PELT)
                                                                                                                            from £69.36
                                                                                                                            from £69.36
                                                                                                                            # 056
                                                                                                                            MPN: 329956247
                                                                                                                            BOOT (GREY PELT)
                                                                                                                            from £12.21
                                                                                                                            from £12.21
                                                                                                                            # 056
                                                                                                                            MPN: 329956277
                                                                                                                            BOOT (BLACK PELT)
                                                                                                                            from £18.15
                                                                                                                            from £18.15
                                                                                                                            # 057
                                                                                                                            MPN: 318351556
                                                                                                                            HINGE
                                                                                                                            from £1.93
                                                                                                                            from £1.93
                                                                                                                            # 058
                                                                                                                            MPN: 119142160
                                                                                                                            SCREW
                                                                                                                            from £0.84
                                                                                                                            from £0.84
                                                                                                                            # 059
                                                                                                                            MPN: 318320027
                                                                                                                            PAD TO FIX. RADIO RECEIVER
                                                                                                                            from £1.54
                                                                                                                            from £1.54
                                                                                                                            # 060
                                                                                                                            MPN: 312520499
                                                                                                                            NUT
                                                                                                                            from £0.68
                                                                                                                            from £0.68
                                                                                                                            # 061
                                                                                                                            MPN: 312320339
                                                                                                                            LOCK SUPPORT
                                                                                                                            from £1.54
                                                                                                                            from £1.54
