Maserati 2.24v Air Filter and Pipes Parts Diagram

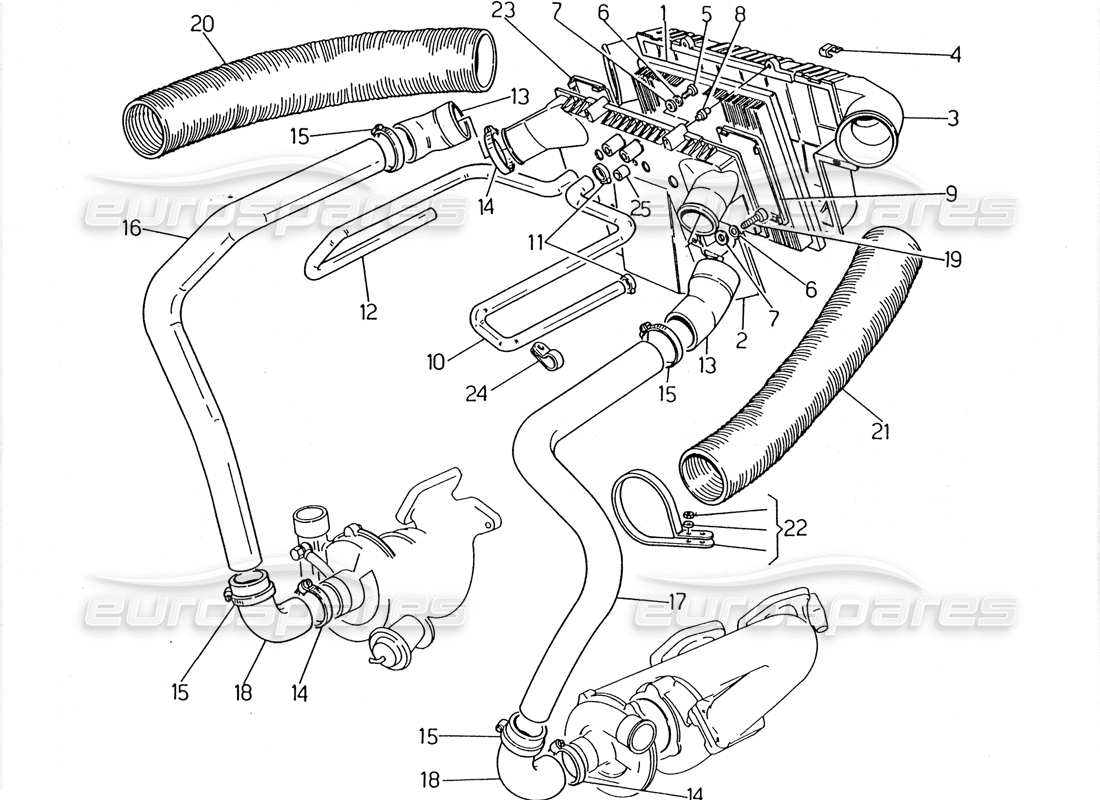

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 312453303
                                                    AIR FILTER
                                                    from £18.50
                                                    from £18.50
                                                    # 002
                                                    MPN: 312453108
                                                    AIR FILTER LOWER COVER
                                                    # 003
                                                    MPN: 312453003
                                                    AIR FILTER UPPER COVER
                                                    # 004
                                                    MPN: 312453302
                                                    AIR FILTER CLOSING SPRING
                                                    from £2.31
                                                    from £2.31
                                                    # 005
                                                    MPN: 14304821
                                                    SCREW
                                                    from £0.53
                                                    from £0.53
                                                    # 008
                                                    MPN: 312453313
                                                    PIN
                                                    from £24.87
                                                    from £24.87
                                                    # 009
                                                    MPN: 312453320
                                                    FILTER BOX COVER
                                                    from £0.68
                                                    from £0.68
                                                    # 010
                                                    MPN: 311053411
                                                    LH OIL BLOWER PIPE
                                                    # 011
                                                    MPN: 315520351
                                                    CLAMP
                                                    # 012
                                                    MPN: 311053410
                                                    RH OIL BLOWER PIPE
                                                    # 014
                                                    MPN: 312420106
                                                    CLAMP
                                                    Supersession
                                                    Supersession
                                                    # 015
                                                    MPN: 312420105
                                                    CLAMP
                                                    from £1.11
                                                    from £1.11
                                                    # 016

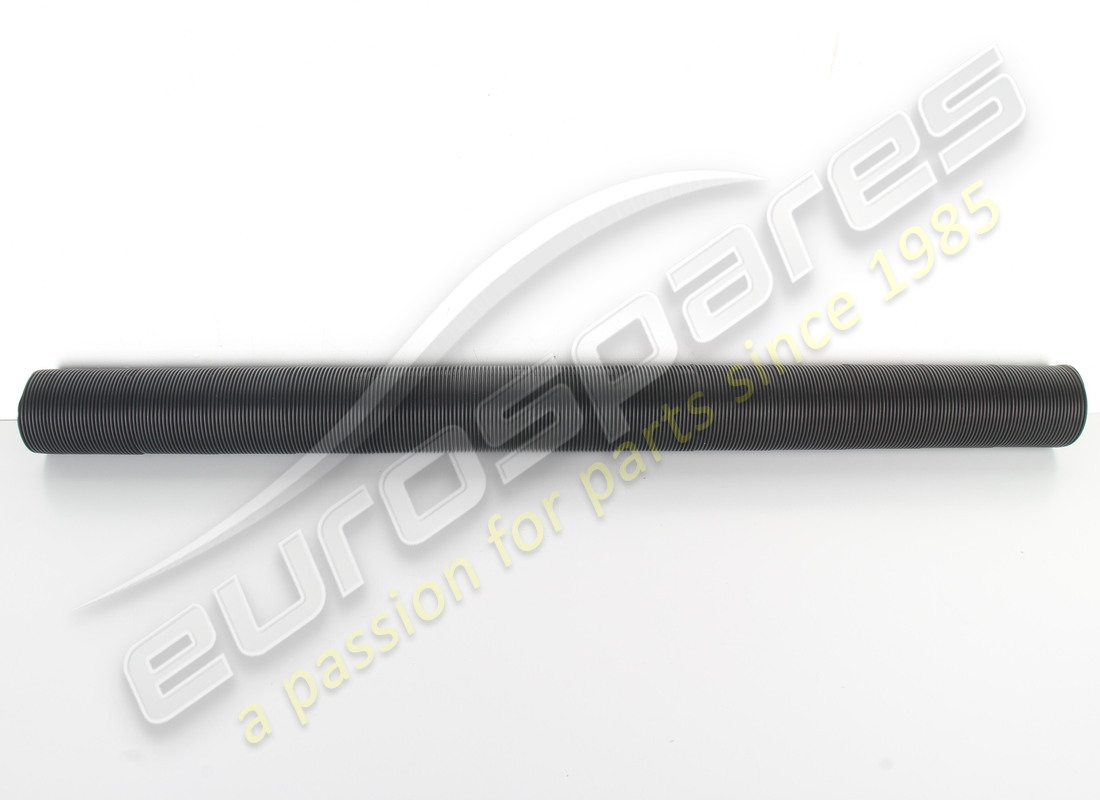

                                                    MPN: 312453334
                                                    RH AIR PIPE
                                                    from £9.86
                                                    from £9.86
                                                    # 017
                                                    MPN: 312453333
                                                    LH AIR PIPE
                                                    from £38.40
                                                    from £38.40
                                                    # 019
                                                    MPN: 311053394
                                                    SCREW
                                                    Supersession
                                                    Supersession
                                                    # 020
                                                    MPN: 312422304
                                                    RH AIR SUCTION PIPE
                                                    from £2.82
                                                    from £2.82
                                                    # 021
                                                    MPN: 312453300
                                                    LH AIR SUCTION PIPE
                                                    from £11.84
                                                    from £11.84
                                                    This part replaces part number 312432300
                                                    # 022
                                                    MPN: 312453301
                                                    CLAMP FOR SUCTION PIPE
                                                    from £5.46
                                                    from £5.46
                                                    # 023
                                                    MPN: 312453321
                                                    FILTER BOX COVER
                                                    # 024
                                                    MPN: 311053412
                                                    CLAMP
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
