maserati 4200 spyder (2005) capote hydraulic system parts diagram

115 - Capote Hydraulic System

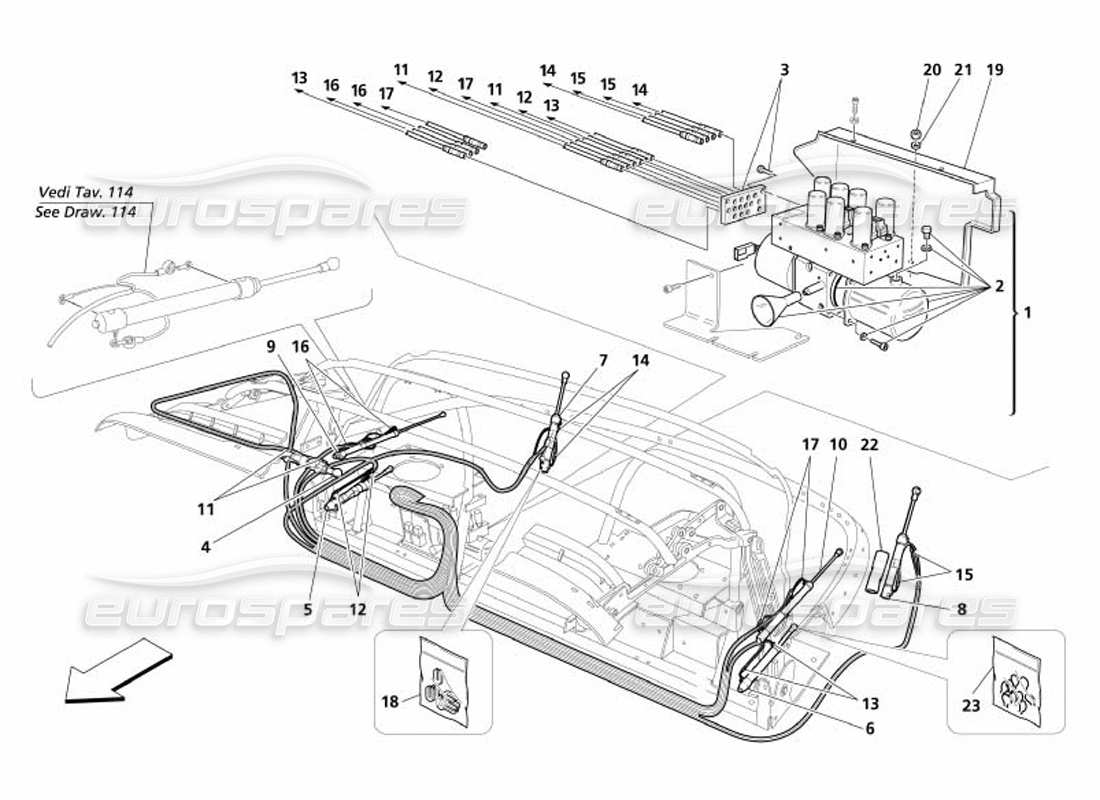

Maserati 4200 Spyder (2005) Capote Hydraulic System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 66106400
                                                COMPLETE ELECTROHYDRAULIC GROUP
                                                from £5,626.59
                                                from £5,626.59
                                                This part replaces part number 66115200 - and 1 more. Click to view details
                                                # 002
                                                MPN: 980001092
                                                OIL TANK KIT
                                                from £147.49
                                                from £147.49
                                                # 003
                                                MPN: 980001093
                                                PIPES FIXING PLATE
                                                from £62.29
                                                from £62.29
                                                # 004
                                                MPN: 66662600
                                                HYDRAULIC CYLINDER ON FRONT CROSS MEMBER
                                                from £161.36
                                                from £161.36
                                                This part replaces part number 66115300 - and 1 more. Click to view details
                                                # 005
                                                MPN: 66115400
                                                RH CAPOTE MOVEMENT FOR ELECTROHIDRAULIC CYLINDER
                                                from £162.64
                                                from £162.64
                                                # 006
                                                MPN: 66115500
                                                LH CAPOTE MOVEMENT FOR ELECTRHYDRAULIC CYLINDER
                                                from £149.00
                                                from £149.00
                                                # 007
                                                MPN: 66115600
                                                RH COVER MOVEMENT FOR ELECTOHYDRAULIC CYLYNDER
                                                from £379.87
                                                from £379.87
                                                # 008
                                                MPN: 66115700
                                                LH COVER MOVEMENT FOR ELECTRHYDRAULIC CYLINDER
                                                from £245.42
                                                from £245.42
                                                # 009
                                                MPN: 66115800
                                                RH CAPOTE ARCH MOVEMENT FOR ELECTRHYDRAULIC CYLINDER
                                                from £1,185.00
                                                from £1,185.00
                                                # 010
                                                MPN: 66115900
                                                LH CAPOTE ARCH MOVEMENT FOR ELECTROHYDRAULIC CYLINDER
                                                from £1,180.25
                                                from £1,180.25
                                                # 011
                                                MPN: 980002002
                                                FRONT CROSS MEMBER OIL CYLINDER PIPES KIT
                                                from £193.39
                                                from £193.39
                                                # 012
                                                MPN: 980002003
                                                RH CAPOTE MOVEMENT CYLINDER OIL PIPE KIT
                                                from £60.60
                                                from £60.60
                                                # 013
                                                MPN: 980002004
                                                LH CAPOTE MOVEMENT CYLINDER OIL PIPE KIT
                                                from £107.96
                                                from £107.96
                                                # 014
                                                MPN: 980002005
                                                RH COVER MOVEMENT CYLINDER OIL PIPE KIT
                                                from £160.84
                                                from £160.84
                                                # 015
                                                MPN: 980002006
                                                LH COVER MOVEMENT CYLINDER OIL PIPE KIT
                                                from £182.73
                                                from £182.73
                                                # 016
                                                MPN: 980002007
                                                RH CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT
                                                from £211.42
                                                from £211.42
                                                # 017
                                                MPN: 980002008
                                                LH CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT
                                                from £209.18
                                                from £209.18
                                                # 018
                                                MPN: 980001094
                                                PIPES FIXING CLIP KIT
                                                from £25.08
                                                from £25.08
                                                # 019
                                                MPN: 66956400
                                                CAPOTE PUMP COVER
                                                from £18.62
                                                from £18.62
                                                # 020
                                                MPN: 15896472
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 021
                                                MPN: 13577778
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                # 022
                                                MPN: 980002015
                                                SHEATHS KIT
                                                from £42.90
                                                from £42.90
                                                # 023
                                                MPN: 980002017
                                                RINGS KIT
                                                from £44.32
                                                from £44.32
