112 - Capote Front Closing

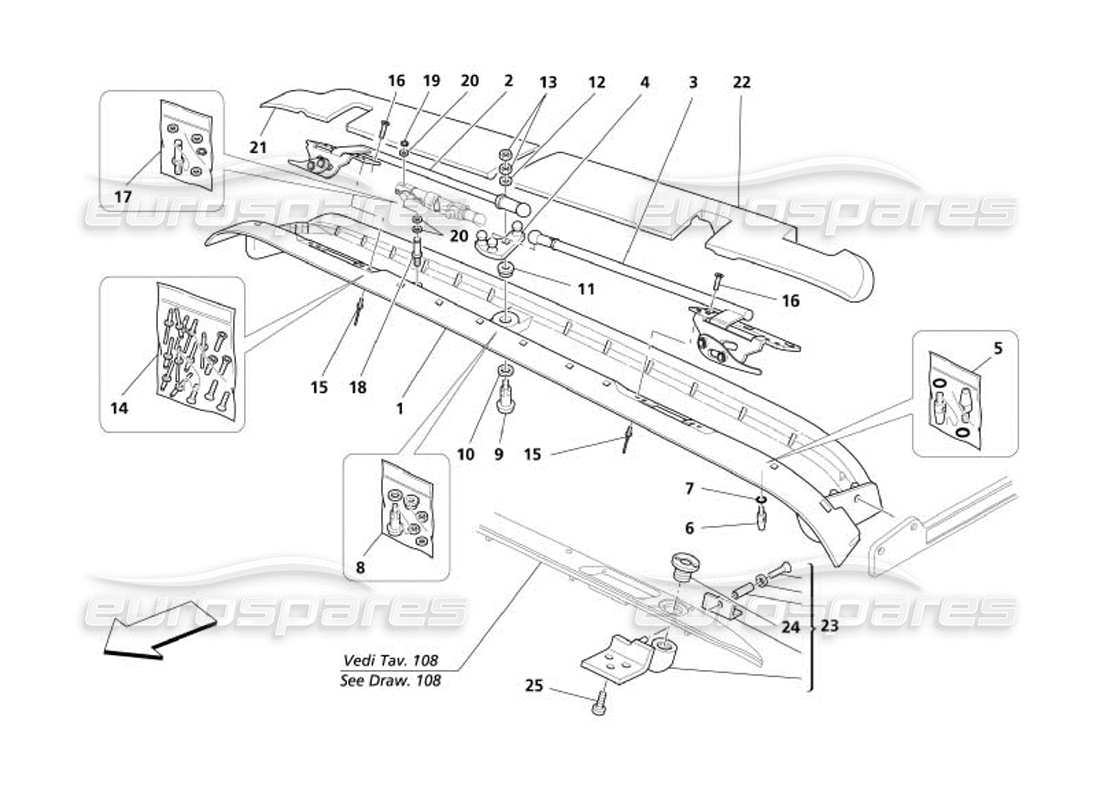

Maserati 4200 Spyder (2005) Capote Front Closing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 66104700
COMPLETE FRONT CROSS MEMBER
from £1,111.93
from £1,111.93
# 001
MPN: 66118300
PAINTED CROSS MEMBER
from £1,309.54
from £1,309.54
# 002
-
RH FRONT SEAL
# 003
-
LH FRONT SEAL
# 004
MPN: 66117100
CENTER ROCKER
from £40.80
from £40.80
# 005
MPN: 980001080
CROSS MEMBER CENTERING PIN KIT
from £67.47
from £67.47
# 006
-
CENTERING PIN
# 007
-
O.R.GASKET
# 008
MPN: 980001078
LEVER PIN KIT
from £52.79
from £52.79
# 009
-
PIN
# 010
-
WASHER
# 011
-
BUSH
# 012
-
WASHER
# 013
-
NUT
# 014
MPN: 980001077
FRONT CROSS MEMBER FIXING KIT
from £20.25
from £20.25
# 015
-
RIVET
# 016
-
SCREW
# 017
MPN: 980001079
HYDRAULIC CYLINDER PIN KIT
from £17.16
from £17.16
# 018
-
PIN
# 019
-
STOP RING
# 020
-
WHASHER
# 021
MPN: 66729600
RH CROSS MEMBER LOCK COVER
from £69.94
from £69.94
# 022
MPN: 66729700
LH CROSS MEMBER LOCK COVER
from £69.94
from £69.94
# 023
MPN: 66106500
RH CAPOTE HOOK SUPPORT
from £54.19
from £54.19
This part replaces part number 66609800
# 023
MPN: 66106600
LH CAPOTE HOOK SUPPORT
from £54.19
from £54.19
This part replaces part number 66609900
# 024
MPN: 66607100
RING NUT
use : RH 66106500 - LH 66106600
from £41.70
from £41.70
# 025
MPN: 14442021
SCREW
from £0.52
from £0.52
This part replaces part number 14442020
