maserati 4200 spyder (2005) front bumper parts diagram

105 - FRONT BUMPER

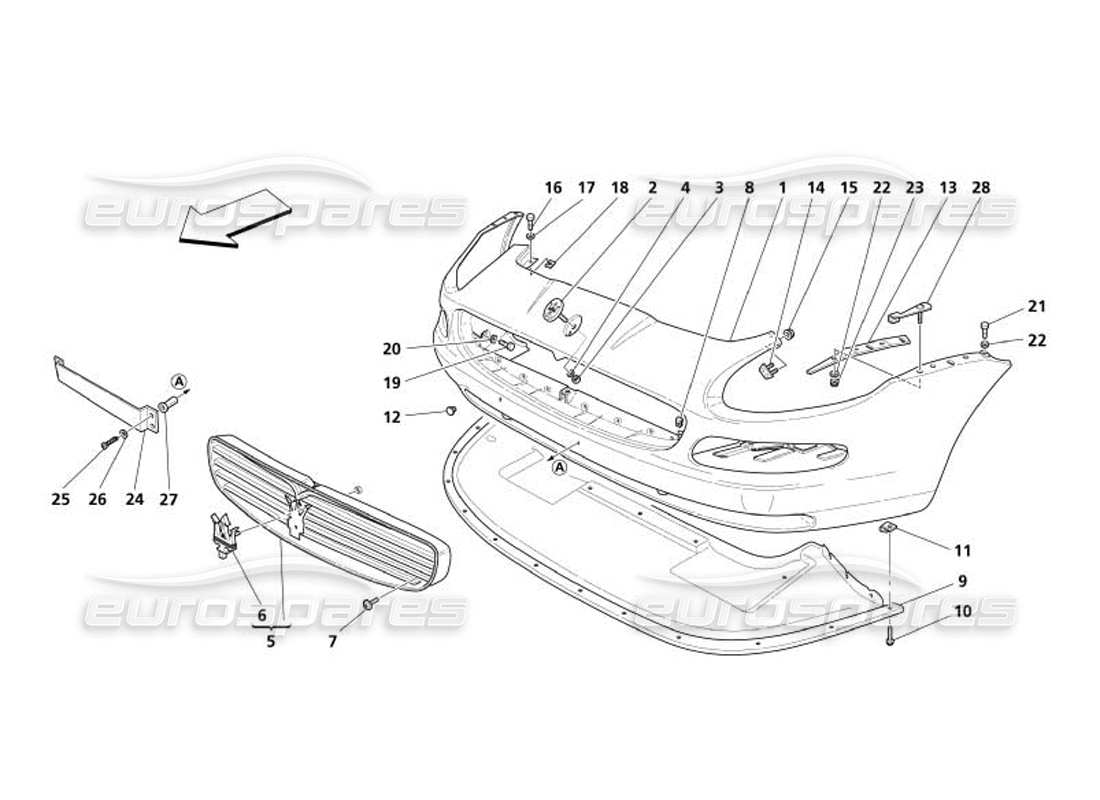

Maserati 4200 Spyder (2005) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 980138240
                                                    COMPLETE FRONT BUMPER
                                                    Standard - Not for USA and CDN
                                                    from £1,619.22
                                                    from £1,619.22
                                                    # 001
                                                    MPN: 980138241
                                                    COMPLETE FRONT BUMPER
                                                    Optional - Xeno headlights andHeadligts Washer - Not for USA and CDN
                                                    from £1,293.25
                                                    from £1,293.25
                                                    # 001
                                                    MPN: 980138242
                                                    COMPLETE FRONT BUMPER
                                                    Standard - Valid for USA and CDN
                                                    from £1,183.65
                                                    from £1,183.65
                                                    # 001
                                                    MPN: 980138243
                                                    COMPLETE FRONT BUMPER
                                                    Optional - Xeno headlights andHeadligts Washer - Valid for USA and CDN
                                                    from £1,548.95
                                                    from £1,548.95
                                                    # 002
                                                    MPN: 670101565
                                                    Maserati MARK
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 670039888 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 10794014
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 004
                                                    MPN: 12642801
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 005
                                                    MPN: 68155600
                                                    COMPLETE REMOVABLE CALENDER
                                                    Optional - Chromate net - Vintage version
                                                    from £308.52
                                                    from £308.52
                                                    # 005
                                                    MPN: 68334300
                                                    COMPLETE REMOVABLE CALENDER
                                                    Optional - Black net
                                                    from £385.46
                                                    from £385.46
                                                    # 005
                                                    MPN: 68412800
                                                    COMPLETE REMOVABLE CALENDER
                                                    STANDARD
                                                    from £392.39
                                                    from £392.39
                                                    # 006
                                                    MPN: 89095900
                                                    EMBLEM
                                                    Standard - Not for cars with black net in the calender - Not for cars with chromate net in the calender
                                                    from £100.05
                                                    from £100.05
                                                    This part replaces part number 67224700
                                                    # 006
                                                    MPN: 89096000
                                                    EMBLEM
                                                    Optional - Valid for cars with black net in the calender - Valid for cars with chromate net in the calender
                                                    from £96.71
                                                    from £96.71
                                                    This part replaces part number 68337300
                                                    # 007
                                                    MPN: 67278600
                                                    SCREW
                                                    from £2.46
                                                    from £2.46
                                                    # 008
                                                    MPN: 67278700
                                                    BRACKET
                                                    from £2.31
                                                    from £2.31
                                                    # 009
                                                    MPN: 66232900
                                                    SHIELD FRONT UNDER THE BODY SHELL
                                                    from £166.06
                                                    from £166.06
                                                    # 010
                                                    MPN: 16296924
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 011
                                                    MPN: 14189071
                                                    BRACKET
                                                    from £0.47
                                                    from £0.47
                                                    # 012
                                                    MPN: 67118900
                                                    PLUG FOR TOW HOOK HOLE
                                                    from £1.54
                                                    from £1.54
                                                    # 013
                                                    MPN: 66370800
                                                    RH SIDE BRACKET
                                                    from £19.31
                                                    from £19.31
                                                    # 013
                                                    MPN: 66370900
                                                    LH SIDE BRACKET
                                                    from £19.31
                                                    from £19.31
                                                    # 014
                                                    MPN: 66494700
                                                    RH BRACKET
                                                    from £22.85
                                                    from £22.85
                                                    # 014
                                                    MPN: 66494800
                                                    LH BRACKET
                                                    from £21.01
                                                    from £21.01
                                                    # 015
                                                    MPN: 13831811
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 016
                                                    MPN: 10902387
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 017
                                                    MPN: 10523478
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 018
                                                    MPN: 66361500
                                                    ADJUSTING PLATE
                                                    from £3.16
                                                    from £3.16
                                                    # 019
                                                    MPN: 16043321
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 020
                                                    MPN: 163020080
                                                    WASHER
                                                    from £1.07
                                                    from £1.07
                                                    # 021
                                                    MPN: 10902834
                                                    SCREW
                                                    from £0.50
                                                    from £0.50
                                                    # 022
                                                    MPN: 10523424
                                                    WASHER
                                                    from £0.51
                                                    from £0.51
                                                    # 023
                                                    MPN: 14059211
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 675000181
                                                    # 024
                                                    MPN: 68286700
                                                    BRACKET
                                                    from £12.62
                                                    from £12.62
                                                    # 025
                                                    MPN: 13283217
                                                    SCREW
                                                    from £1.54
                                                    from £1.54
                                                    # 026
                                                    MPN: 12637807
                                                    WASHER
                                                    from £0.52
                                                    from £0.52
                                                    # 027
                                                    MPN: 66412700
                                                    BUSHING
                                                    from £1.93
                                                    from £1.93
                                                    # 028
                                                    MPN: 386300132
                                                    RH FRONT BRACKET
                                                    from £30.00
                                                    from £30.00
                                                    # 028
                                                    MPN: 386300133
                                                    LH FRONT BRACKET
                                                    from £51.09
                                                    from £51.09
