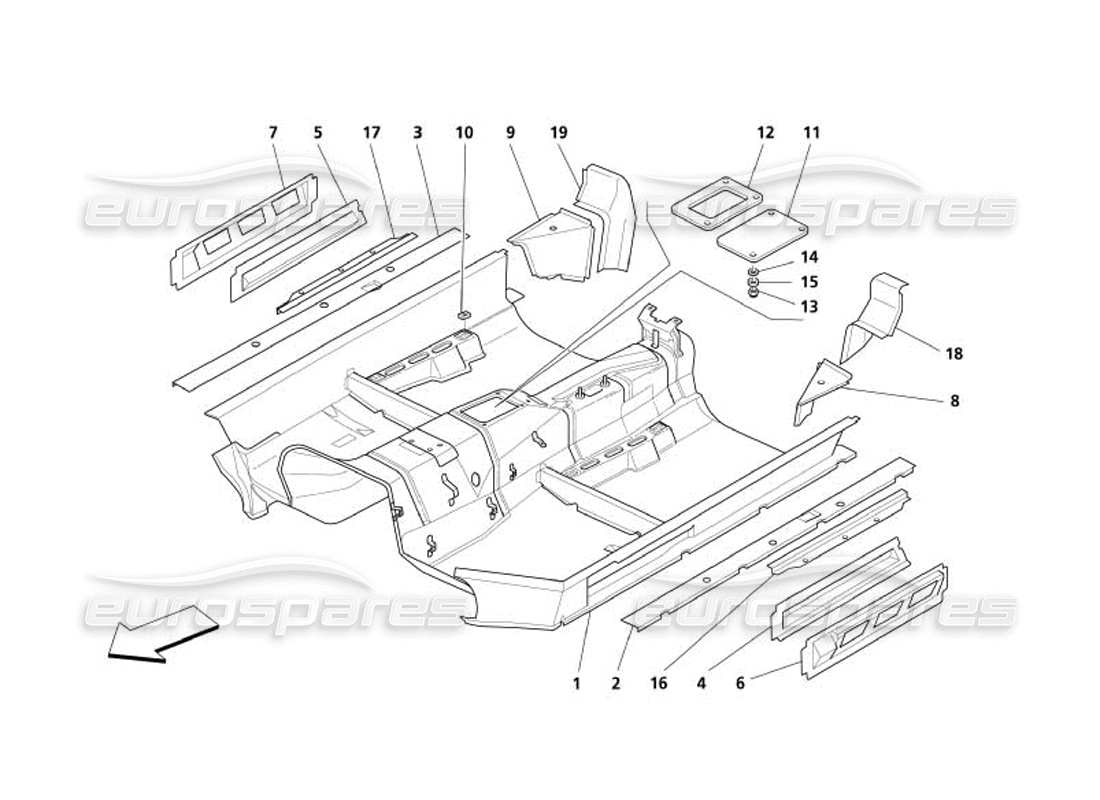

Maserati 4200 Spyder (2005) Central Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 980138031
                              COMPLETE CENTRAL FLOOR
                              from £3,629.60
                              from £3,629.60
                              # 002
                              MPN: 65964600
                              LH UNDERDOOR LOWER LONGITUDINAL MEMBER
                              from £19.23
                              from £19.23
                              # 003
                              MPN: 65964500
                              RH UNDERDOOR LOWER LONGITUDINAL MEMBER
                              from £21.35
                              from £21.35
                              # 004
                              MPN: 67498000
                              LH FRONT LONGITUDINAL MEMBER REINFORCEMENT
                              from £75.24
                              from £75.24
                              # 005
                              MPN: 67497900
                              RH FRONT LONGITUDINAL MEMBER REINFORCEMENT
                              from £75.24
                              from £75.24
                              # 006
                              MPN: 67498800
                              LH LONGITUDINAL FRONT MEMBER
                              from £51.28
                              from £51.28
                              # 007
                              MPN: 67498700
                              RH LONGITUDINAL FRONT MEMBER
                              from £51.28
                              from £51.28
                              # 008
                              MPN: 65962700
                              LH OUTER ANGULAR REINFORCEMENT
                              from £15.86
                              from £15.86
                              # 009
                              MPN: 65962600
                              RH OUTER ANGULAR REINFORCEMENT
                              from £15.86
                              from £15.86
                              # 010
                              MPN: 66422200
                              NUT
                              from £5.56
                              from £5.56
                              # 011
                              MPN: 66423900
                              PLATE FOR GEAR CONTROL TONER
                              Valid for F1 - Not for USA and CDN
                              from £3.72
                              from £3.72
                              # 011
                              MPN: 67970100
                              PLATE FOR GEAR CONTROL TONER
                              Valid for F1 - Valid for USA and CDN
                              from £10.90
                              from £10.90
                              # 012
                              MPN: 66424000
                              PLATE GASKET
                              Valid for F1
                              from £2.85
                              from £2.85
                              # 013
                              MPN: 16100814
                              NUT
                              Valid for F1
                              from £0.71
                              from £0.71
                              # 014
                              MPN: 12625224
                              WASHER
                              Valid for F1
                              from £0.47
                              from £0.47
                              This part replaces part number 12625221
                              # 015
                              MPN: 12601374
                              WASHER
                              Valid for F1
                              from £0.47
                              from £0.47
                              # 016
                              MPN: 67498600
                              LH CONNECTION BRACKET
                              from £25.50
                              from £25.50
                              # 017
                              MPN: 67498500
                              RH CONNECTION BRACKET
                              from £25.50
                              from £25.50
                              # 018
                              MPN: 67507400
                              LH UPPER OUTER ANGULAR REINFORCEMENT
                              from £34.72
                              from £34.72
                              # 019
                              MPN: 67507300
                              RH UPPER OUTER ANGULAR REINFORCEMENT
                              from £34.72
                              from £34.72
