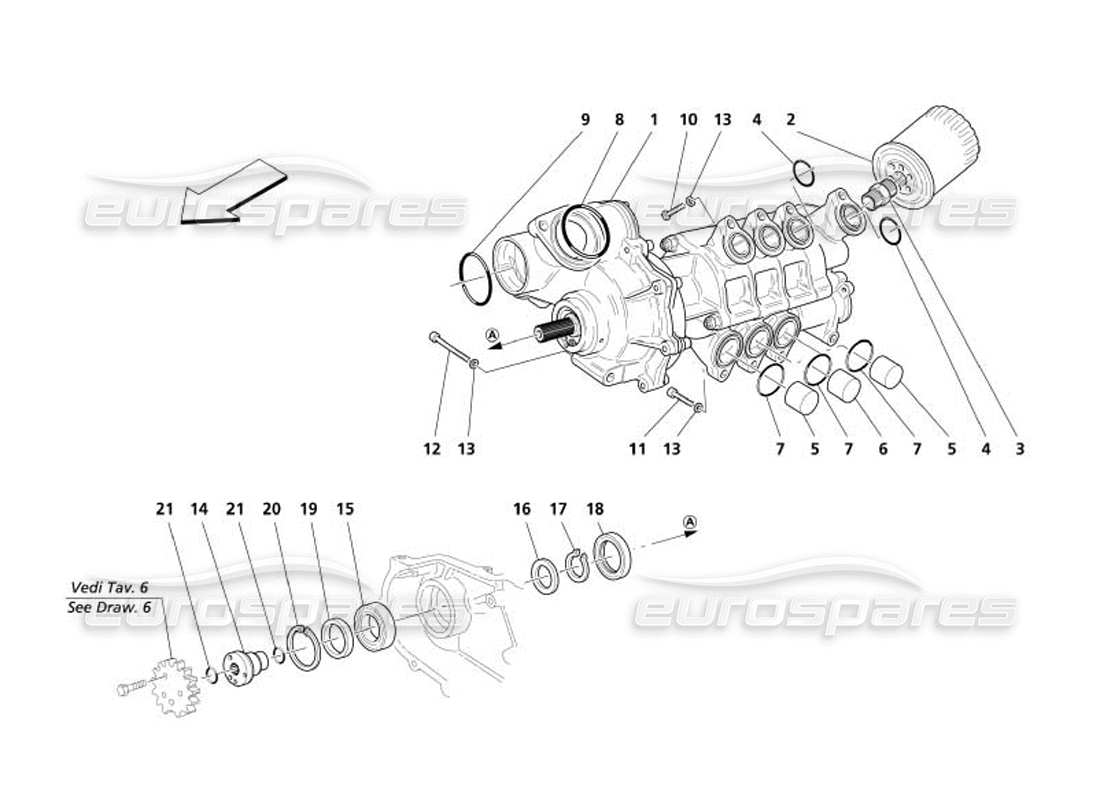

018 - Water-Oil Pump
Maserati 4200 Spyder (2005) Water-Oil Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 202976
COMPLETE WATER AND OIL PUMP
Valid for USA and CDN
from £1,514.58
from £1,514.58
This part replaces part number 194460
# 001
MPN: 213259
COMPLETE WATER AND OIL PUMP
Not for USA and CDN
from £2,435.42
from £2,435.42
This part replaces part number 194458
# 002
MPN: 188814
OIL FILTER CARTRIDGE
from £20.75
from £20.75
This part replaces part number 130623
# 003
MPN: 177604
THREADED UNION
from £7.62
from £7.62
# 004
MPN: 133938
O.R. GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
from £0.47
from £0.47
This part replaces part number 166655
# 005
MPN: 187051
LATERAL OIL RECOVERY FILTER
from £10.59
from £10.59
# 006
MPN: 187162
CENTRAL OIL RECOVERY FILTER
from £16.23
from £16.23
# 007
MPN: 148225
O.R. GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
from £0.53
from £0.53
# 008
MPN: 132829
O.R. GASKET
Supplied also in the crankcasegasket revision kit (cod. 980020004)
from £0.74
from £0.74
# 009
MPN: 141250
O.R. GASKET
from £0.54
from £0.54
# 010
MPN: 185345
SCREW
M 8X25
from £1.47
from £1.47
# 011
MPN: 14306424
SCREW
M 8X25
from £0.47
from £0.47
This part replaces part number 14306421
# 011
MPN: 14306524
SCREW
M 8X30
from £0.47
from £0.47
This part replaces part number 14306521
# 012
MPN: 14359324
SCREW
M 8X65
from £0.53
from £0.53
# 013
MPN: 11198074
WASHER
from £0.47
from £0.47
# 014
MPN: 189778
COUPLING
from £17.93
from £17.93
# 015
MPN: 155996
BALL BEARING
from £6.51
from £6.51
# 016
MPN: 177597
COMPENSATOR RING
from £6.01
from £6.01
# 017
MPN: 11067276
SEEGER RING
from £0.53
from £0.53
# 018
MPN: 121276
OIL SEAL
from £10.09
from £10.09
# 019
MPN: 177596
COMPENSATOR RING
from £1.64
from £1.64
# 020
MPN: 11381076
SEEGER RING
from £0.81
from £0.81
# 021
MPN: 186272
O.R. GASKET
from £0.47
from £0.47
