128 - Tunnel - Framework Accessories

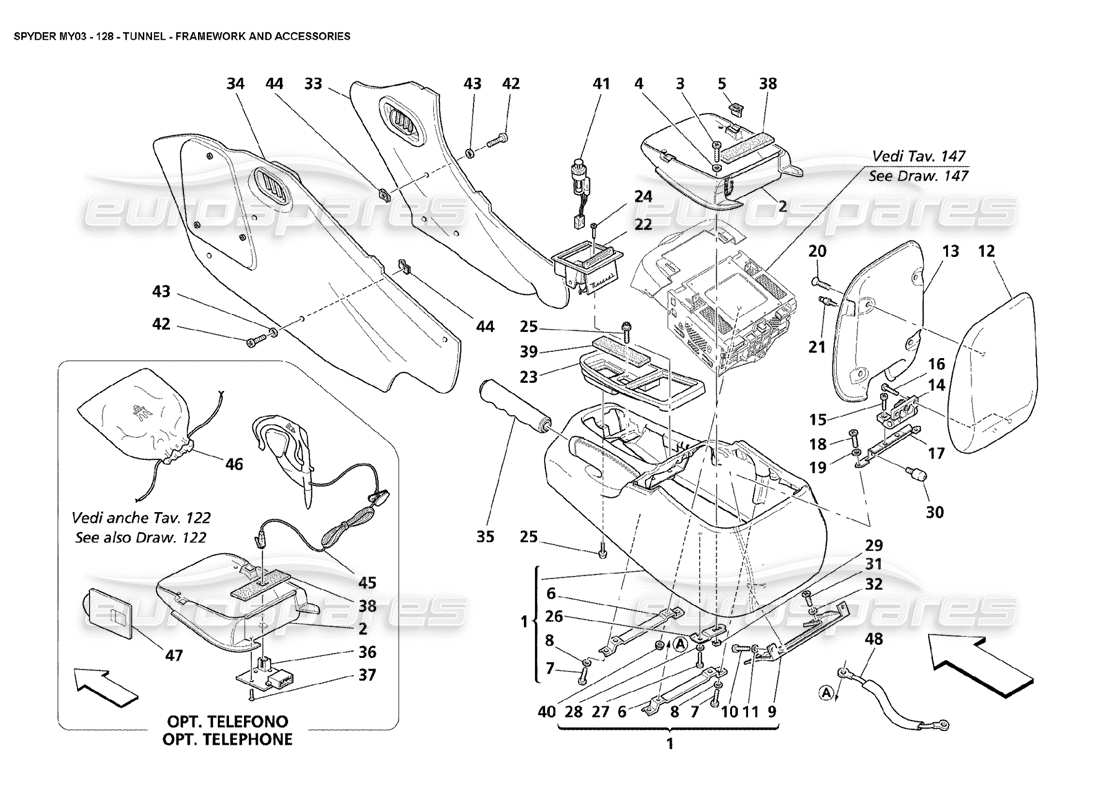

Maserati 4200 Spyder (2003) Tunnel - Framework Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 667723..

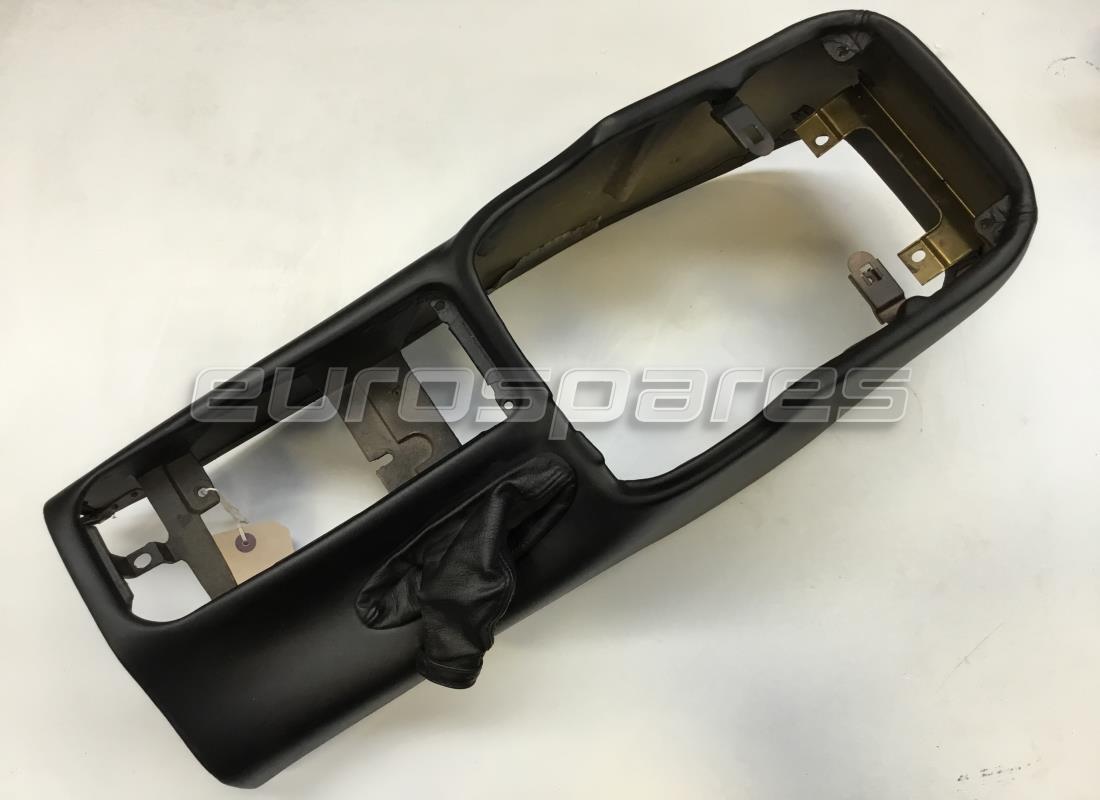

COMPLETE TUNNEL COVER CONSOLE
- For order specify car number
from £399.00
from £399.00
# 002
MPN: 66240900
CONTAINER BOX
- Standard
from £76.41
from £76.41
# 002
MPN: 66724100
CONTAINER BOX
- Optional - Telephone - Not for USA, CDN and J
Supersession
Supersession
# 003
MPN: 13274014
SCREW
from £3.54
from £3.54
# 004
MPN: 12637824
WASHER
from £0.47
from £0.47
# 005
MPN: 66498900
CLIP
from £1.56
from £1.56
# 006
MPN: 66060100
BRACKET
from £4.21
from £4.21
# 007
MPN: 13273811
SCREW
from £0.47
from £0.47
# 008
MPN: 12637824
WASHER
from £0.47
from £0.47
# 009
MPN: 66392600
BRACKET
from £7.24
from £7.24
# 010
MPN: 15901501
SCREW
from £0.54
from £0.54
# 011
MPN: 12639924
WASHER
from £0.86
from £0.86
# 012
MPN: 66772800
UPPER GLOVE BOX SHUTTER
- For order specify car number
from £120.75
from £120.75
# 013
MPN: 66191400
Door Frame
Supersession
Supersession
# 014
MPN: 66493600
BOX HINGE
from £57.67
from £57.67
# 015
MPN: 13272011
SCREW
from £0.47
from £0.47
# 016
MPN: 13272011
SCREW
from £0.47
from £0.47
# 017
MPN: 66061700
BRACKET
from £131.78
from £131.78
# 018
MPN: 13273911
SCREW
from £0.53
from £0.53
# 019
MPN: 12637824
WASHER
from £0.47
from £0.47
# 020
MPN: 13299177
SCREW
from £1.87
from £1.87
# 021
MPN: 66498800
PIN
from £3.19
from £3.19
# 022
MPN: 67520026
COMPLETE FRONT ASH TRAY
- Bordeaux color
from £256.02
from £256.02
This part replaces part number 67248026
# 022
MPN: 67520027
COMPLETE FRONT ASH TRAY
- Gray color
from £170.68
from £170.68
This part replaces part number 67248027
# 023
MPN: 67393426
FRONT UTILTY PLATE
- Bordeaux color
from £67.10
from £67.10
# 023
MPN: 67393427
FRONT UTILTY PLATE
- Gray color
from £67.10
from £67.10
# 024
MPN: 15688901
SCREW
from £1.32
from £1.32
# 025
MPN: 64460500
SCREW
from £0.61
from £0.61
# 026
MPN: 66609000
BRACKET
from £5.14
from £5.14
# 027
MPN: 13273911
SCREW
from £0.53
from £0.53
# 028
MPN: 12637824
WASHER
from £0.47
from £0.47
# 029
MPN: 14074490
NUT WITH CAGE
from £1.09
from £1.09
# 030
MPN: 66734000
ADJUSTMENT PIN
from £16.21
from £16.21
# 031
MPN: 13273911
SCREW
from £0.53
from £0.53
# 032
MPN: 12637824
WASHER
from £0.47
from £0.47
# 033
MPN: 675104..
RH TUNNEL LATERAL COVER
- Not for GD
Supersession
Supersession
# 033
MPN: 675106..
RH TUNNEL LATERAL COVER
- Valid for GD
Supersession
Supersession
# 034
MPN: 675105..
LH TUNNEL LATERAL COVER
- Not for GD
Supersession
Supersession
# 034
MPN: 675107..
LH TUNNEL LATERAL COVER
- Valid for GD
Supersession
Supersession
# 035
MPN: 191830
HAND BRAKE KNOB
- Standard
from £60.48
from £60.48
This part replaces part number 388000110
# 035
MPN: 197105
HAND BRAKE KNOB
- Optional - Leather drilled
from £109.34
from £109.34
# 036
MPN: 189555
INTIMITY BOOT DEVICE SHEETS
- Optional - Telephone - Not for USA, CDN and J
from £22.76
from £22.76
# 037
MPN: 15901401
SCREW
- Optional - Telephone - Not for USA, CDN and J
from £0.47
from £0.47
# 038
MPN: 66241000
CARPET
- Standard
from £8.38
from £8.38
# 038
MPN: 66728600
CARPET
- Optional - Telephone - Not for USA, CDN and J
from £12.39
from £12.39
# 039
MPN: 66304300
CARPET
from £9.01
from £9.01
# 040
MPN: 15896411
NUT
Supersession
Supersession
# 041
MPN: 373380115
ELECTRONIC CIGAR LIGHTER
from £19.63
from £19.63
# 042
MPN: 15908807
SCREW
- Valid for GD
from £1.11
from £1.11
# 042
MPN: 15909977
SCREW
- Not for GD
from £1.09
from £1.09
# 043
MPN: 13336207
WASHER
- Valid for GD
from £4.59
from £4.59
# 043
MPN: 388300580
WASHER
- Not for GD
from £4.59
from £4.59
This part replaces part number 13336207
# 044
MPN: 14371971
CLIP
- Valid for GD
from £0.47
from £0.47
# 044
MPN: 386300326
CLIP
- Not for GD
from £3.27
from £3.27
# 045
MPN: 193493
BOOT INTIMITY
- Optional - Telephone - Not for USA, CDN and J
from £180.18
from £180.18
# 046
MPN: 193495
CASE FOR BOOT INTIMITY
- Optional - Telephone - Not for USA, CDN and J
from £21.69
from £21.69
# 047
MPN: 193494
ADAPTER FOR SIM CARD
- Optional - Telephone - Not for USA, CDN and J
from £25.63
from £25.63
# 048
MPN: 199416
GROUND CABLE
from £4.35
from £4.35
