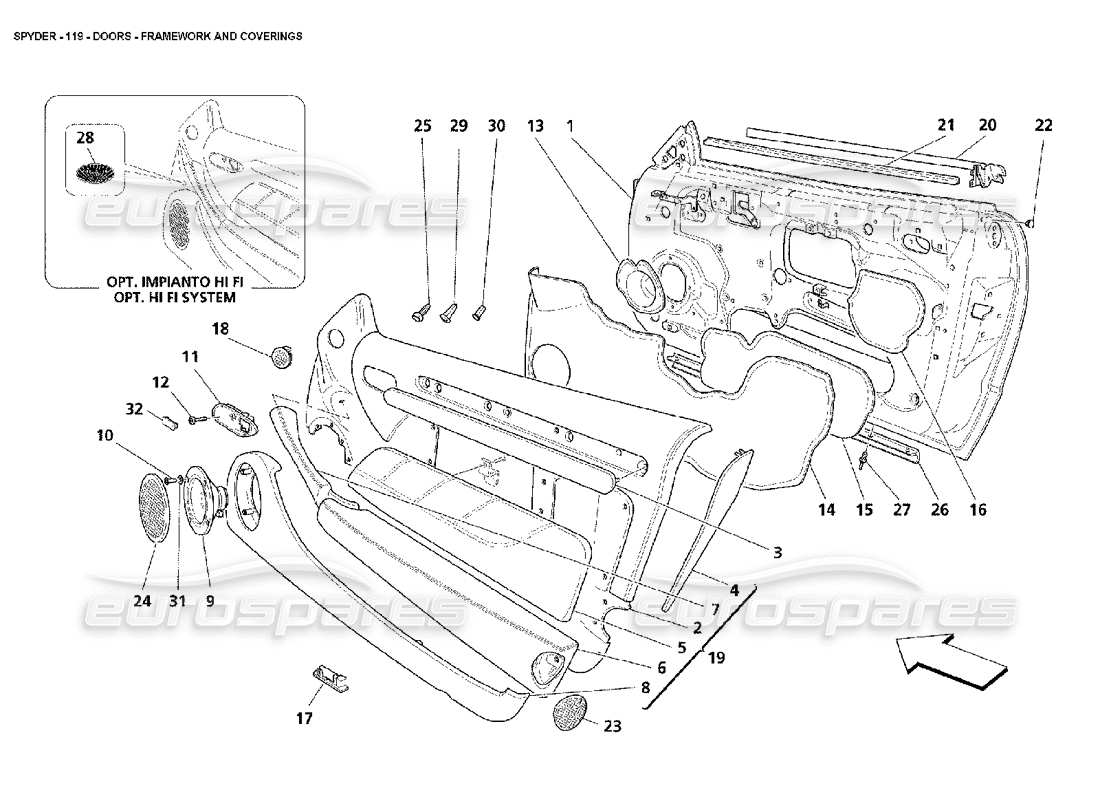

Maserati 4200 Spyder (2002) Doors - Framework and Coverings Parts Diagram

119 - Doors - Framework and Coverings

Maserati 4200 Spyder (2002) Doors - Framework and Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 980001037

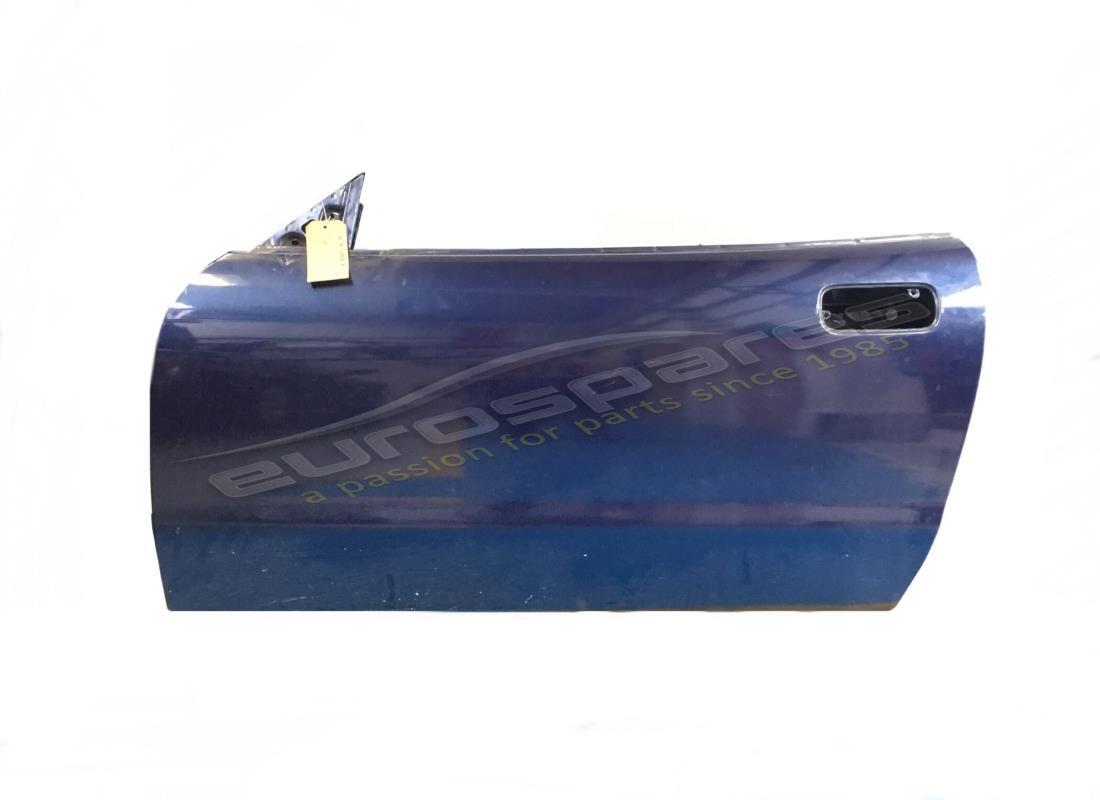

                                          COMPLETE LH DOOR
                                          from £787.50
                                          from £787.50
                                          # 001
                                          MPN: 980001038

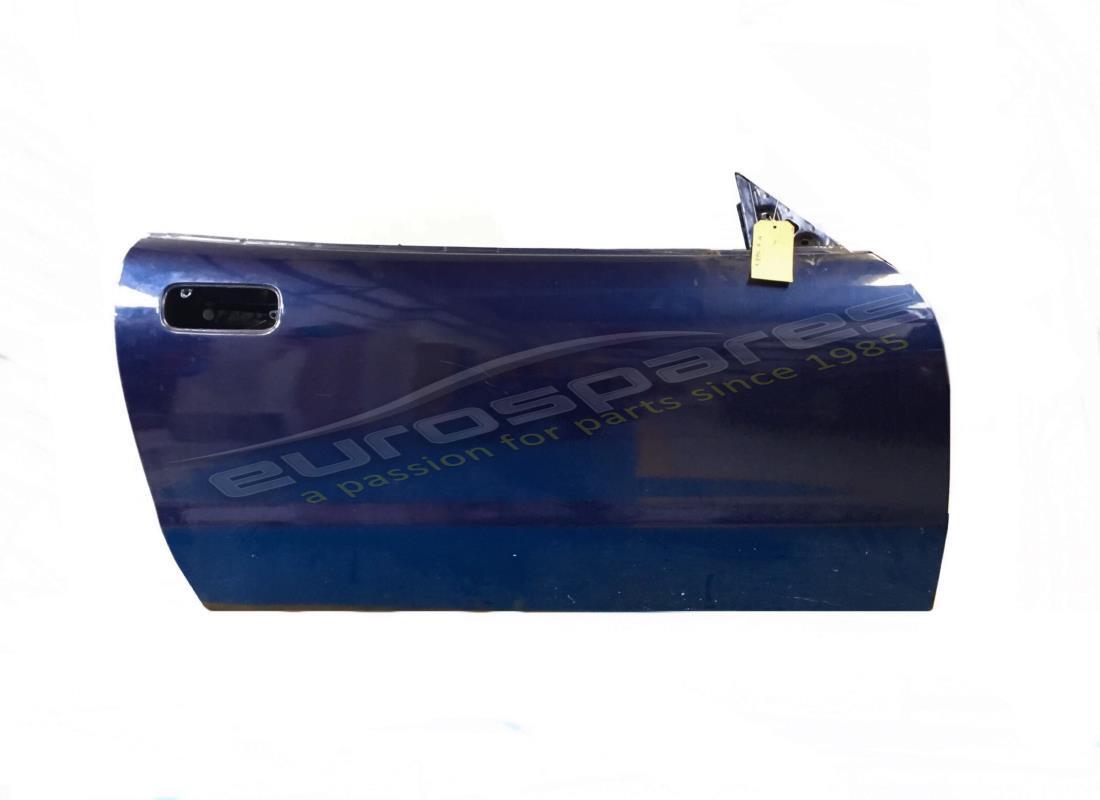

                                          COMPLETE RH DOOR
                                          from £1,601.36
                                          from £1,601.36
                                          # 002
                                          MPN: 667740..

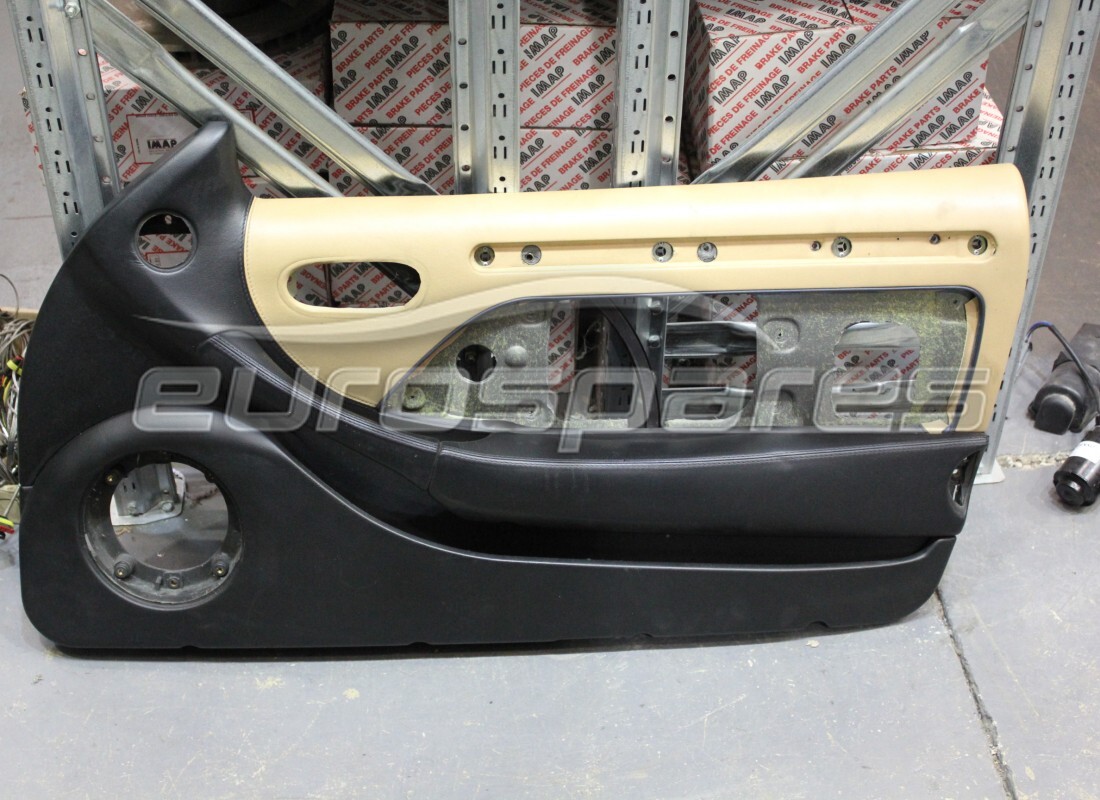

                                          RH DOOR PANEL UPHOLSTERED
                                          - For order specify car number
                                          from £262.50
                                          from £262.50
                                          # 002
                                          MPN: 667741..
                                          LH DOOR PANEL UPHOLSTERED
                                          - For order specify car number
                                          from £99.75
                                          from £99.75
                                          # 003
                                          MPN: 66112700
                                          RH DOOR MOULDING
                                          - Standard
                                          from £65.63
                                          from £65.63
                                          This part replaces part number 66198900
                                          # 003
                                          MPN: 66112800
                                          LH DOOR MOULDING
                                          - Standard
                                          from £36.10
                                          from £36.10
                                          This part replaces part number 66198800 - and 1 more. Click to view details
                                          # 003
                                          MPN: 67027600
                                          RH DOOR MOULDING
                                          - Optional - Carbon
                                          from £482.72
                                          from £482.72
                                          # 003
                                          MPN: 67027700
                                          LH DOOR MOULDING
                                          - Optional - Carbon
                                          from £339.82
                                          from £339.82
                                          # 003
                                          MPN: 67027800
                                          RH DOOR MOULDING
                                          - Optional - Brier
                                          from £297.06
                                          from £297.06
                                          # 003
                                          MPN: 67027900
                                          LH DOOR MOULDING
                                          - Optional - Brier
                                          from £327.06
                                          from £327.06
                                          # 003
                                          MPN: 67247000
                                          RH DOOR MOULDING
                                          Gray
                                          from £30.27
                                          from £30.27
                                          # 003
                                          MPN: 67247300
                                          LH DOOR MOULDING
                                          Gray
                                          from £30.27
                                          from £30.27
                                          # 004
                                          MPN: 663683..
                                          RH UPHOLSTERED TERMINAL PLUG
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 004
                                          MPN: 663684..
                                          LH UPHOLSTERED TERMINAL PLUG
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 663681..
                                          RH DOOR SIDE-BAG COVER
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 663682..
                                          LH DOOR SIDE- BAG COVER
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 67288507
                                          RHS DOOR AIR BAG (BORDEAUX)
                                          Please note: (Collection or Delivery by road within Europe)
                                          from £584.16
                                          from £584.16
                                          This part replaces part number 66368107 - and 1 more. Click to view details
                                          # 006
                                          MPN: 663679..
                                          RH ARM REST DOOR
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 006
                                          MPN: 66368000
                                          LH ARM REST DOOR
                                          - For order specify car number
                                          from £230.52
                                          from £230.52
                                          # 007
                                          MPN: 667744..
                                          RH UPHOLSTERED HANDLE MOULDING
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 007
                                          MPN: 667746..
                                          LH UPHOLSTERED HANDLE MOULDING
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 008
                                          MPN: 667742..
                                          RH POCKET UPHOLSTERED
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 008
                                          MPN: 667743..
                                          LH POCKET UPHOLSTERED
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 009
                                          MPN: 189389
                                          LOUD SPEAKER WOOFER
                                          - Standard
                                          from £77.27
                                          from £77.27
                                          # 009
                                          MPN: 189390
                                          LOUD SPEAKER WOOFER
                                          - Optional - HI FI system
                                          from £57.59
                                          from £57.59
                                          # 010
                                          MPN: 13274014
                                          SCREW
                                          from £2.48
                                          from £2.48
                                          # 011
                                          MPN: 67393629
                                          RH HANDLE PLATE
                                          from £25.82
                                          from £25.82
                                          This part replaces part number 66112900
                                          # 011
                                          MPN: 67393729
                                          LH HANDLE PLATE
                                          from £23.27
                                          from £23.27
                                          This part replaces part number 66113000
                                          # 012
                                          MPN: 15689907
                                          SCREW
                                          from £1.10
                                          from £1.10
                                          # 013
                                          MPN: 66661100
                                          WATER SHIELD FOR LH LOUD SPEAKER
                                          from £16.31
                                          from £16.31
                                          # 013
                                          MPN: 66661200
                                          WATER SHIELD FOR RH LOUD SPEAKER
                                          from £15.38
                                          from £15.38
                                          # 014
                                          MPN: 66420100
                                          WATER SHIELD IN THE RH DOOR
                                          from £17.16
                                          from £17.16
                                          # 014
                                          MPN: 66420200
                                          WATER SHIELD IN THE LH DOOR
                                          from £17.16
                                          from £17.16
                                          # 015
                                          MPN: 66661300
                                          LH LOWER CENTRAL WATER FOR SHIELD
                                          from £16.31
                                          from £16.31
                                          # 015
                                          MPN: 66661400
                                          RH LOWER CENTRAL WATER FOR SHIELD
                                          from £15.08
                                          from £15.08
                                          # 016
                                          MPN: 66661500
                                          LH UPPER LATERAL WATER FOR SHIELD
                                          from £30.53
                                          from £30.53
                                          # 016
                                          MPN: 66661600
                                          RH UPPER LATERAL WATER FOR SHIELD
                                          from £12.68
                                          from £12.68
                                          # 017
                                          MPN: 60608165
                                          UNDER DOOR LAMP
                                          from £6.18
                                          from £6.18
                                          # 018
                                          MPN: 185969
                                          LOUD SPEAKER TWEETER
                                          - Standard
                                          from £28.00
                                          from £28.00
                                          # 018
                                          MPN: 185970
                                          LOUD SPEAKER TWEETER
                                          - Optional - HI FI system
                                          from £40.13
                                          from £40.13
                                          # 019
                                          MPN: 667738..

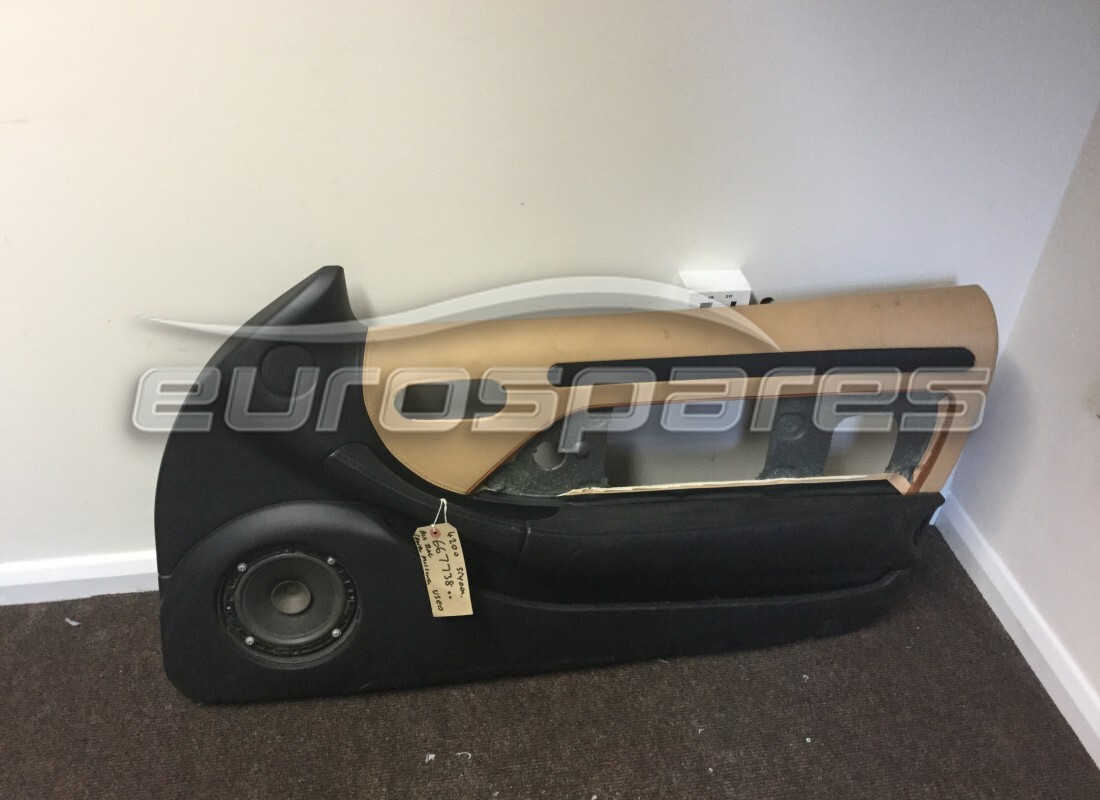

                                          COMPLETE RH DOOR PANEL UPHOLSTERED
                                          - For order specify car number
                                          from £99.75
                                          from £99.75
                                          # 019
                                          MPN: 667739..
                                          COMPLETE LH DOOR PANEL UPHOLSTERED
                                          - For order specify car number
                                          Supersession
                                          Supersession
                                          # 020
                                          MPN: 67820200
                                          RH OUTER GLASS SCRAPER GASKET
                                          from £254.55
                                          from £254.55
                                          This part replaces part number 387700324
                                          # 020
                                          MPN: 67820300
                                          LH Outer Glass Scraper Gasket
                                          from £140.00
                                          from £140.00
                                          This part replaces part number 387700323 - and 1 more. Click to view details
                                          # 021
                                          MPN: 67021400
                                          LH INNER GLASS SCRAPER GASKET
                                          - Valid till stock exhaustion
                                          Supersession
                                          Supersession
                                          # 021
                                          MPN: 67245400
                                          LH INNER GLASS SCRAPER GASKET
                                          - Valid after stock exhaustion of 67021400
                                          from £16.91
                                          from £16.91
                                          This part replaces part number 67021400
                                          # 022
                                          MPN: 388300805

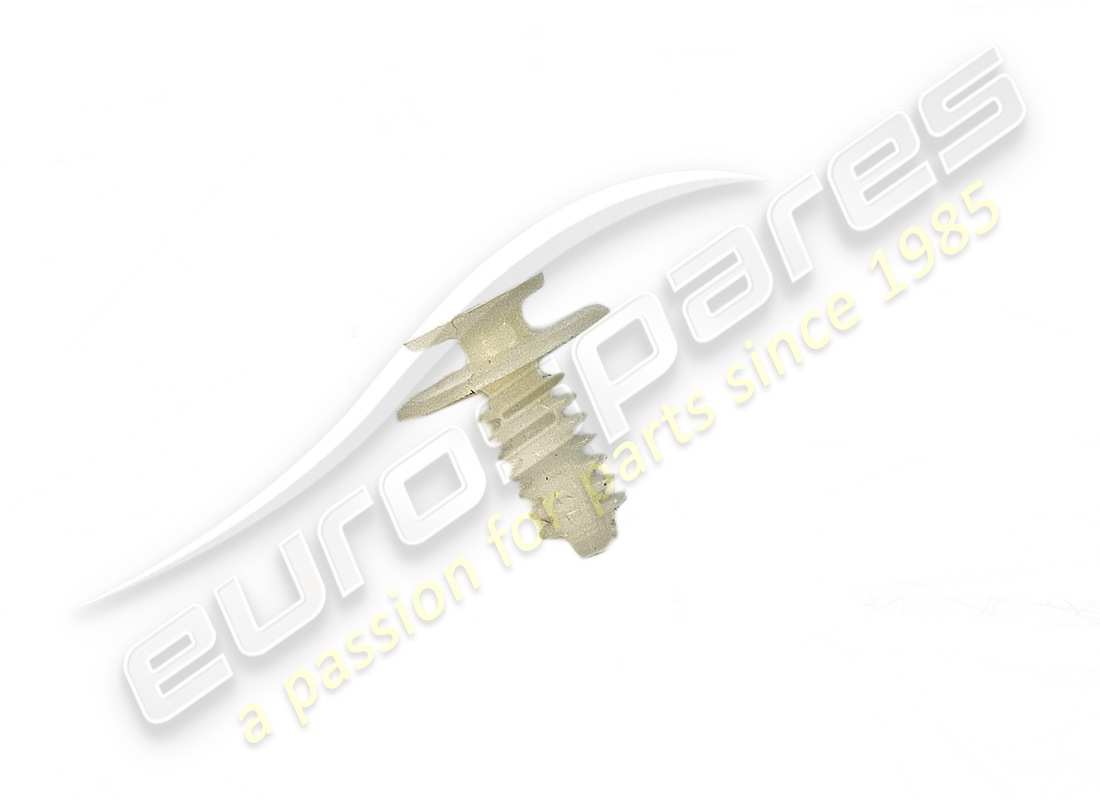

                                          button
                                          from £0.86
                                          from £0.86
                                          # 023
                                          MPN: 46427291
                                          REFLECTOR FOR RH DOOR PANEL
                                          from £4.30
                                          from £4.30
                                          # 023
                                          MPN: 46427292
                                          REFLECTOR FOR LH DOOR PANEL
                                          from £4.30
                                          from £4.30
                                          # 024
                                          MPN: 388300600
                                          LOUD SPEAKER PLATE
                                          from £2.81
                                          from £2.81
                                          This part replaces part number 388300496 - and 1 more. Click to view details
                                          # 025
                                          MPN: 66805100
                                          PIN
                                          from £0.70
                                          from £0.70
                                          # 026
                                          MPN: 384500441
                                          UNDERDOOR GASKET
                                          from £14.51
                                          from £14.51
                                          # 027
                                          MPN: 384500442
                                          RIVET
                                          from £1.10
                                          from £1.10
                                          # 028
                                          MPN: 388300398
                                          PLATE
                                          - Optional - HI FI system
                                          from £35.02
                                          from £35.02
                                          # 029
                                          MPN: 7745194
                                          BUSHING
                                          from £1.17
                                          from £1.17
                                          # 030
                                          MPN: 15180311
                                          RIVET
                                          from £1.88
                                          from £1.88
                                          # 031
                                          MPN: 12620374
                                          WASHER
                                          from £0.51
                                          from £0.51
                                          # 032
                                          MPN: 388300603
                                          PLUG
                                          from £30.54
                                          from £30.54
                                          This part replaces part number 388300556
