Maserati 4200 Spyder (2002) Trunk Hood Bonnet and Gas Door Parts Diagram

118 - Trunk Hood Bonnet and Gas Door

Maserati 4200 Spyder (2002) Trunk Hood Bonnet and Gas Door Parts Diagram

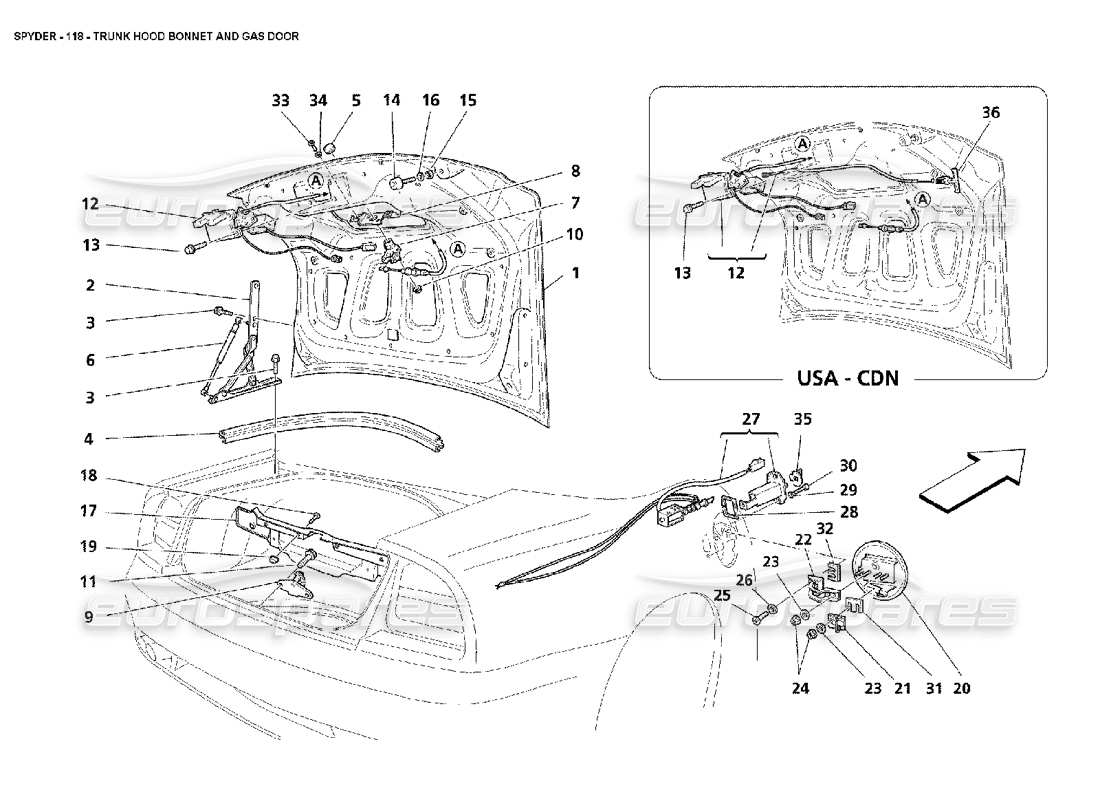

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 66071100
                                                                    COMPLETE REAR DOOR
                                                                    - Standard - Not for USA and CDN
                                                                    from £3,071.17
                                                                    from £3,071.17
                                                                    # 001
                                                                    MPN: 66376100
                                                                    COMPLETE REAR DOOR
                                                                    - Optional - Telephone - Not for USA, CDN and J
                                                                    from £1,626.82
                                                                    from £1,626.82
                                                                    # 001
                                                                    MPN: 66729100
                                                                    COMPLETE REAR DOOR
                                                                    - Valid for USA and CDN
                                                                    from £1,843.85
                                                                    from £1,843.85
                                                                    # 002
                                                                    MPN: 384700105
                                                                    LH HINGE
                                                                    from £57.15
                                                                    from £57.15
                                                                    # 002
                                                                    MPN: 384700106
                                                                    RH HINGE
                                                                    from £57.15
                                                                    from £57.15
                                                                    # 003
                                                                    MPN: 82448954
                                                                    SCREW
                                                                    from £4.32
                                                                    from £4.32
                                                                    This part replaces part number 18770424
                                                                    # 004
                                                                    MPN: 66313500
                                                                    GASKET FOR TRUNK HOOD
                                                                    from £18.47
                                                                    from £18.47
                                                                    # 005
                                                                    MPN: 82484271
                                                                    GASKET
                                                                    from £1.10
                                                                    from £1.10
                                                                    # 006
                                                                    MPN: 384700118
                                                                    LUGGAGE COMPARTMENT STRUT
                                                                    from £54.47
                                                                    from £54.47
                                                                    # 007
                                                                    MPN: 82484270
                                                                    TRUNK HOOD OPENING CONTROL
                                                                    from £11.12
                                                                    from £11.12
                                                                    # 009
                                                                    MPN: 82487413
                                                                    BOOT LOCK STRIKER
                                                                    from £4.70
                                                                    from £4.70
                                                                    # 010
                                                                    MPN: 13046114
                                                                    NUT
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 011
                                                                    MPN: 10704324
                                                                    SCREW
                                                                    from £1.88
                                                                    from £1.88
                                                                    # 012
                                                                    MPN: 384700125
                                                                    COMPLETE BOOT LOCK-BOWDEN CABLE
                                                                    - Not for USA and CDN
                                                                    from £284.62
                                                                    from £284.62
                                                                    # 012
                                                                    MPN: 67554600
                                                                    COMPLETE BOOT LOCK-BOWDEN CABLE
                                                                    - Valid for USA and CDN - Valid till car Ass. Nr. 9930
                                                                    from £324.08
                                                                    from £324.08
                                                                    This part replaces part number 66914200 which we have in stock - and 2 more. Click to view details
                                                                    # 012
                                                                    MPN: 67554600
                                                                    COMPLETE BOOT LOCK-BOWDEN CABLE
                                                                    - Valid for USA and CDN - Valid from car Ass. Nr. 9931
                                                                    from £324.08
                                                                    from £324.08
                                                                    This part replaces part number 66914200 which we have in stock - and 2 more. Click to view details
                                                                    # 013
                                                                    MPN: 10704324
                                                                    SCREW
                                                                    from £1.88
                                                                    from £1.88
                                                                    # 014
                                                                    MPN: 60616619
                                                                    FLEXIBLE PAD
                                                                    from £3.63
                                                                    from £3.63
                                                                    # 016
                                                                    MPN: 11182277
                                                                    WASHER
                                                                    from £1.88
                                                                    from £1.88
                                                                    # 017
                                                                    MPN: 66244100
                                                                    REAR TRIM
                                                                    from £53.96
                                                                    from £53.96
                                                                    # 018
                                                                    MPN: 15783507
                                                                    SCREW
                                                                    from £1.13
                                                                    from £1.13
                                                                    # 019
                                                                    MPN: 7754387
                                                                    BLOCK FOR SELF TAPPING SCREW
                                                                    Supersession
                                                                    Supersession
                                                                    # 020
                                                                    MPN: 980001043
                                                                    FUEL INLET LID
                                                                    from £76.58
                                                                    from £76.58
                                                                    # 021
                                                                    MPN: 66057300
                                                                    WIRE ROD
                                                                    from £11.12
                                                                    from £11.12
                                                                    # 022
                                                                    MPN: 382500201
                                                                    HINGE FOR GAS UNION DOOOR
                                                                    from £35.87
                                                                    from £35.87
                                                                    # 023
                                                                    MPN: 12638104
                                                                    WASHER
                                                                    from £0.53
                                                                    from £0.53
                                                                    # 024
                                                                    MPN: 14075611
                                                                    NUT
                                                                    from £1.33
                                                                    from £1.33
                                                                    # 025
                                                                    MPN: 13283214
                                                                    SCREW
                                                                    from £1.10
                                                                    from £1.10
                                                                    # 026
                                                                    MPN: 10519304
                                                                    WASHER
                                                                    from £0.86
                                                                    from £0.86
                                                                    This part replaces part number 14496304
                                                                    # 027
                                                                    MPN: 66241700
                                                                    COMPLETO ELECTRO-MAGNET
                                                                    from £115.50
                                                                    from £115.50
                                                                    This part replaces part number 66241800 - and 1 more. Click to view details
                                                                    # 028
                                                                    MPN: 66240200
                                                                    GASKET
                                                                    from £1.10
                                                                    from £1.10
                                                                    # 029
                                                                    MPN: 10519304
                                                                    WASHER
                                                                    from £0.86
                                                                    from £0.86
                                                                    This part replaces part number 14496304
                                                                    # 030
                                                                    MPN: 13283214
                                                                    SCREW
                                                                    from £1.10
                                                                    from £1.10
                                                                    # 031
                                                                    MPN: 382500554
                                                                    ADJUSTING PLATE
                                                                    from £2.90
                                                                    from £2.90
                                                                    This part replaces part number 66193600
                                                                    # 032
                                                                    MPN: 66919100
                                                                    SHIMMING PLATE
                                                                    from £1.96
                                                                    from £1.96
                                                                    # 033
                                                                    MPN: 13283514
                                                                    SCREW
                                                                    from £1.57
                                                                    from £1.57
                                                                    # 034
                                                                    MPN: 12642801
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 035
                                                                    MPN: 388100355
                                                                    RUBBER
                                                                    from £6.89
                                                                    from £6.89
                                                                    # 036
                                                                    MPN: 66728800
                                                                    HANDLE
                                                                    - Valid for USA and CDN
                                                                    from £19.87
                                                                    from £19.87
