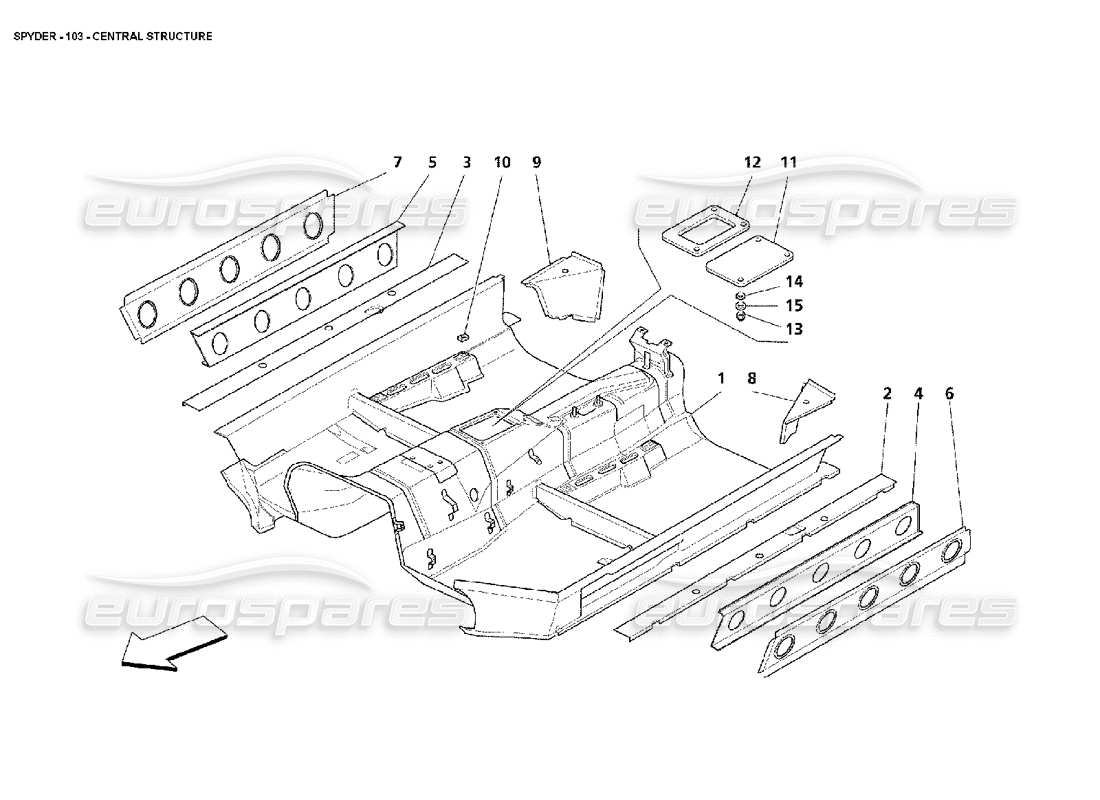

Maserati 4200 Spyder (2002) Central Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 980001057
                      COMPLETE CENTRAL FLOOR
                      from £3,261.66
                      from £3,261.66
                      # 002
                      MPN: 65964600
                      LH UNDERDOOR LOWER LONGITUDINAL MEMBER
                      from £19.74
                      from £19.74
                      # 003
                      MPN: 65964500
                      RH UNDERDOOR LOWER LONGITUDINAL MEMBER
                      from £21.91
                      from £21.91
                      # 004
                      MPN: 66245300
                      LH FRONT LONGITUDINAL MEMBER REINFORCEMENT
                      from £27.04
                      from £27.04
                      # 005
                      MPN: 66245200
                      RH FRONT LONGITUDINAL MEMBER REINFORCEMENT
                      from £27.04
                      from £27.04
                      # 006
                      MPN: 66427500
                      LH LONGITUDINAL FRONT MEMBER
                      from £17.06
                      from £17.06
                      # 007
                      MPN: 66427400
                      RH LONGITUDINAL FRONT MEMBER
                      from £52.63
                      from £52.63
                      # 008
                      MPN: 65962700
                      LH OUTER ANGULAR REINFORCEMENT
                      from £16.27
                      from £16.27
                      # 009
                      MPN: 65962600
                      RH OUTER ANGULAR REINFORCEMENT
                      from £16.27
                      from £16.27
                      # 010
                      MPN: 66422200
                      NUT
                      from £5.71
                      from £5.71
                      # 011
                      MPN: 66423900
                      PLATE FOR GEAR CONTROL TONER
                      - Valid for F1
                      from £3.80
                      from £3.80
                      # 012
                      MPN: 66424000
                      PLATE GASKET
                      - Valid for F1
                      from £2.93
                      from £2.93
                      # 013
                      MPN: 16100814
                      NUT
                      - Valid for F1
                      from £0.71
                      from £0.71
                      # 014
                      MPN: 12625224
                      WASHER
                      - Valid for F1
                      from £0.47
                      from £0.47
                      This part replaces part number 12625221
                      # 015
                      MPN: 12601374
                      WASHER
                      - Valid for F1
                      from £0.47
                      from £0.47
