Maserati 4200 Spyder (2002) Nourice - Cooling System -Not for GD Parts Diagram

019 - Nourice - Cooling System -Not for GD

Maserati 4200 Spyder (2002) Nourice - Cooling System -Not for GD Parts Diagram

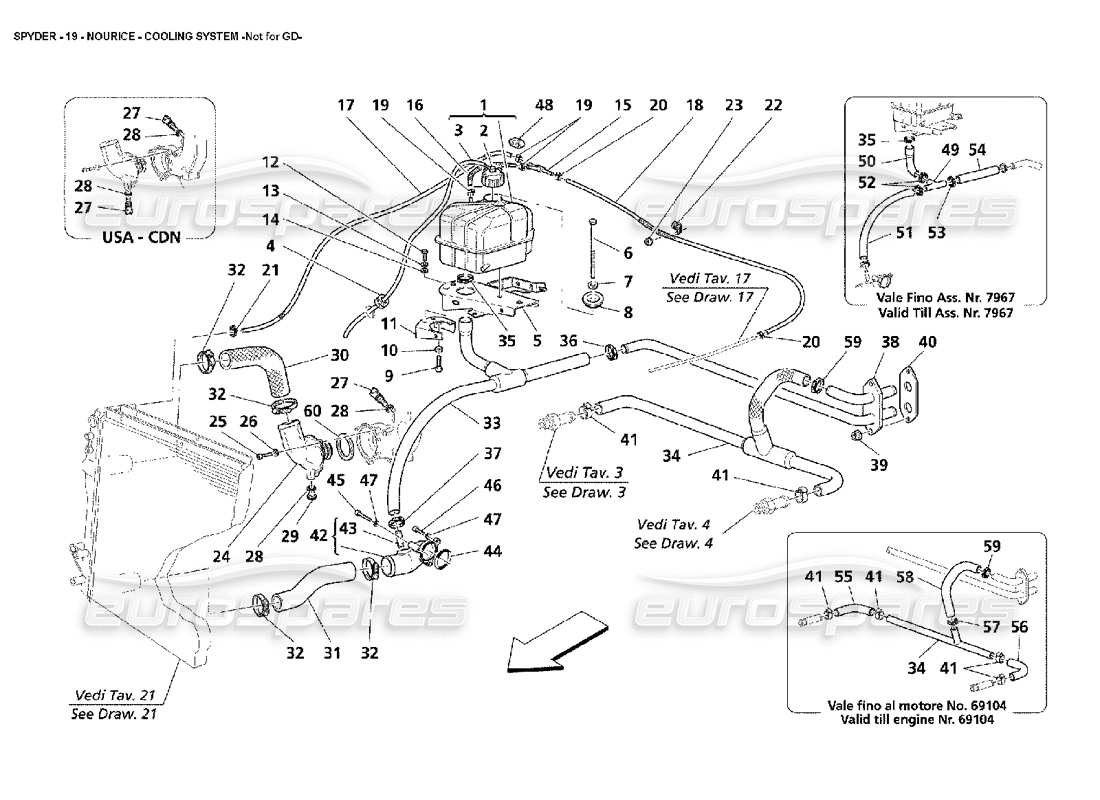

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 384000102

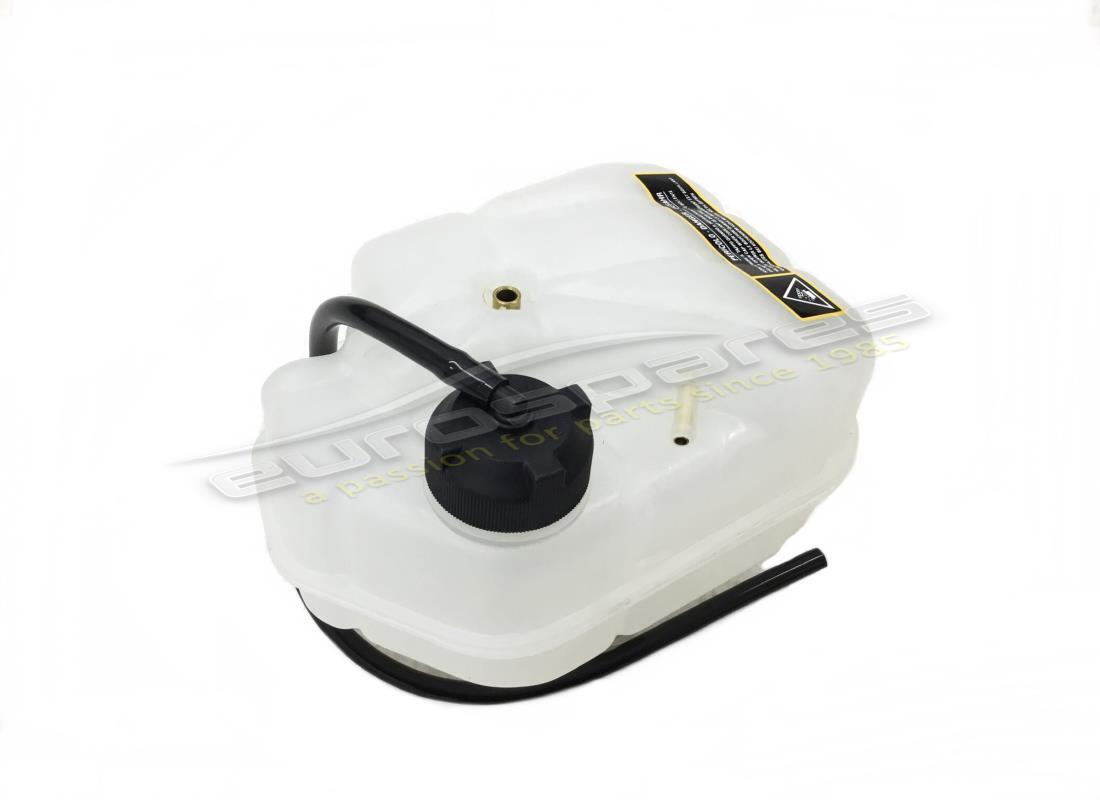

                                                                                      COMPLETE EXPANSION TANK
                                                                                      WITH CAP
                                                                                      from £27.17
                                                                                      from £27.17
                                                                                      This part replaces part number 60597447 - and 1 more. Click to view details
                                                                                      # 002
                                                                                      MPN: 980145477
                                                                                      TANK PLUG
                                                                                      from £12.37
                                                                                      from £12.37
                                                                                      This part replaces part number 46556738
                                                                                      # 003
                                                                                      MPN: 384001316
                                                                                      HOSE
                                                                                      from £7.63
                                                                                      from £7.63
                                                                                      # 004
                                                                                      MPN: 10461987

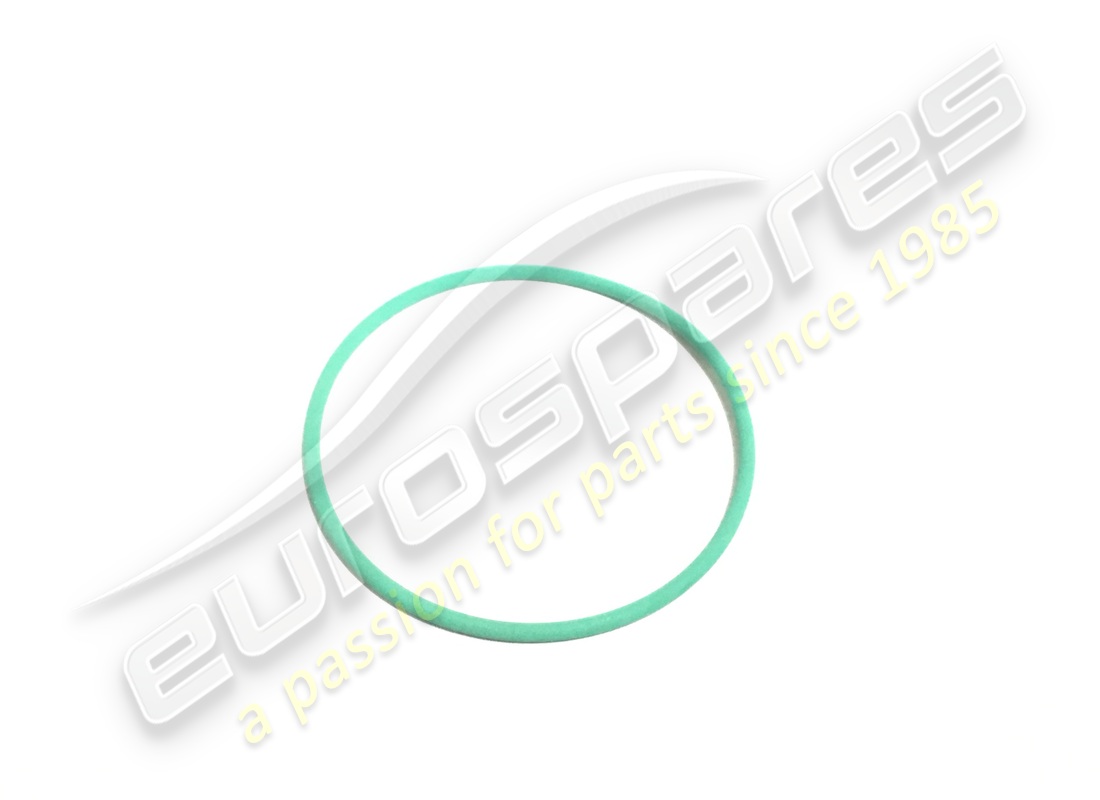

                                                                                      RING
                                                                                      from £1.57
                                                                                      from £1.57
                                                                                      # 005
                                                                                      MPN: 189782
                                                                                      NOURICE SUPPORTING BRACKET
                                                                                      from £22.79
                                                                                      from £22.79
                                                                                      # 006
                                                                                      MPN: 60607472
                                                                                      SPECIAL SCREW
                                                                                      from £4.93
                                                                                      from £4.93
                                                                                      # 007
                                                                                      MPN: 12601274
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 12601270
                                                                                      # 008
                                                                                      MPN: 82404496
                                                                                      CUP
                                                                                      from £1.89
                                                                                      from £1.89
                                                                                      # 009
                                                                                      MPN: 10979421

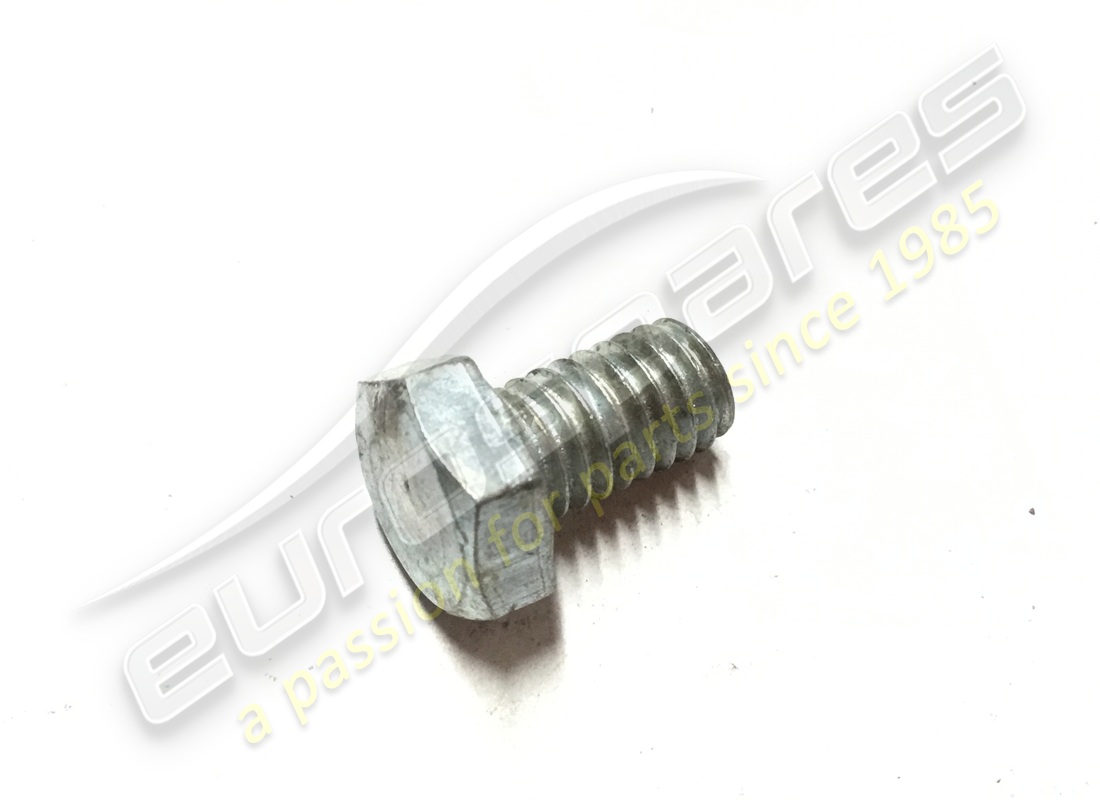

                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 010
                                                                                      MPN: 12620474
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 011
                                                                                      MPN: 384000135
                                                                                      SUPPORT FOR BRACKET
                                                                                      from £14.96
                                                                                      from £14.96
                                                                                      # 012
                                                                                      MPN: 14305521
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 013
                                                                                      MPN: 12620474
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 014
                                                                                      MPN: 12646601
                                                                                      WASHER
                                                                                      from £0.49
                                                                                      from £0.49
                                                                                      # 015
                                                                                      MPN: 189345

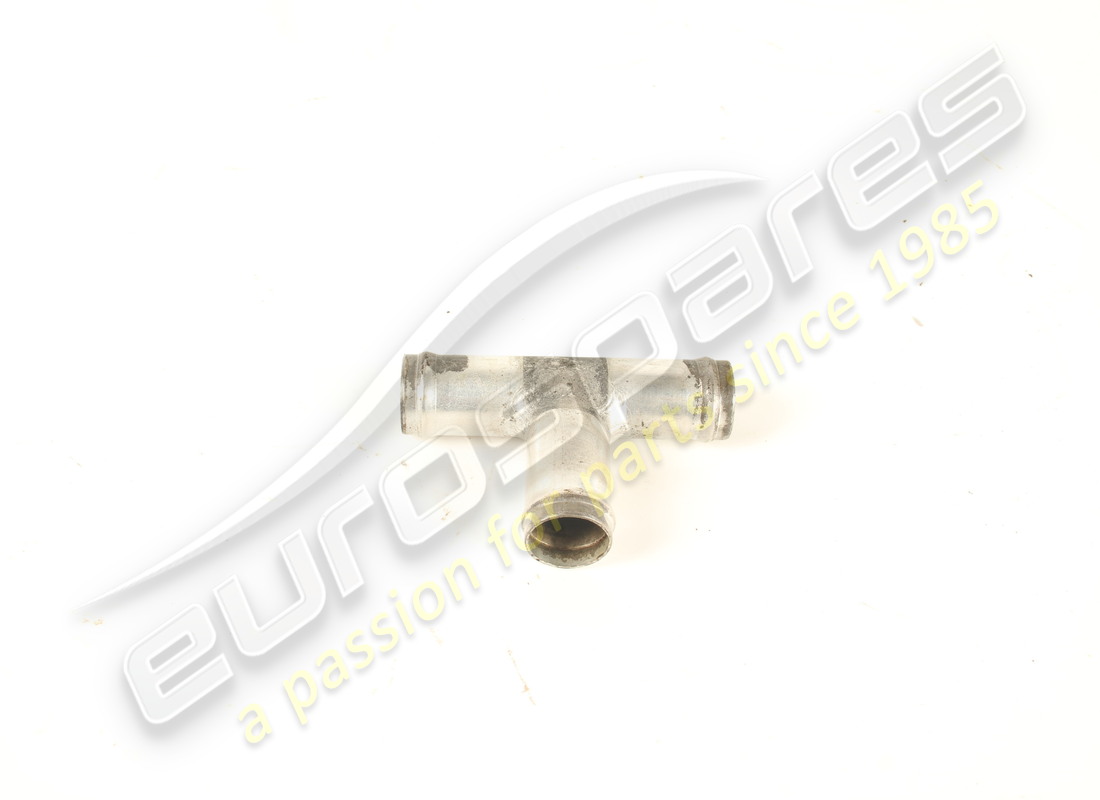

                                                                                      3-WAY UNION
                                                                                      from £14.05
                                                                                      from £14.05
                                                                                      # 016
                                                                                      MPN: 192621

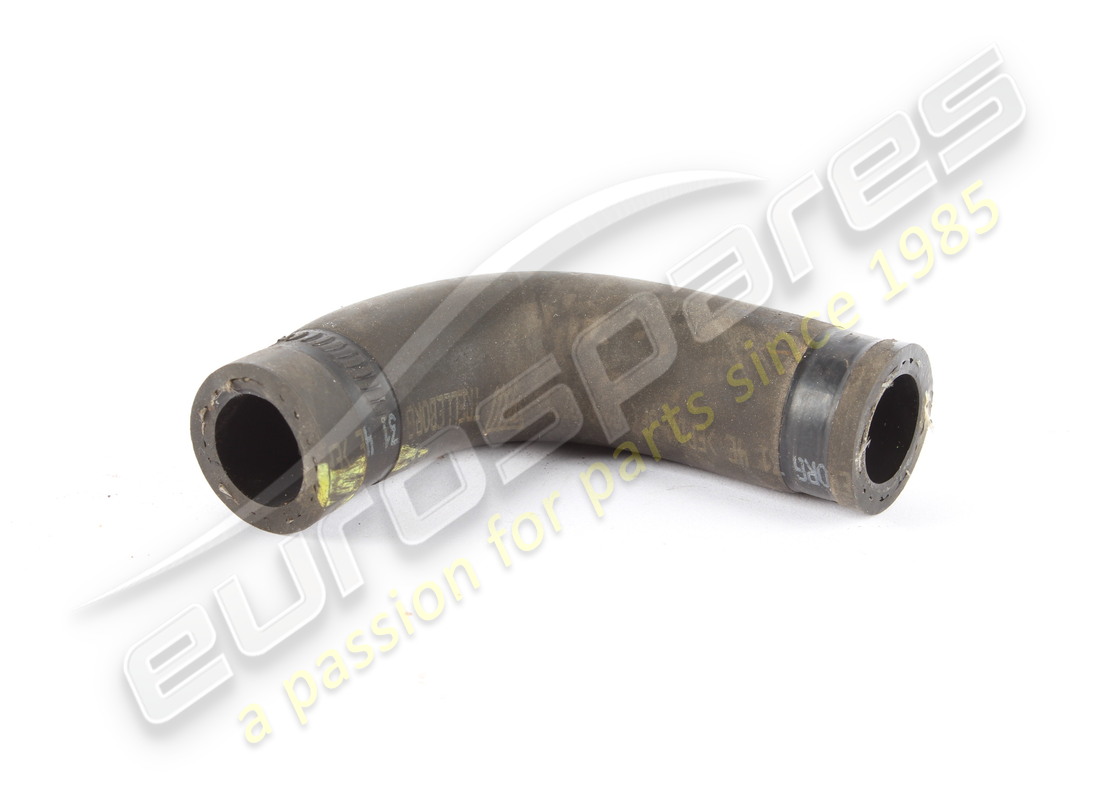

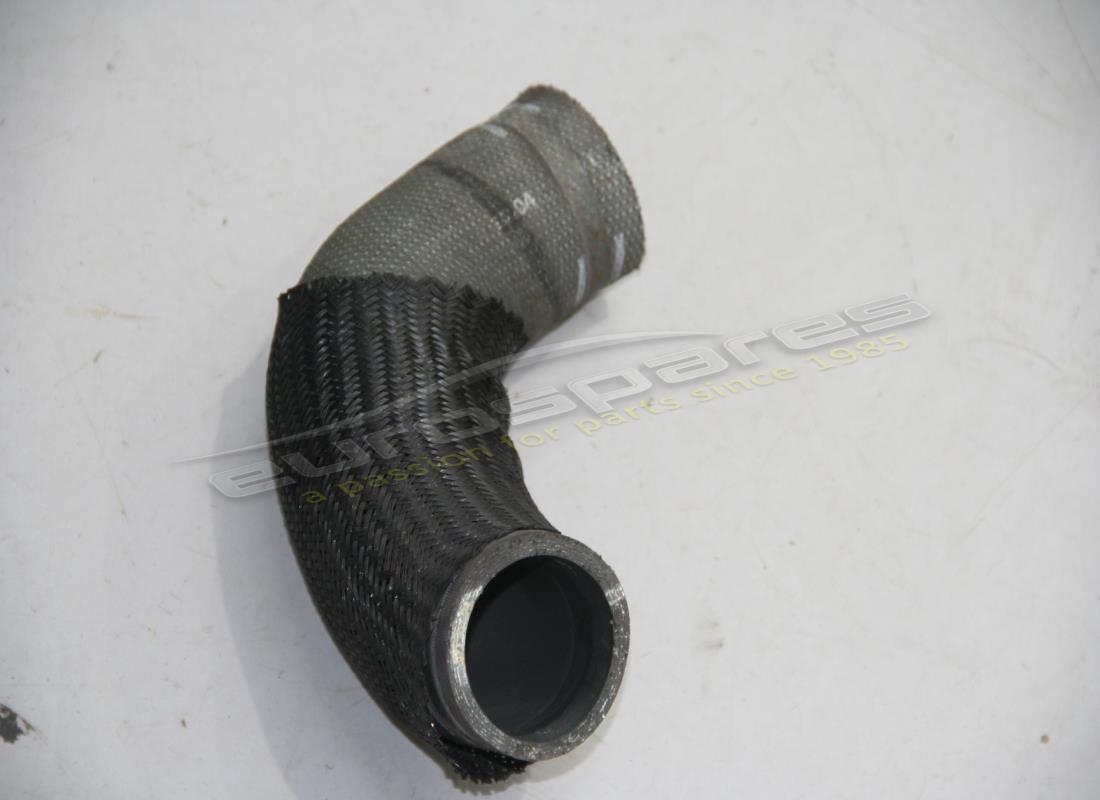

                                                                                      RUBBER HOSE
                                                                                      from £19.82
                                                                                      from £19.82
                                                                                      # 017
                                                                                      MPN: 192614
                                                                                      RUBBER HOSE
                                                                                      from £165.06
                                                                                      from £165.06
                                                                                      # 018
                                                                                      MPN: 192615
                                                                                      RUBBER HOSE
                                                                                      from £10.12
                                                                                      from £10.12
                                                                                      # 019
                                                                                      MPN: 13125470

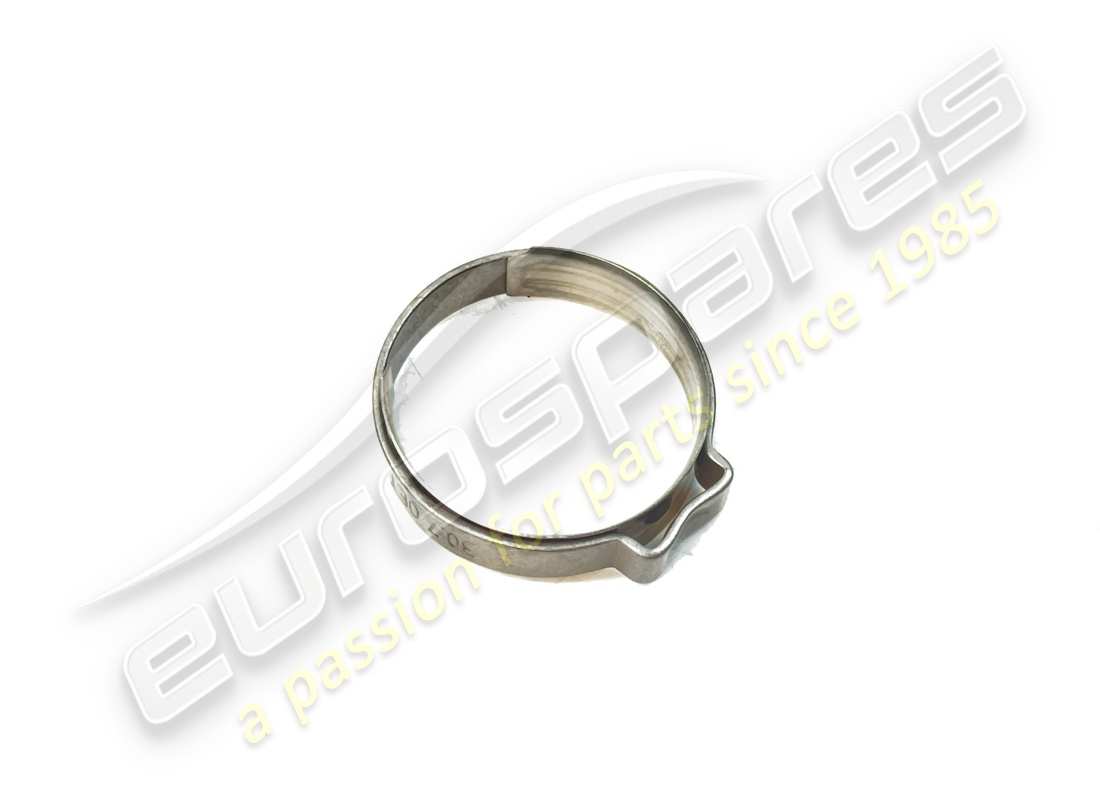

                                                                                      STRAP COLLAR
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      # 020
                                                                                      MPN: 183919
                                                                                      STRAP COLLAR
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 021
                                                                                      MPN: 13000190

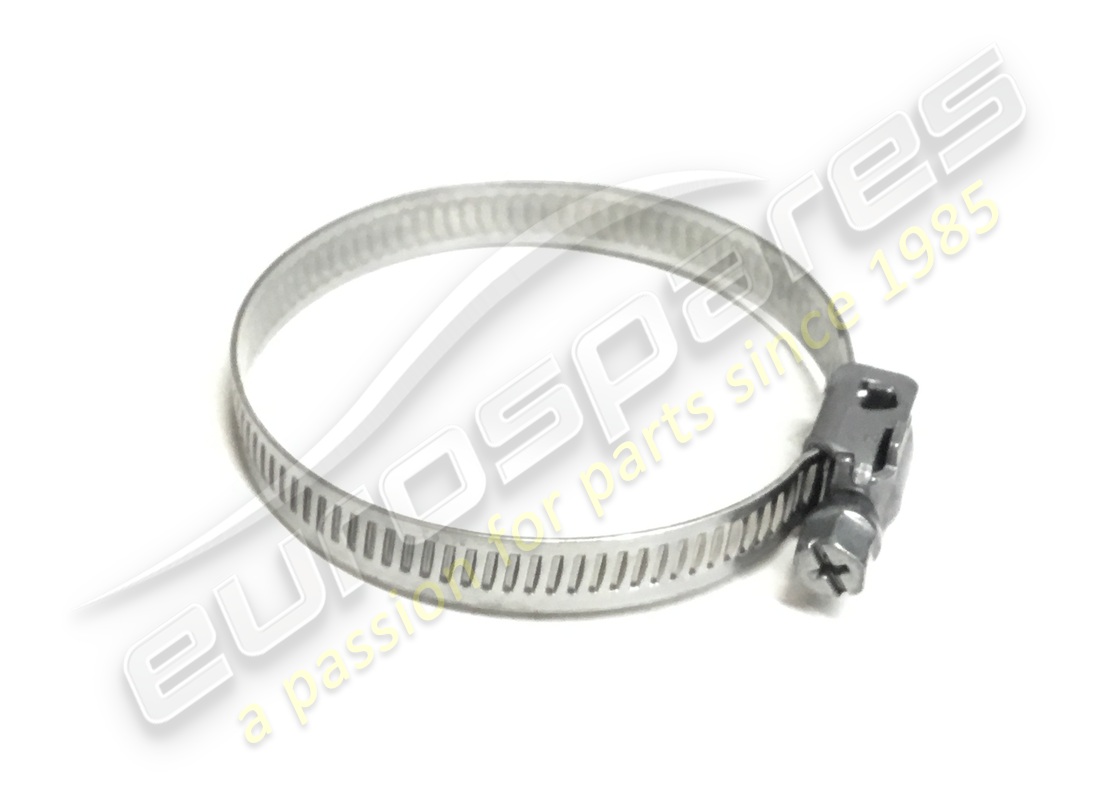

                                                                                      SCREW COLLAR
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 022
                                                                                      MPN: 10441390
                                                                                      BRACKET WITH SHEATH
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 023
                                                                                      MPN: 14058411
                                                                                      NUT
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 024
                                                                                      MPN: 230890

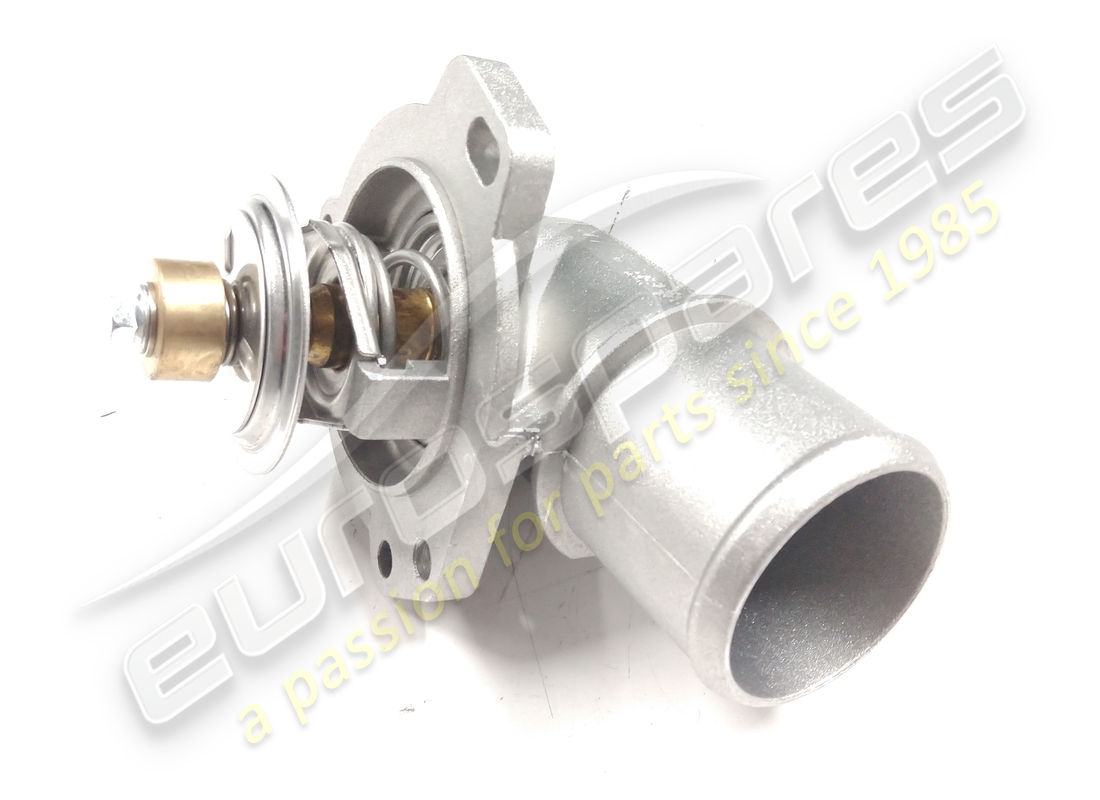

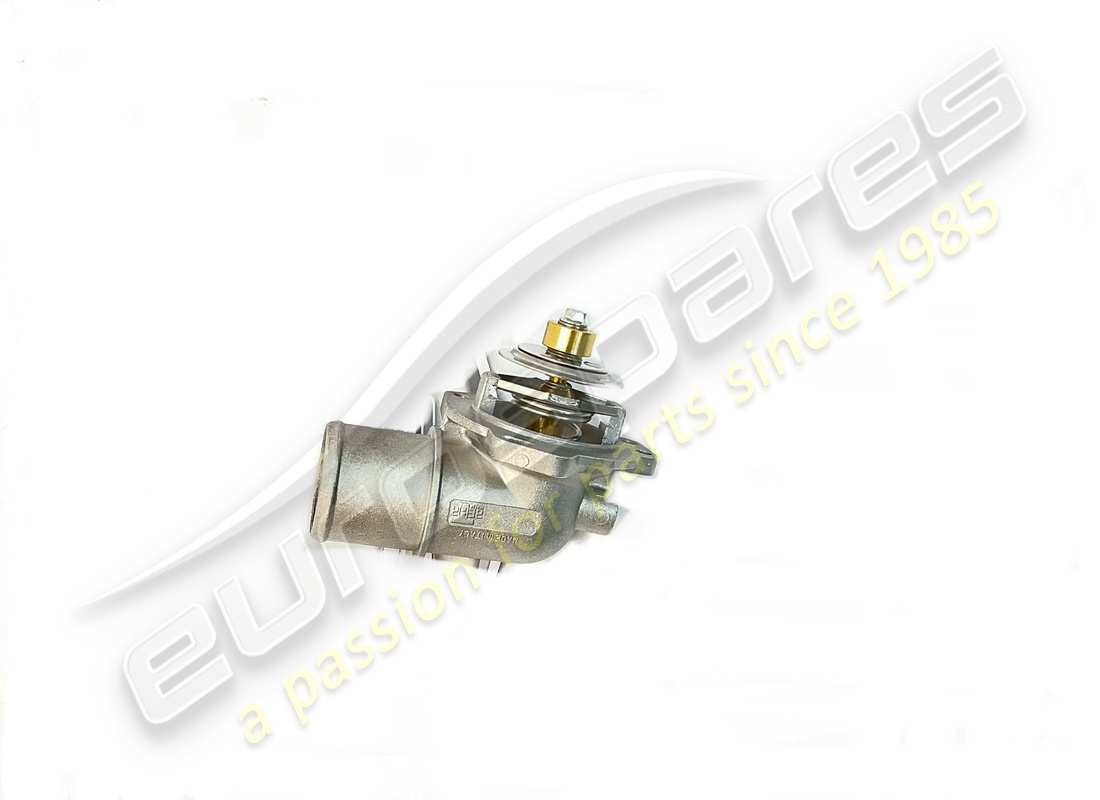

                                                                                      COVER WITH THERMOSTAT
                                                                                      from £88.71
                                                                                      from £88.71
                                                                                      This part replaces part number 224623
                                                                                      # 025
                                                                                      MPN: 14305324
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 14305321
                                                                                      # 026
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 027
                                                                                      MPN: 180137

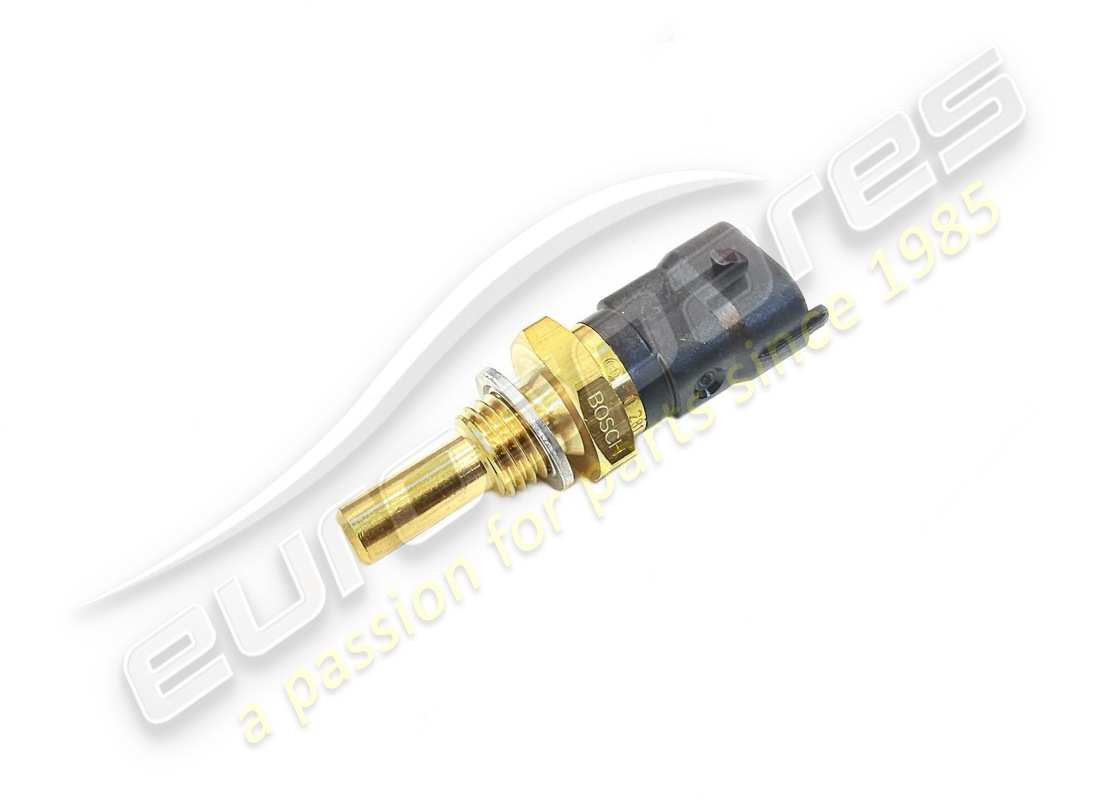

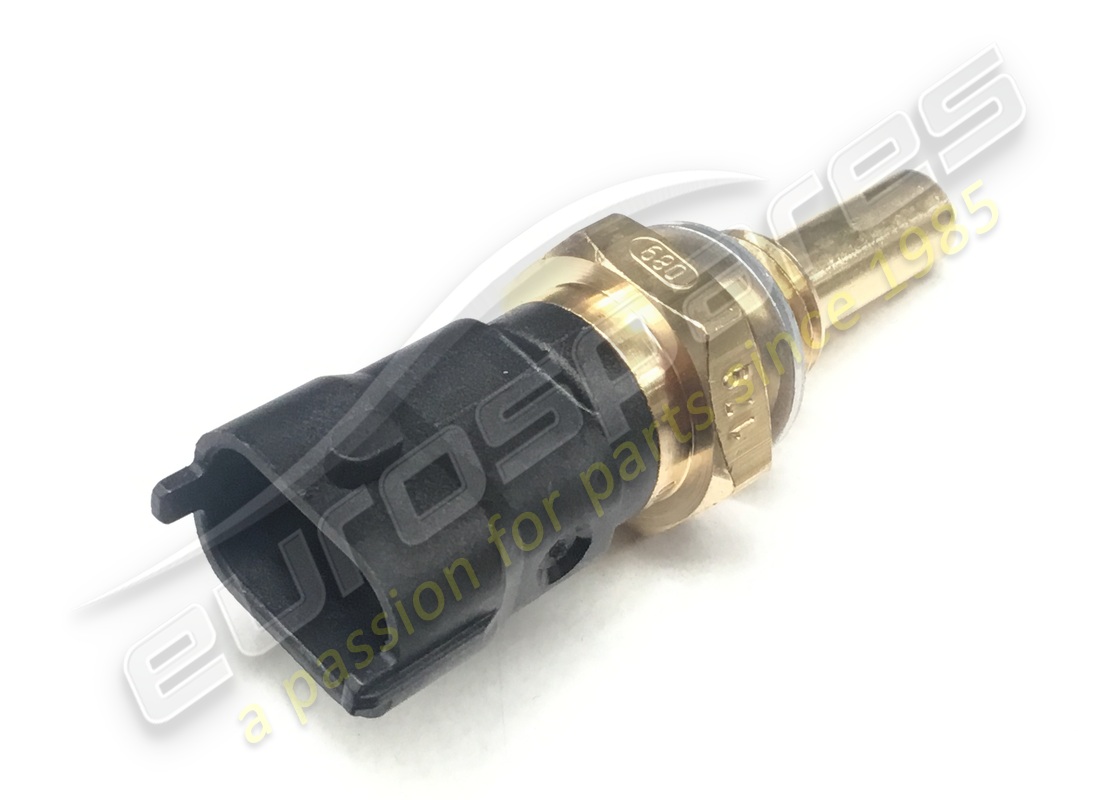

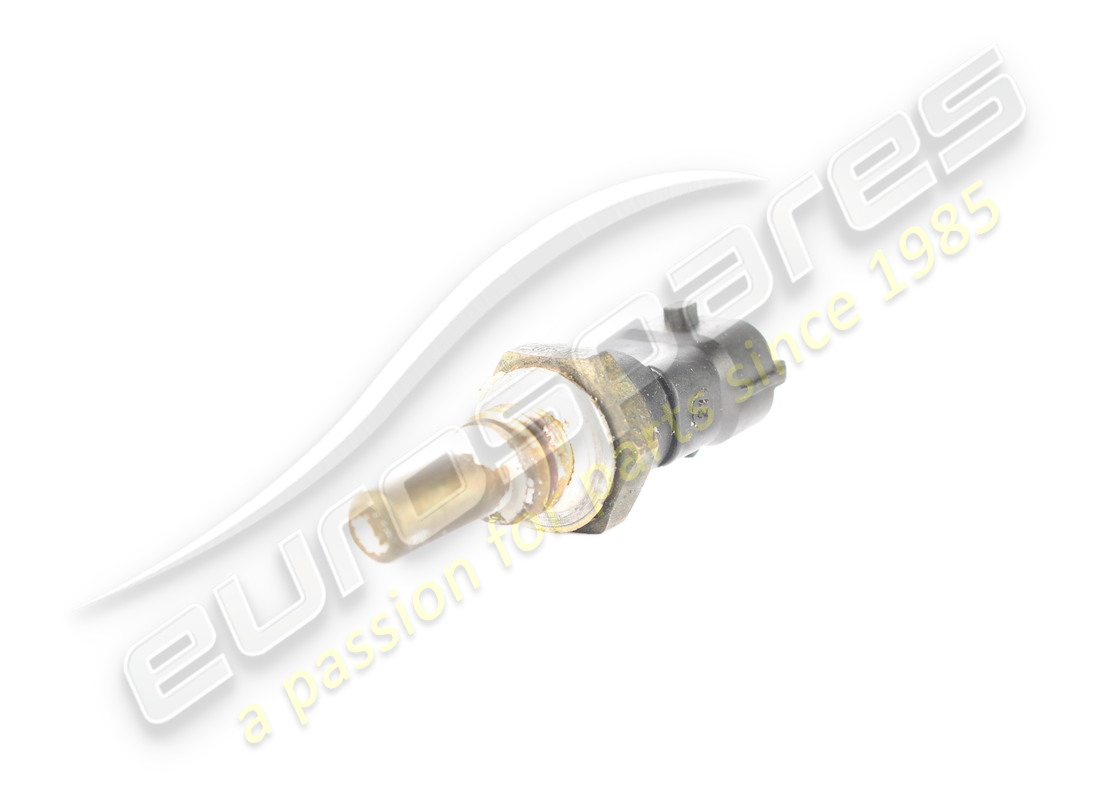

                                                                                      WATER TEMPERATURE SENSOR
                                                                                      - (Quantity 2 for cars USA and CDN)
                                                                                      from £9.88
                                                                                      from £9.88
                                                                                      # 028
                                                                                      MPN: 10298460
                                                                                      GASKET
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 029
                                                                                      MPN: 10300540
                                                                                      THREADED PLUG
                                                                                      - Not for USA and CDN
                                                                                      from £2.90
                                                                                      from £2.90
                                                                                      # 030
                                                                                      MPN: 190354
                                                                                      DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                                                      from £78.82
                                                                                      from £78.82
                                                                                      This part replaces part number 181747 - and 1 more. Click to view details
                                                                                      # 031
                                                                                      MPN: 181748
                                                                                      RETURN PIPE FROM RADIATOR TO ENGINE
                                                                                      from £29.09
                                                                                      from £29.09
                                                                                      # 032
                                                                                      MPN: 13000790
                                                                                      SCREW COLLAR
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 312420106
                                                                                      # 033
                                                                                      MPN: 187080
                                                                                      RUBBER HOSE
                                                                                      - Valid from car Ass. Nr. 7968
                                                                                      from £9.06
                                                                                      from £9.06
                                                                                      This part replaces part number 186654 which we have in stock - and 1 more. Click to view details
                                                                                      # 034
                                                                                      MPN: 183115
                                                                                      WATER OUTLET PIPE
                                                                                      - Valid till engine Nr. 69104
                                                                                      from £16.51
                                                                                      from £16.51
                                                                                      # 034
                                                                                      MPN: 187082
                                                                                      WATER OUTLET PIPE
                                                                                      - Valid from engine Nr. 69105
                                                                                      from £101.02
                                                                                      from £101.02
                                                                                      # 035
                                                                                      MPN: 13000590
                                                                                      SCREW COLLAR
                                                                                      - Valid from car Ass. Nr. 7968
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 035
                                                                                      MPN: 186680
                                                                                      CLAMP
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £0.87
                                                                                      from £0.87
                                                                                      # 036
                                                                                      MPN: 186680
                                                                                      CLAMP
                                                                                      from £0.87
                                                                                      from £0.87
                                                                                      # 037
                                                                                      MPN: 183126
                                                                                      CLAMP
                                                                                      from £0.90
                                                                                      from £0.90
                                                                                      # 038
                                                                                      MPN: 66069000

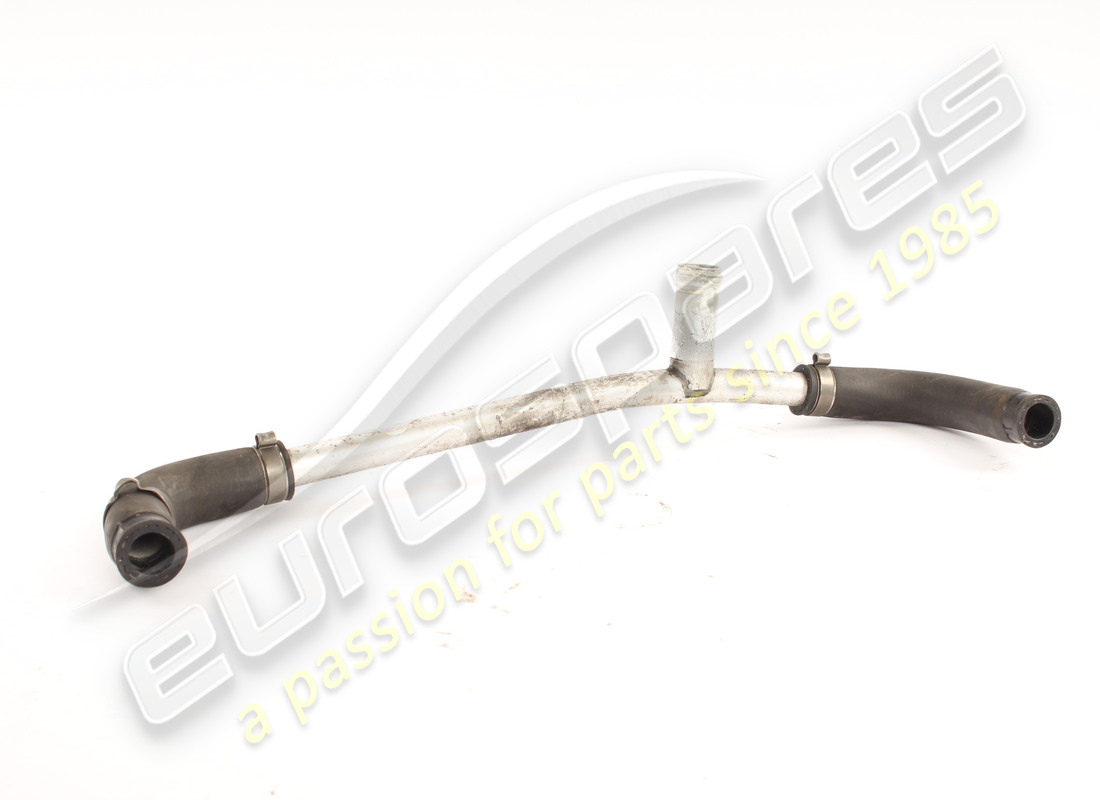

                                                                                      COMPLETE RIGID PIPE TO HEATER
                                                                                      from £29.96
                                                                                      from £29.96
                                                                                      # 039
                                                                                      MPN: 12575421
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 12575411
                                                                                      # 040
                                                                                      MPN: 385500371
                                                                                      GASKET
                                                                                      from £1.10
                                                                                      from £1.10
                                                                                      # 041
                                                                                      MPN: 178053
                                                                                      CLAMP
                                                                                      - (Quantity 4 for cars with engine till Nr. 69104)
                                                                                      from £0.99
                                                                                      from £0.99
                                                                                      # 042
                                                                                      MPN: 188067
                                                                                      WATER ENTRY COVER
                                                                                      from £203.21
                                                                                      from £203.21
                                                                                      # 043
                                                                                      MPN: 111628
                                                                                      THREADED UNION
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 044
                                                                                      MPN: 154191
                                                                                      GASKET
                                                                                      from £0.81
                                                                                      from £0.81
                                                                                      # 045
                                                                                      MPN: 14306024
                                                                                      SCREW
                                                                                      from £1.33
                                                                                      from £1.33
                                                                                      This part replaces part number 14306034 which we have in stock
                                                                                      # 046
                                                                                      MPN: 14432224
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 047
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 048
                                                                                      MPN: 192650
                                                                                      CLIP
                                                                                      from £1.10
                                                                                      from £1.10
                                                                                      # 049
                                                                                      MPN: 107394
                                                                                      3-WAY UNION
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £20.45
                                                                                      from £20.45
                                                                                      # 050
                                                                                      MPN: 186586
                                                                                      SLEEVE
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £8.65
                                                                                      from £8.65
                                                                                      # 051
                                                                                      MPN: 186653
                                                                                      RUBBER HOSE
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £12.74
                                                                                      from £12.74
                                                                                      # 052
                                                                                      MPN: 183126
                                                                                      CLAMP
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £0.88
                                                                                      from £0.88
                                                                                      # 053
                                                                                      MPN: 186680
                                                                                      CLAMP
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £0.87
                                                                                      from £0.87
                                                                                      # 054
                                                                                      MPN: 186654
                                                                                      RUBBER HOSE
                                                                                      - Valid till car Ass. Nr. 7967
                                                                                      from £15.97
                                                                                      from £15.97
                                                                                      # 055
                                                                                      MPN: 185579
                                                                                      RUBBER HOSE
                                                                                      - Valid till engine Nr. 69104
                                                                                      from £12.48
                                                                                      from £12.48
                                                                                      # 056
                                                                                      MPN: 185578
                                                                                      RUBBER HOSE
                                                                                      - Valid till engine Nr. 69104
                                                                                      from £13.19
                                                                                      from £13.19
                                                                                      # 057
                                                                                      MPN: 13000490
                                                                                      SCREW COLLAR
                                                                                      - Valid till engine Nr. 69104
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 13127870 - and 1 more. Click to view details
                                                                                      # 058
                                                                                      MPN: 185582
                                                                                      SLEEVE
                                                                                      - Valid till engine Nr. 69104
                                                                                      from £7.70
                                                                                      from £7.70
                                                                                      # 059
                                                                                      MPN: 183126
                                                                                      CLAMP
                                                                                      - Valid till engine Nr. 69104
                                                                                      from £0.90
                                                                                      from £0.90
                                                                                      # 059
                                                                                      MPN: 186680
                                                                                      CLAMP
                                                                                      - Valid from engine Nr. 69105
                                                                                      from £0.87
                                                                                      from £0.87
                                                                                      # 060
                                                                                      MPN: 137873
                                                                                      GASKET
                                                                                      from £2.95
                                                                                      from £2.95
