Maserati 4200 Spyder (2002) Blow - By System Parts Diagram

016 - Blow - By System

Maserati 4200 Spyder (2002) Blow - By System Parts Diagram

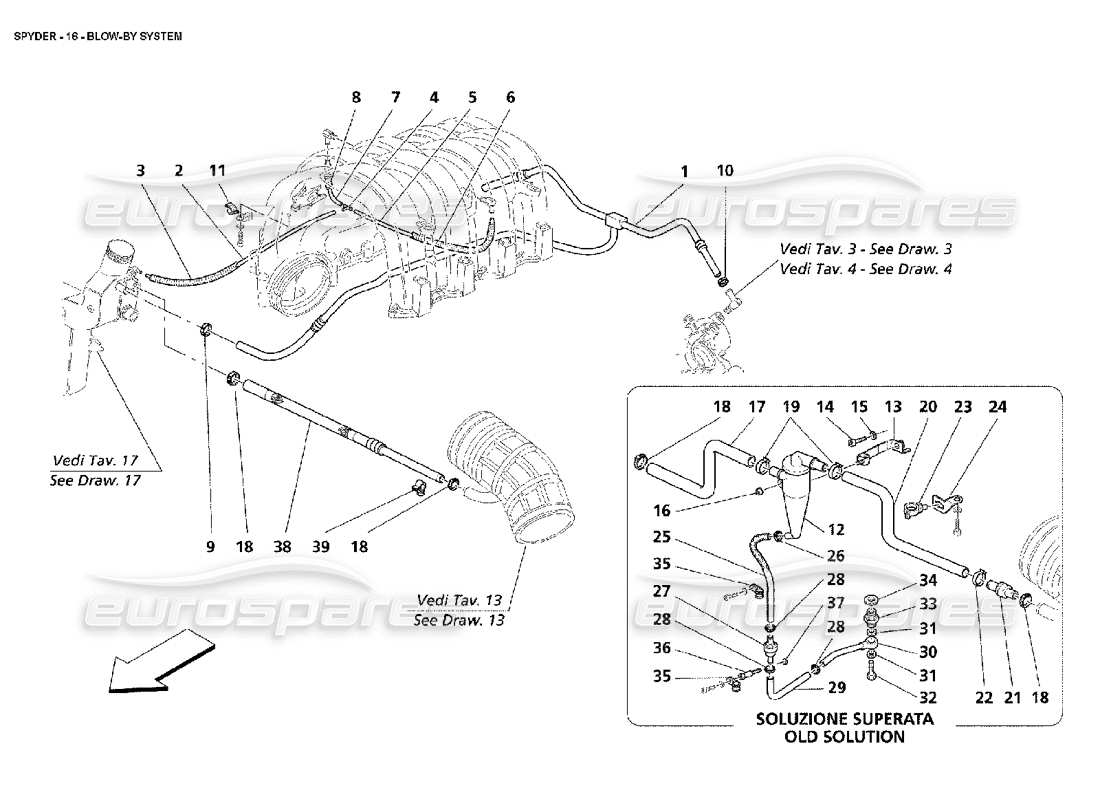

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 190120
                      HEAD COVERS VENT PIPE
                      from £32.55
                      from £32.55
                      # 001
                      MPN: 198346
                      HEAD COVERS VENT PIPE
                      - As an alternative
                      from £47.69
                      from £47.69
                      This part replaces part number 190120 which we have in stock - and 1 more. Click to view details
                      # 002
                      MPN: 169700
                      RUBBER HOSE
                      from £4.39
                      from £4.39
                      # 003
                      MPN: 97218
                      PIPE
                      - Supplied in meters - (Minimum quantity 1m. or multiples)
                      from £1.88
                      from £1.88
                      This part replaces part number 188340 - and 1 more. Click to view details
                      # 004
                      MPN: 146972
                      3-WAY UNION
                      from £2.82
                      from £2.82
                      # 005
                      MPN: 194323
                      RUBBER HOSE
                      from £7.04
                      from £7.04
                      This part replaces part number 192445
                      # 006
                      MPN: 97218
                      PIPE
                      - Supplied in meters - (Minimum quantity 1m. or multiples)
                      from £1.88
                      from £1.88
                      This part replaces part number 188340 - and 1 more. Click to view details
                      # 007
                      MPN: 165608
                      RUBBER HOSE
                      from £1.52
                      from £1.52
                      This part replaces part number 235375
                      # 008
                      MPN: 97218
                      PIPE
                      - Supplied in meters - (Minimum quantity 1m. or multiples)
                      from £1.88
                      from £1.88
                      This part replaces part number 188340 - and 1 more. Click to view details
                      # 010
                      MPN: 178052
                      CLAMP
                      from £0.96
                      from £0.96
                      # 011
                      MPN: 10441590
                      BRACKET WITH SHEATH
                      - Not for cars with bracket 191009 - (See draw 13 pos. 30)
                      from £0.53
                      from £0.53
                      # 011
                      MPN: 191273
                      CLIP
                      - Valid for cars with bracket 191009 - (See draw 13 pos. 30)
                      from £0.47
                      from £0.47
                      # 012
                      MPN: 192651
                      OIL VAPOURS SEPARATOR
                      from £10.39
                      from £10.39
                      This part replaces part number 191455
                      # 013
                      MPN: 192652
                      BRACKET
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £8.31
                      from £8.31
                      # 014
                      MPN: 14305524
                      SCREW
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £0.54
                      from £0.54
                      # 015
                      MPN: 12620474
                      WASHER
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £0.47
                      from £0.47
                      # 016
                      MPN: 14058411
                      NUT
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £0.54
                      from £0.54
                      # 017
                      MPN: 191376
                      SLEEVE
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £7.29
                      from £7.29
                      # 018
                      MPN: 13000490
                      SCREW COLLAR
                      from £0.53
                      from £0.53
                      This part replaces part number 13127870 - and 1 more. Click to view details
                      # 019
                      MPN: 13127870
                      STRAP COLLAR
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      Supersession
                      Supersession
                      # 020
                      MPN: 192609
                      SLEEVE
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £7.29
                      from £7.29
                      # 021
                      MPN: 585069900
                      ONE-WAY VALVE
                      from £19.40
                      from £19.40
                      This part replaces part number 191454
                      # 022
                      MPN: 13126570
                      STRAP COLLAR
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £1.57
                      from £1.57
                      # 023
                      MPN: 189149
                      CLIP
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £1.10
                      from £1.10
                      # 024
                      MPN: 191379
                      BRACKET
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £90.05
                      from £90.05
                      # 025
                      MPN: 192653
                      SLEEVE
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £7.20
                      from £7.20
                      # 026
                      MPN: 13000290
                      SCREW COLLAR
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £0.56
                      from £0.56
                      # 027
                      MPN: 191852
                      ONE-WAY VALVE
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      Supersession
                      Supersession
                      # 028
                      MPN: 13000190
                      SCREW COLLAR
                      - Valid for cars with oil vapours separator - (See pos. 12)
                      from £0.53
                      from £0.53
                      # 029
                      MPN: 191440
                      SLEEVE
                      from £6.41
                      from £6.41
