Maserati 4200 Spyder (2002) Fuel Tanks and Union Parts Diagram

010 - Fuel Tanks and Union

Maserati 4200 Spyder (2002) Fuel Tanks and Union Parts Diagram

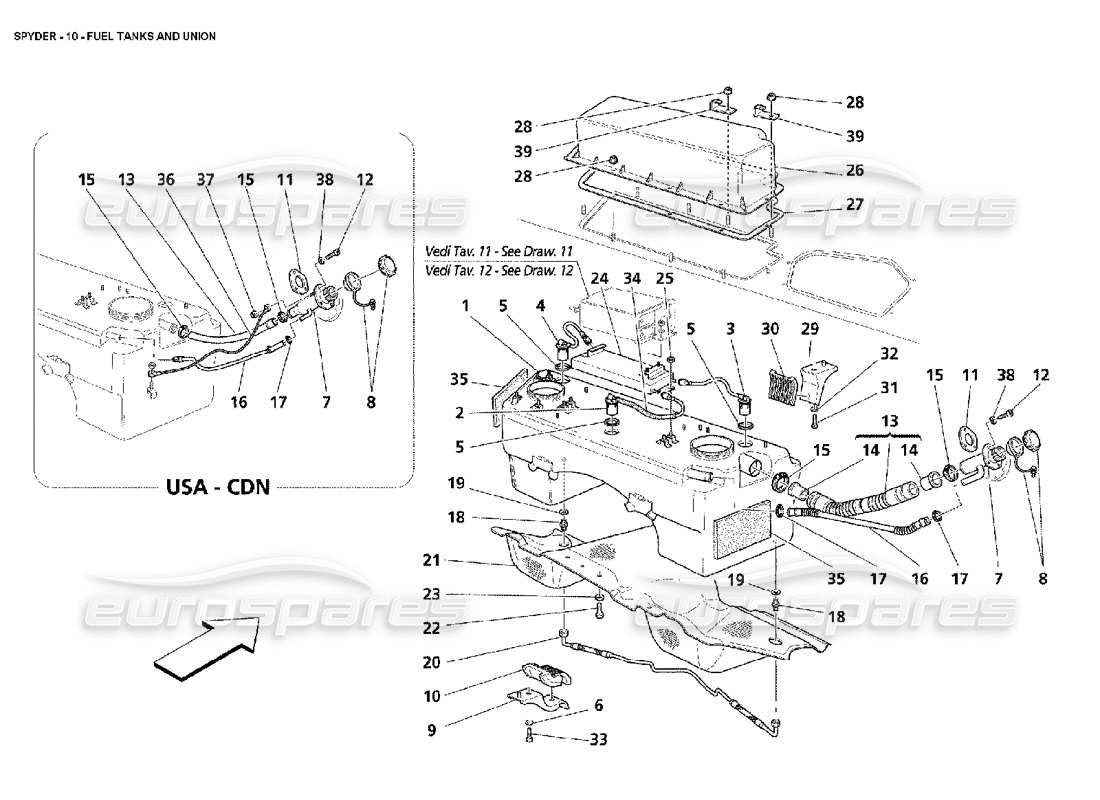

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 184288
                                        FUEL TANK
                                        - Not for USA and CDN
                                        from £1,395.34
                                        from £1,395.34
                                        # 001
                                        MPN: 184732
                                        FUEL TANK
                                        - Valid for USA and CDN
                                        from £1,569.79
                                        from £1,569.79
                                        # 002
                                        MPN: 184908
                                        CENTRAL FLOAT VALVLE WHIT PIPE
                                        from £338.60
                                        from £338.60
                                        # 003
                                        MPN: 184349
                                        RH FLOAT VALVE WITH PIPE
                                        from £32.16
                                        from £32.16
                                        # 004
                                        MPN: 184907
                                        LH FLOAT VALVE WITH PIPE
                                        from £34.79
                                        from £34.79
                                        # 005
                                        MPN: 169938
                                        GASKET FOR VALVE
                                        from £9.79
                                        from £9.79
                                        # 006
                                        MPN: 12626224
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        # 007
                                        MPN: 190136
                                        FUEL UNION
                                        - Valid for USA and CDN - Without connection for ground cable - Valid till stock exhaustion
                                        from £106.86
                                        from £106.86
                                        # 007
                                        MPN: 190203
                                        FUEL UNION
                                        - Not for USA and CDN
                                        from £43.76
                                        from £43.76
                                        # 007
                                        MPN: 194101
                                        FUEL UNION
                                        - Valid for USA and CDN - With connection for ground cable
                                        Supersession
                                        Supersession
                                        # 008
                                        MPN: 190154
                                        COMPLETE PLUG
                                        from £172.89
                                        from £172.89
                                        This part replaces part number 186866 which we have in stock
                                        # 009
                                        MPN: 184298
                                        FUEL TANK FIXING BRACKET
                                        from £8.23
                                        from £8.23
                                        # 010
                                        MPN: 186986
                                        RUBBER REAR SPACER
                                        from £4.18
                                        from £4.18
                                        # 011
                                        MPN: 190141
                                        GASKET FOR UNION
                                        from £6.03
                                        from £6.03
                                        # 012
                                        MPN: 14778017
                                        SCREW
                                        - Valid for USA and CDN
                                        from £1.57
                                        from £1.57
                                        # 012
                                        MPN: 62926700
                                        SCREW
                                        - Not for USA and CDN
                                        from £0.47
                                        from £0.47
                                        # 013
                                        MPN: 189733
                                        UNION-TANK CONNECTING PIPE
                                        - Valid for USA and CDN
                                        from £105.75
                                        from £105.75
                                        # 013
                                        MPN: 191617
                                        UNION-TANK CONNECTING PIPE
                                        - Not for USA and CDN
                                        from £58.48
                                        from £58.48
                                        # 014
                                        MPN: 191618
                                        GASKET
                                        - Not for USA and CDN
                                        from £30.93
                                        from £30.93
                                        # 015
                                        MPN: 13000590
                                        SCREW COLLAR
                                        - Valid for USA and CDN
                                        from £0.47
                                        from £0.47
                                        # 015
                                        MPN: 13000790
                                        SCREW COLLAR
                                        - Not for USA and CDN
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 312420106
                                        # 016
                                        MPN: 190150
                                        VAPOR RECYCLING PIPE
                                        - Valid for USA and CDN
                                        from £23.17
                                        from £23.17
                                        # 016
                                        MPN: 190164
                                        COMPLETE VENT PIPE FROM TANK TO UNION
                                        - Not for USA and CDN
                                        from £28.81
                                        from £28.81
                                        # 017
                                        MPN: 13000390
                                        SCREW COLLAR
                                        - Not for USA and CDN
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 13121170 - and 1 more. Click to view details
                                        # 017
                                        MPN: 13432070
                                        COLLAR FOR SLEEVE
                                        - Valid for USA and CDN
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 13434670
                                        # 018
                                        MPN: 188548
                                        NIPPLO
                                        - Not for USA and CDN
                                        from £100.46
                                        from £100.46
                                        # 018
                                        MPN: 193689
                                        NIPPLO
                                        - Valid for USA and CDN
                                        from £27.81
                                        from £27.81
                                        # 019
                                        MPN: 675000691
                                        GASKET
                                        from £1.10
                                        from £1.10
                                        This part replaces part number 10257060 which we have in stock
                                        # 020
                                        MPN: 189875
                                        TANK CONNECTING PIPE
                                        - Not for USA and CDN
                                        from £135.17
                                        from £135.17
                                        # 020
                                        MPN: 193688
                                        TANK CONNECTING PIPE
                                        - Valid for USA and CDN
                                        from £143.60
                                        from £143.60
                                        # 021
                                        MPN: 66065600
                                        UNDERTANK HEAT SHIELD
                                        from £80.10
                                        from £80.10
                                        # 022
                                        MPN: 10902224
                                        SCREW
                                        from £0.49
                                        from £0.49
                                        # 023
                                        MPN: 10523424
                                        WASHER
                                        from £0.49
                                        from £0.49
                                        # 024
                                        MPN: 187466
                                        DISAREATOR
                                        - Not for USA and CDN
                                        from £68.70
                                        from £68.70
                                        # 024
                                        MPN: 187467
                                        DISAREATOR
                                        - Valid for USA and CDN
                                        from £282.72
                                        from £282.72
                                        # 025
                                        MPN: 12574211
                                        NUT
                                        from £0.49
                                        from £0.49
                                        This part replaces part number 128300060
                                        # 026
                                        MPN: 66360800
                                        ANTIEVAPORATION DEVICE COVER
                                        - Valid till stock exhaustion
                                        from £22.00
                                        from £22.00
                                        # 026
                                        MPN: 67239500
                                        ANTIEVAPORATION DEVICE COVER
                                        - Valid after stock exhaustion of 66360800
                                        from £24.16
                                        from £24.16
                                        This part replaces part number 66360800 which we have in stock - and 1 more. Click to view details
                                        # 027
                                        MPN: 66360700
                                        GASKET
                                        from £27.81
                                        from £27.81
                                        # 028
                                        MPN: 14059217
                                        NUT
                                        from £0.47
                                        from £0.47
                                        # 029
                                        MPN: 184297
                                        FUEL TANK FIXING BRACKET
                                        from £8.01
                                        from £8.01
                                        # 030
                                        MPN: 186985
                                        RUBBER FRONT SPACER
                                        from £4.18
                                        from £4.18
                                        # 031
                                        MPN: 14307524
                                        SCREW
                                        from £0.86
                                        from £0.86
                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
