Maserati 4200 Spyder (2002) timing - tappets Parts Diagram

005 - timing - tappets

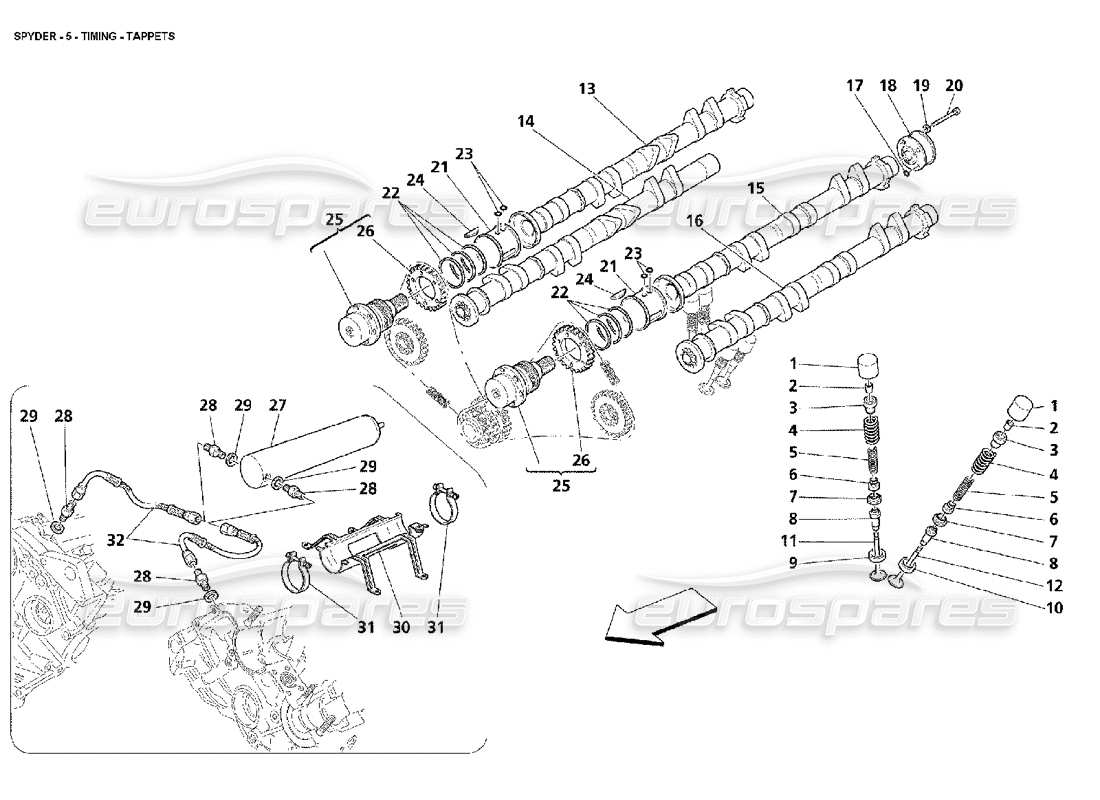

Maserati 4200 Spyder (2002) Timing - Tappets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 194700
                                                TAPPET FOR VALVE CONTROL
                                                from £21.00
                                                from £21.00
                                                This part replaces part number 187657 - and 3 more. Click to view details
                                                # 002
                                                MPN: 179763
                                                COTTER FOR VALVE SPRING
                                                from £0.28
                                                from £0.28
                                                # 003
                                                MPN: 187489
                                                UPPER CUP
                                                from £5.07
                                                from £5.07
                                                # 004
                                                MPN: 184054
                                                OUTER SPRING FOR VALVE RETURN
                                                from £6.94
                                                from £6.94
                                                # 005
                                                MPN: 184055
                                                INNER SPRING FOR VALVE RETURN
                                                from £28.12
                                                from £28.12
                                                # 006
                                                MPN: 148153
                                                OIL RING
                                                - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                from £1.94
                                                from £1.94
                                                # 007
                                                MPN: 190388
                                                LOWER CUP
                                                from £4.38
                                                from £4.38
                                                This part replaces part number 184594 which we have in stock
                                                # 007
                                                MPN: 190408
                                                LOWER CUP
                                                - Oversized
                                                from £36.33
                                                from £36.33
                                                This part replaces part number 184596
                                                # 008
                                                MPN: 172452
                                                INTAKE VALVE GUIDE
                                                - Oversized
                                                Supersession
                                                Supersession
                                                # 008
                                                MPN: 176437
                                                INTAKE VALVE GUIDE
                                                from £48.00
                                                from £48.00
                                                This part replaces part number 172328
                                                # 009
                                                MPN: 175381
                                                INTAKE VALVE SEAT
                                                from £7.99
                                                from £7.99
                                                # 010
                                                MPN: 179959
                                                EXHAUST VALVE SEAT
                                                Supersession
                                                Supersession
                                                # 011
                                                MPN: 175395
                                                INTAKE VALVE
                                                from £5.85
                                                from £5.85
                                                # 012
                                                MPN: 181568

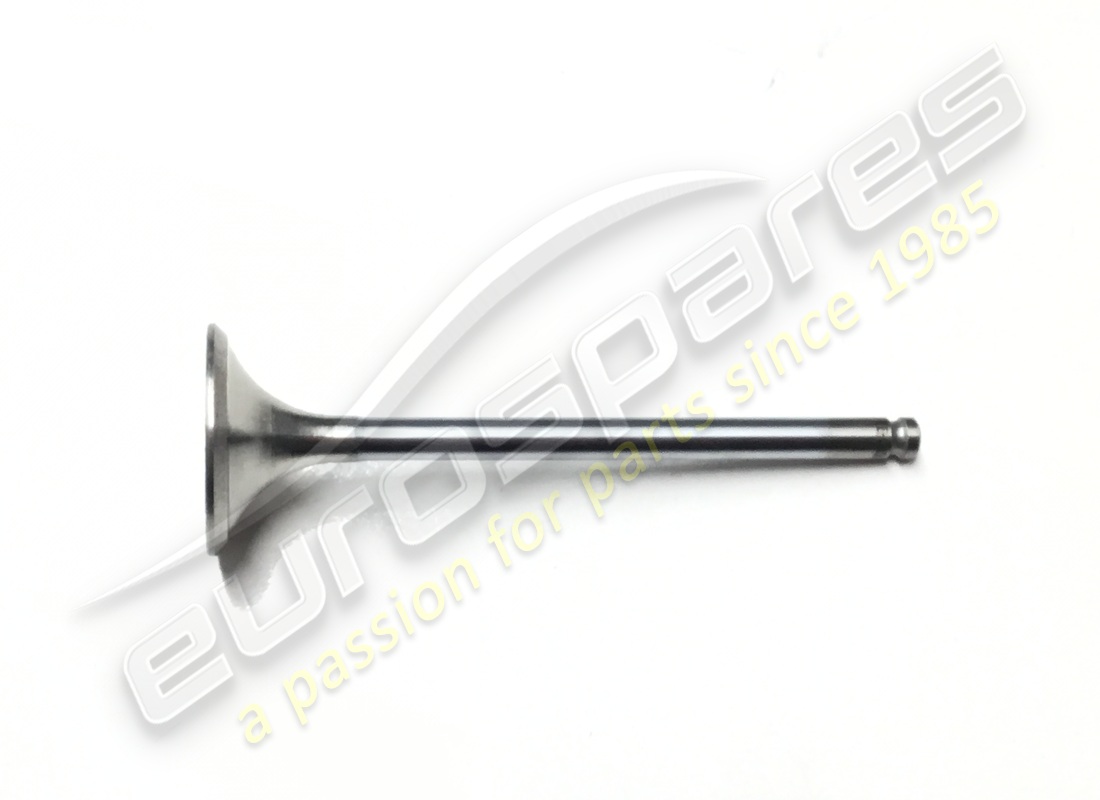

                                                EXHAUST VALVE
                                                See also 189351
                                                from £14.83
                                                from £14.83
                                                # 012
                                                MPN: 189351
                                                EXHAUST VALVE
                                                from £61.29
                                                from £61.29
                                                This part replaces part number 181568 which we have in stock
                                                # 013
                                                MPN: 188192
                                                RH INDUCTION DISTRIBUTION CAM SHAFT
                                                from £579.13
                                                from £579.13
                                                # 014
                                                MPN: 186216
                                                RH EXHAUST CAM SHAFT
                                                from £571.56
                                                from £571.56
                                                # 015
                                                MPN: 188193
                                                LH INDUCTION DISTRIBUTION CAM SHAFT
                                                from £579.13
                                                from £579.13
                                                # 016
                                                MPN: 186217
                                                LH EXHAUST CAM SHAFT
                                                from £571.56
                                                from £571.56
                                                # 017
                                                MPN: 134701
                                                O.R. GASKET
                                                from £0.53
                                                from £0.53
                                                # 018
                                                MPN: 189541
                                                OIL PUMP VARIATOR
                                                from £54.86
                                                from £54.86
                                                This part replaces part number 185409 - and 1 more. Click to view details
                                                # 019
                                                MPN: 184731
                                                WASHER
                                                from £0.53
                                                from £0.53
                                                # 020
                                                MPN: 14303523
                                                SCREW
                                                from £1.10
                                                from £1.10
                                                This part replaces part number 14303526
                                                # 021
                                                MPN: 198668
                                                PHASE VARIATOR SUPPORTNG BUSHING
                                                from £176.25
                                                from £176.25
                                                This part replaces part number 190393
                                                # 022
                                                MPN: 214742
                                                RING
                                                from £13.87
                                                from £13.87
                                                This part replaces part number 179926
                                                # 023
                                                MPN: 134701
                                                O.R. GASKET
                                                from £0.53
                                                from £0.53
                                                # 024
                                                MPN: 10617520
                                                Key
                                                from £2.35
                                                from £2.35
                                                This part replaces part number 10617580
                                                # 025
                                                MPN: 188194
                                                PHASE VARIATOR
                                                - Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
                                                from £407.91
                                                from £407.91
                                                # 025
                                                MPN: 190012
                                                PHASE VARIATOR
                                                - Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
                                                from £609.55
                                                from £609.55
                                                # 026
                                                MPN: 188357
                                                TOOTHED WHEEL
                                                - Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
                                                Supersession
                                                Supersession
                                                # 026
                                                MPN: 189576
                                                TOOTHED WHEEL
                                                - Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
                                                from £205.17
                                                from £205.17
                                                This part replaces part number 188357
                                                # 027
                                                MPN: 190163
                                                OIL ACCUMULATOR FOR VARIATOR
                                                from £392.99
                                                from £392.99
                                                This part replaces part number 185334 - and 2 more. Click to view details
                                                # 028
                                                MPN: 189452
                                                THREADED UNION
                                                - Valid till stock exhaustion
                                                from £3.99
                                                from £3.99
                                                # 028
                                                MPN: 193738
                                                THREADED UNION
                                                - Valid after stock exhaustion of 189452
                                                from £4.56
                                                from £4.56
                                                # 029
                                                MPN: 10261060
                                                GASKET
                                                from £0.51
                                                from £0.51
                                                This part replaces part number 274036
                                                # 030
                                                MPN: 189950
                                                OIL ACCUMULATOR SEAT
                                                - Valid till stock exhaustion
                                                Supersession
                                                Supersession
                                                This part replaces part number 186836
                                                # 030
                                                MPN: 193406
                                                OIL ACCUMULATOR SEAT
                                                - Valid after stock exhaustion of 189950
                                                from £41.30
                                                from £41.30
                                                This part replaces part number 189950 - and 2 more. Click to view details
                                                # 032
                                                MPN: 189949
                                                PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
                                                - Valid till stock exhaustion
                                                Supersession
                                                Supersession
                                                # 032
                                                MPN: 194710
                                                PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
                                                - Valid after stock exhaustion of 189949
                                                from £38.27
                                                from £38.27
                                                This part replaces part number 189949 - and 1 more. Click to view details
                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
