004 - LH cylinder head

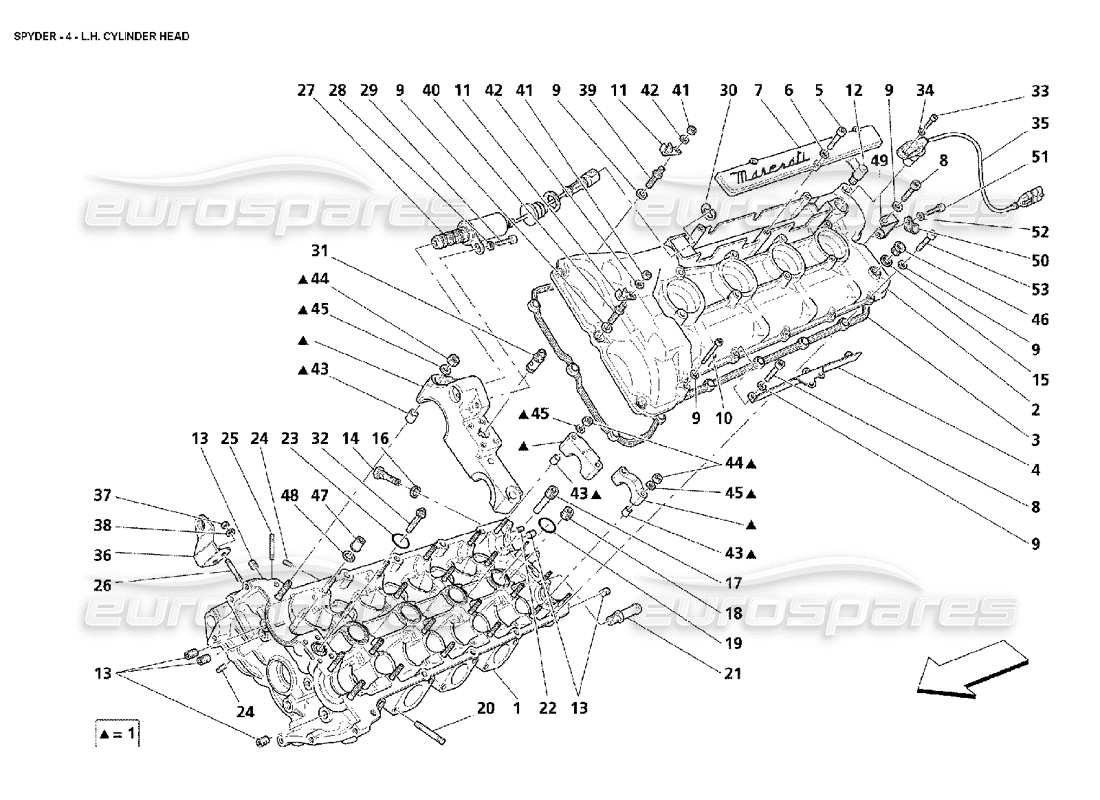

Maserati 4200 Spyder (2002) L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 189360
                                                                                                    COMPLETE LH HEAD
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    This part replaces part number 187999 - and 1 more. Click to view details
                                                                                                    # 002
                                                                                                    MPN: 187816
                                                                                                    LH CYLINDERS HEAD COVER
                                                                                                    from £112.70
                                                                                                    from £112.70
                                                                                                    # 003
                                                                                                    MPN: 198928
                                                                                                    LH HEAD COVER GASKET
                                                                                                    - Supplied also in the cover gasket revision kit (cod. 98002000)
                                                                                                    from £33.60
                                                                                                    from £33.60
                                                                                                    # 004
                                                                                                    MPN: 186252
                                                                                                    SECONDARY AIR VALVE FIX. BRACKET
                                                                                                    - Valid till stock exhaustion
                                                                                                    from £115.30
                                                                                                    from £115.30
                                                                                                    # 004
                                                                                                    MPN: 192390
                                                                                                    SECONDARY AIR VALVE FIX. BRACKET
                                                                                                    - Valid after stock exhaustion of 186252
                                                                                                    from £45.36
                                                                                                    from £45.36
                                                                                                    # 005
                                                                                                    MPN: 14304424
                                                                                                    SCREW
                                                                                                    from £0.52
                                                                                                    from £0.52
                                                                                                    # 006
                                                                                                    MPN: 14497878
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 007
                                                                                                    MPN: 185313
                                                                                                    LH HARNESS SMALL COVER
                                                                                                    from £25.45
                                                                                                    from £25.45
                                                                                                    # 008
                                                                                                    MPN: 156834
                                                                                                    SCREW
                                                                                                    from £1.59
                                                                                                    from £1.59
                                                                                                    # 009
                                                                                                    MPN: 11197774
                                                                                                    WASHER
                                                                                                    from £0.52
                                                                                                    from £0.52
                                                                                                    # 010
                                                                                                    MPN: 156830
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 011
                                                                                                    MPN: 187713
                                                                                                    CLIP
                                                                                                    from £3.25
                                                                                                    from £3.25
                                                                                                    This part replaces part number 98055
                                                                                                    # 012
                                                                                                    MPN: 124342
                                                                                                    THREADED UNION
                                                                                                    from £3.59
                                                                                                    from £3.59
                                                                                                    # 013
                                                                                                    MPN: 14326050
                                                                                                    THREADED PLUG
                                                                                                    from £0.95
                                                                                                    from £0.95
                                                                                                    # 014
                                                                                                    MPN: 180267
                                                                                                    OIL NONRETURN VALVE
                                                                                                    from £18.82
                                                                                                    from £18.82
                                                                                                    # 015
                                                                                                    MPN: 10263360
                                                                                                    GASKET
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 016
                                                                                                    MPN: 10261060
                                                                                                    GASKET
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 274036
                                                                                                    # 017
                                                                                                    MPN: 183447
                                                                                                    THREADED PLUG
                                                                                                    from £4.76
                                                                                                    from £4.76
                                                                                                    # 018
                                                                                                    MPN: 164400
                                                                                                    THREADED PLUG
                                                                                                    from £1.86
                                                                                                    from £1.86
                                                                                                    # 019
                                                                                                    MPN: 187706
                                                                                                    GASKET
                                                                                                    from £3.33
                                                                                                    from £3.33
                                                                                                    # 020
                                                                                                    MPN: 13543424
                                                                                                    STUD
                                                                                                    from £1.03
                                                                                                    from £1.03
                                                                                                    # 021
                                                                                                    MPN: 191633
                                                                                                    UNION
                                                                                                    from £49.45
                                                                                                    from £49.45
                                                                                                    This part replaces part number 188602
                                                                                                    # 022
                                                                                                    MPN: 14326150
                                                                                                    THREADED PLUG
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 023
                                                                                                    MPN: 134233
                                                                                                    O.R. GASKET
                                                                                                    - Supplied also in the cover gasket revision kit (cod. 98002000)
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 024
                                                                                                    MPN: 141563
                                                                                                    THREADED PLUG
                                                                                                    from £0.76
                                                                                                    from £0.76
                                                                                                    # 025
                                                                                                    MPN: 13541224
                                                                                                    STUD
                                                                                                    from £35.84
                                                                                                    from £35.84
                                                                                                    # 026
                                                                                                    MPN: 13516624
                                                                                                    STUD
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 027
                                                                                                    MPN: 212423
                                                                                                    VARIATOR CONTROL SOLENOID VALVE
                                                                                                    from £429.30
                                                                                                    from £429.30
                                                                                                    This part replaces part number 186563 - and 2 more. Click to view details
                                                                                                    # 028
                                                                                                    MPN: 11197774
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 030
                                                                                                    MPN: 11087376
                                                                                                    FLEXIBLE RING
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 031
                                                                                                    MPN: 184681
                                                                                                    OIL PRESSURE CHECK VALVE
                                                                                                    from £241.27
                                                                                                    from £241.27
                                                                                                    # 032
                                                                                                    MPN: 180266
                                                                                                    OIL FILTER
                                                                                                    - Supplied also in the cover gasket revision kit (cod. 98002000)
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 033
                                                                                                    MPN: 14305224
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 034
                                                                                                    MPN: 11197774
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 036
                                                                                                    MPN: 187142
                                                                                                    BRACKET
                                                                                                    from £16.73
                                                                                                    from £16.73
                                                                                                    # 037
                                                                                                    MPN: 16100814
                                                                                                    NUT
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 038
                                                                                                    MPN: 11193874
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 039
                                                                                                    MPN: 187710
                                                                                                    STUD
                                                                                                    from £6.89
                                                                                                    from £6.89
                                                                                                    # 040
                                                                                                    MPN: 187711
                                                                                                    STUD
                                                                                                    from £53.48
                                                                                                    from £53.48
                                                                                                    # 042
                                                                                                    MPN: 12639724
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 043
                                                                                                    MPN: 102725
                                                                                                    CENTERING DOWEL
                                                                                                    from £0.62
                                                                                                    from £0.62
                                                                                                    # 045
                                                                                                    MPN: 11197774
                                                                                                    WASHER
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    # 046
                                                                                                    MPN: 187963
                                                                                                    PLUG
                                                                                                    from £3.74
                                                                                                    from £3.74
                                                                                                    # 047
                                                                                                    MPN: 183524
                                                                                                    NUT
                                                                                                    from £0.98
                                                                                                    from £0.98
                                                                                                    # 048
                                                                                                    MPN: 151117
                                                                                                    WASHER
                                                                                                    from £0.32
                                                                                                    from £0.32
                                                                                                    This part replaces part number 300266 - and 1 more. Click to view details
                                                                                                    # 049
                                                                                                    MPN: 185471
                                                                                                    BRACKET
                                                                                                    from £2.93
                                                                                                    from £2.93
                                                                                                    # 050
                                                                                                    MPN: 10441190
                                                                                                    BRACKET WITH SHEATH
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 051
                                                                                                    MPN: 14305024
                                                                                                    SCREW
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 052
                                                                                                    MPN: 10519424
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10519421 - and 1 more. Click to view details
                                                                                                    # 053
                                                                                                    MPN: 157218
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
