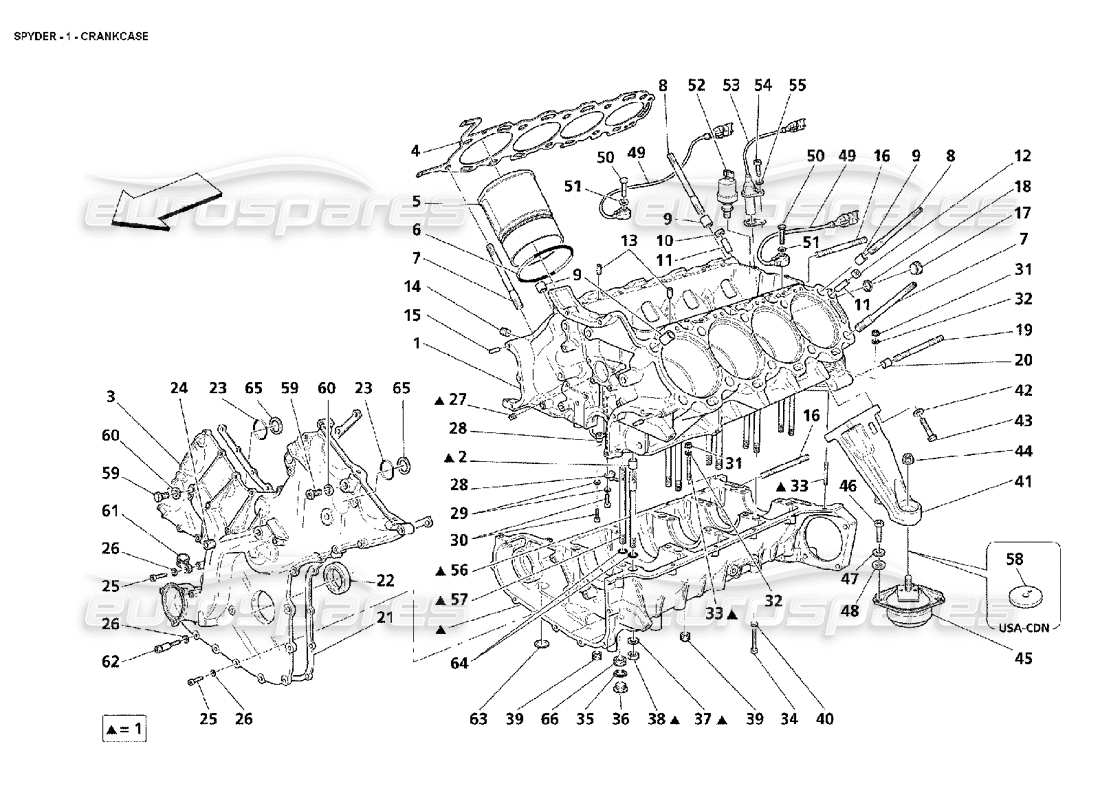

Maserati 4200 Spyder (2002) Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                              #
                                                                                                              Part number
                                                                                                              Description
                                                                                                              Price
                                                                                                              # 000
                                                                                                              MPN: 980020001
                                                                                                              HEAD OVERHAUL GASKET KIT
                                                                                                              Valid till stock exhaustion
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 000
                                                                                                              MPN: 980020002
                                                                                                              CRANKCASE GASKET KIT
                                                                                                              Valid till stock exhaustion
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 000
                                                                                                              MPN: 980020004
                                                                                                              CRANKCASE GASKET KIT
                                                                                                              Valid after stock exhaustion of 980020002
                                                                                                              from £110.48
                                                                                                              from £110.48
                                                                                                              This part replaces part number 980020002
                                                                                                              # 000
                                                                                                              MPN: 980020006
                                                                                                              HEAD OVERHAUL GASKET KIT
                                                                                                              Valid after stock exhaustion of 980020001
                                                                                                              from £55.90
                                                                                                              from £55.90
                                                                                                              This part replaces part number 980020001
                                                                                                              # 001
                                                                                                              MPN: 192423
                                                                                                              COMPLETE CRANKCASE
                                                                                                              - Replace also the cylinder liner in the car wtih engine till Nr. 64903
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              This part replaces part number 186782
                                                                                                              # 002
                                                                                                              MPN: 176421
                                                                                                              CENTERING DOWEL
                                                                                                              from £2.05
                                                                                                              from £2.05
                                                                                                              # 003
                                                                                                              MPN: 221366
                                                                                                              FRONT COVER
                                                                                                              not available as spare parts
                                                                                                              from £194.25
                                                                                                              from £194.25
                                                                                                              This part replaces part number 188710 - and 1 more. Click to view details
                                                                                                              # 004
                                                                                                              MPN: 184966
                                                                                                              RH HEAD GASKET
                                                                                                              - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                                              from £39.59
                                                                                                              from £39.59
                                                                                                              # 004
                                                                                                              MPN: 184967
                                                                                                              LH HEAD GASKET
                                                                                                              - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                                              from £39.59
                                                                                                              from £39.59
                                                                                                              # 005
                                                                                                              MPN: 187079
                                                                                                              CYLINDER LINER
                                                                                                              - Valid till engine Nr. 64903
                                                                                                              from £611.47
                                                                                                              from £611.47
                                                                                                              # 005
                                                                                                              MPN: 190770
                                                                                                              CYLINDER LINER
                                                                                                              - Valid from engine Nr. 64904
                                                                                                              from £110.46
                                                                                                              from £110.46
                                                                                                              # 006
                                                                                                              MPN: 186251
                                                                                                              GASKET
                                                                                                              - Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                                                                                              from £1.26
                                                                                                              from £1.26
                                                                                                              # 007
                                                                                                              MPN: 194754
                                                                                                              STUD
                                                                                                              from £11.54
                                                                                                              from £11.54
                                                                                                              # 008
                                                                                                              MPN: 194755
                                                                                                              STUD
                                                                                                              from £10.14
                                                                                                              from £10.14
                                                                                                              # 009
                                                                                                              MPN: 185360
                                                                                                              CENTERING DOWEL
                                                                                                              from £1.40
                                                                                                              from £1.40
                                                                                                              # 010
                                                                                                              MPN: 194773
                                                                                                              DOWEL
                                                                                                              from £5.61
                                                                                                              from £5.61
                                                                                                              # 011
                                                                                                              MPN: 156862
                                                                                                              NONRETURN VALVE
                                                                                                              from £5.17
                                                                                                              from £5.17
                                                                                                              # 012
                                                                                                              MPN: 184045
                                                                                                              DOWEL
                                                                                                              from £5.61
                                                                                                              from £5.61
                                                                                                              # 013
                                                                                                              MPN: 177727
                                                                                                              CENTERING DOWEL
                                                                                                              from £1.24
                                                                                                              from £1.24
                                                                                                              # 014
                                                                                                              MPN: 164400
                                                                                                              THREADED PLUG
                                                                                                              from £1.83
                                                                                                              from £1.83
                                                                                                              # 015
                                                                                                              MPN: 175611
                                                                                                              CENTERING DOWEL
                                                                                                              from £0.83
                                                                                                              from £0.83
                                                                                                              # 016
                                                                                                              MPN: 13546734
                                                                                                              STUD
                                                                                                              from £0.78
                                                                                                              from £0.78
                                                                                                              # 016
                                                                                                              MPN: 13546834
                                                                                                              STUD
                                                                                                              from £0.91
                                                                                                              from £0.91
                                                                                                              # 017
                                                                                                              MPN: 10275011
                                                                                                              THREADED PLUG
                                                                                                              from £1.05
                                                                                                              from £1.05
                                                                                                              This part replaces part number 178959
                                                                                                              # 018
                                                                                                              MPN: 10263460
                                                                                                              GASKET
                                                                                                              - Supplied also in the crankcase gasket revision kit (cod. 980020002)
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 10261830
                                                                                                              # 019
                                                                                                              MPN: 13546934
                                                                                                              STUD
                                                                                                              from £0.84
                                                                                                              from £0.84
                                                                                                              # 019
                                                                                                              MPN: 13547034
                                                                                                              STUD
                                                                                                              from £1.63
                                                                                                              from £1.63
                                                                                                              # 020
                                                                                                              MPN: 100052
                                                                                                              CENTERING DOWEL
                                                                                                              from £1.11
                                                                                                              from £1.11
                                                                                                              # 021
                                                                                                              MPN: 323979
                                                                                                              FRONT COVER GASKET
                                                                                                              from £29.78
                                                                                                              from £29.78
                                                                                                              This part replaces part number 245464
                                                                                                              # 021
                                                                                                              MPN: 323979
                                                                                                              FRONT COVER GASKET
                                                                                                              from £29.78
                                                                                                              from £29.78
                                                                                                              This part replaces part number 245464
                                                                                                              # 022
                                                                                                              MPN: 188717
                                                                                                              FRONT CRANKSHAFT SEAL
                                                                                                              from £15.97
                                                                                                              from £15.97
                                                                                                              This part replaces part number 186883
                                                                                                              # 023
                                                                                                              MPN: 183010
                                                                                                              O.R. GASKET
                                                                                                              - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
                                                                                                              from £0.75
                                                                                                              from £0.75
                                                                                                              # 024
                                                                                                              MPN: 14324940
                                                                                                              THREADED PLUG
                                                                                                              from £1.09
                                                                                                              from £1.09
                                                                                                              # 025
                                                                                                              MPN: 14303924
                                                                                                              SCREW-M 6X70
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 025
                                                                                                              MPN: 14305524
                                                                                                              SCREW-M 6X30
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 025
                                                                                                              MPN: 14305624
                                                                                                              SCREW-M 6X35
                                                                                                              from £0.53
                                                                                                              from £0.53
                                                                                                              # 025
                                                                                                              MPN: 14305924
                                                                                                              SCREW-M 6X45
                                                                                                              from £0.53
                                                                                                              from £0.53
                                                                                                              This part replaces part number 14305921 - and 1 more. Click to view details
                                                                                                              # 025
                                                                                                              MPN: 14306024
                                                                                                              SCREW-M 6X50
                                                                                                              from £1.32
                                                                                                              from £1.32
                                                                                                              This part replaces part number 14306034 which we have in stock
                                                                                                              # 025
                                                                                                              MPN: 14432224
                                                                                                              SCREW-M 6X22
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 025
                                                                                                              MPN: 14433124
                                                                                                              SCREW-M 6X18
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 026
                                                                                                              MPN: 11197774
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 027
                                                                                                              MPN: 13525770
                                                                                                              THREADED INSERT
                                                                                                              from £1.52
                                                                                                              from £1.52
                                                                                                              # 028
                                                                                                              MPN: 175657
                                                                                                              PISTONS COOLING NOZZLE
                                                                                                              from £5.02
                                                                                                              from £5.02
                                                                                                              # 029
                                                                                                              MPN: 11181474
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 030
                                                                                                              MPN: 14302921
                                                                                                              SCREW
                                                                                                              from £0.51
                                                                                                              from £0.51
                                                                                                              # 031
                                                                                                              MPN: 132877
                                                                                                              NUT
                                                                                                              from £1.51
                                                                                                              from £1.51
                                                                                                              # 032
                                                                                                              MPN: 12604274
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 033
                                                                                                              MPN: 13541624
                                                                                                              STUD
                                                                                                              from £7.84
                                                                                                              from £7.84
                                                                                                              # 034
                                                                                                              MPN: 14305324
                                                                                                              SCREW
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 14305321
                                                                                                              # 034
                                                                                                              MPN: 14305424
                                                                                                              SCREW
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 035
                                                                                                              MPN: 10261860
                                                                                                              GASKET
                                                                                                              - Supplied also in the crankcase gasket revision kit (cod. 980020002) - Not for cars with oil vapours separator - (See table 16 pos. 12)
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 036
                                                                                                              MPN: 178959
                                                                                                              THREADED PLUG
                                                                                                              - Not for cars with oil vapours separator - (See table 16 pos. 12)
                                                                                                              from £1.09
                                                                                                              from £1.09
                                                                                                              # 037
                                                                                                              MPN: 178348
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 038
                                                                                                              MPN: 133988
                                                                                                              NUT
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 186261
                                                                                                              # 039
                                                                                                              MPN: 14325140
                                                                                                              THREADED PLUG
                                                                                                              from £1.02
                                                                                                              from £1.02
                                                                                                              # 040
                                                                                                              MPN: 11197774
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 041
                                                                                                              MPN: 186029
                                                                                                              RH ENGINE FIXING SUPPORT
                                                                                                              from £42.40
                                                                                                              from £42.40
                                                                                                              # 041
                                                                                                              MPN: 186030
                                                                                                              LH ENGINE FIXING SUPPORT
                                                                                                              from £42.40
                                                                                                              from £42.40
                                                                                                              # 042
                                                                                                              MPN: 11190574
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 043
                                                                                                              MPN: 11306934
                                                                                                              SCREW
                                                                                                              from £0.73
                                                                                                              from £0.73
                                                                                                              # 044
                                                                                                              MPN: 177018
                                                                                                              NUT
                                                                                                              from £0.66
                                                                                                              from £0.66
                                                                                                              # 045
                                                                                                              MPN: 185361
                                                                                                              ENGINE PAD
                                                                                                              Alternative : 225839
                                                                                                              Supersession
                                                                                                              Supersession
                                                                                                              # 046
                                                                                                              MPN: 14307334
                                                                                                              SCREW
                                                                                                              from £5.53
                                                                                                              from £5.53
                                                                                                              # 047
                                                                                                              MPN: 11198374
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 675000618
                                                                                                              # 048
                                                                                                              MPN: 14496624
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 049
                                                                                                              MPN: 187739
                                                                                                              SENSOR FOR FIRING
                                                                                                              - Flywheel side
                                                                                                              from £56.09
                                                                                                              from £56.09
                                                                                                              This part replaces part number 182266 - and 1 more. Click to view details
                                                                                                              # 049
                                                                                                              MPN: 187740
                                                                                                              SENSOR FOR FIRING
                                                                                                              - Timing side
                                                                                                              from £18.14
                                                                                                              from £18.14
                                                                                                              This part replaces part number 181809 - and 1 more. Click to view details
                                                                                                              # 050
                                                                                                              MPN: 16043834
                                                                                                              SCREW
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              This part replaces part number 16043824 which we have in stock
                                                                                                              # 051
                                                                                                              MPN: 11198074
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 053
                                                                                                              MPN: 182194
                                                                                                              ANGOLAR SPEED SENSOR
                                                                                                              from £39.20
                                                                                                              from £39.20
                                                                                                              # 054
                                                                                                              MPN: 14305724
                                                                                                              SCREW
                                                                                                              from £0.54
                                                                                                              from £0.54
                                                                                                              # 055
                                                                                                              MPN: 11197774
                                                                                                              WASHER
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 056
                                                                                                              MPN: 194756
                                                                                                              STUD
                                                                                                              from £10.90
                                                                                                              from £10.90
                                                                                                              # 057
                                                                                                              MPN: 194757
                                                                                                              STUD
                                                                                                              from £4.06
                                                                                                              from £4.06
                                                                                                              # 058
                                                                                                              MPN: 191791
                                                                                                              PAD UPPER SHIELD
                                                                                                              - Valid for USA and CDN
                                                                                                              from £2.84
                                                                                                              from £2.84
                                                                                                              # 059
                                                                                                              MPN: 187718
                                                                                                              BLEEDER PLUG
                                                                                                              from £3.47
                                                                                                              from £3.47
                                                                                                              # 060
                                                                                                              MPN: 10284460
                                                                                                              GASKET
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 061
                                                                                                              MPN: 10441590
                                                                                                              BRACKET WITH SHEATH
                                                                                                              from £0.47
                                                                                                              from £0.47
                                                                                                              # 062
                                                                                                              MPN: 191451
                                                                                                              STUD
                                                                                                              from £11.39
                                                                                                              from £11.39
                                                                                                              # 063
                                                                                                              MPN: 10158801
                                                                                                              PLUG
                                                                                                              from £0.71
                                                                                                              from £0.71
                                                                                                              # 064
                                                                                                              MPN: 134704
                                                                                                              O.R. GASKET
                                                                                                              from £0.66
                                                                                                              from £0.66
                                                                                                              # 065
                                                                                                              MPN: 191620
                                                                                                              REDUCTION
                                                                                                              from £12.32
                                                                                                              from £12.32
                                                                                                              # 066
                                                                                                              MPN: 112254
                                                                                                              THREADED INSERT
                                                                                                              from £2.05
                                                                                                              from £2.05
