maserati 4200 gransport (2005) front bumper parts diagram

106 - FRONT BUMPER

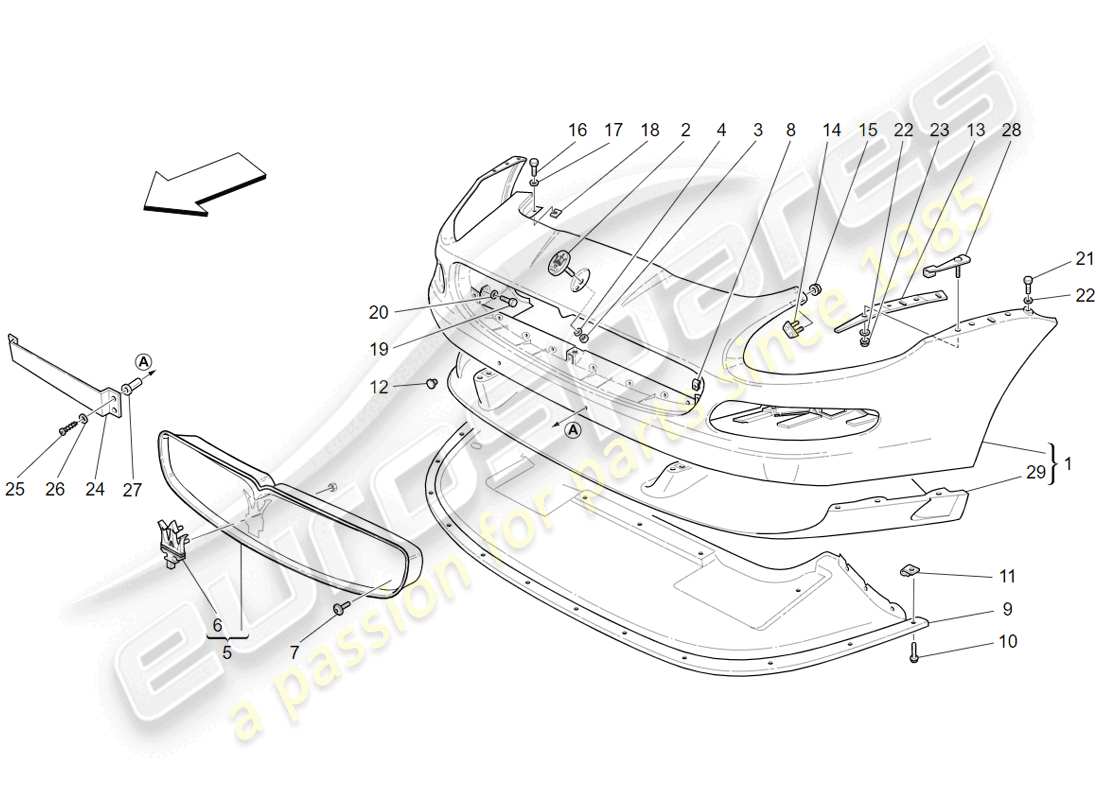

Maserati 4200 Gransport (2005) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 980138244
                                                        FRONT BUMPER
                                                        Standard - Not for USA and CDN
                                                        from £945.54
                                                        from £945.54
                                                        # 001
                                                        MPN: 980138245
                                                        FRONT BUMPER
                                                        Optional - Xeno headlights andHeadligts Washer - Not for USA and CDN
                                                        from £1,895.00
                                                        from £1,895.00
                                                        # 001
                                                        MPN: 980138246
                                                        FRONT BUMPER
                                                        Standard - Valid for USA and CDN
                                                        from £1,293.25
                                                        from £1,293.25
                                                        # 001
                                                        MPN: 980138247
                                                        FRONT BUMPER
                                                        Optional - Xeno headlights andHeadligts Washer - Valid for USA and CDN
                                                        from £1,629.31
                                                        from £1,629.31
                                                        # 001
                                                        MPN: 980138305
                                                        MC VICTORY FRONT BUMPER
                                                        Standard- -Not for USA and CDN
                                                        from £4,223.04
                                                        from £4,223.04
                                                        # 001
                                                        MPN: 980138306
                                                        MC VICTORY FRONT BUMPER
                                                        Xenon Headlights and Headligts Washer- -Not for USA and CDN
                                                        from £5,158.22
                                                        from £5,158.22
                                                        # 002
                                                        MPN: 670101565
                                                        Maserati MARK
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 670039888 - and 1 more. Click to view details
                                                        # 003
                                                        MPN: 10794014
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 004
                                                        MPN: 12642801
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 005
                                                        MPN: 68155600
                                                        COMPLETE REMOVABLE CALENDER
                                                        Chromate net
                                                        from £308.52
                                                        from £308.52
                                                        # 005
                                                        MPN: 68334300
                                                        COMPLETE REMOVABLE CALENDER
                                                        Optional - Black net
                                                        from £385.46
                                                        from £385.46
                                                        # 006
                                                        MPN: 89096000
                                                        EMBLEM
                                                        from £96.71
                                                        from £96.71
                                                        This part replaces part number 68337300
                                                        # 007
                                                        MPN: 67278600
                                                        SCREW
                                                        from £2.46
                                                        from £2.46
                                                        # 008
                                                        MPN: 67278700
                                                        BRACKET
                                                        from £2.31
                                                        from £2.31
                                                        # 009
                                                        MPN: 66232900
                                                        SHIELD FRONT UNDER THE BODY SHELL
                                                        from £166.06
                                                        from £166.06
                                                        # 010
                                                        MPN: 16296924
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 011
                                                        MPN: 14189071
                                                        BRACKET
                                                        from £0.47
                                                        from £0.47
                                                        # 012
                                                        MPN: 67118900
                                                        PLUG FOR TOW HOOK HOLE
                                                        from £1.54
                                                        from £1.54
                                                        # 013
                                                        MPN: 66370800
                                                        RH SIDE BRACKET
                                                        from £19.31
                                                        from £19.31
                                                        # 013
                                                        MPN: 66370900
                                                        LH SIDE BRACKET
                                                        from £19.31
                                                        from £19.31
                                                        # 014
                                                        MPN: 66494700
                                                        RH BRACKET
                                                        from £22.85
                                                        from £22.85
                                                        # 014
                                                        MPN: 66494800
                                                        LH BRACKET
                                                        from £21.01
                                                        from £21.01
                                                        # 015
                                                        MPN: 13831811
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        # 016
                                                        MPN: 10902387
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 017
                                                        MPN: 10523478
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 018
                                                        MPN: 66361500
                                                        ADJUSTING PLATE
                                                        from £3.16
                                                        from £3.16
                                                        # 019
                                                        MPN: 16043321
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 020
                                                        MPN: 163020080
                                                        WASHER
                                                        from £1.07
                                                        from £1.07
                                                        # 021
                                                        MPN: 10902834
                                                        SCREW
                                                        from £0.50
                                                        from £0.50
                                                        # 022
                                                        MPN: 10523424
                                                        WASHER
                                                        from £0.51
                                                        from £0.51
                                                        # 023
                                                        MPN: 14059211
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 675000181
                                                        # 024
                                                        MPN: 68286700
                                                        BRACKET
                                                        from £12.62
                                                        from £12.62
                                                        # 025
                                                        MPN: 13283217
                                                        SCREW
                                                        from £1.54
                                                        from £1.54
                                                        # 026
                                                        MPN: 12637807
                                                        WASHER
                                                        from £0.52
                                                        from £0.52
                                                        # 027
                                                        MPN: 66412700
                                                        BUSHING
                                                        from £1.93
                                                        from £1.93
                                                        # 028
                                                        MPN: 386300132
                                                        RH FRONT BRACKET
                                                        from £30.00
                                                        from £30.00
                                                        # 028
                                                        MPN: 386300133
                                                        LH FRONT BRACKET
                                                        from £51.09
                                                        from £51.09
                                                        # 029
                                                        MPN: 980138309
                                                        MC VICTORY FRONT LOWER SPOILER
                                                        from £4,467.01
                                                        from £4,467.01
                                                        # 029
                                                        MPN: 980138312
                                                        FRONT LOWER SPOILER
                                                        from £718.60
                                                        from £718.60
