038 - Hand-Brake Control

Maserati 4200 Gransport (2005) Hand-Brake Control Parts Diagram

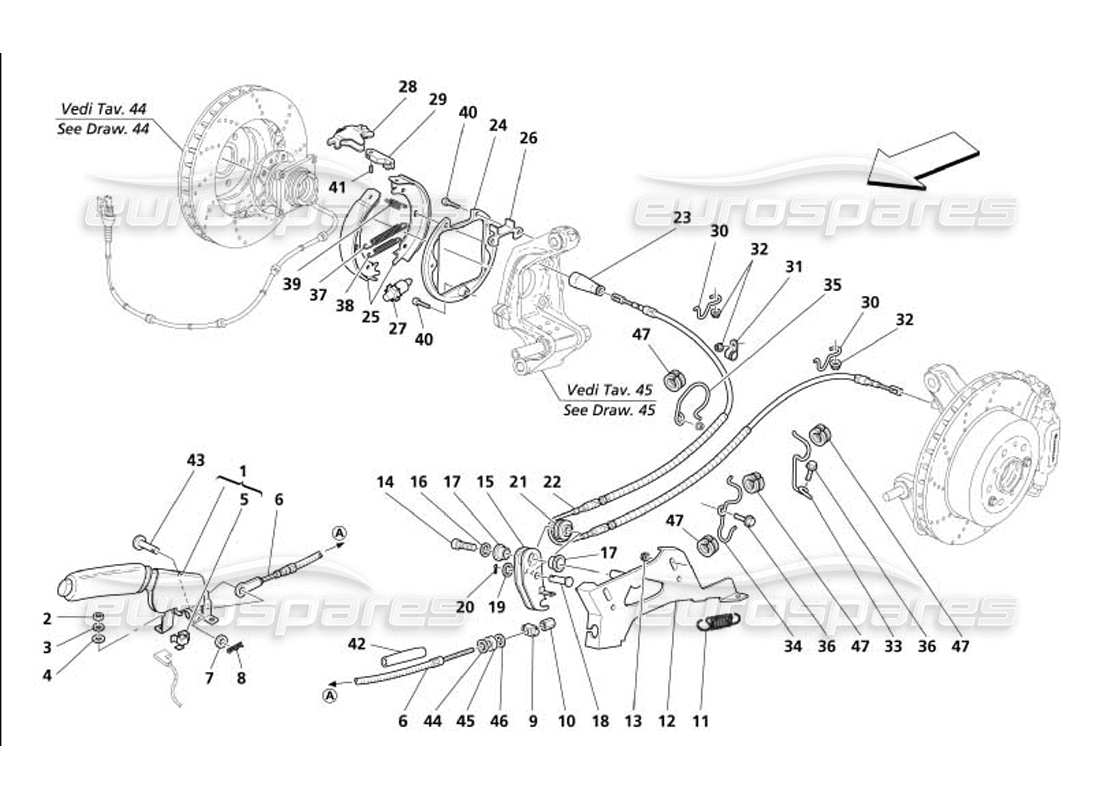

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 200889
                                                                                              COMPLETE HAND BRAKE LEVER
                                                                                              from £50.40
                                                                                              from £50.40
                                                                                              # 003
                                                                                              MPN: 14496521
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 004
                                                                                              MPN: 12628924
                                                                                              WASHER
                                                                                              from £1.86
                                                                                              from £1.86
                                                                                              # 006
                                                                                              MPN: 200777
                                                                                              FRONT CABLE
                                                                                              from £46.77
                                                                                              from £46.77
                                                                                              # 007
                                                                                              MPN: 12646604
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 008
                                                                                              MPN: 10734101
                                                                                              SPLIT PIN
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 009
                                                                                              MPN: 208466
                                                                                              PAWL
                                                                                              from £5.83
                                                                                              from £5.83
                                                                                              # 010
                                                                                              MPN: 208475
                                                                                              FRONT CABLE REGISTER
                                                                                              from £3.44
                                                                                              from £3.44
                                                                                              # 012
                                                                                              MPN: 208426
                                                                                              BRACKET
                                                                                              from £95.55
                                                                                              from £95.55
                                                                                              # 014
                                                                                              MPN: 14306224
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 015
                                                                                              MPN: 208422
                                                                                              BRAKE TRANSMISSION LEVER
                                                                                              from £23.04
                                                                                              from £23.04
                                                                                              # 020
                                                                                              MPN: 10734301
                                                                                              SPLIT PIN
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 021
                                                                                              MPN: 188587
                                                                                              CABLE TRANSMISSION PULLEY
                                                                                              from £11.02
                                                                                              from £11.02
                                                                                              # 022
                                                                                              MPN: 206724
                                                                                              REAR CABLE
                                                                                              from £77.94
                                                                                              from £77.94
                                                                                              # 023
                                                                                              MPN: 143938
                                                                                              CABLE SHEATH
                                                                                              from £16.37
                                                                                              from £16.37
                                                                                              This part replaces part number 388000341
                                                                                              # 024
                                                                                              MPN: 186574
                                                                                              SHOES SUPPORT SPACER
                                                                                              from £43.14
                                                                                              from £43.14
                                                                                              # 025
                                                                                              -
                                                                                              COMPLETE BRAKE SHOE SET
                                                                                              # 025
                                                                                              MPN: 248418
                                                                                              HAND BRAKE SHOE
                                                                                              from £96.71
                                                                                              from £96.71
                                                                                              This part replaces part number 235894
                                                                                              # 026
                                                                                              MPN: 190814
                                                                                              SMALL BLOCK
                                                                                              from £37.66
                                                                                              from £37.66
                                                                                              # 027
                                                                                              MPN: 186572
                                                                                              REGISTER FOR HAND BRAKE
                                                                                              from £22.61
                                                                                              from £22.61
                                                                                              This part replaces part number 388000113
                                                                                              # 028
                                                                                              MPN: 190782
                                                                                              HAND BRAKE CONTROL DEVICE
                                                                                              from £24.44
                                                                                              from £24.44
                                                                                              This part replaces part number 388001155
                                                                                              # 029
                                                                                              MPN: 105270
                                                                                              FORK
                                                                                              from £14.89
                                                                                              from £14.89
                                                                                              This part replaces part number 388000364
                                                                                              # 030
                                                                                              MPN: 186933
                                                                                              LH AND RH BRAKE CABLE SPRING
                                                                                              from £1.41
                                                                                              from £1.41
                                                                                              # 031
                                                                                              MPN: 10441190
                                                                                              BRACKET WITH SHEATH
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 032
                                                                                              MPN: 14058411
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 033
                                                                                              MPN: 204538
                                                                                              BRAKE CABLE SPRING
                                                                                              from £3.33
                                                                                              from £3.33
                                                                                              # 034
                                                                                              MPN: 204536
                                                                                              BRAKE CABLE FRONT SPRING
                                                                                              from £4.73
                                                                                              from £4.73
                                                                                              # 035
                                                                                              MPN: 204537
                                                                                              BRAKE CABLE REAR SPRING
                                                                                              from £2.98
                                                                                              from £2.98
                                                                                              # 036
                                                                                              MPN: 11730624
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 037
                                                                                              MPN: 190776
                                                                                              RETURN SPRING FOR BRAKE SHOES
                                                                                              from £9.57
                                                                                              from £9.57
                                                                                              # 038
                                                                                              MPN: 190779
                                                                                              RETURN SPRING FOR BRAKE SHOES
                                                                                              from £1.86
                                                                                              from £1.86
                                                                                              # 039
                                                                                              MPN: 190780
                                                                                              SPRING FOR SHOES
                                                                                              from £1.71
                                                                                              from £1.71
                                                                                              # 040
                                                                                              MPN: 190870
                                                                                              SCREW
                                                                                              from £1.15
                                                                                              from £1.15
                                                                                              This part replaces part number 193737 - and 1 more. Click to view details
                                                                                              # 042
                                                                                              MPN: 199471
                                                                                              SILENCER
                                                                                              from £0.84
                                                                                              from £0.84
                                                                                              # 043
                                                                                              MPN: 200774
                                                                                              PIN
                                                                                              from £6.05
                                                                                              from £6.05
                                                                                              # 044
                                                                                              MPN: 204412
                                                                                              FRONT SPACER
                                                                                              from £8.31
                                                                                              from £8.31
                                                                                              # 045
                                                                                              MPN: 204413
                                                                                              RUBBER SPACER
                                                                                              from £4.12
                                                                                              from £4.12
                                                                                              # 046
                                                                                              MPN: 204410
                                                                                              REAR SPACER
                                                                                              from £12.95
                                                                                              from £12.95
                                                                                              # 047
                                                                                              MPN: 184519
                                                                                              PAD
                                                                                              from £1.54
                                                                                              from £1.54
