maserati 4200 gransport (2005) brake calipers parts diagram

037 - Brake Calipers

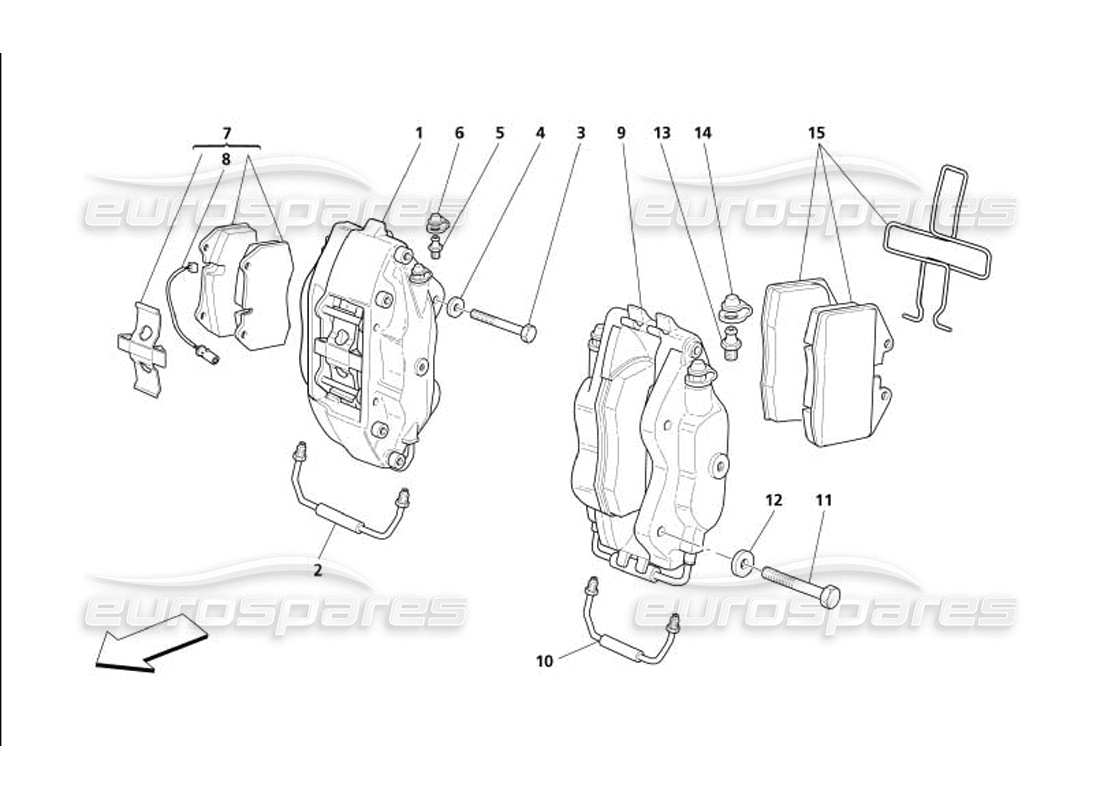

Maserati 4200 Gransport (2005) Brake Calipers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 000
                          MPN: 200047900

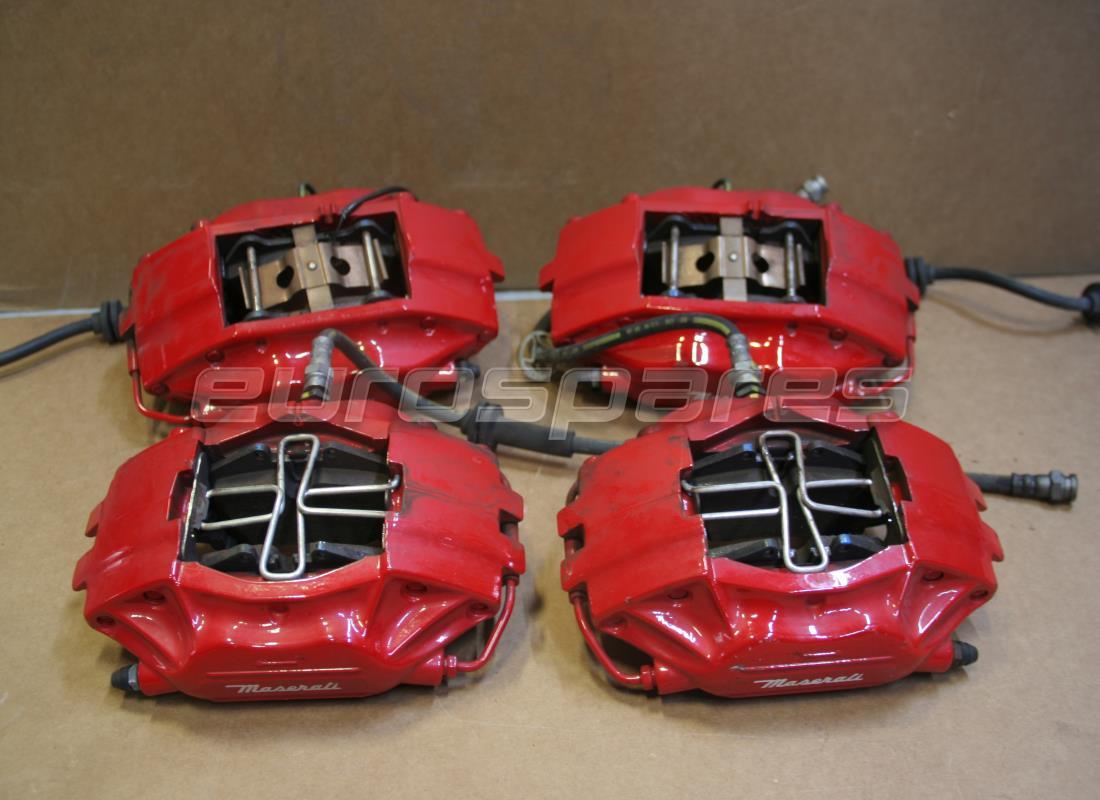

                          Front & Rear Calipers Kit
                          from £577.50
                          from £577.50
                          # 001
                          MPN: 200045
                          LH FRONT CALIPER
                          STANDARD
                          from £306.91
                          from £306.91
                          This part replaces part number 387201107 which we have in stock
                          # 001
                          MPN: 200046
                          RH FRONT CALIPER
                          STANDARD
                          from £318.52
                          from £318.52
                          This part replaces part number 387201108 which we have in stock
                          # 001
                          MPN: 200047
                          LH FRONT CALIPER
                          Optional - Red
                          from £217.08
                          from £217.08
                          This part replaces part number 387201117 which we have in stock - and 1 more. Click to view details
                          # 001
                          MPN: 200048
                          RH FRONT CALIPER
                          Optional - Red
                          from £204.81
                          from £204.81
                          This part replaces part number 387201118 which we have in stock - and 1 more. Click to view details
                          # 001
                          MPN: 200049
                          LH FRONT CALIPER
                          Optional - Silver
                          from £243.32
                          from £243.32
                          This part replaces part number 387201119 which we have in stock - and 1 more. Click to view details
                          # 001
                          MPN: 200050
                          RH FRONT CALIPER
                          Optional - Silver
                          from £214.35
                          from £214.35
                          This part replaces part number 387201120 which we have in stock - and 1 more. Click to view details
                          # 001
                          MPN: 206221
                          LH FRONT CALIPER
                          Optional - Titanium
                          from £214.96
                          from £214.96
                          # 001
                          MPN: 206222
                          RH FRONT CALIPER
                          Optional - Titanium
                          from £373.00
                          from £373.00
                          # 001
                          MPN: 209779
                          LH FRONT CALIPER
                          Optional - Yellow
                          from £389.72
                          from £389.72
                          # 001
                          MPN: 209780
                          RH FRONT CALIPER
                          Optional - Yellow
                          from £367.68
                          from £367.68
                          # 002
                          MPN: 172868
                          CONNECTION PIPE
                          from £31.27
                          from £31.27
                          # 003
                          MPN: 377200319
                          CALIPERS FIXING SCREEW
                          from £11.39
                          from £11.39
                          This part replaces part number 387200319
                          # 004
                          MPN: 12601579
                          WASHER
                          from £14.69
                          from £14.69
                          This part replaces part number 138420120
                          # 005
                          MPN: 152954
                          BLEEDER SCREW
                          from £3.18
                          from £3.18
                          # 006
                          MPN: 152955
                          PROTECTION BOOT
                          from £2.95
                          from £2.95
                          # 007
                          MPN: 380201039
                          KIT OF FRONT PADS
                          STANDARD
                          from £78.75
                          from £78.75
                          This part replaces part number 380200039 which we have in stock
                          # 007
                          MPN: 380201044
                          KIT OF FRONT PADS
                          Optional - Yellow pagid
                          from £512.32
                          from £512.32
                          This part replaces part number 380200044
                          # 008
                          MPN: 383300215
                          BRAKE PADS WEAR SENSOR
                          from £15.08
                          from £15.08
                          # 009
                          MPN: 200051
                          LH REAR CALIPER
                          STANDARD
                          from £373.00
                          from £373.00
                          This part replaces part number 387201111 which we have in stock
                          # 009
                          MPN: 200052
                          RH REAR CALIPER
                          STANDARD
                          from £363.15
                          from £363.15
                          This part replaces part number 387201112 which we have in stock
                          # 009
                          MPN: 200053
                          RH REAR CALIPER
                          Optional - Red
                          from £231.47
                          from £231.47
                          This part replaces part number 387201122 which we have in stock - and 1 more. Click to view details
                          # 009
                          MPN: 200055
                          RH REAR CALIPER
                          Optional - Silver
                          from £205.57
                          from £205.57
                          This part replaces part number 387201124 which we have in stock - and 1 more. Click to view details
                          # 009
                          MPN: 200056
                          LH REAR CALIPER
                          Optional - Red
                          from £239.42
                          from £239.42
                          This part replaces part number 387201121 which we have in stock - and 1 more. Click to view details
                          # 009
                          MPN: 200058
                          LH REAR CALIPER
                          Optional - Silver
                          from £215.39
                          from £215.39
                          This part replaces part number 387201123 which we have in stock - and 1 more. Click to view details
                          # 009
                          MPN: 206224
                          LH REAR CALIPER
                          Optional - Titanium
                          from £181.65
                          from £181.65
                          # 009
                          MPN: 206225
                          RH REAR CALIPER
                          Optional - Titanium
                          from £214.96
                          from £214.96
                          # 009
                          MPN: 209781
                          LH REAR CALIPER
                          Optional - Yellow
                          from £390.84
                          from £390.84
                          # 009
                          MPN: 209782
                          RH REAR CALIPER
                          Optional - Yellow
                          from £373.00
                          from £373.00
                          # 010
                          MPN: 152957
                          CONNECTION PIPE
                          from £17.65
                          from £17.65
                          # 011
                          MPN: 377200319
                          CALIPERS FIXING SCREEW
                          from £11.39
                          from £11.39
                          This part replaces part number 387200319
                          # 012
                          MPN: 12601579
                          WASHER
                          from £14.69
                          from £14.69
                          This part replaces part number 138420120
                          # 013
                          MPN: 152954
                          BLEEDER SCREW
                          from £3.18
                          from £3.18
                          # 014
                          MPN: 152955
                          PROTECTION BOOT
                          from £2.95
                          from £2.95
                          # 015
                          MPN: 380201042
                          REAR BRAKE PADS (STD.)
                          Standard - use part number: 70000875 as alternative
                          Supersession
                          Supersession
                          This part replaces part number 380200042
                          # 015
                          MPN: 380201045
                          KIT OF REAR PADS
                          Optiona l - Yellow pagid
                          from £428.14
                          from £428.14
