maserati 4200 gransport (2005) brakes hydraulic control parts diagram

034 - Brakes Hydraulic Control

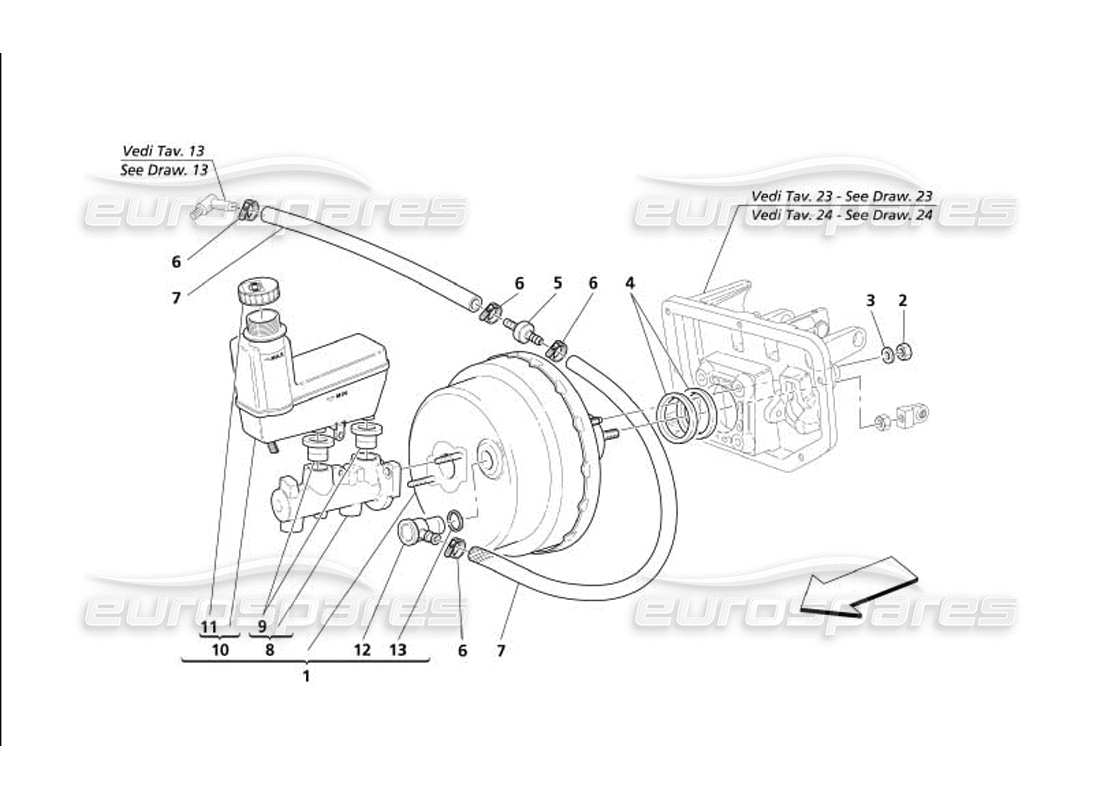

Maserati 4200 Gransport (2005) Brakes Hydraulic Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 196150
                          COMPLETE BRAKE BOOSTER
                          from £278.65
                          from £278.65
                          # 002
                          MPN: 16104421
                          NUT
                          from £0.81
                          from £0.81
                          # 003
                          MPN: 14496521
                          WASHER
                          from £0.51
                          from £0.51
                          # 004
                          MPN: 367402309
                          GASKET
                          from £1.55
                          from £1.55
                          # 005
                          MPN: 193186
                          DEPRESSION VALVE
                          from £7.08
                          from £7.08
                          # 006
                          MPN: 13000390
                          SCREW COLLAR
                          from £0.47
                          from £0.47
                          This part replaces part number 13121170 - and 1 more. Click to view details
                          # 007
                          MPN: 302220611
                          RUBBER HOSE
                          Supplied in meters - (Minimum quantity 1m. or multiples)
                          from £22.00
                          from £22.00
                          This part replaces part number 192978
                          # 008
                          MPN: 980138133
                          BRAKE PUMP
                          from £673.81
                          from £673.81
                          # 009
                          MPN: 980138134
                          BRAKE PUMP RUBBER
                          from £5.12
                          from £5.12
                          # 010
                          MPN: 197025
                          OIL TANK
                          from £52.78
                          from £52.78
                          # 011
                          MPN: 980138135
                          OIL TANK PLUG
                          from £19.10
                          from £19.10
                          # 012
                          MPN: 980138136
                          UNION
                          from £16.06
                          from £16.06
                          # 013
                          MPN: 980138137
                          GASKET
                          from £8.23
                          from £8.23
