128 - dashboard instruments

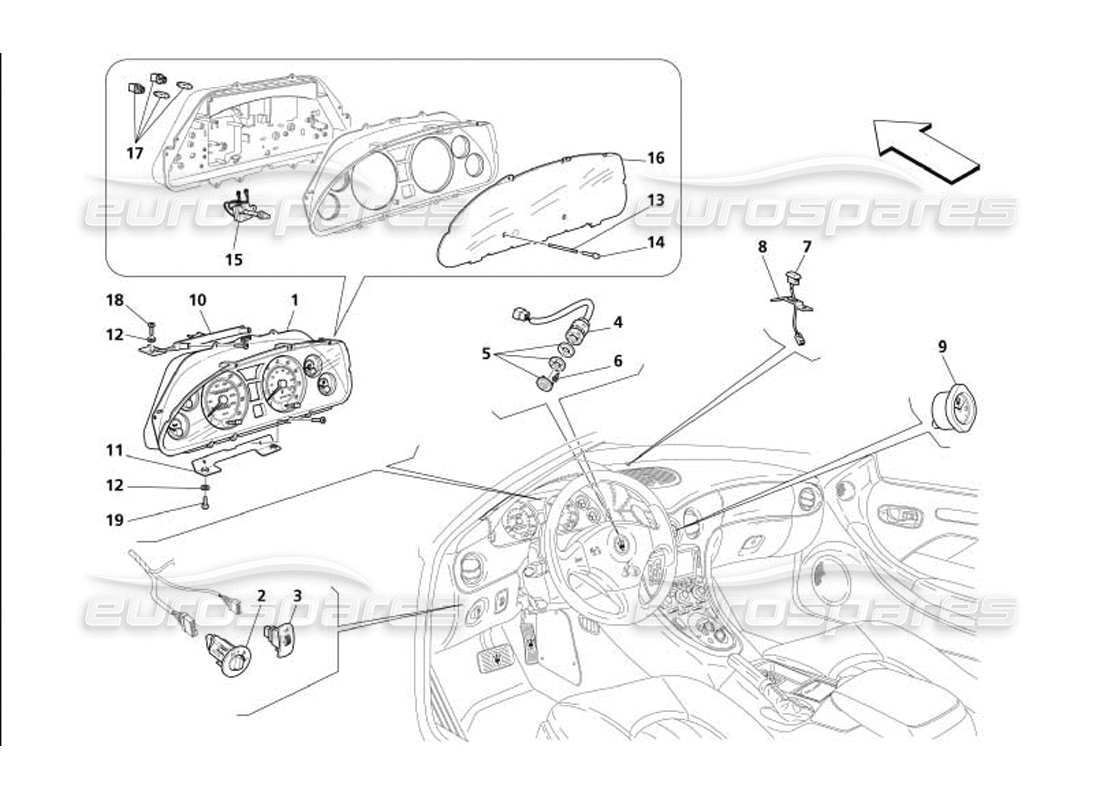

Maserati 4200 Coupe (2005) Dashboard Instruments Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 202699
COMPLETE ODOMETER-KM INSTRUMENT
Optional - Instruments with blue background - Not for USA - Valid for cars corea version
from £918.38
from £918.38
# 001
MPN: 202700
COMPLETE ODOMETER-MILES INSTRUMENT
Optional - Instruments with blue background - Valid for GB - Not for cars GB opt. japan version
from £918.38
from £918.38
# 001
MPN: 202858
COMPLETE ODOMETER-MILES INSTRUMENT
Optional - Instruments with blue background - Valid for USA - Not for cars corea version
from £840.32
from £840.32
# 001
MPN: 208913
COMPLETE ODOMETER-KM INSTRUMENT
Standard - Not for USA - Valid for cars corea version
from £691.59
from £691.59
# 001
MPN: 208914
COMPLETE ODOMETER-MILES INSTRUMENT
Standard - Valid for USA - Not for cars corea version
from £809.11
from £809.11
# 001
MPN: 208918
COMPLETE ODOMETER-MILES INSTRUMENT
Standard - Valid for GB - Not for cars GB opt. japan version
from £1,412.80
from £1,412.80
# 002
MPN: 185946
COMPLETE LIGHTS CHANGE-OVER SWITCH PLATE
- Not for USA and CDN
from £272.42
from £272.42
# 003
MPN: 383100112
HEADLIGHT ADJUSTMENT CONTROL
Not for xeno headlights - Not for USA and CDN
from £112.94
from £112.94
This part replaces part number 383100110 - and 1 more. Click to view details
# 004
MPN: 385500199
INNER TEMPERATURE SENSOR
from £186.44
from £186.44
This part replaces part number 82488323
# 005
MPN: 375530050
PLATE KIT
from £8.36
from £8.36
# 006
MPN: 12678502
SCREW
Supersession
Supersession
# 007
MPN: 60663086
SOLAR SENSOR
from £55.32
from £55.32
This part replaces part number 60629310 - and 1 more. Click to view details
# 008
MPN: 382300612
BRACKET
from £2.85
from £2.85
# 009
MPN: 383600119
ANALOGIC CLOCK
STANDARD
from £762.72
from £762.72
This part replaces part number 383600118
# 009
MPN: 383600121
ANALOGIC CLOCK
Optional - Chromate
from £369.41
from £369.41
# 010
MPN: 382300225
UPPER BRACKET
from £11.82
from £11.82
# 011
MPN: 382300114
LOWER BRACKET
from £10.51
from £10.51
# 012
MPN: 10519307
WASHER
from £0.53
from £0.53
# 013
MPN: 373600306
RESET PIN
from £1.17
from £1.17
# 014
MPN: 373600305
PUSH BUTTON
from £1.39
from £1.39
# 015
MPN: 393650210
RHEOSTAT
from £89.82
from £89.82
# 016
MPN: 383601300
INSTRUMENTS GLASS
from £35.03
from £35.03
# 017
MPN: 393650215
BULB HOLDER+BULB 1,2W.
from £2.00
from £2.00
This part replaces part number 393650217
# 017
MPN: 393650216
BULB HOLDER+BULB 2W.
from £11.82
from £11.82
# 018
MPN: 14304024
SCREW
from £0.53
from £0.53
# 019
MPN: 13274177
SCREW
from £0.53
from £0.53
