maserati 4200 coupe (2005) nourice - cooling system -not for gd- parts diagram

019 - Nourice - Cooling System -Not for GD-

Maserati 4200 Coupe (2005) Nourice - Cooling System -Not for GD- Parts Diagram

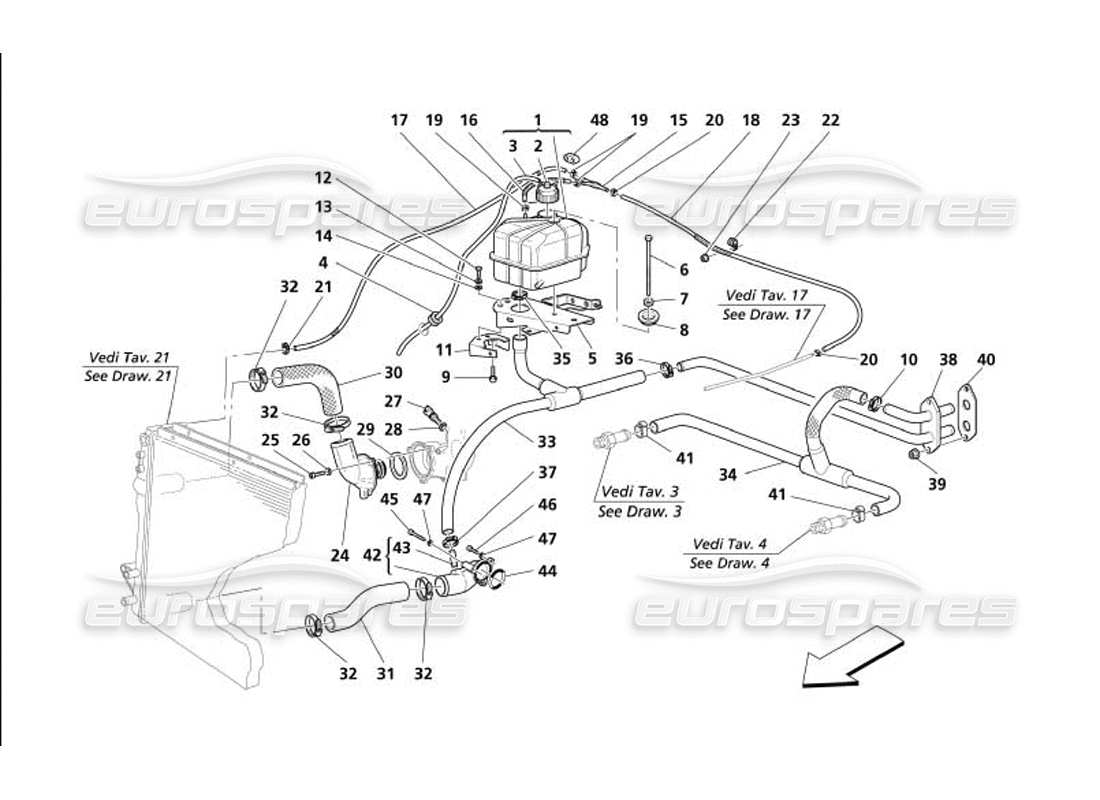

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 384000102
                                                                                                COMPLETE EXPANSION TANK
                                                                                                WITH CAP
                                                                                                from £91.90
                                                                                                from £91.90
                                                                                                This part replaces part number 60597447
                                                                                                # 002
                                                                                                MPN: 980145477
                                                                                                TANK PLUG
                                                                                                from £12.27
                                                                                                from £12.27
                                                                                                This part replaces part number 46556738
                                                                                                # 003
                                                                                                MPN: 384001316
                                                                                                HOSE
                                                                                                from £7.57
                                                                                                from £7.57
                                                                                                # 004
                                                                                                MPN: 10461987
                                                                                                RING
                                                                                                from £1.55
                                                                                                from £1.55
                                                                                                # 005
                                                                                                MPN: 189782
                                                                                                NOURICE SUPPORTING BRACKET
                                                                                                from £22.58
                                                                                                from £22.58
                                                                                                # 006
                                                                                                MPN: 60607472
                                                                                                SPECIAL SCREW
                                                                                                from £4.89
                                                                                                from £4.89
                                                                                                # 007
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12601270
                                                                                                # 008
                                                                                                MPN: 82404496
                                                                                                CUP
                                                                                                from £1.89
                                                                                                from £1.89
                                                                                                # 009
                                                                                                MPN: 11730624
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 010
                                                                                                MPN: 186680
                                                                                                CLAMP
                                                                                                from £0.73
                                                                                                from £0.73
                                                                                                # 011
                                                                                                MPN: 384000135
                                                                                                SUPPORT FOR BRACKET
                                                                                                from £14.82
                                                                                                from £14.82
                                                                                                # 012
                                                                                                MPN: 14305521
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 013
                                                                                                MPN: 12620474
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 014
                                                                                                MPN: 12646601
                                                                                                WASHER
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 015
                                                                                                MPN: 201215
                                                                                                3-WAY UNION
                                                                                                from £57.70
                                                                                                from £57.70
                                                                                                # 016
                                                                                                MPN: 192621
                                                                                                RUBBER HOSE
                                                                                                from £19.67
                                                                                                from £19.67
                                                                                                # 017
                                                                                                MPN: 192614
                                                                                                RUBBER HOSE
                                                                                                from £163.78
                                                                                                from £163.78
                                                                                                # 018
                                                                                                MPN: 201216
                                                                                                RUBBER HOSE
                                                                                                from £17.51
                                                                                                from £17.51
                                                                                                # 019
                                                                                                MPN: 13125470
                                                                                                STRAP COLLAR
                                                                                                from £0.52
                                                                                                from £0.52
                                                                                                # 020
                                                                                                MPN: 183919
                                                                                                STRAP COLLAR
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                # 021
                                                                                                MPN: 13000190
                                                                                                SCREW COLLAR
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                # 022
                                                                                                MPN: 10441390
                                                                                                BRACKET WITH SHEATH
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 023
                                                                                                MPN: 14058411
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 024
                                                                                                MPN: 230890
                                                                                                COVER WITH THERMOSTAT
                                                                                                from £88.33
                                                                                                from £88.33
                                                                                                This part replaces part number 224623
                                                                                                # 025
                                                                                                MPN: 14305324
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 14305321
                                                                                                # 026
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                # 028
                                                                                                MPN: 10298460
                                                                                                GASKET
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 029
                                                                                                MPN: 137873
                                                                                                GASKET
                                                                                                from £2.86
                                                                                                from £2.86
                                                                                                # 030
                                                                                                MPN: 190354
                                                                                                DELIVERY PIPE FROM ENGINE TO RADIATOR
                                                                                                from £78.21
                                                                                                from £78.21
                                                                                                This part replaces part number 181747 - and 1 more. Click to view details
                                                                                                # 031
                                                                                                MPN: 181748
                                                                                                RETURN PIPE FROM RADIATOR TO ENGINE
                                                                                                from £28.86
                                                                                                from £28.86
                                                                                                # 032
                                                                                                MPN: 13000790
                                                                                                SCREW COLLAR
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 312420106
                                                                                                # 033
                                                                                                MPN: 187080
                                                                                                RUBBER HOSE
                                                                                                from £8.99
                                                                                                from £8.99
                                                                                                This part replaces part number 186586 which we have in stock - and 3 more. Click to view details
                                                                                                # 034
                                                                                                MPN: 187082
                                                                                                WATER OUTLET PIPE
                                                                                                from £100.25
                                                                                                from £100.25
                                                                                                # 035
                                                                                                MPN: 13000590
                                                                                                SCREW COLLAR
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 036
                                                                                                MPN: 186680
                                                                                                CLAMP
                                                                                                from £0.73
                                                                                                from £0.73
                                                                                                # 037
                                                                                                MPN: 183126
                                                                                                CLAMP
                                                                                                from £0.91
                                                                                                from £0.91
                                                                                                # 038
                                                                                                MPN: 66069000
                                                                                                COMPLETE RIGID PIPE TO HEATER
                                                                                                from £29.73
                                                                                                from £29.73
                                                                                                # 039
                                                                                                MPN: 12575421
                                                                                                NUT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 12575411
                                                                                                # 040
                                                                                                MPN: 385500371
                                                                                                GASKET
                                                                                                from £1.08
                                                                                                from £1.08
                                                                                                # 041
                                                                                                MPN: 178053
                                                                                                CLAMP
                                                                                                from £0.70
                                                                                                from £0.70
                                                                                                # 042
                                                                                                MPN: 188067
                                                                                                WATER ENTRY COVER
                                                                                                from £302.46
                                                                                                from £302.46
                                                                                                # 043
                                                                                                MPN: 111628
                                                                                                THREADED UNION
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 044
                                                                                                MPN: 154191
                                                                                                GASKET
                                                                                                from £0.77
                                                                                                from £0.77
                                                                                                # 045
                                                                                                MPN: 14306024
                                                                                                SCREW
                                                                                                from £1.32
                                                                                                from £1.32
                                                                                                This part replaces part number 14306034 which we have in stock
                                                                                                # 046
                                                                                                MPN: 14432224
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 047
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                # 048
                                                                                                MPN: 192650

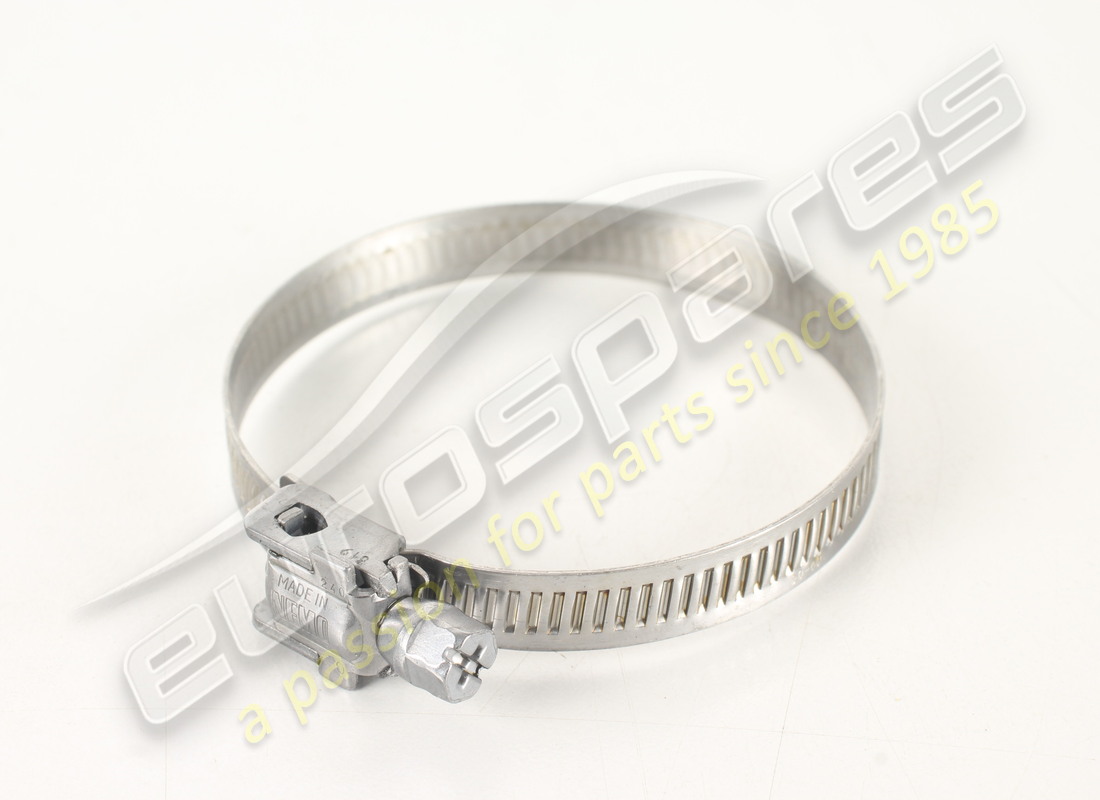

                                                                                                CLIP
                                                                                                from £1.08
                                                                                                from £1.08
