014 - Exhaust System

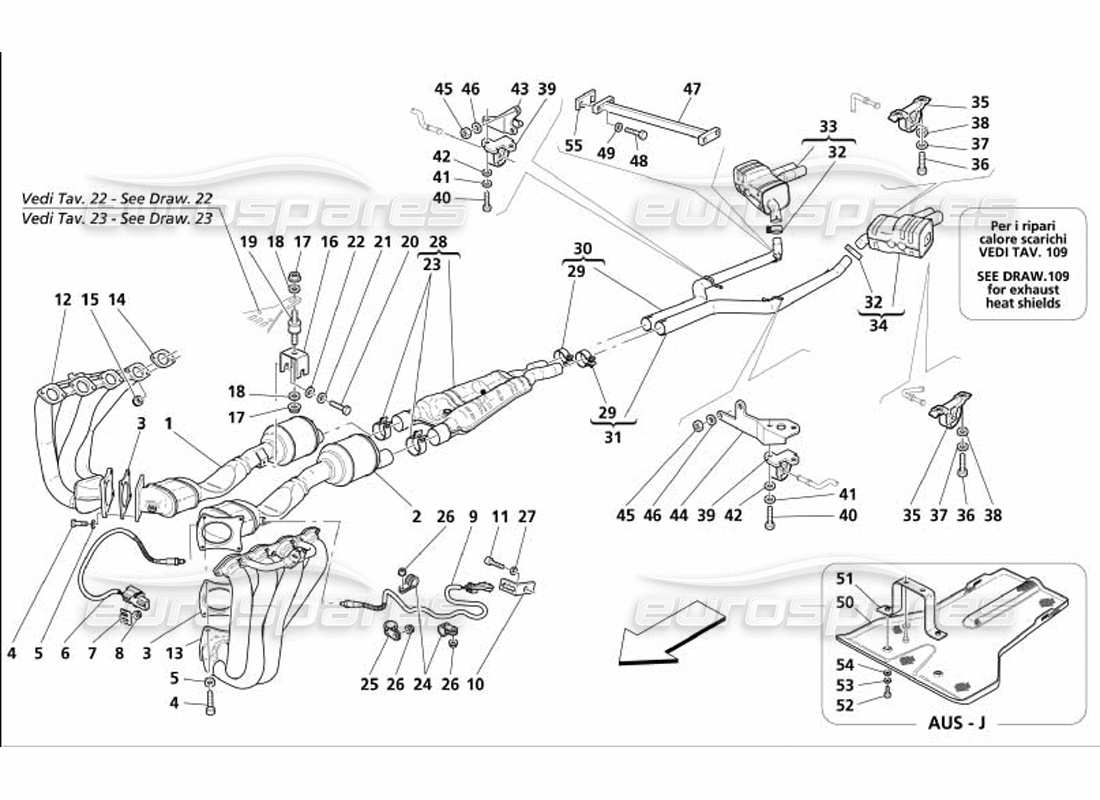

Maserati 4200 Coupe (2005) Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 214443
RH CATALYST
from £1,292.81
from £1,292.81
This part replaces part number 199959 - and 1 more. Click to view details
# 002
MPN: 214444
LH CATALYST
from £2,350.57
from £2,350.57
This part replaces part number 199960
# 002
MPN: 214444
LH CATALYST
from £2,350.57
from £2,350.57
This part replaces part number 199960
# 003
MPN: 184798
GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
from £19.25
from £19.25
# 004
MPN: 190213
SCREW
from £2.56
from £2.56
# 005
MPN: 11193874
WASHER
from £0.47
from £0.47
# 006
MPN: 182837
FRONT LAMBDA FEELER
from £144.54
from £144.54
# 007
MPN: 175856
CONNECTORS FIXING BRACKET
from £1.19
from £1.19
This part replaces part number 155752
# 008
MPN: 67190100
NUT
from £1.13
from £1.13
# 009
MPN: 191412
REAR LAMBDA FEELER
from £104.00
from £104.00
# 010
MPN: 178366
CONNECTORS FIXING BRACKET
from £2.40
from £2.40
# 011
MPN: 14305724
SCREW
from £0.53
from £0.53
# 012
MPN: 183795
RH EXHAUST MANIFOLD
from £1,295.22
from £1,295.22
# 013
MPN: 183796
LH EXHAUST MANIFOLD
from £1,295.22
from £1,295.22
# 014
MPN: 182868
GASKET
Supplied also in the cylinder headsgasket revision kit (cod. 980020001)
from £2.96
from £2.96
# 015
MPN: 138392
NUT
from £0.58
from £0.58
# 016
MPN: 187827
BRACKET FOR CATALYSTS FIXING
from £11.84
from £11.84
# 017
MPN: 14048215
NUT
from £3.68
from £3.68
# 018
MPN: 12625221
WASHER
from £0.54
from £0.54
# 019
MPN: 184333
PAD
from £20.85
from £20.85
# 020
MPN: 16043324
SCREW
from £0.47
from £0.47
# 021
MPN: 11193874
WASHER
from £0.47
from £0.47
# 022
MPN: 12625224
WASHER
from £0.47
from £0.47
This part replaces part number 12625221
# 023
MPN: 185307
CLAMP
from £15.25
from £15.25
This part replaces part number 173896
# 024
MPN: 67190200
BRACKET WITH SHEATH
from £1.37
from £1.37
# 025
MPN: 10441290
BRACKET WITH SHEATH
from £0.47
from £0.47
# 026
MPN: 67190100
NUT
from £1.13
from £1.13
# 027
MPN: 11197774
WASHER
from £0.54
from £0.54
# 028
MPN: 187826
CENTRAL SILENCER
from £906.75
from £906.75
# 029
MPN: 185307
CLAMP
from £15.25
from £15.25
This part replaces part number 173896
# 030
MPN: 187823
RH EXHAUST EXTENSION
from £375.24
from £375.24
# 031
MPN: 187824
LH EXHAUST EXTENSION
from £375.24
from £375.24
# 032
MPN: 185307
CLAMP
from £15.25
from £15.25
This part replaces part number 173896
# 033
MPN: 184815
RH REAR SILENCER
from £939.75
from £939.75
# 034
MPN: 184816
LH REAR SILENCER
from £1,006.49
from £1,006.49
# 035
MPN: 184814
REAR SUPPORT
from £19.73
from £19.73
# 036
MPN: 16043424
SCREW
from £0.47
from £0.47
# 037
MPN: 12601374
WASHER
from £0.47
from £0.47
# 038
MPN: 12638524
WASHER
from £0.47
from £0.47
# 039
MPN: 187861
ANTI-VIBRATION SUPPORT
from £27.93
from £27.93
# 040
MPN: 16043424
SCREW
from £0.47
from £0.47
# 041
MPN: 12601374
WASHER
from £0.47
from £0.47
# 042
MPN: 14496524
WASHER
from £0.47
from £0.47
# 043
MPN: 187775
RH SUPPORT
from £12.33
from £12.33
# 044
MPN: 187774
LH SUPPORT
from £17.43
from £17.43
# 045
MPN: 16100814
NUT
from £0.71
from £0.71
# 046
MPN: 14496524
WASHER
from £0.47
from £0.47
# 047
MPN: 187836
SPACER BAR
from £9.68
from £9.68
# 048
MPN: 16043124
SCREW
from £0.26
from £0.26
# 049
MPN: 12601374
WASHER
from £0.47
from £0.47
# 050
MPN: 190270
UNDER EXHAUST SHIELD
Valid for J and AUS andcars GB opt. japan version
from £230.39
from £230.39
# 051
MPN: 190271
BRACKET
Valid for J and AUS andcars GB opt. japan version
from £32.48
from £32.48
# 052
MPN: 14305724
SCREW
Valid for J and AUS andcars GB opt. japan version
from £0.53
from £0.53
# 053
MPN: 12639724
WASHER
Valid for J and AUS andcars GB opt. japan version
from £0.47
from £0.47
# 054
MPN: 12601274
WASHER
Valid for J and AUS andcars GB opt. japan version
from £0.47
from £0.47
This part replaces part number 12601270
# 055
MPN: 193098
SPACER BAR THICKNESS
from £2.40
from £2.40
