maserati 4200 coupe (2005) antievaporation device -not for usa and cdn- parts diagram

011 - Antievaporation Device -Not for USA and CDN-

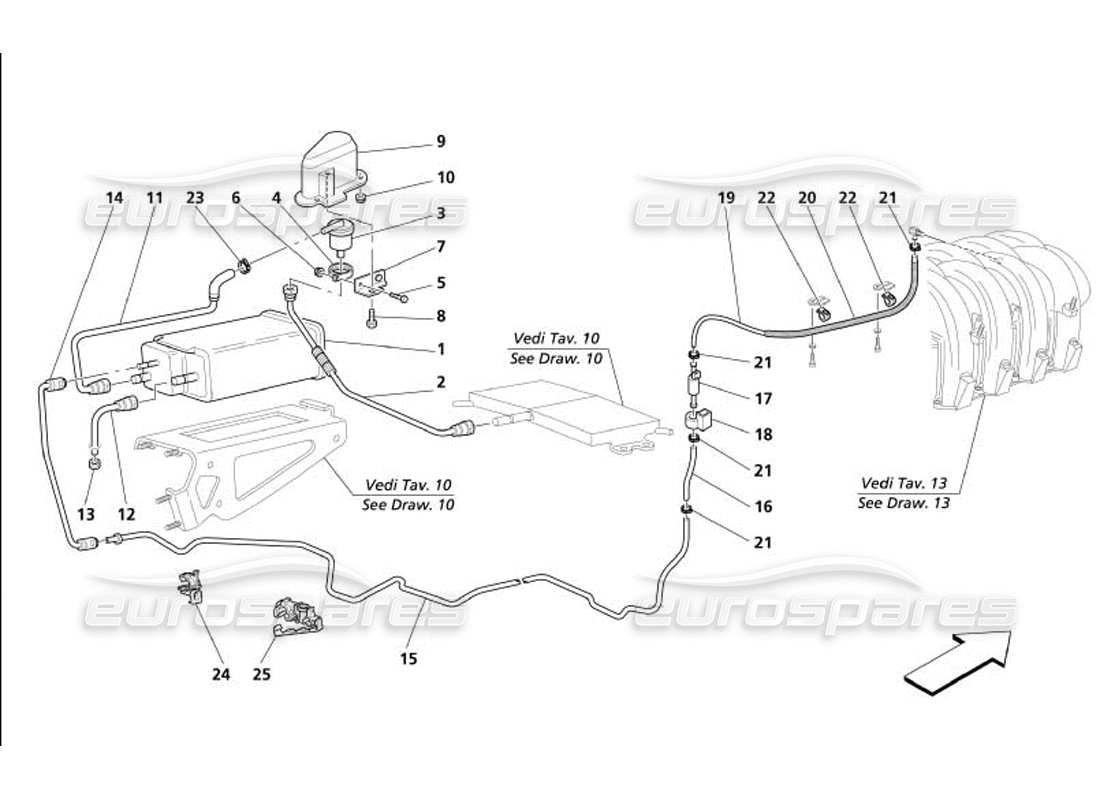

Maserati 4200 Coupe (2005) Antievaporation Device -Not for USA and CDN- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 220074
                                              FUEL VAPOR FILTER
                                              from £61.53
                                              from £61.53
                                              This part replaces part number 212961 - and 1 more. Click to view details
                                              # 002
                                              MPN: 181705
                                              PIPE FROM DISAREATOR TO ROLL-OVER
                                              from £30.57
                                              from £30.57
                                              # 003
                                              MPN: 180573
                                              ROLL-OVER VALVE
                                              from £37.85
                                              from £37.85
                                              # 004
                                              MPN: 66133600
                                              BRACKET WITH SHEATH
                                              from £7.18
                                              from £7.18
                                              # 005
                                              MPN: 10902424
                                              SCREW
                                              from £0.53
                                              from £0.53
                                              # 006
                                              MPN: 14084211
                                              NUT
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 14084217
                                              # 007
                                              MPN: 66132900
                                              ROLL-OVER VALVE FIXING BRACKET
                                              from £8.20
                                              from £8.20
                                              # 008
                                              MPN: 10979414
                                              SCREW
                                              from £0.47
                                              from £0.47
                                              # 009
                                              MPN: 66294500
                                              ROLL-OVER VALVE COVER
                                              from £7.91
                                              from £7.91
                                              # 010
                                              MPN: 14084211
                                              NUT
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 14084217
                                              # 011
                                              MPN: 181707
                                              PIPE FROM ROLL-OVER TO CANISTER
                                              from £17.63
                                              from £17.63
                                              # 012
                                              MPN: 188124
                                              PIPE FROM CANISTER TO WHELLHOUSE
                                              from £10.35
                                              from £10.35
                                              # 014
                                              MPN: 181712
                                              PIPE FROM CANISTER TO UNDERFLOOR
                                              from £17.34
                                              from £17.34
                                              # 015
                                              MPN: 190519
                                              COMPLETE UNDERFLOOR TUBE
                                              from £28.47
                                              from £28.47
                                              # 016
                                              MPN: 181703
                                              WASHING VALVE INLET TUBE
                                              from £5.92
                                              from £5.92
                                              # 017
                                              MPN: 180861
                                              WASHING VALVE
                                              from £53.01
                                              from £53.01
                                              # 019
                                              MPN: 181704
                                              WASHING VALVE OUTLET PIPE
                                              from £21.35
                                              from £21.35
                                              # 020
                                              MPN: 318720333
                                              PIPE
                                              Supplied in meters - (Minimum quantity 1m. or multiples)
                                              from £5.14
                                              from £5.14
                                              # 021
                                              MPN: 13432070
                                              SCREW COLLAR
                                              from £0.48
                                              from £0.48
                                              This part replaces part number 13434670
                                              # 022
                                              MPN: 178430
                                              CLIP
                                              from £0.47
                                              from £0.47
                                              # 023
                                              MPN: 13433370
                                              COLLAR FOR SLEEVE
                                              from £0.47
                                              from £0.47
                                              # 024
                                              MPN: 187840
                                              CLIP
                                              (Quantity defined duringat assembly)
                                              from £0.69
                                              from £0.69
                                              # 025
                                              MPN: 190409
                                              CLIP
                                              (Quantity defined during at assembly)
                                              from £3.25
                                              from £3.25
