007 - injection device - ignition

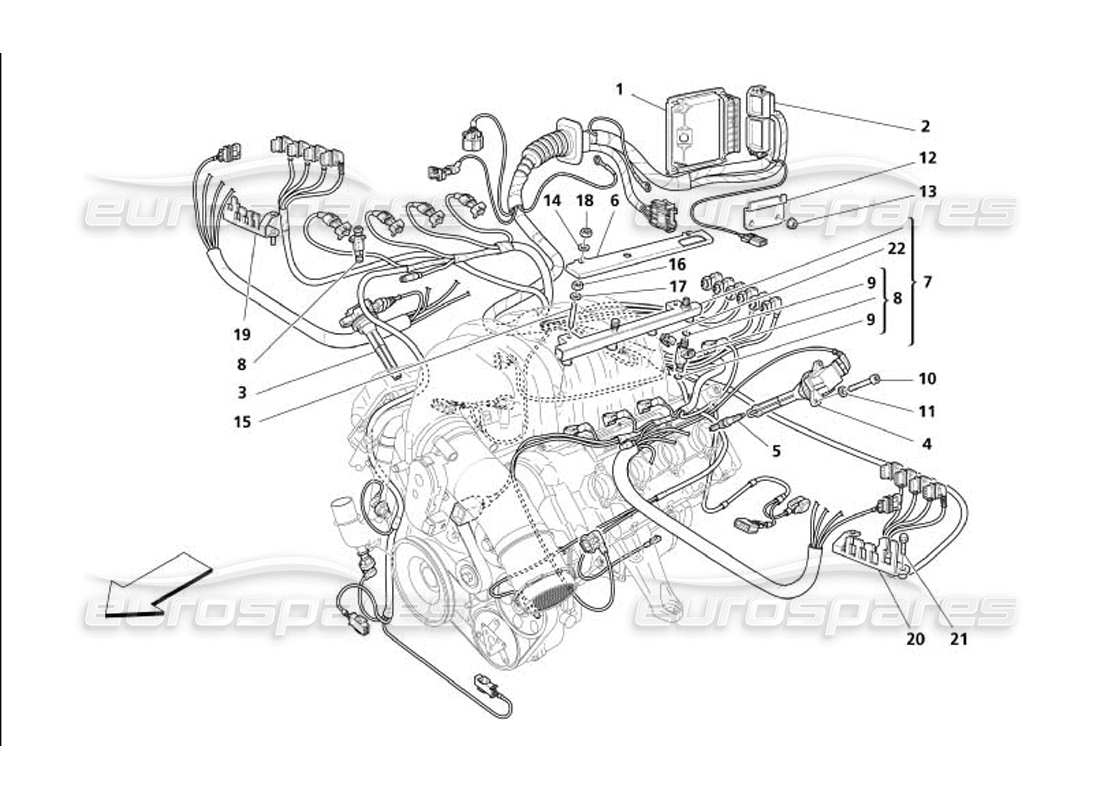

Maserati 4200 Coupe (2005) Injection Device - Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
188634
IGNITION CONTROL ECU
from
£695.99
from
£695.99
#
001
MPN:
198865
CONTROL UNIT IGNITION
from
£861.00
from
£861.00
#
001
MPN:
980138139
CONTROL UNIT IGNITION
Programmable
from
£1,540.15
from
£1,540.15
This part replaces part number 985000027
#
002
MPN:
200103
INJECTION DEVICE CABLES
Not for F1 - Not for USA, CDN and GD
from
£1,034.31
from
£1,034.31
#
002
MPN:
200104
INJECTION DEVICE CABLES
Not for F1 - Valid for GD
from
£685.43
from
£685.43
#
002
MPN:
206640
INJECTION DEVICE CABLES
Not for F1 - Valid for USA and CDN
from
£1,410.43
from
£1,410.43
#
002
MPN:
209651
INJECTION DEVICE CABLES
Valid for F1 - Not for USA, CDN and GD
from
£696.43
from
£696.43
#
002
MPN:
209652
INJECTION DEVICE CABLES
Valid for F1 - Valid for GD
from
£649.42
from
£649.42
#
002
MPN:
209653
INJECTION DEVICE CABLES
Valid for F1 - Valid for USA and CDN
from
£743.49
from
£743.49
#
003
MPN:
188504
FRONT IGNITION COIL
Complete of cable
from
£58.61
from
£58.61
#
004
MPN:
186914
REAR IGNITION COIL
Complete of cable
from
£58.61
from
£58.61
#
005
MPN:
192637
SPARK PLUG
from
£14.61
from
£14.61
This part replaces part number 168325 which we have in stock
- and 1 more. Click to view details
#
006
MPN:
189123
RH FLAUTES FUEL COVER
from
£11.82
from
£11.82
This part replaces part number 187172
- and 1 more. Click to view details
#
006
MPN:
189124
LH FLAUTES FUEL COVER
from
£11.82
from
£11.82
This part replaces part number 187171
- and 1 more. Click to view details
#
007
MPN:
197845
COMPLETE LH INJECTORS PIPE
Supersession
Supersession
#
007
MPN:
197846
COMPLETE RH INJECTORS PIPE
Supersession
Supersession
#
008
MPN:
197808
ELECTRO-INJECTOR
from
£180.86
from
£180.86
This part replaces part number 171723 which we have in stock
#
009
MPN:
133902
O.R. GASKET
from
£3.05
from
£3.05
#
010
MPN:
201599
SCREW
from
£0.47
from
£0.47
#
011
MPN:
11197774
WASHER
from
£0.52
from
£0.52
#
012
MPN:
66313100
MOTRONIC BRACKET
from
£3.60
from
£3.60
#
013
MPN:
14084211
NUT
from
£0.71
from
£0.71
This part replaces part number 14084217
#
014
MPN:
11193874
WASHER
from
£0.53
from
£0.53
#
015
MPN:
13516924
STUD
from
£1.27
from
£1.27
#
016
MPN:
16102314
NUT
from
£0.47
from
£0.47
#
017
MPN:
12604474
WASHER
from
£0.53
from
£0.53
This part replaces part number 12604479
#
018
MPN:
14042321
CAP NUT
from
£1.95
from
£1.95
This part replaces part number 14042311
#
019
MPN:
190009
RH BRACKET FOR COIL CABLES
from
£6.45
from
£6.45
#
020
MPN:
190010
LH BRACKET FOR COIL CABLES
from
£6.45
from
£6.45
#
021
MPN:
18750121
SCREW
from
£0.53
from
£0.53
#
022
MPN:
144730
INJECTORS RETAINING CLIP
from
£2.15
from
£2.15
