maserati 4200 coupe (2004) windshield glass washer and horns parts diagram

134 - Windshield Glass Washer and Horns

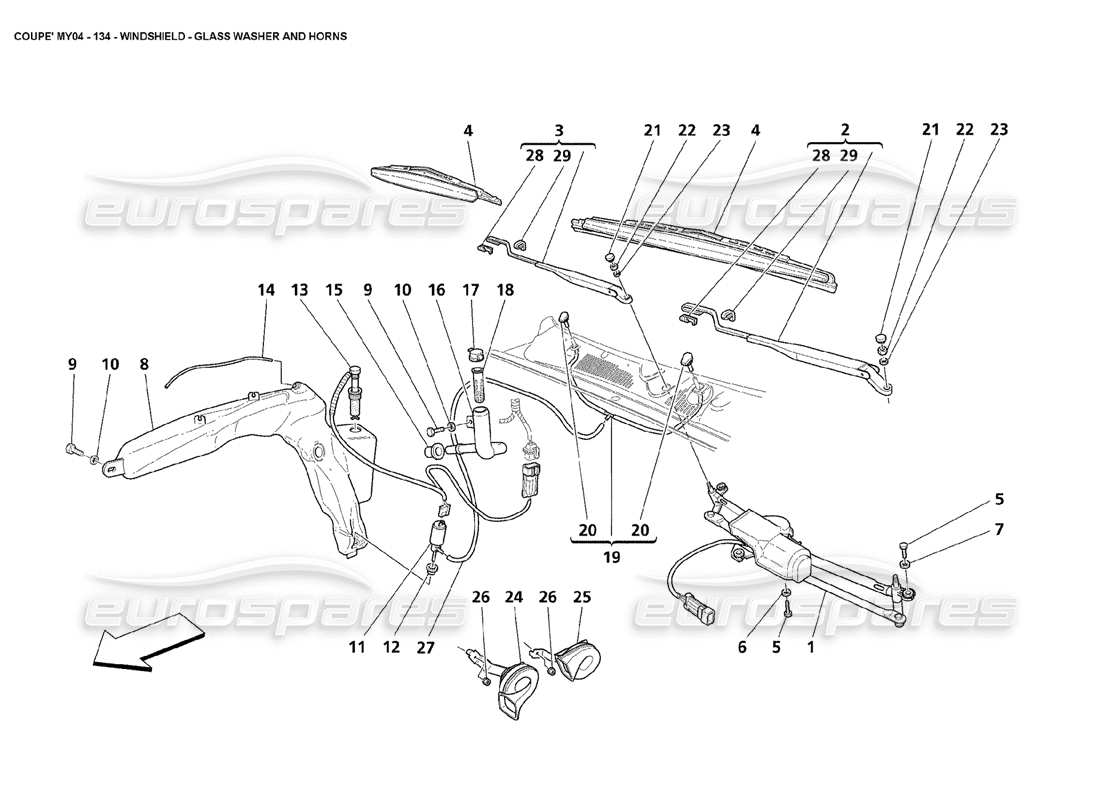

Maserati 4200 Coupe (2004) Windshield Glass Washer and Horns Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 67115800
                                                  COMPLETE WINDSHIELD WIPER SET
                                                  - Not for GD
                                                  from £198.24
                                                  from £198.24
                                                  This part replaces part number 66241300 which we have in stock - and 2 more. Click to view details
                                                  # 001
                                                  MPN: 67115800/A
                                                  WIPER MECHANISM ONLY
                                                  Not for GD
                                                  # 001
                                                  MPN: 67115900
                                                  COMPLETE WINDSHIELD WIPER SET
                                                  - Valid for GD
                                                  from £332.90
                                                  from £332.90
                                                  This part replaces part number 66665600
                                                  # 002
                                                  MPN: 66241400
                                                  DRIVER SIDE WINDSHIELD WIPER ARM
                                                  - Not for GD
                                                  from £22.23
                                                  from £22.23
                                                  # 002
                                                  MPN: 66665700
                                                  PASSENGER SIDE WINDSHIELD WIPER ARM
                                                  - Valid for GD
                                                  from £22.23
                                                  from £22.23
                                                  # 003
                                                  MPN: 66241500
                                                  PASSENGER SIDE WINDSHIELD WIPER ARM
                                                  - Not for GD
                                                  from £40.41
                                                  from £40.41
                                                  # 003
                                                  MPN: 66665800
                                                  DRIVER SIDE WINDSHIELD WIPER ARM
                                                  - Valid for GD
                                                  from £22.89
                                                  from £22.89
                                                  # 004
                                                  MPN: 66241600
                                                  WIPER BRUSH
                                                  - Not for GD
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 383300182
                                                  # 004
                                                  MPN: 66959000
                                                  WIPER BRUSH
                                                  - Valid for GD
                                                  from £28.91
                                                  from £28.91
                                                  This part replaces part number 383310182 - and 1 more. Click to view details
                                                  # 005
                                                  MPN: 13837411
                                                  SCREW
                                                  from £0.52
                                                  from £0.52
                                                  # 006
                                                  MPN: 12640624
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  # 007
                                                  MPN: 10523424
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 008
                                                  MPN: 66420800
                                                  WINDSHIELD WIPER CONTAINER
                                                  from £67.03
                                                  from £67.03
                                                  # 009
                                                  MPN: 10902224
                                                  SCREW
                                                  from £0.52
                                                  from £0.52
                                                  # 010
                                                  MPN: 12647729
                                                  WASHER
                                                  Supersession
                                                  Supersession
                                                  # 011
                                                  MPN: 65358700
                                                  WIPER PUMP
                                                  from £20.25
                                                  from £20.25
                                                  # 012
                                                  MPN: 65775100
                                                  GASKET
                                                  from £3.19
                                                  from £3.19
                                                  # 013
                                                  MPN: 187736
                                                  CABLES WITH LEVEL SENSOR
                                                  - Optional - Xeno Headlights and Headligts Washer
                                                  from £30.18
                                                  from £30.18
                                                  # 013
                                                  MPN: 190048
                                                  CABLES WITH LEVEL SENSOR
                                                  - Standard
                                                  from £32.55
                                                  from £32.55
                                                  This part replaces part number 65758700
                                                  # 014
                                                  MPN: 66420900
                                                  VENT PIPE
                                                  from £5.35
                                                  from £5.35
                                                  # 015
                                                  MPN: 65581700
                                                  GASKET
                                                  from £4.63
                                                  from £4.63
                                                  # 016
                                                  MPN: 66421200
                                                  FILLING COLLECTOR
                                                  from £14.30
                                                  from £14.30
                                                  # 017
                                                  MPN: 66421300
                                                  PLUG
                                                  from £2.85
                                                  from £2.85
                                                  # 018
                                                  MPN: 66421400
                                                  FILTER
                                                  from £6.42
                                                  from £6.42
                                                  # 019
                                                  MPN: 66421600
                                                  COMPLETE JETS FOR WINDOW WASHING PIPE
                                                  from £16.32
                                                  from £16.32
                                                  # 020
                                                  MPN: 94074166
                                                  JET FOR WINDOW WASHING
                                                  from £41.16
                                                  from £41.16
                                                  This part replaces part number 7769348
                                                  # 021
                                                  MPN: 393350327
                                                  BOOT
                                                  from £2.33
                                                  from £2.33
                                                  # 022
                                                  MPN: 16100814
                                                  NUT
                                                  from £0.71
                                                  from £0.71
                                                  # 023
                                                  MPN: 12601377
                                                  WASHER
                                                  from £0.85
                                                  from £0.85
                                                  # 024
                                                  MPN: 193124
                                                  HIGH TONE ELECTRO MAGNETIC HORN
                                                  from £9.58
                                                  from £9.58
                                                  This part replaces part number 383300216 which we have in stock - and 1 more. Click to view details
                                                  # 025
                                                  MPN: 193125
                                                  LOW TONE ELECTRO MAGNETIC HORN
                                                  from £9.58
                                                  from £9.58
                                                  This part replaces part number 383300217 which we have in stock - and 1 more. Click to view details
                                                  # 026
                                                  MPN: 14084211
                                                  NUT
                                                  from £0.71
                                                  from £0.71
                                                  This part replaces part number 14084217
                                                  # 027
                                                  MPN: 67352500
                                                  PIPE CONNECTION PUMP TO JETS FOR WINDOW WASHING
                                                  from £8.10
                                                  from £8.10
                                                  # 028
                                                  MPN: 383300500
                                                  CLIP
                                                  from £1.08
                                                  from £1.08
                                                  # 029
                                                  MPN: 383300299
                                                  CLIP
                                                  from £29.06
                                                  from £29.06
