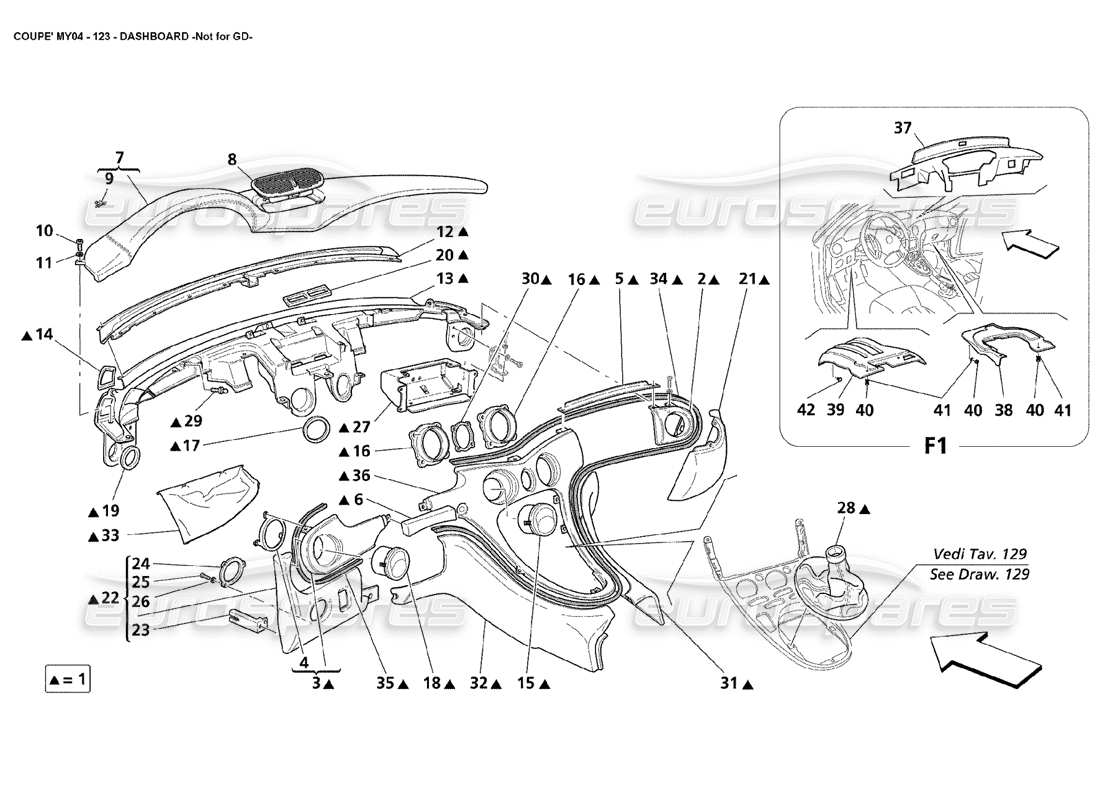

Maserati 4200 Coupe (2004) Dashboard Not for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 9811027..
                                              COMPLETE DASHBOARD
                                              - Standard - Not for USA and CDN - For order specify car number
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9811028..
                                              COMPLETE DASHBOARD
                                              - Optional - Xeno Headlight - Not for USA and CDN - For order specify car number
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9811051..
                                              COMPLETE DASHBOARD
                                              - Standard - Valid for USA and CDN - For order specify car number
                                              Supersession
                                              Supersession
                                              # 001
                                              MPN: 9811052..
                                              COMPLETE DASHBOARD
                                              - Optional - Xeno Headlight - Valid for USA and CDN - For order specify car number
                                              Supersession
                                              Supersession
                                              # 002
                                              MPN: 9811036..
                                              RH LATERAL BODY IN THE DASHBOARD
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 003
                                              MPN: 981103505
                                              LH LATERAL BODY IN THE DASHBOARD
                                              - For order specify car number
                                              from £192.84
                                              from £192.84
                                              # 004
                                              MPN: 382300427
                                              PLATE
                                              from £6.49
                                              from £6.49
                                              # 005
                                              MPN: 382300395
                                              CROSS MEMBER
                                              - For order specify car number
                                              from £2.39
                                              from £2.39
                                              # 006
                                              MPN: 9811039..
                                              SUBINSTRUMENT
                                              Supersession
                                              Supersession
                                              # 007
                                              MPN: 67698500
                                              COMPLETE UPPER INSERT IN THE DASHBOARD
                                              (black)
                                              from £1,601.73
                                              from £1,601.73
                                              # 008
                                              MPN: 382300805
                                              AIR DIFFUSER
                                              from £238.52
                                              from £238.52
                                              This part replaces part number 382300325
                                              # 009
                                              MPN: 382300415
                                              CLIP
                                              Supersession
                                              Supersession
                                              # 010
                                              MPN: 13274077
                                              SCREW
                                              from £0.53
                                              from £0.53
                                              # 010
                                              MPN: 13274177
                                              SCREW
                                              from £0.53
                                              from £0.53
                                              # 011
                                              MPN: 12637821
                                              WASHER
                                              from £0.85
                                              from £0.85
                                              # 012
                                              MPN: 382300614
                                              UPPER FRAME
                                              from £104.70
                                              from £104.70
                                              # 013
                                              MPN: 67239600
                                              COMPLETE AIR DUCTING
                                              from £345.42
                                              from £345.42
                                              This part replaces part number 382300006 - and 1 more. Click to view details
                                              # 014
                                              MPN: 382300602
                                              RH AUTO ADHESIVE SPONGE
                                              from £1.99
                                              from £1.99
                                              # 014
                                              MPN: 382300603
                                              LH AUTO ADHESIVE SPONGE
                                              from £1.99
                                              from £1.99
                                              # 015
                                              MPN: 382300800
                                              CENTRAL OPENING IN THE DASHBOARD
                                              from £149.22
                                              from £149.22
                                              This part replaces part number 382300318
                                              # 016
                                              MPN: 382300803
                                              CHROME AIR VENT SURROUND
                                              from £80.58
                                              from £80.58
                                              This part replaces part number 382300444
                                              # 017
                                              MPN: 382300372
                                              GASKET
                                              from £2.32
                                              from £2.32
                                              # 018
                                              MPN: 382300802
                                              LATERAL OPENING IN THE DASHBOARD
                                              from £122.55
                                              from £122.55
                                              This part replaces part number 382300596
                                              # 019
                                              MPN: 382300371
                                              GASKET
                                              from £14.49
                                              from £14.49
                                              # 020
                                              MPN: 382300374
                                              GASKET
                                              from £2.85
                                              from £2.85
                                              # 021
                                              MPN: 667745..
                                              COMPLETE RH LATERAL INSERT
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 022
                                              MPN: 667753..
                                              COMPLETE LH LATERAL INSERT
                                              - Optional - Xeno headlights - For order specify car number
                                              Supersession
                                              Supersession
                                              # 022
                                              MPN: 667755..
                                              COMPLETE LH LATERAL INSERT
                                              - Standard - Not for USA and CDN - For order specify car number
                                              Supersession
                                              Supersession
                                              # 023
                                              MPN: 382300319
                                              BRACKET
                                              from £81.68
                                              from £81.68
                                              # 024
                                              MPN: 66306900
                                              RING NUT
                                              from £68.71
                                              from £68.71
                                              # 025
                                              MPN: 10977524
                                              SCREW
                                              from £0.52
                                              from £0.52
                                              # 026
                                              MPN: 10519378
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              # 027
                                              MPN: 382300283
                                              COMPLETE AIR BAG FRAMEWORK
                                              from £69.82
                                              from £69.82
                                              # 028
                                              MPN: 672339..
                                              COMPLETE BOOT
                                              - Not for F1
                                              Supersession
                                              Supersession
                                              # 029
                                              MPN: 66224800
                                              PIN
                                              Supersession
                                              Supersession
                                              # 030
                                              MPN: 382300512
                                              PLATE
                                              from £5.18
                                              from £5.18
                                              # 031
                                              MPN: 667734..
                                              COMPLETE RH LOWER DASHBOARD COVER
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 032
                                              MPN: 667735..
                                              COMPLETE LH LOWER DASHBOARD COVER
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 033
                                              MPN: 9810011..
                                              STEERING COLUMN BELLOWS LEATHER
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 034
                                              MPN: 9811043..
                                              CENTRAL GASKET
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 035
                                              MPN: 9811044..
                                              LATERAL GASKET
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 036
                                              MPN: 660626..
                                              CENTRAL BODY IN THE DASHBOARD
                                              - For order specify car number
                                              Supersession
                                              Supersession
                                              # 037
                                              MPN: 67526000
                                              REAR DASHBOARD SILENCER
                                              - Valid for F1
                                              from £39.84
                                              from £39.84
                                              # 038
                                              MPN: 67525800
                                              RH SILENCER FOR UNDER DASHBOARD
                                              - Valid for F1
                                              from £22.90
                                              from £22.90
                                              # 039
                                              MPN: 67525900
                                              LH SILENCER FOR UNDER DASHBOARD
                                              - Valid for F1
                                              from £23.89
                                              from £23.89
                                              # 040
                                              MPN: 14059111
                                              NUT
                                              - Valid for F1
                                              from £0.47
                                              from £0.47
                                              # 041
                                              MPN: 12638101
                                              WASHER
                                              - Valid for F1
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 12638121

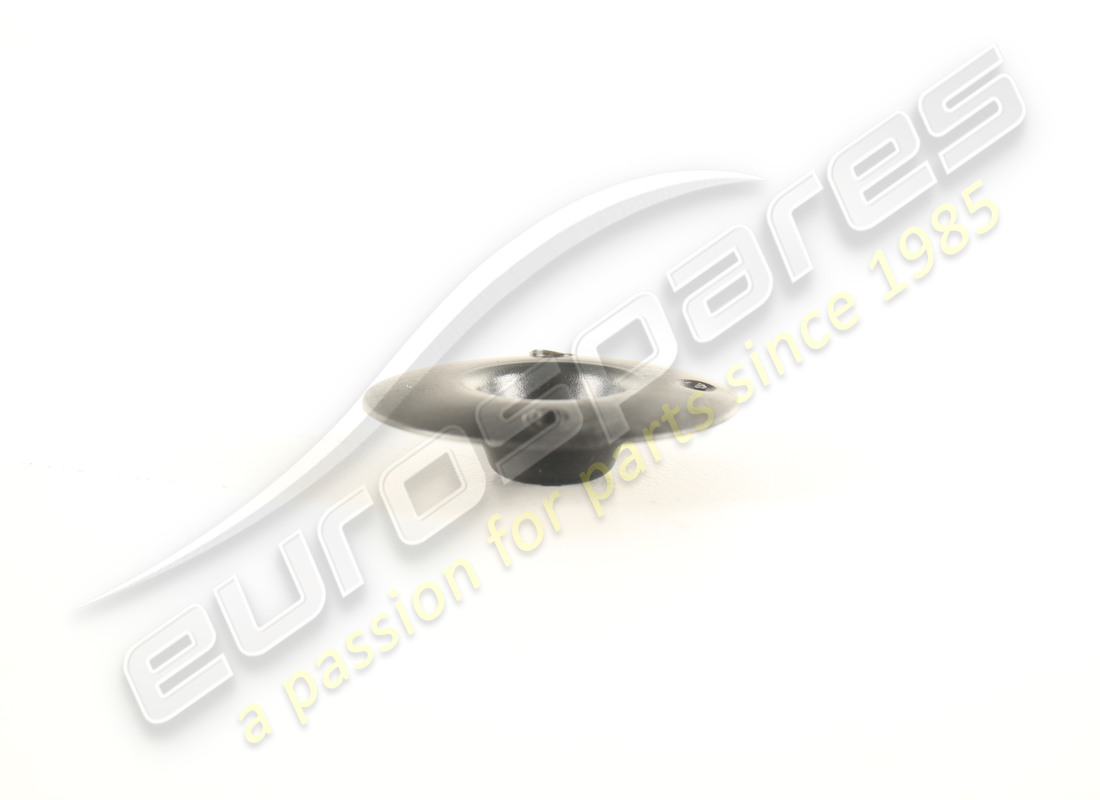

                                              # 042
                                              MPN: 67640300
                                              FIXING BUTTON
                                              - Valid for F1
                                              from £0.53
                                              from £0.53
                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
