maserati 4200 coupe (2004) glasses gaskets and inner rearwiew mirror parts diagram

119 - Glasses Gaskets and Inner Rearwiew Mirror

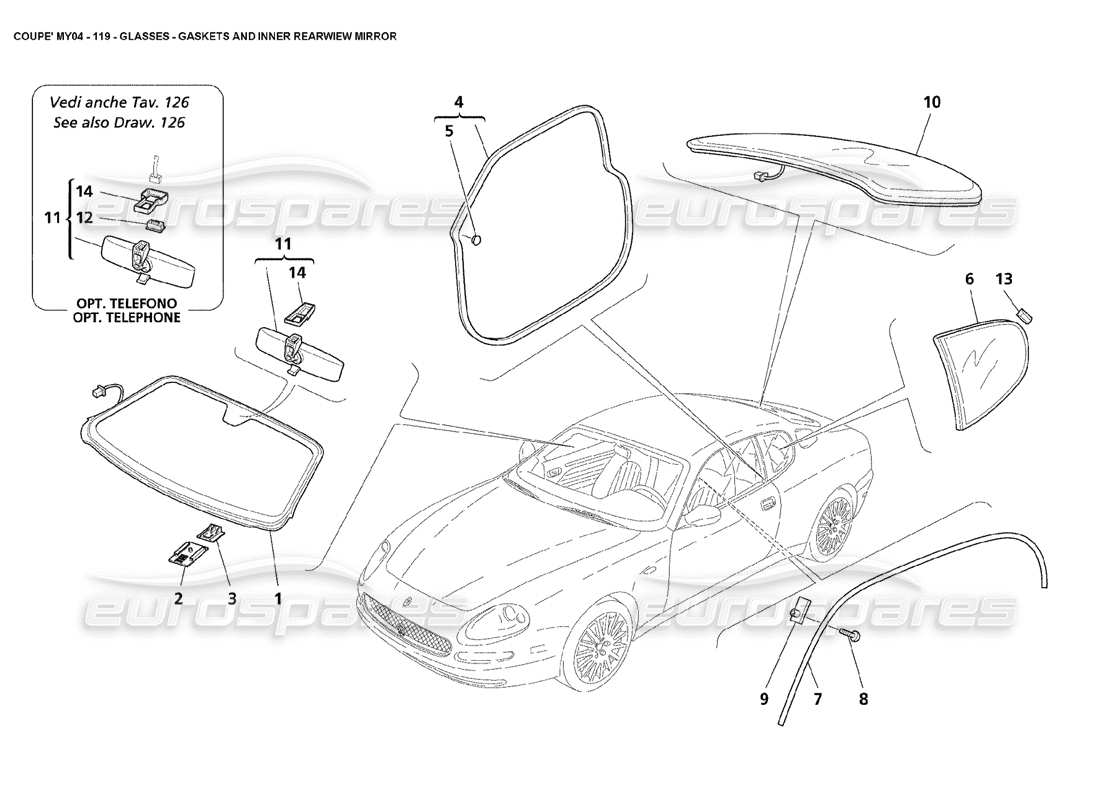

Maserati 4200 Coupe (2004) Glasses Gaskets and Inner Rearwiew Mirror Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 67746100
                      COMPLETE WINDSCREEN GLASS
                      - Not for USA, CDN and GD
                      from £1,350.63
                      from £1,350.63
                      # 001
                      MPN: 67746200
                      COMPLETE WINDSCREEN GLASS
                      - Valid for USA and CDN
                      from £1,093.90
                      from £1,093.90
                      # 001
                      MPN: 67746400
                      COMPLETE WINDSCREEN GLASS
                      - Valid for GD
                      from £937.73
                      from £937.73
                      This part replaces part number 66664100 - and 1 more. Click to view details
                      # 002
                      MPN: 60545263
                      BLOCK FOR WINDSCREEN
                      from £0.69
                      from £0.69
                      # 003
                      MPN: 60545262
                      SLIDER FOR WINDSCREEN BLOCK
                      from £1.08
                      from £1.08
                      # 004
                      MPN: 384500158
                      GASKET FOR RH DOOR OPENING
                      from £1,189.63
                      from £1,189.63
                      # 004
                      MPN: 384500159
                      GASKET FOR LH DOOR OPENING
                      from £498.75
                      from £498.75
                      # 005
                      MPN: 386100307
                      FIXING BUTTON
                      from £24.35
                      from £24.35
                      # 006
                      MPN: 387700401
                      LH REAR FIXED GLASS
                      from £97.48
                      from £97.48
                      # 006
                      MPN: 387700402
                      RH REAR FIXED GLASS
                      from £97.48
                      from £97.48
                      # 007
                      MPN: 386100109
                      LH COMPLETE CONTOUR
                      from £322.41
                      from £322.41
                      # 007
                      MPN: 386100110
                      RH COMPLETE CONTOUR
                      from £322.41
                      from £322.41
                      # 008
                      MPN: 16083501
                      SCREW
                      from £0.48
                      from £0.48
                      # 009
                      MPN: 64569500
                      CLIP
                      from £2.01
                      from £2.01
                      This part replaces part number 386100308
                      # 010
                      MPN: 67780100
                      COMPLETE REAR WINDOW GLASS
                      from £2,537.43
                      from £2,537.43
                      This part replaces part number 66723300
                      # 011
                      MPN: 66139700
                      INNER REAR VIEW MIRROR
                      - Standard - Not for USA and CDN
                      from £84.74
                      from £84.74
                      # 011
                      MPN: 66182900
                      INNER REAR VIEW MIRROR
                      - Optional - Electrochromic - Standard for cars USA and CDN
                      from £134.15
                      from £134.15
                      # 011
                      MPN: 66308100
                      INNER REAR VIEW MIRROR
                      See also 67035700
                      from £64.97
                      from £64.97
                      # 011
                      MPN: 67035700
                      INNER REAR VIEW MIRROR
                      - Optional - Telephone - Not for USA, CDN and J
                      from £57.81
                      from £57.81
                      This part replaces part number 66308100 which we have in stock - and 1 more. Click to view details
                      # 011
                      MPN: 67035800
                      INNER REAR VIEW MIRROR
                      - Optional - Electrochromic and telephone - Not for USA, CDN and J
                      from £327.55
                      from £327.55
                      This part replaces part number 66308200
                      # 012
                      MPN: 183670
                      MICROPHONE
                      - Optional - Telephone - Not for USA, CDN and J
                      from £88.32
                      from £88.32
                      # 013
                      MPN: 387700356
                      BI ADHESIVE SPACER
                      from £1.39
                      from £1.39
                      # 014
                      MPN: 67035900
                      PLATE
                      - Valid for cars with opt. telephone
                      from £76.15
                      from £76.15
                      # 014
                      MPN: 67036000
                      PLATE
                      - Not for cars with opt. telephone
                      from £14.12
                      from £14.12
