maserati 4200 coupe (2004) body central outer trims parts diagram

101 - Body Central Outer Trims

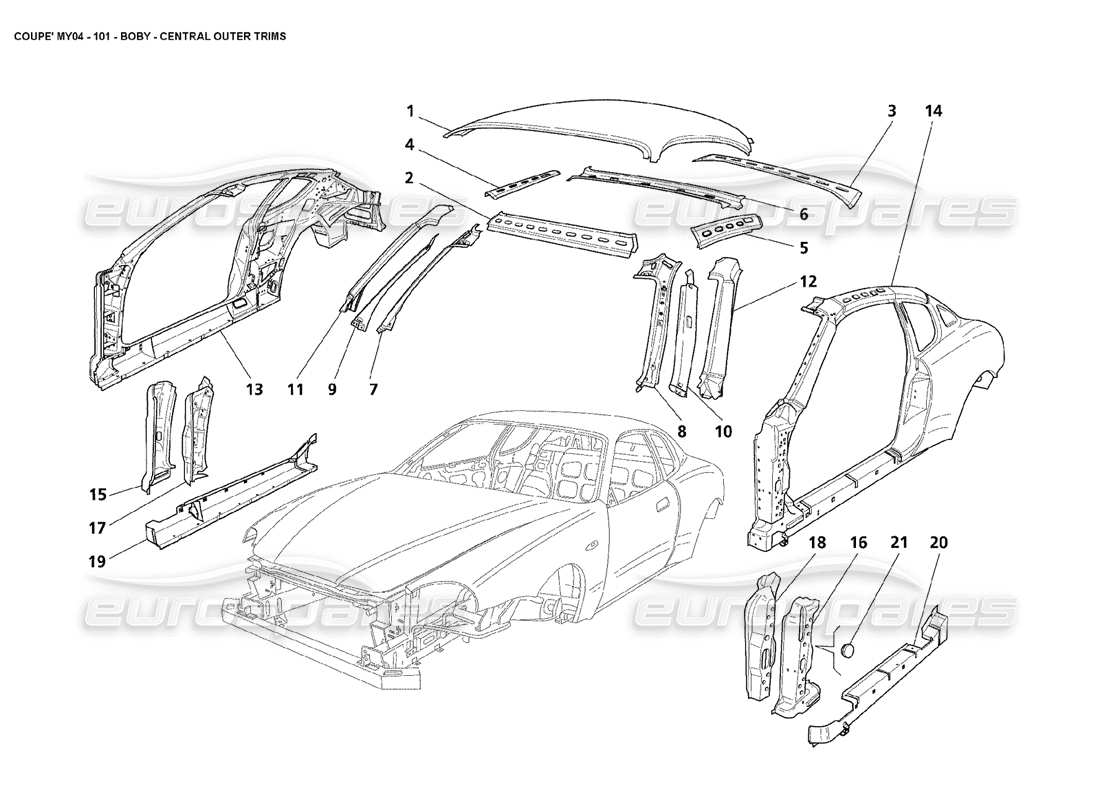

Maserati 4200 Coupe (2004) Body Central Outer Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 382500465
                                            ROOF EXTERNAL TRIM
                                            from £1,782.36
                                            from £1,782.36
                                            # 002
                                            MPN: 980138009
                                            COMPLETE ROOF LINING FRONT CROSS MEMBER
                                            from £53.97
                                            from £53.97
                                            # 003
                                            MPN: 980138010
                                            COMPLETE ROOF LINING REAR CROSS MEMBER
                                            from £53.97
                                            from £53.97
                                            # 004
                                            MPN: 980138012
                                            COMPLETE RH SIDE RAIL
                                            from £80.19
                                            from £80.19
                                            # 005
                                            MPN: 980138011
                                            COMPLETE LH SIDE RAIL
                                            from £80.19
                                            from £80.19
                                            # 006
                                            MPN: 382500434
                                            INNER FRAME FOR ROOF LINING
                                            Supersession
                                            Supersession
                                            # 007
                                            MPN: 66736700
                                            RH FRAME FOR WINDSHIELD VERTICAL ROD
                                            from £197.64
                                            from £197.64
                                            This part replaces part number 66364800
                                            # 008
                                            MPN: 66736800
                                            LH FRAME FOR WINDSHIELD VERTICAL ROD
                                            from £197.64
                                            from £197.64
                                            This part replaces part number 66364900
                                            # 009
                                            MPN: 66055500
                                            RH DIAPHRAGM FOR WINDSHIELD VERTICAL ROD
                                            from £174.67
                                            from £174.67
                                            This part replaces part number 382500314
                                            # 010
                                            MPN: 66055600
                                            LH DIAPHRAGM FOR WINDSHIELD VERTICAL ROD
                                            from £174.67
                                            from £174.67
                                            This part replaces part number 382500313
                                            # 011
                                            MPN: 66058800
                                            RH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
                                            from £253.67
                                            from £253.67
                                            # 012
                                            MPN: 66058900
                                            LH OUTER TRIM FOR WINDSHIELD VERTICAL ROD
                                            from £253.67
                                            from £253.67
                                            # 013
                                            MPN: 980138006
                                            COMPLETE RH SIDE
                                            from £6,433.27
                                            from £6,433.27
                                            # 014
                                            MPN: 980138005
                                            COMPLETE LH SIDE
                                            from £5,388.67
                                            from £5,388.67
                                            # 015
                                            MPN: 67236400
                                            RH FRONT ROD
                                            from £131.00
                                            from £131.00
                                            # 016
                                            MPN: 67236500
                                            LH FRONT ROD
                                            from £131.00
                                            from £131.00
                                            # 017
                                            MPN: 65825300
                                            RH FRONT INNER ROD REINFORCEMENT
                                            from £154.73
                                            from £154.73
                                            # 018
                                            MPN: 65825400
                                            LH FRONT INNER ROD REINFORCEMENT
                                            from £154.73
                                            from £154.73
                                            # 019
                                            MPN: 980138008
                                            COMPLETE RH SPAR
                                            from £454.97
                                            from £454.97
                                            # 020
                                            MPN: 980138007
                                            COMPLETE LH SPAR
                                            from £454.97
                                            from £454.97
                                            # 021
                                            MPN: 14507687
                                            PLUG
                                            from £0.58
                                            from £0.58
