Maserati 4200 Coupe (2004) Front Suspension Wishbones and Stabilizer Bar Parts Diagram

045 - Front Suspension Wishbones and Stabilizer Bar

Maserati 4200 Coupe (2004) Front Suspension Wishbones and Stabilizer Bar Parts Diagram

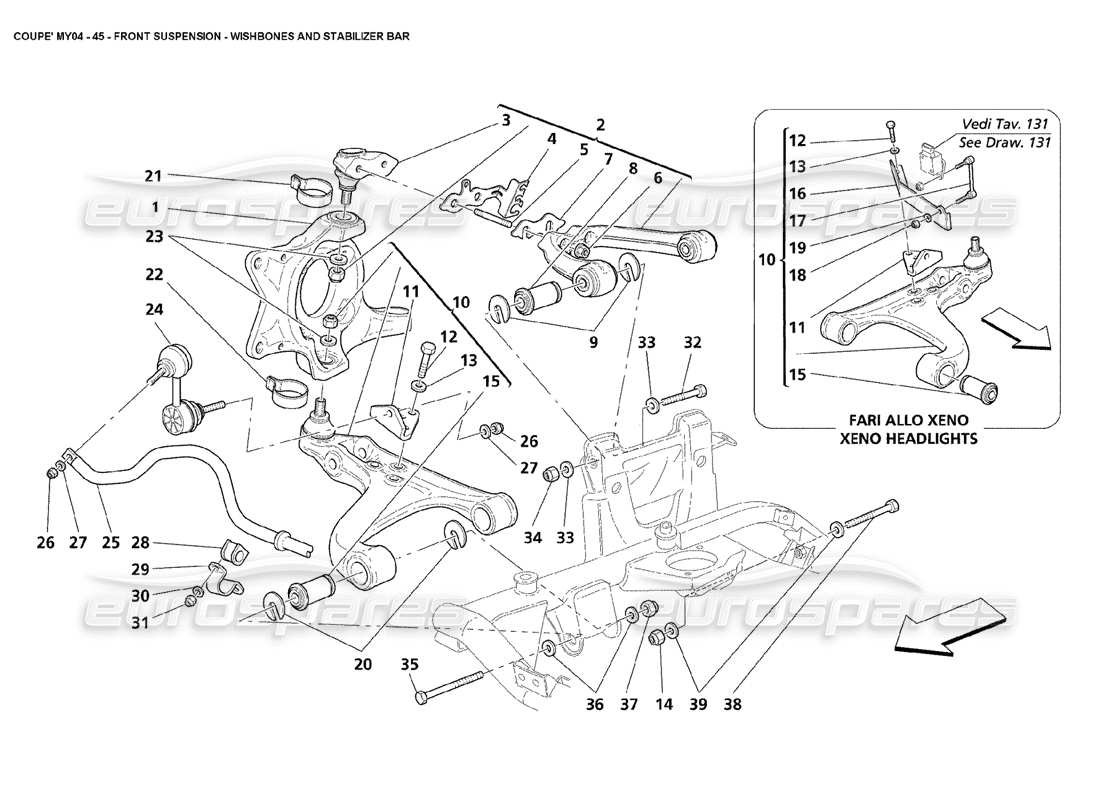

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price

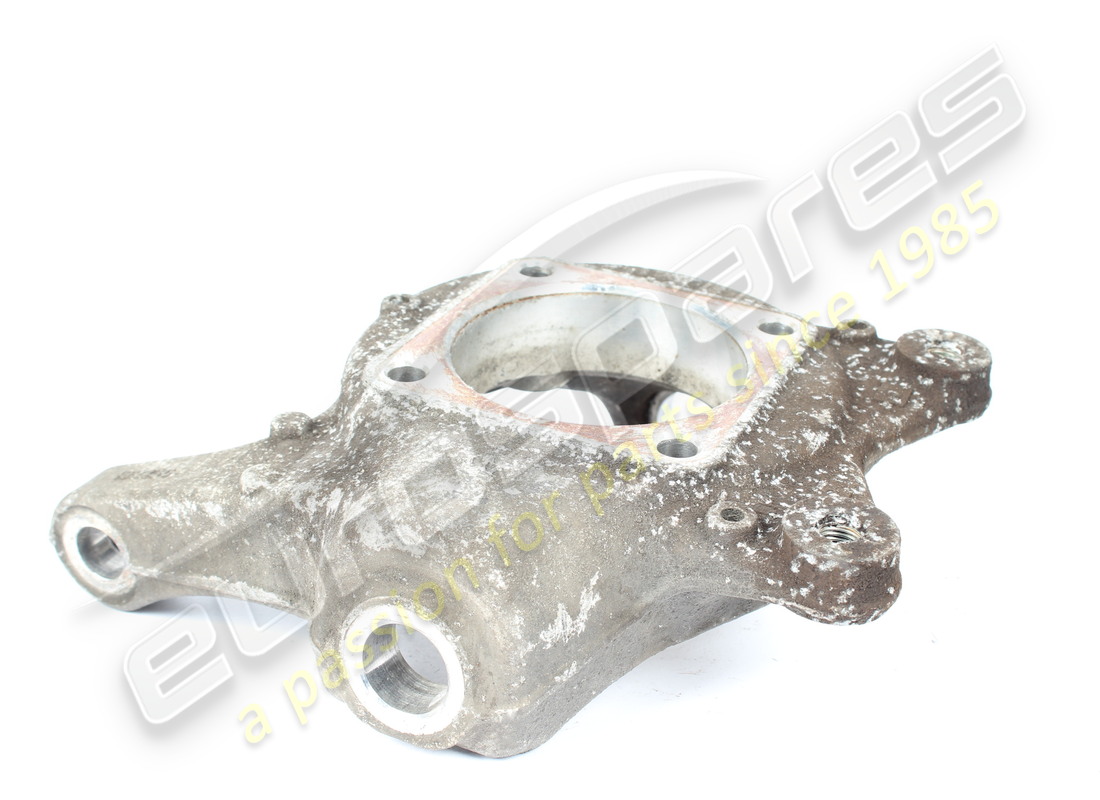

                                                                # 001
                                                                MPN: 197754

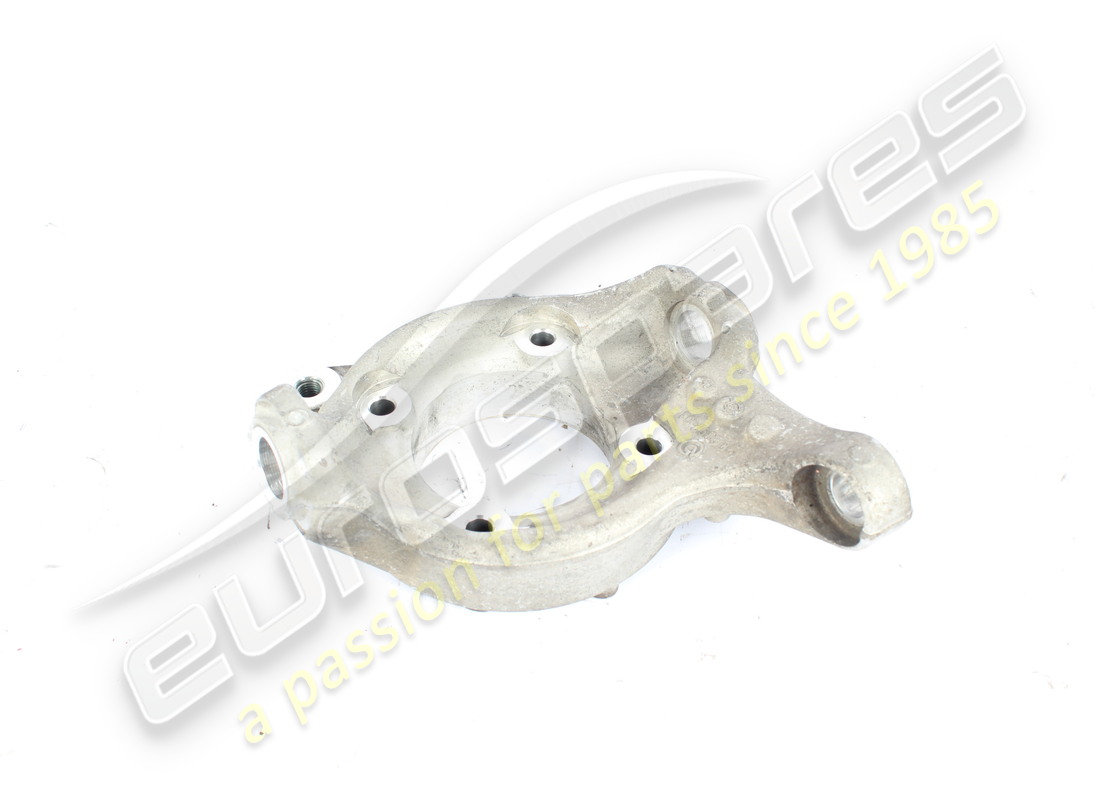

                                                                RH FRONT HUB HOLDER
                                                                from £399.00
                                                                from £399.00
                                                                # 001
                                                                MPN: 197764
                                                                LH FRONT HUB HOLDER
                                                                from £389.44
                                                                from £389.44

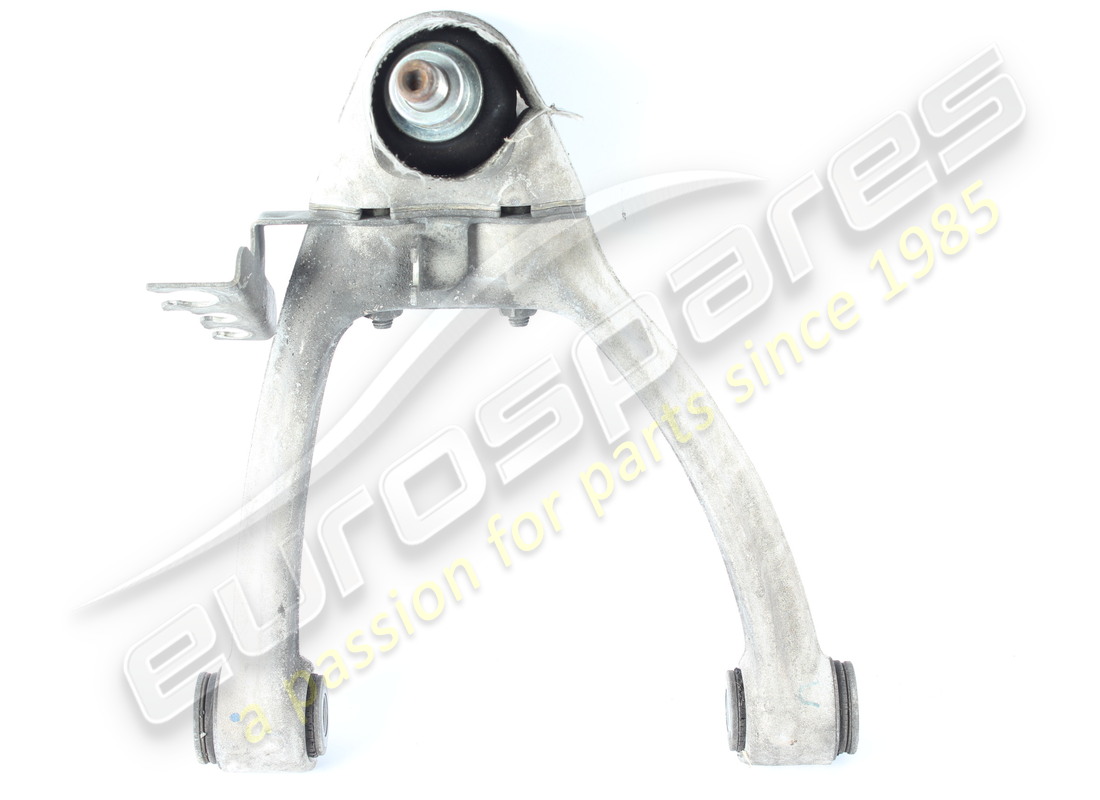

                                                                # 002
                                                                MPN: 194367

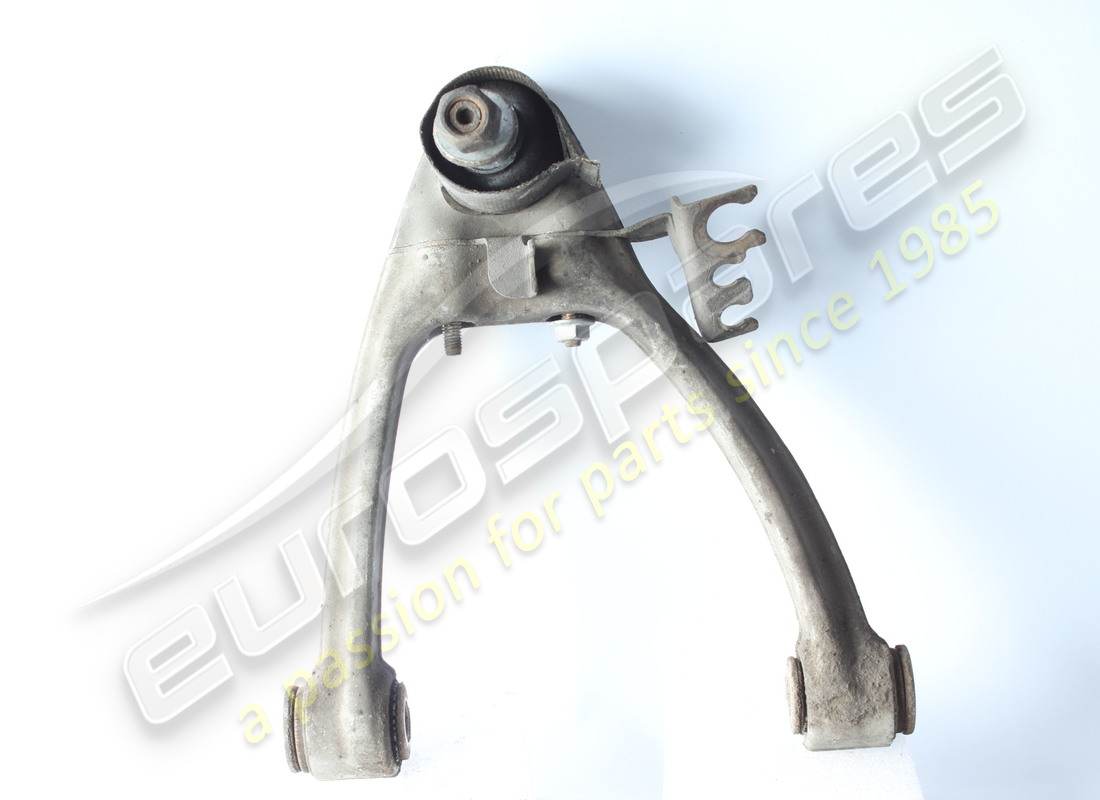

                                                                COMPLETE LH UPPER LEVER
                                                                from £477.75
                                                                from £477.75
                                                                # 002
                                                                MPN: 194368
                                                                COMPLETE RH UPPER LEVER
                                                                from £477.75
                                                                from £477.75

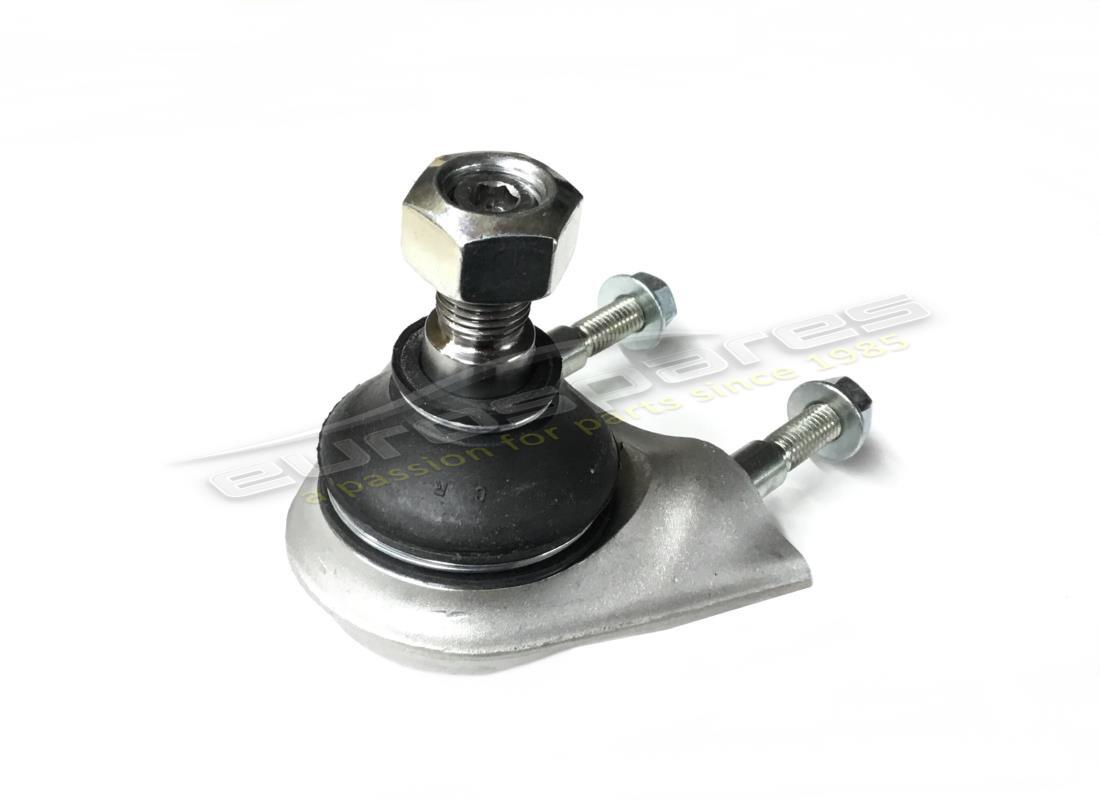

                                                                # 003
                                                                MPN: 386600129
                                                                JOINT FOR UPPER LEVER
                                                                from £181.26
                                                                from £181.26
                                                                # 004
                                                                MPN: 190691
                                                                RH CABLES SUPPORTING BRACKET
                                                                from £10.18
                                                                from £10.18
                                                                # 004
                                                                MPN: 190692
                                                                LH CABLES SUPPORTING BRACKET
                                                                from £11.12
                                                                from £11.12
                                                                # 005
                                                                MPN: 386600405
                                                                STUD
                                                                from £9.31
                                                                from £9.31
                                                                # 006
                                                                MPN: 14058521
                                                                NUT
                                                                from £1.04
                                                                from £1.04
                                                                # 007
                                                                MPN: 386600411
                                                                ADJUSTMENT TICKNESS
                                                                -MM. 0,5
                                                                from £2.90
                                                                from £2.90
                                                                # 007
                                                                MPN: 386600412
                                                                ADJUSTMENT TICKNESS
                                                                -MM. 1
                                                                from £2.90
                                                                from £2.90
                                                                # 007
                                                                MPN: 386600413
                                                                ADJUSTMENT TICKNESS
                                                                -MM. 2,5
                                                                from £2.35
                                                                from £2.35
                                                                # 008
                                                                MPN: 186493
                                                                FLANBLOC
                                                                from £110.01
                                                                from £110.01
                                                                # 009
                                                                MPN: 386600425
                                                                WASHER
                                                                - Thickness mm. 0,5
                                                                from £5.48
                                                                from £5.48
                                                                This part replaces part number 66667900
                                                                # 009
                                                                MPN: 386600426
                                                                WASHER
                                                                -Thickness mm. 0,75
                                                                from £2.35
                                                                from £2.35
                                                                # 009
                                                                MPN: 386600427
                                                                WASHER
                                                                -Thickness mm. 1
                                                                from £1.88
                                                                from £1.88
                                                                This part replaces part number 66668000
                                                                # 009
                                                                MPN: 386600428
                                                                WASHER
                                                                -Thickness mm. 1,75
                                                                from £2.35
                                                                from £2.35
                                                                # 009
                                                                MPN: 386600429
                                                                WASHER
                                                                -Thickness mm. 3
                                                                from £1.88
                                                                from £1.88
                                                                # 010
                                                                MPN: 201784

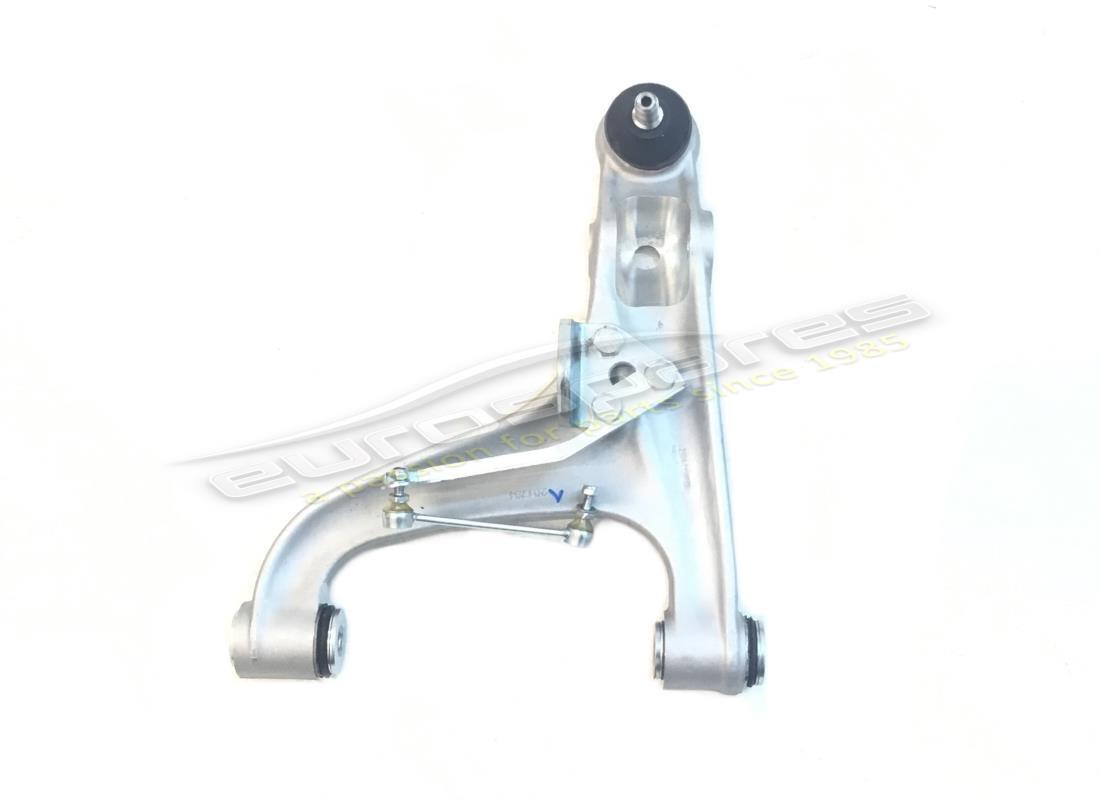

                                                                RH FRONT LOWER LEVER
                                                                Optional - Xeno headlights -
                                                                from £709.13
                                                                from £709.13
                                                                This part replaces part number 194396 - and 3 more. Click to view details
                                                                # 010
                                                                MPN: 201784
                                                                RH FRONT LOWER LEVER
                                                                Optional - Xeno headlights -
                                                                from £709.13
                                                                from £709.13
                                                                This part replaces part number 194396 - and 3 more. Click to view details
                                                                # 010
                                                                MPN: 201786
                                                                COMPLETE LH LOWER LEVER
                                                                from £1,289.32
                                                                from £1,289.32
                                                                This part replaces part number 194398
                                                                # 010
                                                                MPN: 201786
                                                                COMPLETE LH LOWER LEVER
                                                                - Standard - Valid from car Ass. Nr. 13193
                                                                from £1,289.32
                                                                from £1,289.32
                                                                This part replaces part number 194398
                                                                # 010
                                                                MPN: 201787

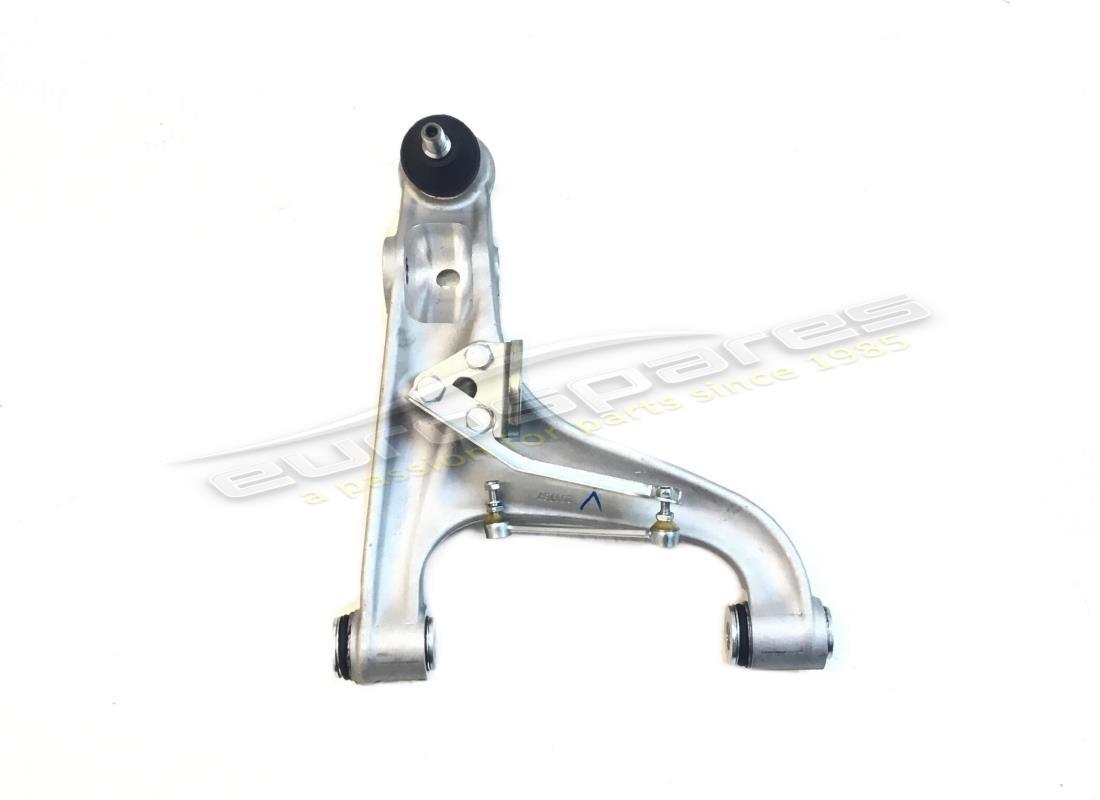

                                                                LH FRONT LOWER LEVER
                                                                Optional - Xeno headlights -
                                                                from £709.13
                                                                from £709.13
                                                                This part replaces part number 194397 - and 3 more. Click to view details
                                                                # 010
                                                                MPN: 201787
                                                                LH FRONT LOWER LEVER
                                                                Optional - Xeno headlights -
                                                                from £709.13
                                                                from £709.13
                                                                This part replaces part number 194397 - and 3 more. Click to view details
                                                                # 011
                                                                MPN: 186347
                                                                TORSION BAR TIE ROD SUPPORT
                                                                from £25.53
                                                                from £25.53
                                                                # 012
                                                                MPN: 16043621
                                                                SCREW
                                                                from £1.10
                                                                from £1.10
                                                                # 013
                                                                MPN: 14496524
                                                                WASHER
                                                                from £0.52
                                                                from £0.52
                                                                # 014
                                                                MPN: 386600441
                                                                NUT
                                                                from £2.46
                                                                from £2.46
                                                                # 015
                                                                MPN: 186494
                                                                FLANBLOC
                                                                from £107.43
                                                                from £107.43
                                                                # 016
                                                                MPN: 190045
                                                                BRACKET FOR FRONT POTENTIOMETER
                                                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                                                from £13.78
                                                                from £13.78
                                                                # 017
                                                                MPN: 188629
                                                                TIE ROD
                                                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                                                from £19.53
                                                                from £19.53
                                                                # 018
                                                                MPN: 12574215
                                                                NUT
                                                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                                                from £1.25
                                                                from £1.25
                                                                # 019
                                                                MPN: 14498805
                                                                WASHER
                                                                - Valid for opt. Xeno headlights - Not for USA and CDN
                                                                from £0.54
                                                                from £0.54
                                                                # 020
                                                                MPN: 377030378
                                                                WASHER
                                                                -Thickness mm. 0,5
                                                                from £3.21
                                                                from £3.21
                                                                # 020
                                                                MPN: 377030379
                                                                WASHER
                                                                -Thickness mm. 0,75
                                                                from £3.92
                                                                from £3.92
                                                                # 020
                                                                MPN: 377030380
                                                                WASHER
                                                                -Thickness mm. 1
                                                                from £17.46
                                                                from £17.46
                                                                # 020
                                                                MPN: 377030381
                                                                WASHER
                                                                -Thickness mm. 1,75
                                                                from £3.92
                                                                from £3.92
                                                                # 020
                                                                MPN: 377030382
                                                                WASHER
                                                                -Thickness mm. 3
                                                                from £4.62
                                                                from £4.62
                                                                # 021
                                                                MPN: 386600416
                                                                JOINT UPPER PROTECTION
                                                                from £3.68
                                                                from £3.68
                                                                # 022
                                                                MPN: 160019
                                                                JOINT LOWER PROTECTION
                                                                from £3.68
                                                                from £3.68
                                                                This part replaces part number 386600419
                                                                # 023
                                                                MPN: 386600403
                                                                WASHER
                                                                from £6.11
                                                                from £6.11

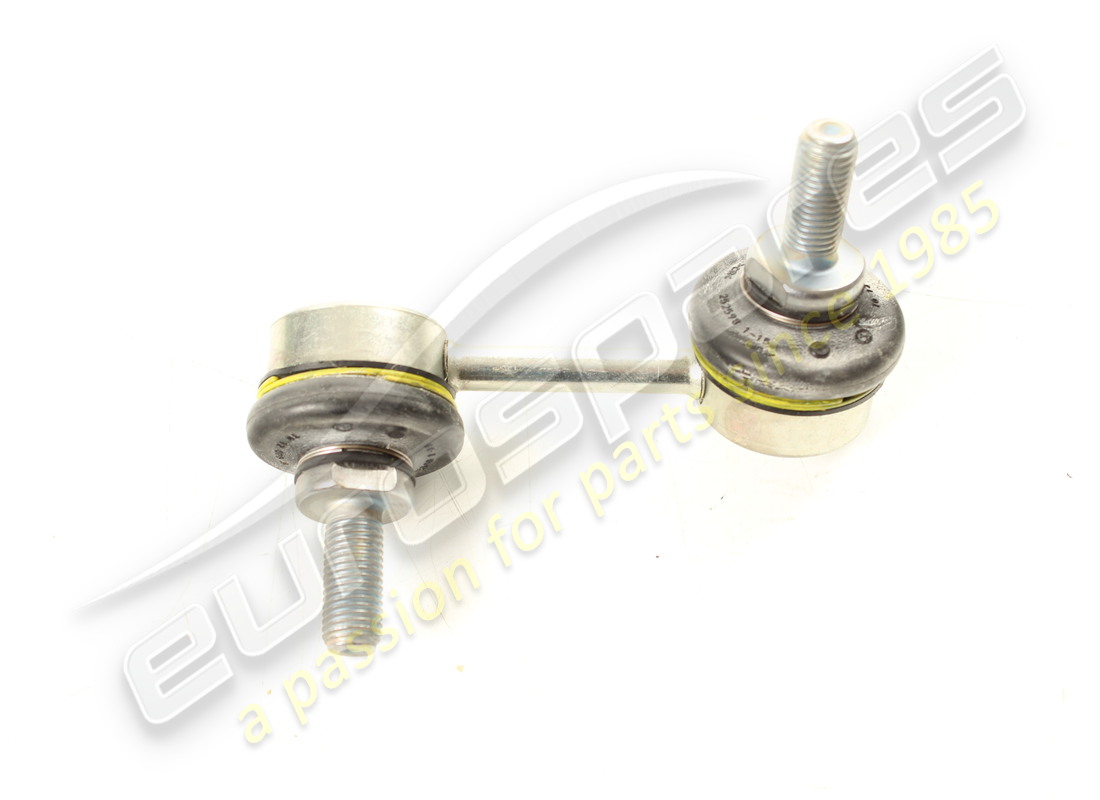

                                                                # 024
                                                                MPN: 185914
                                                                RH TIE ROD FOR TORSION BAR
                                                                from £153.31
                                                                from £153.31
                                                                # 024
                                                                MPN: 185916
                                                                LH TIE ROD FOR TORSION BAR
                                                                from £67.95
                                                                from £67.95
                                                                # 025
                                                                MPN: 195320
                                                                ANTI ROLL BAR
                                                                from £168.86
                                                                from £168.86
                                                                # 026
                                                                MPN: 12575621
                                                                NUT
                                                                from £1.00
                                                                from £1.00
                                                                This part replaces part number 98095 which we have in stock
                                                                # 027
                                                                MPN: 13550421
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                # 028
                                                                MPN: 195913
                                                                BAR BUFFER
                                                                from £21.56
                                                                from £21.56
                                                                # 030
                                                                MPN: 14496524
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                # 031
                                                                MPN: 104030
                                                                NUT
                                                                from £0.53
                                                                from £0.53
                                                                # 032
                                                                MPN: 15541521
                                                                SCREW
                                                                from £2.51
                                                                from £2.51
                                                                # 033
                                                                MPN: 14496721
                                                                WASHER
                                                                from £0.48
                                                                from £0.48
                                                                # 034
                                                                MPN: 15503811
                                                                NUT
                                                                from £1.10
                                                                from £1.10
                                                                # 035
                                                                MPN: 196071
                                                                SCREW
                                                                from £4.32
                                                                from £4.32
                                                                # 036
                                                                MPN: 14496825
                                                                WASHER
                                                                from £1.20
                                                                from £1.20
                                                                # 037
                                                                MPN: 15503915
                                                                NUT
                                                                from £1.64
                                                                from £1.64
                                                                # 038
                                                                MPN: 189137
                                                                SCREW
                                                                from £18.32
                                                                from £18.32
                                                                # 039
                                                                MPN: 13579861
                                                                WASHER
                                                                from £14.33
                                                                from £14.33
