Maserati 4200 Coupe (2004) timing tappets Parts Diagram

005 - timing tappets

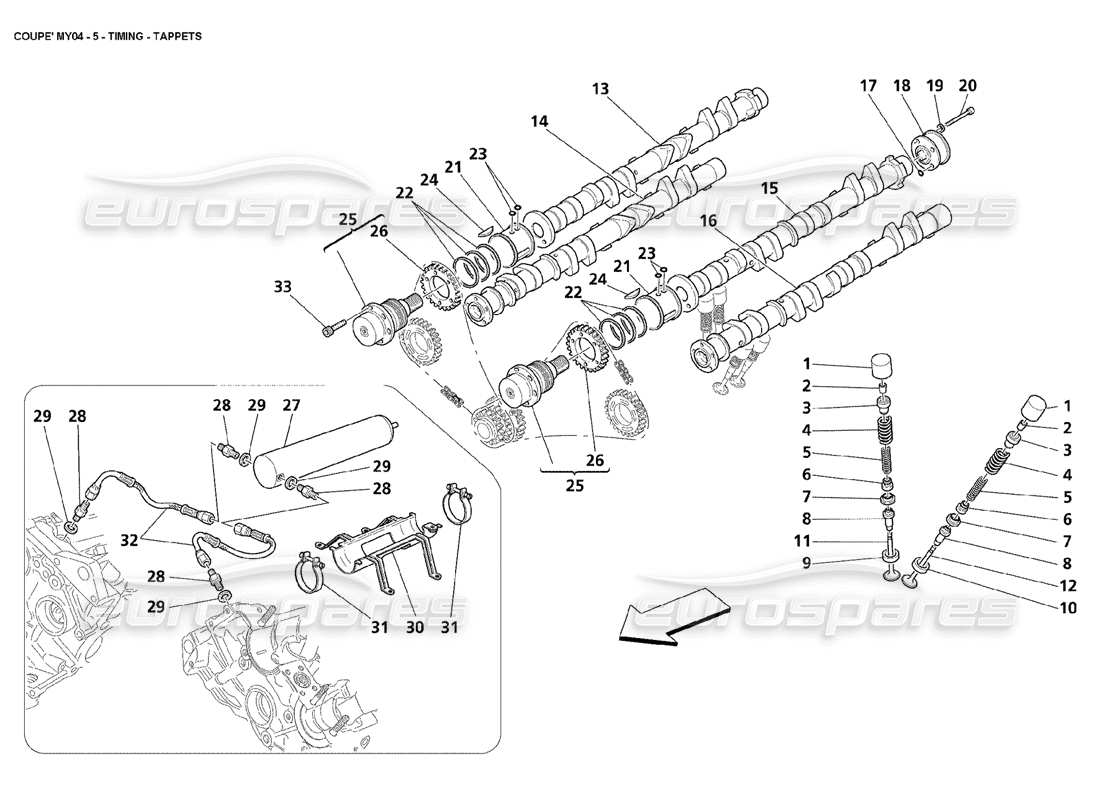

Maserati 4200 Coupe (2004) Timing Tappets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 194700
                                                  TAPPET FOR VALVE CONTROL
                                                  from £21.00
                                                  from £21.00
                                                  This part replaces part number 187657 - and 3 more. Click to view details
                                                  # 002
                                                  MPN: 179763
                                                  COTTER FOR VALVE SPRING
                                                  from £0.28
                                                  from £0.28
                                                  # 003
                                                  MPN: 187489
                                                  UPPER CUP
                                                  from £5.07
                                                  from £5.07
                                                  # 004
                                                  MPN: 184054
                                                  OUTER SPRING FOR VALVE RETURN
                                                  from £6.94
                                                  from £6.94
                                                  # 005
                                                  MPN: 184055
                                                  INNER SPRING FOR VALVE RETURN
                                                  from £28.12
                                                  from £28.12
                                                  # 006
                                                  MPN: 148153
                                                  OIL RING
                                                  - Supplied also in the cylinder heads - gasket revision kit (cod. 980020001)
                                                  from £1.94
                                                  from £1.94
                                                  # 007
                                                  MPN: 190388
                                                  LOWER CUP
                                                  from £4.38
                                                  from £4.38
                                                  This part replaces part number 184594 which we have in stock
                                                  # 007
                                                  MPN: 190408
                                                  LOWER CUP
                                                  - Oversized
                                                  from £36.33
                                                  from £36.33
                                                  This part replaces part number 184596
                                                  # 008
                                                  MPN: 172452
                                                  INTAKE VALVE GUIDE
                                                  - Oversized
                                                  Supersession
                                                  Supersession
                                                  # 008
                                                  MPN: 176437
                                                  INTAKE VALVE GUIDE
                                                  from £48.00
                                                  from £48.00
                                                  This part replaces part number 172328
                                                  # 009
                                                  MPN: 175381
                                                  INTAKE VALVE SEAT
                                                  from £7.99
                                                  from £7.99
                                                  # 010
                                                  MPN: 179959
                                                  EXHAUST VALVE SEAT
                                                  Supersession
                                                  Supersession
                                                  # 011
                                                  MPN: 175395
                                                  INTAKE VALVE
                                                  - Valid till stock exhaustion
                                                  from £5.85
                                                  from £5.85
                                                  # 011
                                                  MPN: 198581
                                                  INTAKE VALVE
                                                  - Valid after stock exhaustion of 175395
                                                  from £4.57
                                                  from £4.57
                                                  # 012
                                                  MPN: 189351
                                                  EXHAUST VALVE
                                                  - Valid till stock exhaustion
                                                  from £61.29
                                                  from £61.29
                                                  This part replaces part number 181568 which we have in stock
                                                  # 012
                                                  MPN: 198582
                                                  EXHAUST VALVE
                                                  - Valid after stock exhaustion of 189351
                                                  from £10.96
                                                  from £10.96
                                                  This part replaces part number 189351 which we have in stock
                                                  # 013
                                                  MPN: 190656
                                                  RH INDUCTION DISTRIBUTION CAM SHAFT
                                                  - Valid till engine Nr. 83605
                                                  from £1,340.12
                                                  from £1,340.12
                                                  RH INDUCTION DISTRIB.CAN Genuine Maserati Part - Used In stock
                                                  COMPLETE WITH PHASE VARIATOR /TOOTHED WHEEL
                                                  # 013
                                                  MPN: 200692
                                                  RH INDUCTION DISTRIBUTION CAM SHAFT
                                                  - Valid from engine Nr. 83606
                                                  from £346.16
                                                  from £346.16
                                                  # 014
                                                  MPN: 190658
                                                  RH EXHAUST CAM SHAFT
                                                  - Valid till engine Nr. 83605
                                                  from £1,207.13
                                                  from £1,207.13
                                                  # 014
                                                  MPN: 200694
                                                  RH EXHAUST CAM SHAFT
                                                  - Valid from engine Nr. 83606
                                                  from £367.24
                                                  from £367.24
                                                  # 015
                                                  MPN: 190657
                                                  LH INDUCTION DISTRIBUTION CAM SHAFT
                                                  - Valid till engine Nr. 83605
                                                  from £1,308.62
                                                  from £1,308.62
                                                  LH INTAKE CAMSHAFT Genuine Maserati Part - Used In stock
                                                  COMPLETE WITH PHASE VARIATOR /TOOTHED WHEEL
                                                  # 015
                                                  MPN: 200693
                                                  LH INDUCTION DISTRIBUTION CAM SHAFT
                                                  - Valid from engine Nr. 83606
                                                  from £366.48
                                                  from £366.48
                                                  # 016
                                                  MPN: 190659
                                                  LH EXHAUST CAM SHAFT
                                                  - Valid till engine Nr. 83605
                                                  from £1,207.13
                                                  from £1,207.13
                                                  # 016
                                                  MPN: 200695
                                                  LH EXHAUST CAM SHAFT
                                                  - Valid from engine Nr. 83606
                                                  from £351.25
                                                  from £351.25
                                                  # 017
                                                  MPN: 134701
                                                  O.R. GASKET
                                                  from £0.53
                                                  from £0.53
                                                  # 018
                                                  MPN: 189541
                                                  OIL PUMP VARIATOR
                                                  from £54.86
                                                  from £54.86
                                                  This part replaces part number 185409 - and 1 more. Click to view details
                                                  # 019
                                                  MPN: 184731
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 020
                                                  MPN: 14303523
                                                  SCREW
                                                  from £1.10
                                                  from £1.10
                                                  This part replaces part number 14303526
                                                  # 021
                                                  MPN: 198668
                                                  PHASE VARIATOR SUPPORTNG BUSHING
                                                  from £176.25
                                                  from £176.25
                                                  This part replaces part number 190393
                                                  # 022
                                                  MPN: 214742
                                                  RING
                                                  from £13.87
                                                  from £13.87
                                                  This part replaces part number 179926
                                                  # 023
                                                  MPN: 134701
                                                  O.R. GASKET
                                                  from £0.53
                                                  from £0.53
                                                  # 024
                                                  MPN: 10617520
                                                  Key
                                                  from £2.35
                                                  from £2.35
                                                  This part replaces part number 10617580
                                                  # 025
                                                  MPN: 190012
                                                  PHASE VARIATOR
                                                  from £609.55
                                                  from £609.55
                                                  # 026
                                                  MPN: 189576
                                                  TOOTHED WHEEL
                                                  from £205.17
                                                  from £205.17
                                                  This part replaces part number 188357
                                                  # 027
                                                  MPN: 190163
                                                  OIL ACCUMULATOR FOR VARIATOR
                                                  from £392.99
                                                  from £392.99
                                                  This part replaces part number 185334 - and 2 more. Click to view details
                                                  # 028
                                                  MPN: 193738
                                                  THREADED UNION
                                                  from £4.56
                                                  from £4.56
                                                  # 029
                                                  MPN: 10261060
                                                  GASKET
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 274036
                                                  # 030
                                                  MPN: 193406
                                                  OIL ACCUMULATOR SEAT
                                                  from £41.30
                                                  from £41.30
                                                  This part replaces part number 189950 - and 2 more. Click to view details
                                                  # 032
                                                  MPN: 194710
                                                  PIPE FROM ACCUMULATOR TO CYLINDERS HEADS
                                                  from £38.27
                                                  from £38.27
                                                  This part replaces part number 189949 - and 1 more. Click to view details
                                                  # 033
                                                  MPN: 94077843
                                                  SCREW
                                                  from £11.21
                                                  from £11.21
                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
