maserati 4200 coupe (2003) air conditioning system parts diagram

144 - air conditioning system

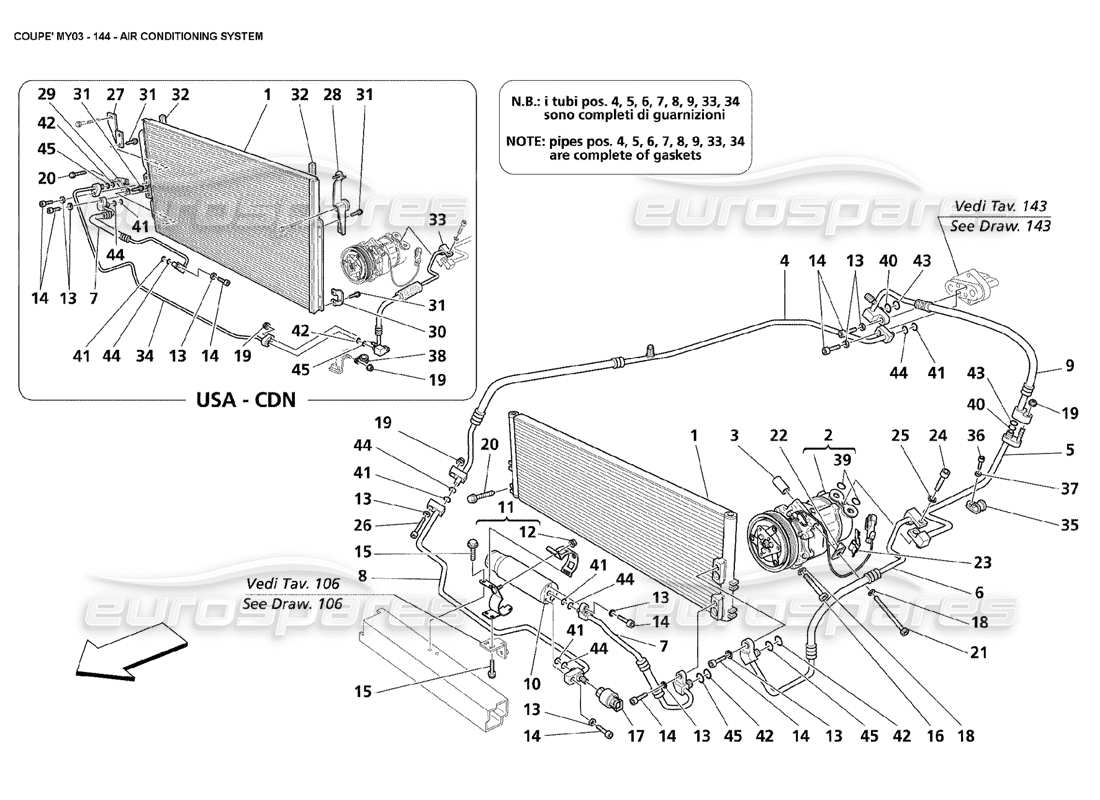

Maserati 4200 Coupe (2003) Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 001
                                                      MPN: 181106
                                                      A.C. CONDENSER
                                                      - Not for USA and CDN
                                                      from £430.17
                                                      from £430.17
                                                      A.C. CONDENSER Genuine Maserati Part - New (to order)
                                                      # 001
                                                      MPN: 189215
                                                      A.C. CONDENSER
                                                      - Valid for USA and CDN
                                                      from £393.25
                                                      from £393.25
                                                      This part replaces part number 193547
                                                      A.C.CONDENSER. Genuine Maserati Part - New (to order)
                                                      # 002
                                                      MPN: 183309
                                                      AIR CONDITIONING COMPRESSOR
                                                      Sanden Version
                                                      from £1,789.07
                                                      from £1,789.07
                                                      SANDEN COMPRESSOR FOR A.C. Genuine Maserati Part - New (to order)
                                                      COMPRESSOR SANDEN X AIR CONDITIONING Genuine Ferrari Part - New (to order)
                                                      # 003
                                                      MPN: 141496
                                                      SPACER
                                                      from £1.57
                                                      from £1.57
                                                      SPACER BET.ACTUATOR AND GEARBOX Genuine Maserati Part - New (to order)
                                                      SPACER Genuine Ferrari Part - New (to order)
                                                      # 004
                                                      MPN: 66244200
                                                      PIPE FROM UNION TO EVAPORATOR
                                                      - Not for GD
                                                      from £146.18
                                                      from £146.18
                                                      Pipe Union To Evap LHD Genuine Maserati Part - New (to order)
                                                      # 004
                                                      MPN: 66765700
                                                      PIPE FROM UNION TO EVAPORATOR
                                                      - Valid for GD
                                                      from £100.14
                                                      from £100.14
                                                      PIPE FROM UNION 2 TO EVAPOUR Genuine Maserati Part - New (to order)
                                                      PIPE FROM UNION 2 TO EVAPOUR Genuine Maserati Part - Used In stock
                                                      # 005
                                                      MPN: 67028000
                                                      PIPE FROM UNION TO COMPRESSOR
                                                      from £64.30
                                                      from £64.30
                                                      TUBO DA RACCORDO 2 A COMPRES Genuine Maserati Part - New (to order)
                                                      TUBO DA RACCORDO 2 A COMPRES Genuine Maserati Part - Used In stock
                                                      # 006
                                                      MPN: 66707600
                                                      PIPE FROM COMPRESSOR TO CONDENSER
                                                      - Not for USA and CDN
                                                      from £209.39
                                                      from £209.39
                                                      PIPE FROM COMPRESS.TO CONDENSER Genuine Maserati Part - New (to order)
                                                      # 007
                                                      MPN: 66063100
                                                      PIPE FROM CONDENSER TO FILTER
                                                      - Not for USA and CDN
                                                      from £107.66
                                                      from £107.66
                                                      TUBO DA CONDENSATORE A FILTR Genuine Maserati Part - New (to order)
                                                      TUBO DA CONDENSATORE A FILTR Genuine Maserati Part - Used In stock
                                                      # 007
                                                      MPN: 67193700
                                                      PIPE FROM CONDENSER TO FILTER
                                                      - Valid for USA and CDN
                                                      from £102.18
                                                      from £102.18
                                                      TUBO DA CONDENSATORE A FILTR Genuine Maserati Part - New (to order)
                                                      # 008
                                                      MPN: 66063200
                                                      PIPE FROM FILTER TO UNION
                                                      - Not for GD
                                                      from £44.57
                                                      from £44.57
                                                      PIPE FROM FILTER TO UNION 1 Genuine Maserati Part - New In stock
                                                      PIPE FROM FILTER TO UNION 1 Genuine Maserati Part - Used In stock
                                                      # 008
                                                      MPN: 66765800
                                                      PIPE FROM FILTER TO UNION
                                                      - Valid for GD
                                                      from £74.41
                                                      from £74.41
                                                      TUBO DA FILTRO A RACCORDO 1 Genuine Maserati Part - New (to order)
                                                      # 009
                                                      MPN: 66063300
                                                      PIPE FROM EVAPORATOR TO UNION
                                                      - Not for GD
                                                      from £55.30
                                                      from £55.30
                                                      TUBO DA RACCORDO 2 A EVAPOR Genuine Maserati Part - New (to order)
                                                      TUBO DA RACCORDO 2 A EVAPOR Genuine Maserati Part - Used In stock
                                                      # 009
                                                      MPN: 66722700
                                                      PIPE FROM EVAPORATOR TO UNION
                                                      - Valid for GD
                                                      from £71.35
                                                      from £71.35
                                                      TUBO DA EVAPORATORE A RACCOR Genuine Maserati Part - New (to order)
                                                      TUBO DA EVAPORATORE A RACCOR Genuine Maserati Part - Used In stock
                                                      # 010
                                                      MPN: 67110900
                                                      DEHYDRATING FILTER
                                                      from £41.04
                                                      from £41.04
                                                      This part replaces part number 385500174 - and 1 more. Click to view details
                                                      FILTRO FREON Genuine Maserati Part - New (to order)
                                                      FILTRO FREON Genuine Maserati Part - Used In stock
                                                      # 011
                                                      MPN: 66247100
                                                      COMPLETE DEHYDRATING FILTER SUPPORT BRACKET
                                                      from £7.69
                                                      from £7.69
                                                      This part replaces part number 66247200 - and 1 more. Click to view details
                                                      STAFFA SOSTEGNO FILTRO ESSIC Genuine Maserati Part - New (to order)
                                                      STAFFA SOSTEGNO FILTRO ESSIC Genuine Maserati Part - Used In stock
                                                      # 013
                                                      MPN: 12601274
                                                      WASHER
                                                      from £0.52
                                                      from £0.52
                                                      This part replaces part number 12601270
                                                      WASHER Genuine Maserati Part - New In stock
                                                      WASHER Genuine Ferrari Part - New In stock
                                                      # 014
                                                      MPN: 14305424
                                                      SCREW
                                                      from £0.50
                                                      from £0.50
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      SCREW Genuine Ferrari Part - New In stock
                                                      # 015
                                                      MPN: 11612626
                                                      SCREW
                                                      from £2.47
                                                      from £2.47
                                                      H.H. SCREW M6X20 WITH INC.WASHER Genuine Maserati Part - New In stock
                                                      # 016
                                                      MPN: 14307124
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      SOCKET HEAD SCREW M 8X 90 Genuine Maserati Part - New In stock
                                                      SCREW Genuine Ferrari Part - New In stock
                                                      # 017
                                                      MPN: 46476438
                                                      PRESSOSTAT
                                                      from £42.82
                                                      from £42.82
                                                      PRESSOSTATO PER FILTRO FREON Genuine Maserati Part - New (to order)
                                                      PRESSOSTATO PER FILTRO FREON Genuine Maserati Part - Used In stock
                                                      # 018
                                                      MPN: 11193874
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      WASHER Genuine Maserati Part - New In stock
                                                      WASHER Genuine Ferrari Part - New In stock
                                                      # 019
                                                      MPN: 14059214
                                                      NUT M6
                                                      - (Quantity 3 for cars USA and CDN)
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12578121
                                                      NUT Genuine Maserati Part - New (to order)
                                                      NUT. Genuine Ferrari Part - New In stock
                                                      # 020
                                                      MPN: 15698204
                                                      SCREW
                                                      - Not for USA and CDN
                                                      from £1.31
                                                      from £1.31
                                                      VITE A/MT/TEFL 6 X 40 Genuine Maserati Part - New (to order)
                                                      # 020
                                                      MPN: 15699804
                                                      SCREW
                                                      - Valid for USA and CDN
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 15534501
                                                      SCREW Genuine Maserati Part - New In stock
                                                      SCREW Genuine Ferrari Part - New In stock
                                                      # 021
                                                      MPN: 175428
                                                      SCREW
                                                      from £1.04
                                                      from £1.04
                                                      SOCKET HEAD SCREW M8X120 Genuine Maserati Part - New (to order)
                                                      SCREW. Genuine Ferrari Part - New In stock
                                                      # 022
                                                      MPN: 185556
                                                      CABLES FIXING BRACKET
                                                      from £1.55
                                                      from £1.55
                                                      BRACKET Genuine Maserati Part - New (to order)
                                                      # 023
                                                      MPN: 155978
                                                      CLIP
                                                      from £0.54
                                                      from £0.54
                                                      CLIP FOR CONNECTION PACKARD Genuine Maserati Part - New (to order)
                                                      CLIP Genuine Ferrari Part - New In stock
                                                      # 025
                                                      MPN: 11198579
                                                      WASHER
                                                      from £1.08
                                                      from £1.08
                                                      TAPERED RUBBER WASHER 10.5-2 Genuine Maserati Part - New (to order)
                                                      WASHER Genuine Ferrari Part - New (to order)
                                                      # 026
                                                      MPN: 14305821
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      SCREW Genuine Ferrari Part - New (to order)
                                                      # 027
                                                      MPN: 193551
                                                      RH UPPER BRACKET
                                                      - Valid for USA and CDN
                                                      from £4.63
                                                      from £4.63
                                                      BRACKET Genuine Maserati Part - New (to order)
                                                      # 028
                                                      MPN: 193552
                                                      LH UPPER BRACKET
                                                      - Valid for USA and CDN
                                                      from £16.31
                                                      from £16.31
                                                      STAFFA FISS SUP CONDENS A RA Genuine Maserati Part - New (to order)
                                                      # 029
                                                      MPN: 193553
                                                      RH LOWER BRACKET
                                                      - Valid for USA and CDN
                                                      from £3.63
                                                      from £3.63
                                                      BRACKET Genuine Maserati Part - New (to order)
                                                      # 030
                                                      MPN: 193554
                                                      LH LOWER BRACKET
                                                      - Valid for USA and CDN
                                                      from £3.63
                                                      from £3.63
                                                      BRACKET Genuine Maserati Part - New (to order)
                                                      # 031
                                                      MPN: 165137
                                                      SCREW
                                                      - Valid for USA and CDN
                                                      from £1.31
                                                      from £1.31
                                                      SCREW Genuine Maserati Part - New (to order)
                                                      BOLT Genuine Ferrari Part - New (to order)
                                                      # 032
                                                      MPN: 193556
                                                      RUBBER PROFILE
                                                      - Valid for USA and CDN
                                                      from £1.55
                                                      from £1.55
                                                      RUBBER PROFILE Genuine Maserati Part - New (to order)
                                                      # 033
                                                      MPN: 67193500
                                                      PIPE FROM COMPRESSOR TO UNION
                                                      - Valid for USA and CDN
                                                      from £370.14
                                                      from £370.14
                                                      TUBO DA COMPRESSORE A RACCOR Genuine Maserati Part - New (to order)
                                                      # 034
                                                      MPN: 67193600
                                                      PIPE FROM UNION TO CONDENSER
                                                      - Valid for USA and CDN
                                                      from £190.14
                                                      from £190.14
                                                      Maserati PART 67193600 Genuine Maserati Part - New (to order)
                                                      # 035
                                                      MPN: 10441590
                                                      BRACKET WITH SHEATH
                                                      from £0.53
                                                      from £0.53
                                                      BRACKET WITH SHEATH Genuine Maserati Part - New (to order)
                                                      CLIP Genuine Ferrari Part - New In stock
                                                      # 036
                                                      MPN: 14433124
                                                      SCREW
                                                      from £0.53
                                                      from £0.53
                                                      SCREW FOR CAM COVER ASSEM Genuine Maserati Part - New In stock
                                                      SCREW M6X18 Genuine Ferrari Part - New In stock
                                                      # 037
                                                      MPN: 127494
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      WASHER Genuine Maserati Part - New In stock
                                                      WASHER Genuine Ferrari Part - New In stock
                                                      # 038
                                                      MPN: 10441690
                                                      BRACKET WITH SHEATH
                                                      from £1.08
                                                      from £1.08
                                                      STAFFETTA CON GUAINA PER 1 T Genuine Maserati Part - New (to order)
                                                      BRACKET Genuine Ferrari Part - New In stock
                                                      # 039
                                                      MPN: 194993
                                                      O.R. GASKET
                                                      from £8.64
                                                      from £8.64
                                                      O-RING 64780 D.22 COMPRESS. Genuine Maserati Part - New In stock
                                                      O-RING 64780 D.22 COMPRESS. Eurospares Approved Part - New In stock
                                                      # 040
                                                      MPN: 67641500
                                                      O.R. GASKET
                                                      from £2.32
                                                      from £2.32
                                                      O.R.Tubi A.C. D.19 MARRONE T Genuine Maserati Part - New (to order)
                                                      # 041
                                                      MPN: 67641000
                                                      O.R. GASKET
                                                      - (Quantity 5 for cars USA and CDN)
                                                      from £2.32
                                                      from £2.32
                                                      O.R.Tubi A.C. D.10 VERDE K70 Genuine Maserati Part - New (to order)
                                                      # 042
                                                      MPN: 67641100
                                                      O.R. GASKET
                                                      from £2.32
                                                      from £2.32
                                                      O.R.Tubi A.C. D.15 VERDE K70 Genuine Maserati Part - New In stock
                                                      # 043
                                                      MPN: 67641200
                                                      O.R. GASKET
                                                      from £2.85
                                                      from £2.85
                                                      OR FOR A.C. LINE D.18 GREEN Genuine Maserati Part - New (to order)
                                                      # 044
                                                      MPN: 67641300
                                                      O.R. GASKET
                                                      - (Quantity 5 for cars USA and CDN)
                                                      from £1.93
                                                      from £1.93
                                                      O.R.Tubi A.C. D.11 MARRONE T Genuine Maserati Part - New (to order)
                                                      # 045
                                                      MPN: 67641400
                                                      O.R. GASKET
                                                      from £2.32
                                                      from £2.32
                                                      O.R.Tubi A.C. D.16 MARRONE T Genuine Maserati Part - New In stock
