136 - Engine Bonnet Sensor and Control Stations

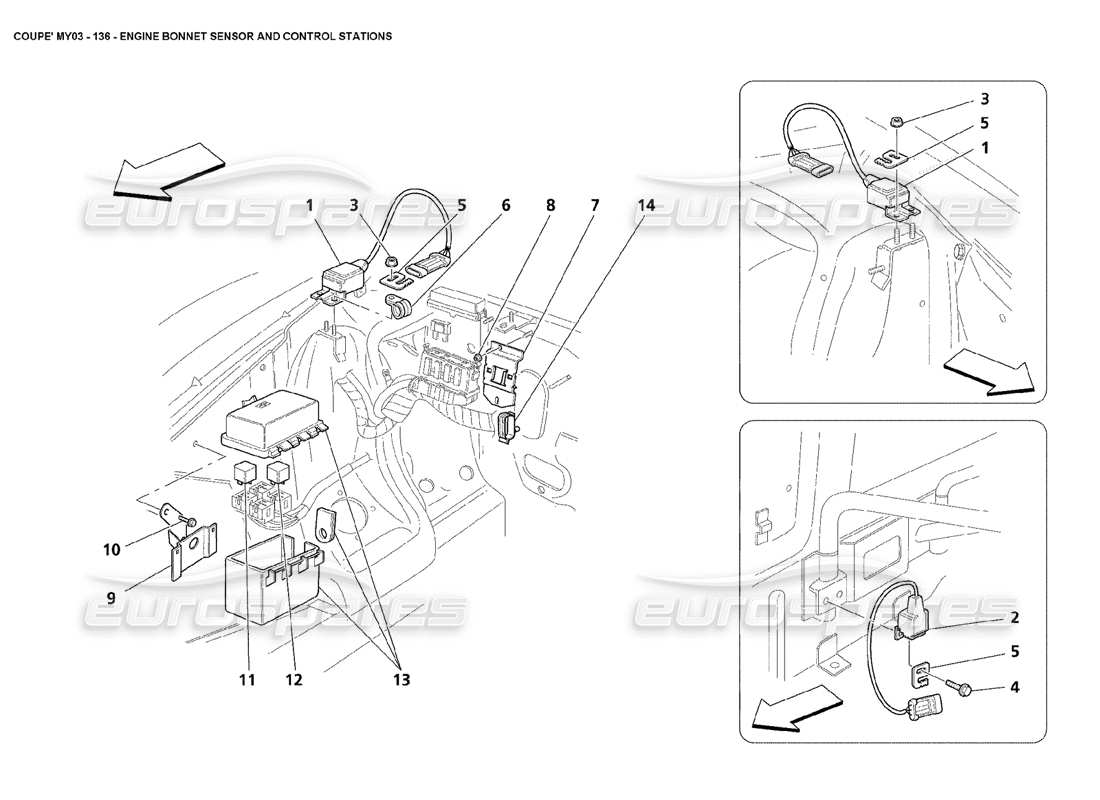

Maserati 4200 Coupe (2003) Engine Bonnet Sensor and Control Stations Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 279398
VERTICAL ACCELERATION SENSOR
- Optional - Version sport
from £60.91
from £60.91
This part replaces part number 232082 which we have in stock - and 1 more. Click to view details
# 002
MPN: 175221
LATERAL ACCELERATION SENSOR
- Optional - Version sport
from £84.43
from £84.43
# 003
MPN: 14059121
NUT
- Optional - Version sport
from £0.54
from £0.54
# 004
MPN: 11730624
SCREW
- Optional - Version sport
from £0.47
from £0.47
# 005
MPN: 162606
CLIP
- Optional - Version sport
from £0.76
from £0.76
# 006
MPN: 10441790
BRACKET WITH SHEATH
from £0.47
from £0.47
# 007
MPN: 190321
BRACKET
- Valid for GD
from £5.14
from £5.14
# 007
MPN: 66312900
BRACKET
- Not for GD
from £4.67
from £4.67
# 008
MPN: 14059211
NUT
from £0.47
from £0.47
This part replaces part number 675000181
# 009
MPN: 191074
BRACKET
from £14.10
from £14.10
This part replaces part number 189278
# 010
MPN: 16296924
SCREW
from £0.47
from £0.47
# 011
MPN: 184951
RELAY 50 A.
from £3.67
from £3.67
# 012
MPN: 171455
TIMER
- Optional - Xeno Headlights and Headligts Washer
from £38.65
from £38.65
# 013
MPN: 980001168
COMPLETE RELE' BOX
from £57.41
from £57.41
# 014
MPN: 374030567
CLIP
from £3.67
from £3.67
