maserati 4200 coupe (2003) tools equipment and accessories parts diagram

052 - Tools Equipment and Accessories

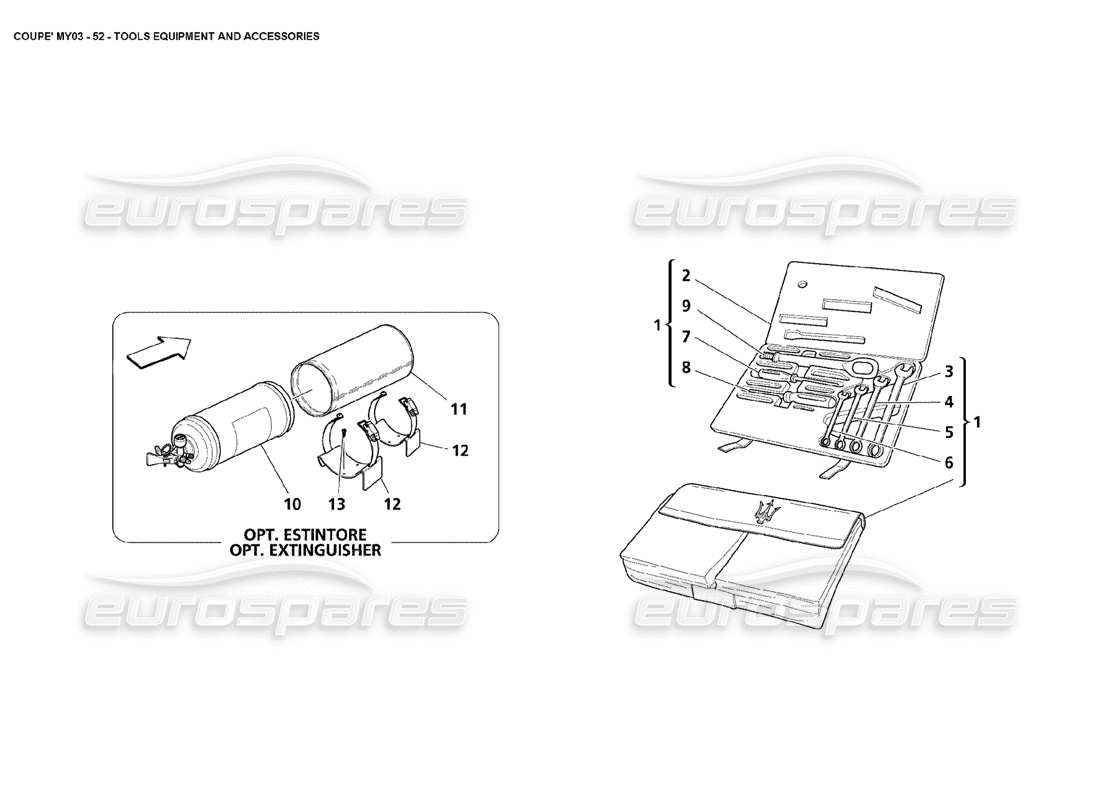

Maserati 4200 Coupe (2003) Tools Equipment and Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 254569
                    COMPLETE TOOL KIT BAG
                    from £90.42
                    from £90.42
                    This part replaces part number 191872 - and 1 more. Click to view details
                    TOOLS KIT M1 Genuine Maserati Part - New In stock
                    # 002
                    MPN: 191871
                    TOOL KIT BOX
                    from £68.60
                    from £68.60
                    TOOL KIT BOX Genuine Maserati Part - New In stock
                    # 003
                    MPN: 389800315
                    WRENCH 17
                    from £19.12
                    from £19.12
                    CHIAVE ESAGONALE FISSA 17 Genuine Maserati Part - New In stock
                    # 004
                    MPN: 389800314
                    WRENCH 13
                    from £5.65
                    from £5.65
                    WRENCH SIZE 13MM Genuine Maserati Part - New (to order)
                    # 005
                    MPN: 389800313
                    WRENCH 10
                    from £11.37
                    from £11.37
                    CHIAVE ESAGONALE FISSA 10 Genuine Maserati Part - New (to order)
                    # 006
                    MPN: 389800312
                    WRENCH 8
                    from £8.33
                    from £8.33
                    FIXED ALLEN WRENCH 8 Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 389800319
                    SCREWDRIVER FOR CROSS SLOT SCREWS
                    from £16.45
                    from £16.45
                    CACCIAVITE VITI INTAGLIO A C Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 389800318
                    SCREWDRIVER FOR SLOT SCREWS
                    from £16.45
                    from £16.45
                    CHIAVE PER VITI INTAGLIO Genuine Maserati Part - New (to order)
                    # 009
                    MPN: 60609775
                    TOW HOOK
                    from £24.82
                    from £24.82
                    TOW HOOK Genuine Maserati Part - New (to order)
                    # 010
                    MPN: 389800500
                    EXTINGUISHER
                    - optional
                    Supersession
                    Supersession
                    Genuine Maserati Part (no longer available to order)
                    # 011
                    MPN: 388100186
                    EXTINGUISHER BAG
                    - Optional - Extinguisher
                    from £135.85
                    from £135.85
                    CUSTODIA PELLE PER ESTINTORE Genuine Maserati Part - New (to order)
                    CUSTODIA PELLE PER ESTINTORE Genuine Maserati Part - New (other) In stock
                    Black leather with black stitching
                    # 012
                    MPN: 388100099
                    EXTINGUISHER BRACKET
                    - Optional - Extinguisher
                    from £357.74
                    from £357.74
                    STAFFA FISSAGGIO ESTINTORE C Genuine Maserati Part - New (to order)
                    # 012
                    MPN: 66306800
                    LEATHER SLEEVE FOR EXTINGUISHER
                    BEIGE
                    from £33.50
                    from £33.50
                    NASTRO FISSAGGIO ESTINTORE C Genuine Maserati Part - New (to order)
                    # 013
                    MPN: 13297477
                    SCREW
                    - Optional - Extinguisher
                    from £0.47
                    from £0.47
                    SCREW 4X12 (13297477) Genuine Ferrari Part - New (to order)
                    TSIC PZ SCREW M4X12 Genuine Maserati Part - New (to order)
