maserati 4200 coupe (2003) current generator - starting motor parts diagram

051 - Current Generator - Starting Motor

Maserati 4200 Coupe (2003) Current Generator - Starting Motor Parts Diagram

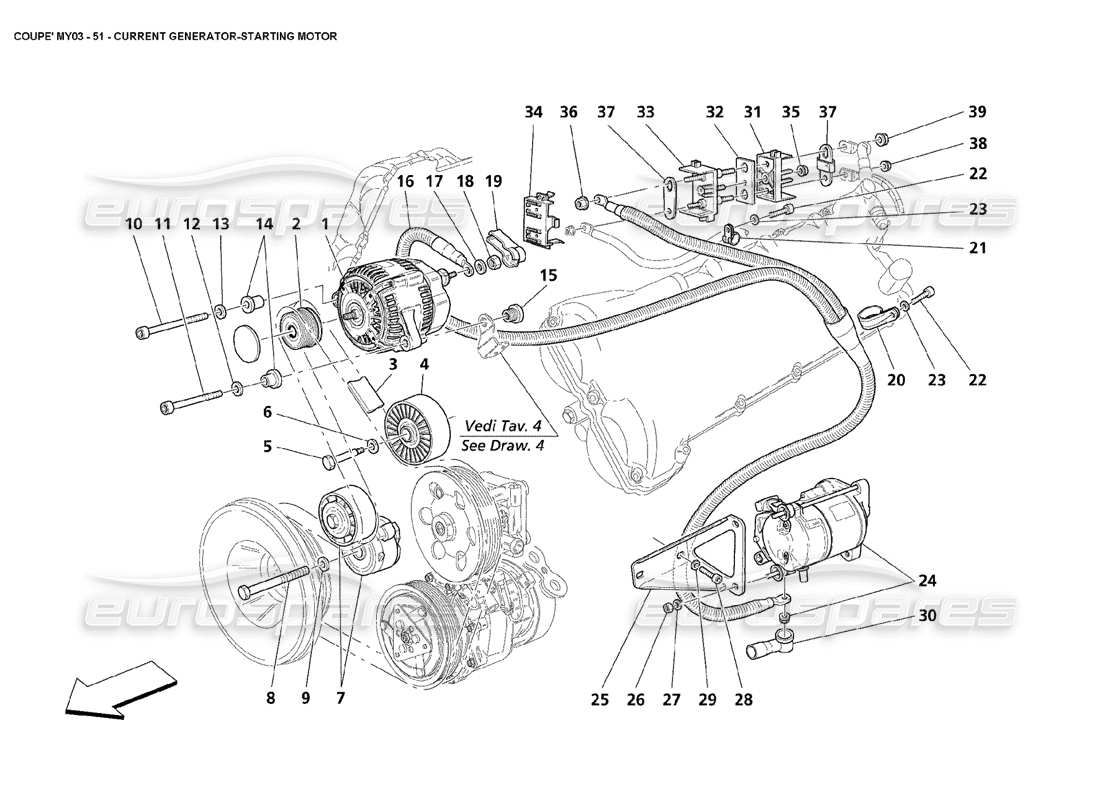

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 179546
                                                                          ALTERNATOR
                                                                          from £538.04
                                                                          from £538.04
                                                                          # 002
                                                                          MPN: 187474
                                                                          PULLEY
                                                                          (not available as spare parts)
                                                                          from £779.02
                                                                          from £779.02
                                                                          # 003
                                                                          MPN: 200738
                                                                          COMPRESSOR CONTROL BELT
                                                                          from £14.21
                                                                          from £14.21
                                                                          This part replaces part number 175446
                                                                          # 003
                                                                          MPN: 200738
                                                                          COMPRESSOR CONTROL BELT
                                                                          - Valid after stock exhaustion of 175446
                                                                          from £14.21
                                                                          from £14.21
                                                                          This part replaces part number 175446
                                                                          # 004
                                                                          MPN: 172537
                                                                          BELT TIGHTENING PULLEY
                                                                          from £73.06
                                                                          from £73.06
                                                                          # 005
                                                                          MPN: 11234724
                                                                          SCREW
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 006
                                                                          MPN: 11190574
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 007
                                                                          MPN: 233644
                                                                          BELT TIGHTENING
                                                                          from £61.89
                                                                          from £61.89
                                                                          This part replaces part number 175436 - and 1 more. Click to view details
                                                                          # 008
                                                                          MPN: 16044431
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 009
                                                                          MPN: 11193874
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 010
                                                                          MPN: 14308724
                                                                          SCREW
                                                                          from £2.62
                                                                          from £2.62
                                                                          # 011
                                                                          MPN: 14308224
                                                                          SCREW
                                                                          from £0.81
                                                                          from £0.81
                                                                          # 012
                                                                          MPN: 10569474
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 013
                                                                          MPN: 11190574
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 014
                                                                          MPN: 164467
                                                                          BUSHING
                                                                          from £15.91
                                                                          from £15.91
                                                                          # 015
                                                                          MPN: 187143
                                                                          THREADED BUSHING
                                                                          from £5.39
                                                                          from £5.39
                                                                          # 016
                                                                          MPN: 184946
                                                                          CABLE FROM ALTERNATOR TO STARTER MOTOR
                                                                          - Not for GD - Valid till stock exhaustion
                                                                          Supersession
                                                                          Supersession
                                                                          # 016
                                                                          MPN: 190320
                                                                          CABLE FROM ALTERNATOR TO STARTER MOTOR
                                                                          - Valid for GD - Valid till stock exhaustion
                                                                          from £47.33
                                                                          from £47.33
                                                                          # 016
                                                                          MPN: 200405
                                                                          CABLE FROM ALTERNATOR TO STARTER MOTOR
                                                                          - Not for GD - Valid after stock exhaustion of 184946
                                                                          from £71.86
                                                                          from £71.86
                                                                          This part replaces part number 184946
                                                                          # 016
                                                                          MPN: 200408
                                                                          CABLE FROM ALTERNATOR TO STARTER MOTOR
                                                                          - Valid for GD - Valid after stock exhaustion of 190320
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 190320 which we have in stock
                                                                          # 017
                                                                          MPN: 12601374
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 018
                                                                          MPN: 16102314
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 019
                                                                          MPN: 154803
                                                                          PROTECTION BOOT
                                                                          from £2.68
                                                                          from £2.68
                                                                          # 020
                                                                          MPN: 10442190
                                                                          BRACKET WITH SHEATH
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 021
                                                                          MPN: 10441590
                                                                          BRACKET WITH SHEATH
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 022
                                                                          MPN: 14305724
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 023
                                                                          MPN: 11197774
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 026
                                                                          MPN: 160472
                                                                          NUT
                                                                          from £1.27
                                                                          from £1.27
                                                                          # 027
                                                                          MPN: 61148700
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 028
                                                                          MPN: 14305724
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 029
                                                                          MPN: 11197774
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 030
                                                                          MPN: 124683
                                                                          PROTECTION BOOT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 031
                                                                          MPN: 60510161
                                                                          INSERT
                                                                          from £1.58
                                                                          from £1.58
                                                                          # 032
                                                                          MPN: 393050343
                                                                          GASKET
                                                                          from £1.55
                                                                          from £1.55
                                                                          # 033
                                                                          MPN: 60510160
                                                                          INSERT
                                                                          from £10.06
                                                                          from £10.06
                                                                          INSERTO GUIDA FILI Genuine Maserati Part - Used In stock
                                                                          COMPLETE WITH 5,6,8,9,10,11,12 SEE PICTURE
                                                                          # 034
                                                                          MPN: 60616507
                                                                          COVER
                                                                          from £2.29
                                                                          from £2.29
                                                                          This part replaces part number 393050340
                                                                          # 035
                                                                          MPN: 14084211
                                                                          NUT
                                                                          from £0.71
                                                                          from £0.71
                                                                          This part replaces part number 14084217
                                                                          # 036
                                                                          MPN: 14059311
                                                                          NUT
                                                                          from £0.54
                                                                          from £0.54
                                                                          # 037
                                                                          MPN: 393050344
                                                                          CONNECTION ELEMENT
                                                                          from £1.78
                                                                          from £1.78
                                                                          # 038
                                                                          MPN: 14084211
                                                                          NUT
                                                                          from £0.71
                                                                          from £0.71
                                                                          This part replaces part number 14084217
                                                                          # 039
                                                                          MPN: 14084417
                                                                          NUT
                                                                          from £1.21
                                                                          from £1.21
